Introduction
The WARCAT Self-Cleaning Automatic Cat Litter Box is designed to simplify pet care by providing a consistently clean and hygienic environment for your cat. This open-top unit features automatic cleaning cycles, advanced safety sensors, and a large-capacity waste drawer, all without requiring a mobile application for operation. It is suitable for cats weighing 3.5 lbs and up.

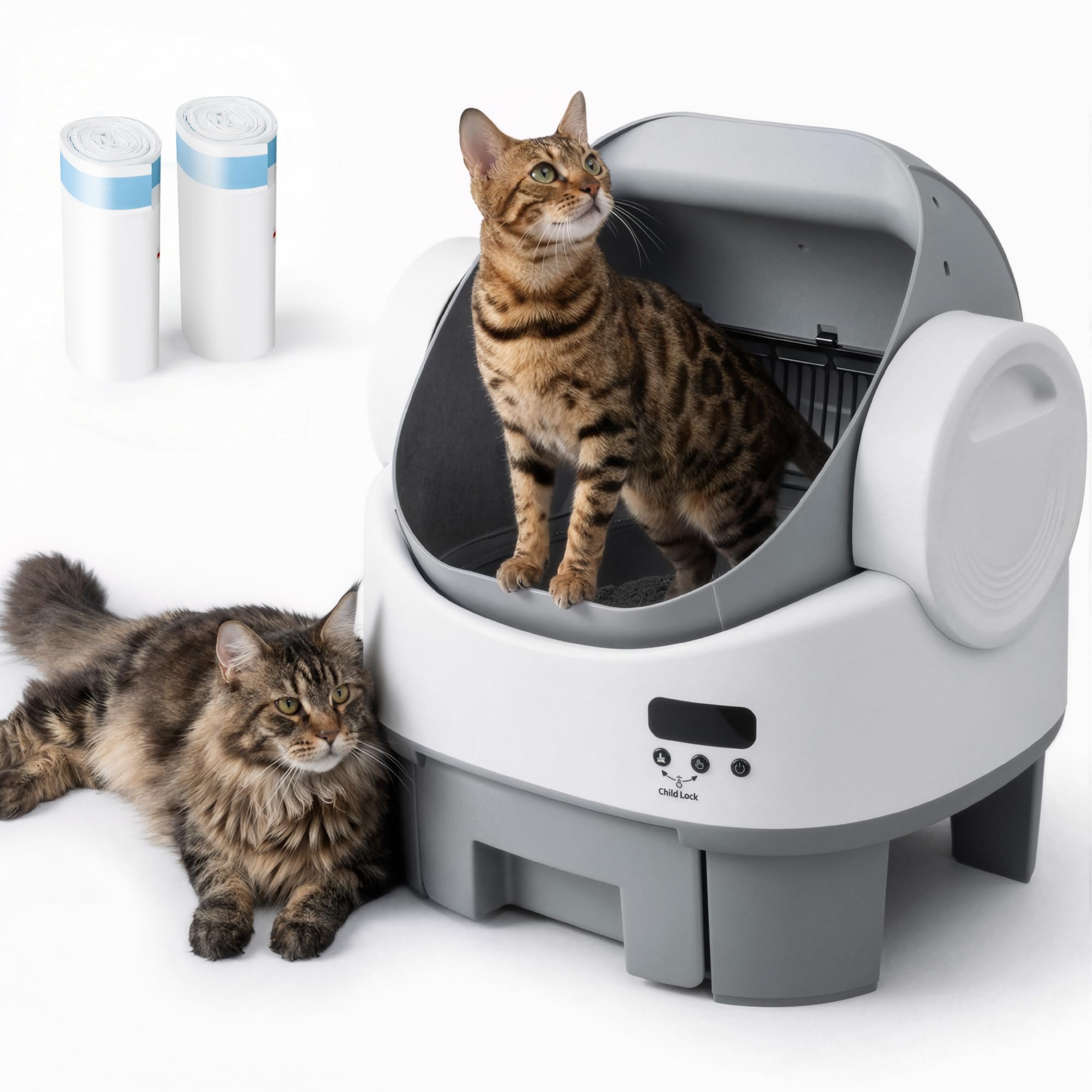

Image: The WARCAT Self-Cleaning Automatic Cat Litter Box, showcasing its sleek gray and white design in a home setting.
Package Contents
Upon unboxing, ensure all components are present:
- WARCAT Self-Cleaning Automatic Cat Litter Box Unit
- Waste Drawer
- Power Adapter
- Litter Mat
- Garbage Bags (starter rolls)
- Litter Scoop
- Instruction Manual
Image: All components of the litter box, including the main unit, waste drawer, power adapter, litter mat, garbage bags, and scoop, neatly arranged after unboxing.
Setup and Installation
- Attach the Support Legs: Locate the four support legs and align them with the designated slots on the bottom of the main unit. Twist each leg to secure it into the locked position.
- Install the Waste Drawer: Place a garbage bag into the 10L waste drawer, ensuring it is properly seated. Slide the waste drawer into the designated slot at the front of the base unit.
- Add Cat Litter: Pour clumping cat litter (granules smaller than 15mm/0.6 inches) into the main drum. Ensure the litter level is between the MIN and MAX fill lines indicated inside the drum.
- Connect Power: Plug the power adapter into the unit and then into a wall outlet. The unit will perform an initial calibration cycle.
Image: Visual guide demonstrating the simple assembly process, including attaching the legs and inserting the waste drawer.
Operating Instructions
The WARCAT litter box operates automatically, but also offers manual control and safety features.
- Automatic Cleaning Cycle: The unit automatically initiates a cleaning cycle after your cat exits the litter box. This ensures a fresh bed of litter for the next use.
- Cleaning Button: Press once to start a cleaning cycle manually. Long press for 3 seconds to empty the cat litter completely.
- Manual Mode Button: Long press for 3 seconds to enter manual mode, then long press again for 3 seconds to exit. This allows for specific cleaning or maintenance tasks.
- Power Button: Long press for 3 seconds to power off the unit; press once to power it on.
Image: A cat comfortably using the open-top litter box, with a clear view of the intuitive control panel for easy operation.
Safety Features
Your cat's safety is a top priority with the WARCAT litter box.
- Smart Safety Sensors: Equipped with 8 dedicated sensors, the litter box continuously monitors for your cat's presence. If a cat enters during an automatic cleaning cycle, the operation will immediately halt and resume only after the cat has safely exited.
- Child Lock: To prevent accidental operation by children or curious pets, activate the child lock. First, press and hold the manual mode button, then press and hold the cleaning button. Maintain this for 3 seconds to activate the child lock. Repeat the steps to deactivate. A steady white light indicates the child lock is enabled.
Image: A detailed diagram highlighting the dual anti-pinch sensors, dual Hall sensors, partially open gear with reserved safety gap, and three high-precision infrared sensors for comprehensive safety.
Litter Compatibility
The WARCAT litter box is compatible with most clumping cat litters. For optimal performance, ensure the litter granules are smaller than 15mm (0.6 inches). There is no need to switch from your cat's preferred brand, as long as it meets the size requirement.
Image: An illustration depicting various types of clumping cat litter (Bentonite, Mixed, Mineral) that are compatible with the automatic litter box.
Maintenance
Regular maintenance ensures the longevity and hygienic operation of your litter box.
- Emptying the Waste Drawer: The 10L sealed waste drawer reduces the frequency of emptying. For multi-cat households, it may need to be emptied every 3-5 days. For single-cat households, it can last up to 10 days. Simply pull out the drawer, tie the garbage bag, and replace it with a new one.
- Cleaning the Unit: The main drum is washable. For the base unit, wipe with wet wipes only; it is not washable.
Image: A visual guide illustrating how to easily clean the litter box, showing the drum being washed and the base being wiped, emphasizing the modular design for maintenance.
Specifications
| Feature | Detail |
|---|---|
| Product Dimensions | 21.7"L x 21.7"W x 20"H |
| Item Weight | 22.27 Pounds |
| Model Number | W26-1365-0318 |
| Brand | WARCAT |
| Material | Plastic |
| Litter Box Type | Automated Self-Cleaning Litter Box |
| Waste Drawer Capacity | 10L |
| App Connectivity | No App Required |
Warranty Information
The WARCAT Self-Cleaning Automatic Cat Litter Box comes with a 1-Year Limited Warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. For warranty claims or technical support, please refer to the contact information provided in your product packaging or visit the official WARCAT website.
Troubleshooting
If you encounter any issues with your WARCAT Self-Cleaning Automatic Cat Litter Box, please refer to the detailed troubleshooting section in the full instruction manual. Common issues can often be resolved by ensuring proper litter levels, checking for obstructions, or resetting the unit. If problems persist, contact customer support for assistance.
