1. Introduction
This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your Aoxun 7 Piece Patio Furniture Set. Please read all instructions carefully before assembly and use to ensure safe and proper operation of the product. Keep this manual for future reference.
2. Safety Information
- Ensure all components are securely fastened before use.
- Do not exceed the weight capacity of individual seating units.
- Keep children and pets away from the assembly area.
- Avoid placing hot items directly on the rattan or cushions.
- Use caution when moving furniture to prevent injury or damage.
- Store cushions indoors during inclement weather to prolong their lifespan.
3. Package Contents
Your Aoxun 7 Piece Patio Furniture Set includes the following components. Please verify all parts are present before beginning assembly. This product is packaged in multiple boxes and may not arrive at the same time.
- Screws
- Wrenches
- Individual furniture pieces (Armless Sofas, Corner Sofas, Coffee Table)
- Cushions for seating and backrests
- Waterproof cover
Figure 3.1: Product Dimensions and Included Components
The image above illustrates the dimensions of the armless sofa, corner sofa, coffee table, and the included waterproof cover. It also indicates that the product ships in multiple packages.
4. Setup & Assembly
Assembly is required for this patio furniture set. Follow the steps below for proper setup. It is recommended to have two people for assembly.
- Unpack all components and lay them out on a clean, flat surface.
- Identify each furniture piece (armless sofas, corner sofas, coffee table) using the provided diagrams.
- Attach the legs or connecting brackets to each piece using the included screws and wrenches. Ensure all connections are tight and secure.
- Place the cushions on the seating units.
- Arrange the modular pieces into your desired configuration.
Figure 4.1: Individual Furniture Components
This image shows the various components of the 7-piece set from an aerial perspective, aiding in identification during assembly.
Figure 4.2: Customizable Configurations
The diagram above demonstrates various ways the modular pieces can be combined to create different seating arrangements, such as L-shaped sofas or individual seating areas.
5. Operating Instructions
5.1 Modular Configuration
The Aoxun patio furniture set features a modular design, allowing you to arrange the individual pieces to suit your space and needs. Simply move the armless and corner sofas, along with the coffee table, into your desired layout. Ensure pieces are stable and not prone to tipping.
5.2 Cushion Features
The cushions are designed for comfort and durability:
- Extra-Wide Seating: Enjoy 25.5-inch wide seating surfaces.
- Thickened Cushions: 4-inch thick cushions with 28D high-resilience foam provide enhanced support and comfort.
- Waterproof & Detachable: Cushions are waterproof and feature detachable, machine-washable covers for easy cleaning.
- Anti-Slip: The cushions are designed with anti-slip features to keep them in place.
- Fixed Windproof: Straps or clips may be included to secure cushions against wind.
Figure 5.1: Extra-Thick Cushion Features
This image details the comfort and practical features of the cushions, including their thickness, waterproof fabric, and anti-slip design.
5.3 Product Video
Watch this video for a visual demonstration of the patio furniture set in use and its features.
Video 5.1: Aoxun Patio Furniture Set Overview. This video demonstrates the general use and water-resistant properties of the patio furniture set.
6. Maintenance
Proper maintenance will extend the life and appearance of your patio furniture set.
6.1 Rattan Care
The hand-woven PVC rattan is UV-resistant and designed for all-weather durability. To clean, wipe with a damp cloth and mild soap. Avoid harsh chemicals or abrasive cleaners.

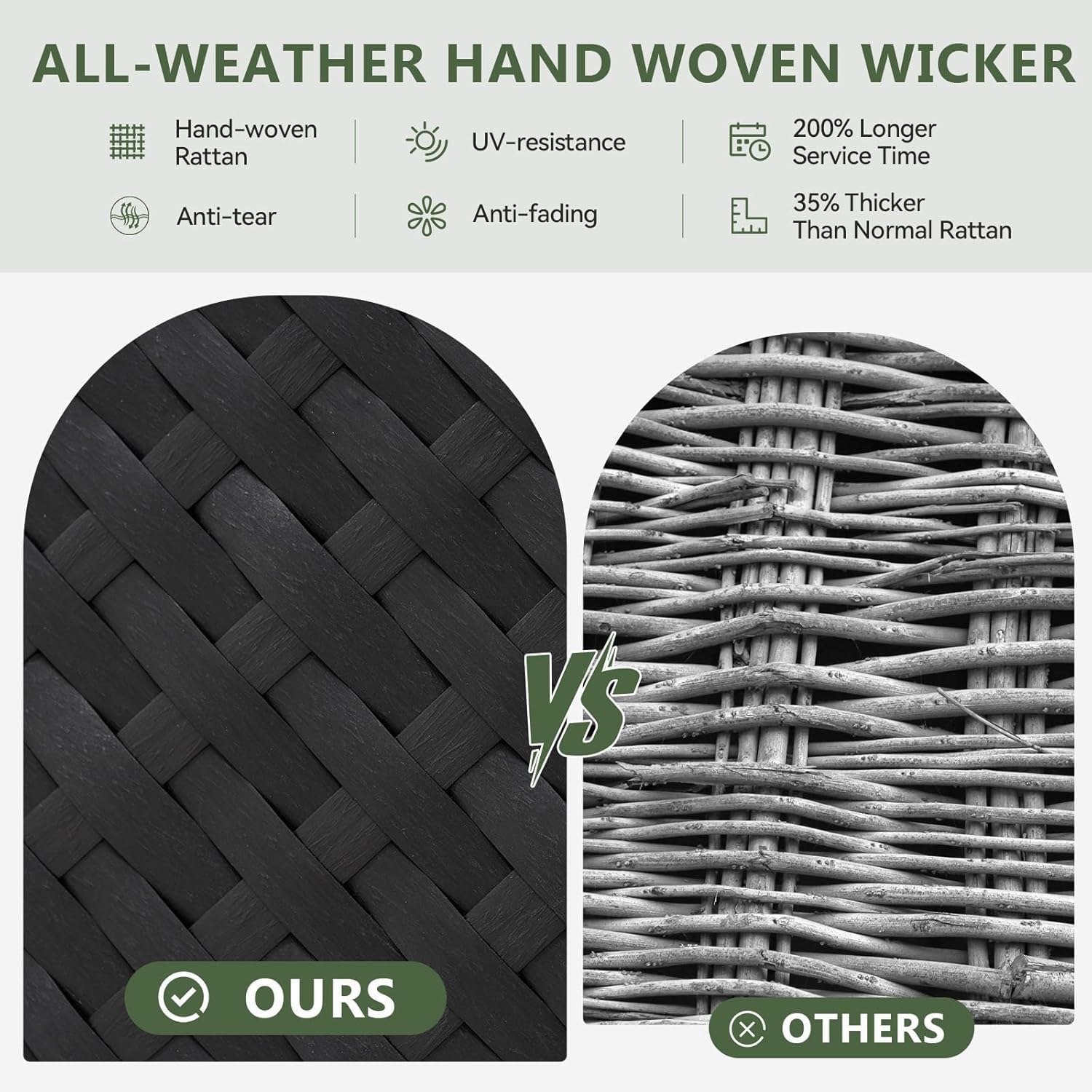

Figure 6.1: All-Weather Hand Woven Wicker
This image illustrates the superior quality of the hand-woven rattan used in the Aoxun set, emphasizing its durability and resistance to elements compared to standard rattan.
6.2 Cushion Care
The cushion covers are detachable and machine-washable. Follow the care instructions on the label. For spills, promptly clean with a damp cloth. Store cushions in a dry place or use the provided waterproof cover during heavy rain or off-season to prevent moisture damage and fading.
6.3 Frame Care
The powder-coated galvanized steel frames are rust-resistant. Inspect periodically for any signs of wear or rust. Clean with a damp cloth as needed.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Loose connections after assembly | Screws not fully tightened. | Re-tighten all screws using the provided wrench. Periodically check and tighten all fasteners. |
| Cushions sliding off | Cushions not properly secured or anti-slip features not engaged. | Ensure cushions are placed correctly. Utilize any fixed windproof straps or clips if available. |
| Rattan appears dull or dirty | Accumulation of dust or environmental debris. | Wipe down with a damp cloth and mild soap. Rinse thoroughly and allow to air dry. |
| Missing parts upon delivery | Shipping error or multiple package delivery. | Check all received packages. If parts are still missing, contact customer support with your order details. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Aoxun |
| Model Number | Rattan sofa |
| Color | Black |
| Size | 7 Pcs |
| Material Type | Metal & Rattan |
| Item Weight | 40 Pounds (approximate, for individual components) |
| Assembly Required | Yes |
| Included Components | Screws, Wrenches, Furniture Pieces |
9. Customer Support
For any questions, missing parts, or assistance with your Aoxun Patio Furniture Set, please contact our customer support. Refer to your purchase documentation for specific contact information or visit the official Aoxun website.
