naspaluro Ergonomic Office Chair X24F00K129-3 User Manual

Introduction

Thank you for choosing the naspaluro Ergonomic Office Chair. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure optimal use and longevity of your chair. Please read this manual thoroughly before assembly and use.

Product Overview

The naspaluro Ergonomic Office Chair is designed for comfort and support during long periods of sitting. Key features include an adjustable headrest, adjustable armrests, dynamic lumbar support, and a breathable mesh back.

Figure 1: Front view of the naspaluro Ergonomic Office Chair.

Figure 2: Detailed product dimensions, including height, width, and depth measurements for various components of the chair. The chair height is adjustable from 110-127 cm, seat height from 43-53 cm, and seat width is 51 cm.

Assembly Instructions

Assembly of the naspaluro Ergonomic Office Chair is designed to be straightforward and can typically be completed by one person in approximately 15 minutes. All necessary components and tools are included.

1. Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, flat surface. Verify all components are present against the parts list (not provided in this manual, refer to included physical manual).
2. Attach Casters to Base: Insert the five casters into the holes at the end of each leg of the chair base. Push firmly until they click into place.
3. Insert Gas Lift: Place the gas lift cylinder into the center hole of the assembled chair base. Ensure it is seated securely.
4. Attach Seat Mechanism: Secure the seat mechanism to the underside of the seat cushion using the provided screws. Ensure the front of the mechanism aligns with the front of the seat.
5. Connect Seat to Gas Lift: Carefully place the assembled seat onto the gas lift cylinder. Apply gentle downward pressure to secure it.
6. Attach Backrest: Connect the backrest to the seat mechanism using the designated screws. Ensure a firm and stable connection.
7. Install Headrest: Slide the headrest into the designated slots at the top of the backrest. Adjust to your preferred height.

Note: For detailed visual instructions, please refer to the assembly guide included in your product packaging.

Operating Adjustments

Your naspaluro Ergonomic Office Chair offers several adjustment options to customize your seating experience for maximum comfort and ergonomic support.

1. Seat Height Adjustment

To adjust the seat height, locate the lever on the right side beneath the seat. Pull the lever upwards while seated to lower the seat, or pull it upwards while standing to raise the seat. Release the lever at your desired height.

2. Backrest Recline and Tilt

The chair features a recline function with an angle range of 90 to 120 degrees. The backrest can be tilted to provide dynamic support. Note that the recline cannot be locked at an intermediate angle.

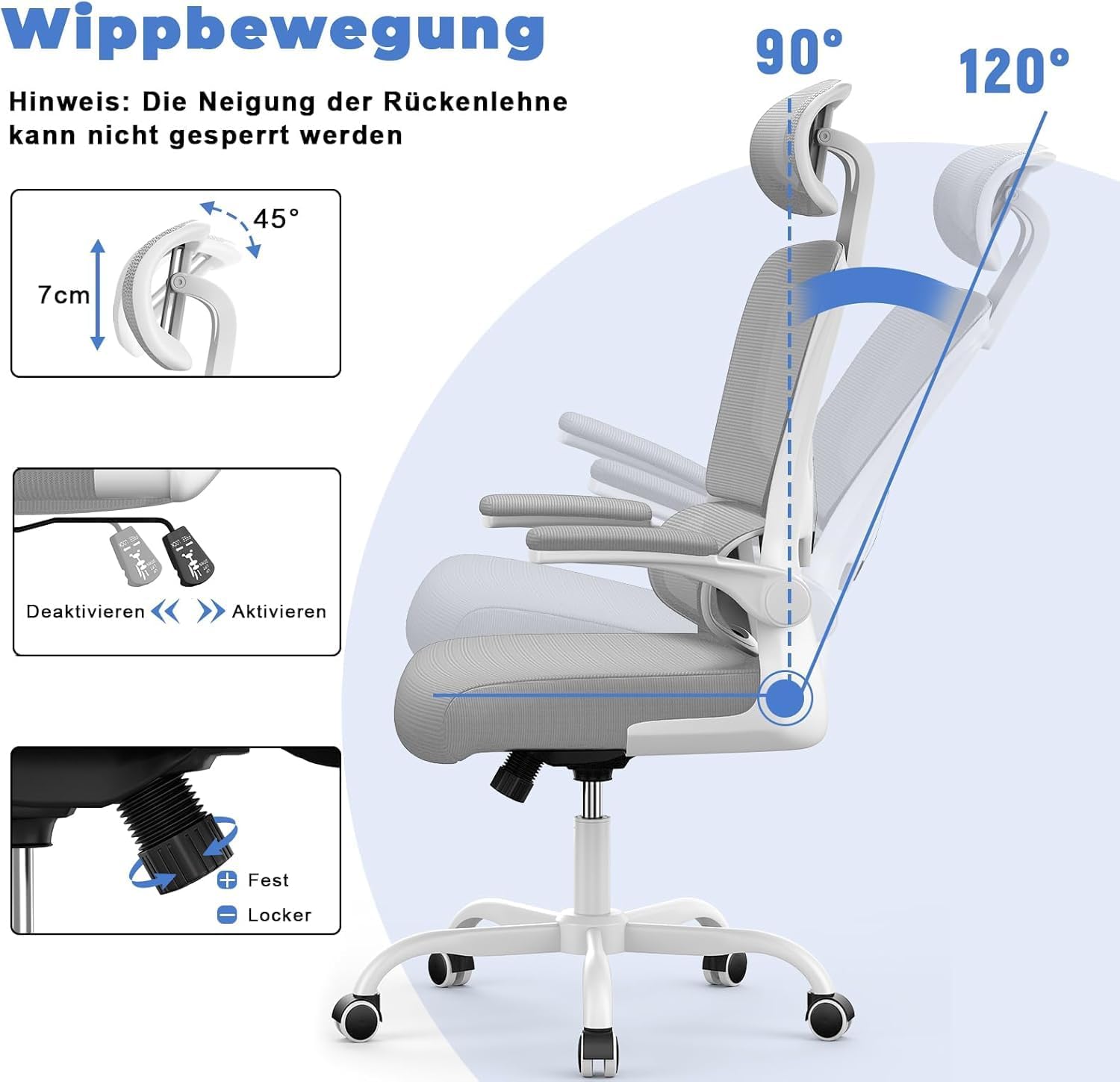

Figure 3: Illustration of the backrest recline from 90 to 120 degrees and the 45-degree headrest tilt. The lever for activating/deactivating the recline and the tension knob for firmness are also shown.

• Recline Activation: Use the lever on the left side beneath the seat to activate or deactivate the recline function.
• Tilt Tension: Adjust the tension of the recline mechanism by turning the round knob located underneath the seat. Turn clockwise to increase tension (firmer recline) and counter-clockwise to decrease tension (looser recline).

3. Adjustable Headrest

The headrest can be adjusted in height and angle to provide optimal neck and head support. Simply push or pull the headrest to adjust its vertical position and tilt it to your preferred angle.

4. Adjustable Armrests

The armrests are designed to be adjustable. They can be rotated upwards to save space, allowing the chair to be pushed further under a desk. This feature is useful for compact storage.

Figure 4: The armrests can be folded upwards by 90 degrees, allowing the chair to be stored compactly under a desk.

5. Dynamic Lumbar Support

The chair features an adaptive lumbar support system that automatically adjusts within a 0-20 degree range to conform to your lower back curve, providing continuous support and helping to alleviate fatigue.

Figure 5: Diagram illustrating the professional ergonomic design, highlighting support for the neck, shoulders, and waist, with a focus on the curved back and lordosis support.

Figure 6: Close-up view of the elastic adaptive lumbar support, showing its 20-degree rotation capability and 4 cm depth adjustment.

Maintenance

Regular maintenance will help preserve the appearance and functionality of your naspaluro Ergonomic Office Chair.

• Cleaning:
  • For mesh and fabric parts, use a soft brush or vacuum cleaner to remove dust and debris. For stains, gently dab with a damp cloth and mild soap solution, then wipe with a clean, damp cloth and allow to air dry.
  • For plastic and metal parts, wipe with a soft, damp cloth. Avoid abrasive cleaners or solvents.
• Check Connections: Periodically check all screws and bolts to ensure they are tight. Re-tighten if necessary to maintain stability and safety.
• Caster Care: Keep casters clean from hair and debris to ensure smooth movement.
• Gas Lift: The gas lift is a sealed unit and requires no user maintenance. If it malfunctions, contact customer support.

Troubleshooting

If you encounter any issues with your naspaluro Ergonomic Office Chair, refer to the following common problems and solutions:

Specifications

Warranty and Support

naspaluro stands behind the quality of its products. For warranty information, technical support, or any questions regarding your ergonomic office chair, please contact our customer service team.

Customer Support: Please refer to the contact information provided with your purchase or visit the official naspaluro website for assistance.

Please retain your proof of purchase for warranty claims.
