KOTLIE EM-308B 5-in-1 Coffee Machine User Manual

Introduction

Thank you for choosing the KOTLIE EM-308B 5-in-1 Coffee Machine. This appliance is designed to provide a versatile coffee brewing experience, compatible with various capsule types, ESE pods, and ground coffee. Please read this manual thoroughly before operating the machine to ensure safe and efficient use. Keep this manual for future reference.

Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury.

• Read all instructions before use.
• Do not immerse the machine, power cord, or plug in water or other liquids.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to 'off', then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Scalding may occur if the water tank lid is removed during the brewing cycle.
• The machine operates at high temperatures. Exercise caution when handling hot parts or liquids.

Product Overview

The KOTLIE EM-308B is a versatile coffee machine designed for various coffee preparations. It features a compact design and a 1-liter water tank.

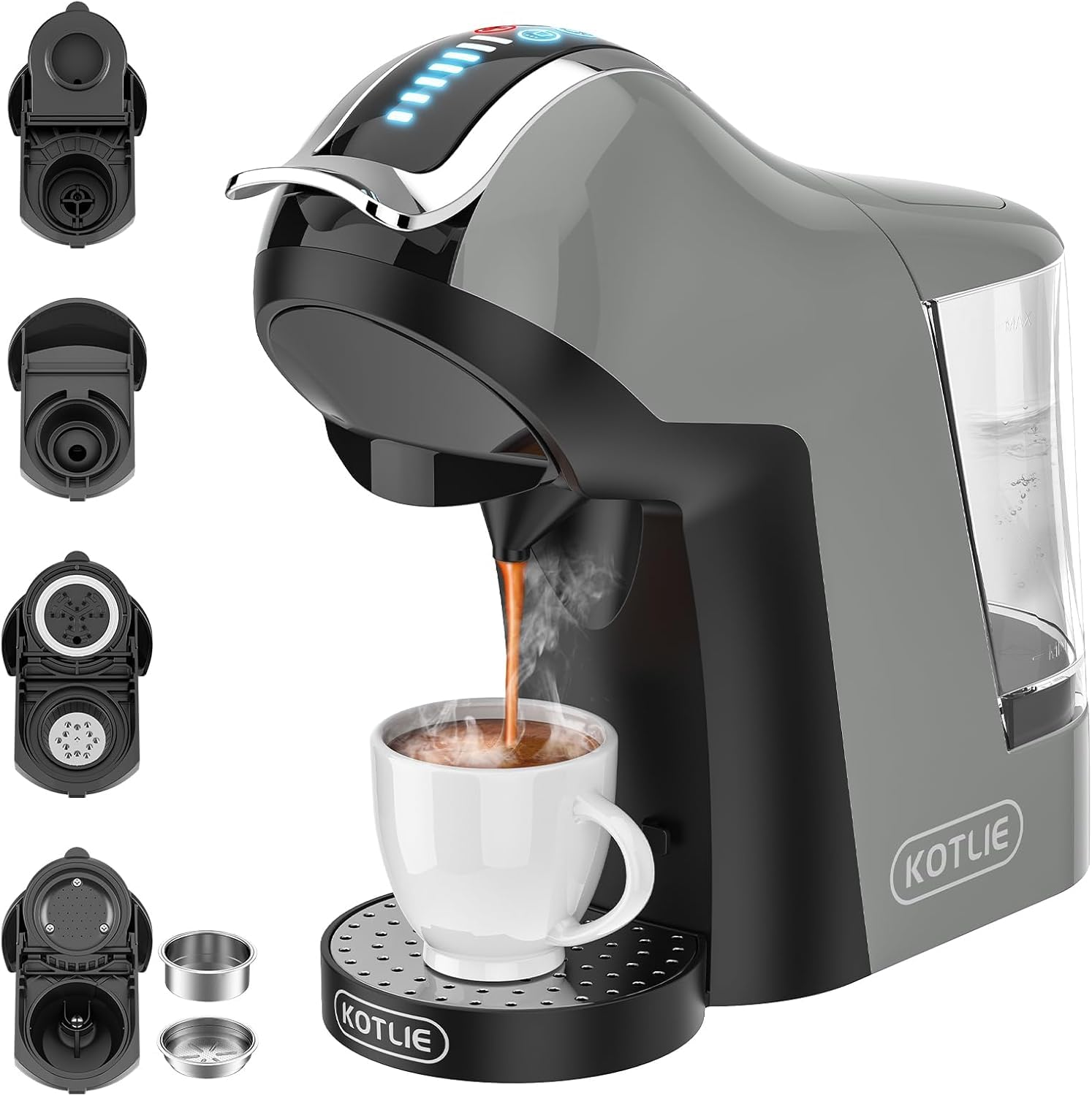

Image: KOTLIE EM-308B 5-in-1 Coffee Machine. This image displays the overall design of the coffee machine, highlighting its compact form factor and main components such as the water tank, control panel, and coffee outlet.

Key Features:

• 5-in-1 Compatibility: Supports Nespre*so Original, D*lce Gu*to, A Modo Mio capsules, 44mm ESE pods, and ground coffee. (Note: Not compatible with larger pods like Sens*o.)
• 3 Temperature Levels: Low (green light), Medium (yellow light), High (red light) for precise brewing.
• 7 Water Volume Levels: Adjustable for personalized coffee strength, from strong espresso to mild Americano.
• Pre-infusion Function: Humidifies ground coffee before brewing for optimal aroma extraction.
• 1-Liter Water Tank: Large capacity reduces the need for frequent refills.
• Compact Design: Ideal for small kitchens or office spaces.

Setup

1. Unpacking

1. Carefully remove the coffee machine and all accessories from the packaging.
2. Remove any protective films or packaging materials from the appliance.
3. Check that all components are present and undamaged.

2. Initial Cleaning

1. Wash the water tank, drip tray, and capsule/pod/ground coffee adapters with warm, soapy water. Rinse thoroughly and dry.
2. Wipe the exterior of the machine with a damp cloth.

3. First Use (Rinsing Cycle)

1. Fill the water tank with fresh, clean water up to the MAX level.
2. Place an empty cup on the drip tray.
3. Plug the machine into a grounded power outlet. The power indicator light will illuminate.
4. Without any coffee or capsule inserted, press the brew button to run a full cycle of hot water through the machine. Repeat this process 2-3 times to clean the internal system.
5. Discard the water. The machine is now ready for use.

Operating Instructions

1. Filling the Water Tank

• Ensure the machine is unplugged or turned off.
• Remove the water tank from the back of the machine.
• Fill with fresh, cold water up to the MAX mark. Do not overfill.
• Replace the water tank securely on the machine.

2. Selecting Coffee Type and Adapter

The KOTLIE EM-308B comes with multiple adapters for different coffee types:

• Nespresso Original Compatible Capsules: Use the designated capsule adapter.
• Dolce Gusto Compatible Capsules: Use the designated capsule adapter.
• A Modo Mio Compatible Capsules: Use the designated capsule adapter.
• 44mm ESE Pods: Use the designated ESE pod adapter.
• Ground Coffee: Use the ground coffee adapter and fill with your desired amount of ground coffee (do not overfill or tamp too hard).

Insert the appropriate adapter into the brewing chamber.

3. Setting Temperature and Water Volume

• Temperature: The machine offers three temperature settings. Press the temperature button to cycle through: Green Light (Low), Yellow Light (Medium), Red Light (High). Select your preferred temperature.
• Water Volume: Use the water volume adjustment buttons to select one of the seven available levels. This controls the amount of water dispensed, allowing you to customize coffee strength.

4. Brewing Coffee

1. Ensure the water tank is filled and the correct adapter with coffee is inserted.
2. Place a cup on the drip tray.
3. Select your desired temperature and water volume.
4. Press the brew button. The machine will begin the brewing process. For ground coffee, the pre-infusion function will activate first, briefly wetting the coffee before full extraction.
5. Once brewing is complete, the machine will stop automatically.
6. Carefully remove your cup.
7. After brewing, remove and clean the used adapter and dispose of the capsule/pod/ground coffee.

Maintenance

Regular cleaning and maintenance ensure optimal performance and longevity of your coffee machine.

1. Daily Cleaning

• Drip Tray and Used Capsule/Pod/Ground Coffee Container: Empty and rinse daily with warm, soapy water.
• Water Tank: Rinse daily with fresh water. For thorough cleaning, wash with warm, soapy water weekly.
• Adapters: After each use, remove and rinse the adapter under running water. Ensure no coffee residue remains.
• Exterior: Wipe the machine's exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents.

2. Descaling

Over time, mineral deposits (limescale) can build up in the machine, affecting performance and coffee taste. Descale your machine regularly, depending on water hardness and frequency of use (e.g., every 2-3 months).

1. Empty the water tank and fill it with a descaling solution suitable for coffee machines (follow the descaler manufacturer's instructions for dilution).
2. Place a large container under the coffee outlet.
3. Run several brewing cycles without coffee until the water tank is empty.
4. Rinse the water tank thoroughly and fill it with fresh water.
5. Run several cycles with fresh water to rinse out any descaling solution residue.

Note: The item is not dishwasher safe.

Troubleshooting

If you encounter issues with your coffee machine, refer to the following common problems and solutions:

Specifications

Technical details for the KOTLIE EM-308B 5-in-1 Coffee Machine:

Warranty and Support

KOTLIE products are manufactured to high-quality standards. This product is covered by a limited warranty from the date of purchase. Please refer to the warranty card included with your product for specific terms and conditions.

For technical support, troubleshooting assistance, or warranty claims, please contact KOTLIE customer service through the retailer where the product was purchased or visit the official KOTLIE website for contact information.
