1. Product Overview
The VGR 694 Professional Hair Clipper and Trimmer Set is a comprehensive 3-in-1 grooming solution designed for both professional and home use. This kit includes a full-size hair clipper, a precision hair trimmer, and a foil shaver, all featuring a durable metal finish and cordless operation.
2. Important Safety Instructions
To reduce the risk of electric shock, injury, or damage, always follow these basic safety precautions:
- Read all instructions before using the appliance.
- Keep the appliance away from water. Do not use while bathing or showering.
- Do not reach for an appliance that has fallen into water; unplug it immediately.
- Unplug the appliance from the electrical outlet immediately after use.
- Do not place or store the appliance where it can fall or be pulled into a tub or sink.
- Never drop or insert any object into any opening.
- Do not operate the appliance with a damaged cord or plug, or if it malfunctions or has been dropped or damaged.
- Keep the cord away from heated surfaces.
- Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
- Always attach the plug to the appliance first, then to the outlet. To disconnect, turn all controls to 'OFF', then remove the plug from the outlet.
- Use this appliance only for its intended household use as described in this manual.
- Do not use attachments not recommended by the manufacturer.
3. Components and Accessories
The VGR 694 kit includes the following items:
- Hair Clipper: For general hair cutting and fading.
- Hair Trimmer: For precision detailing, edging, and beard trimming.
- Foil Shaver: For close shaving and finishing touches.
- 6 Clipper Guide Combs: (1.5mm, 3mm, 4.5mm, 6mm, 10mm, 13mm)
- 5 Trimmer Guide Combs: (1mm, 2mm, 3mm, 4mm, 5mm)
- 3 Protective Caps: For safe storage of the devices.
- Cleaning Brush: For removing hair debris from blades.
- Lubrication Oil: For maintaining blade performance.
- 2 USB Charging Cables: For direct charging.
- Charging Base: For organized storage and convenient charging.
4. Charging Instructions
Each VGR 694 grooming tool is equipped with a built-in lithium-ion battery and can be charged using the provided USB cables or the charging base.
4.1 Battery Specifications and Runtime

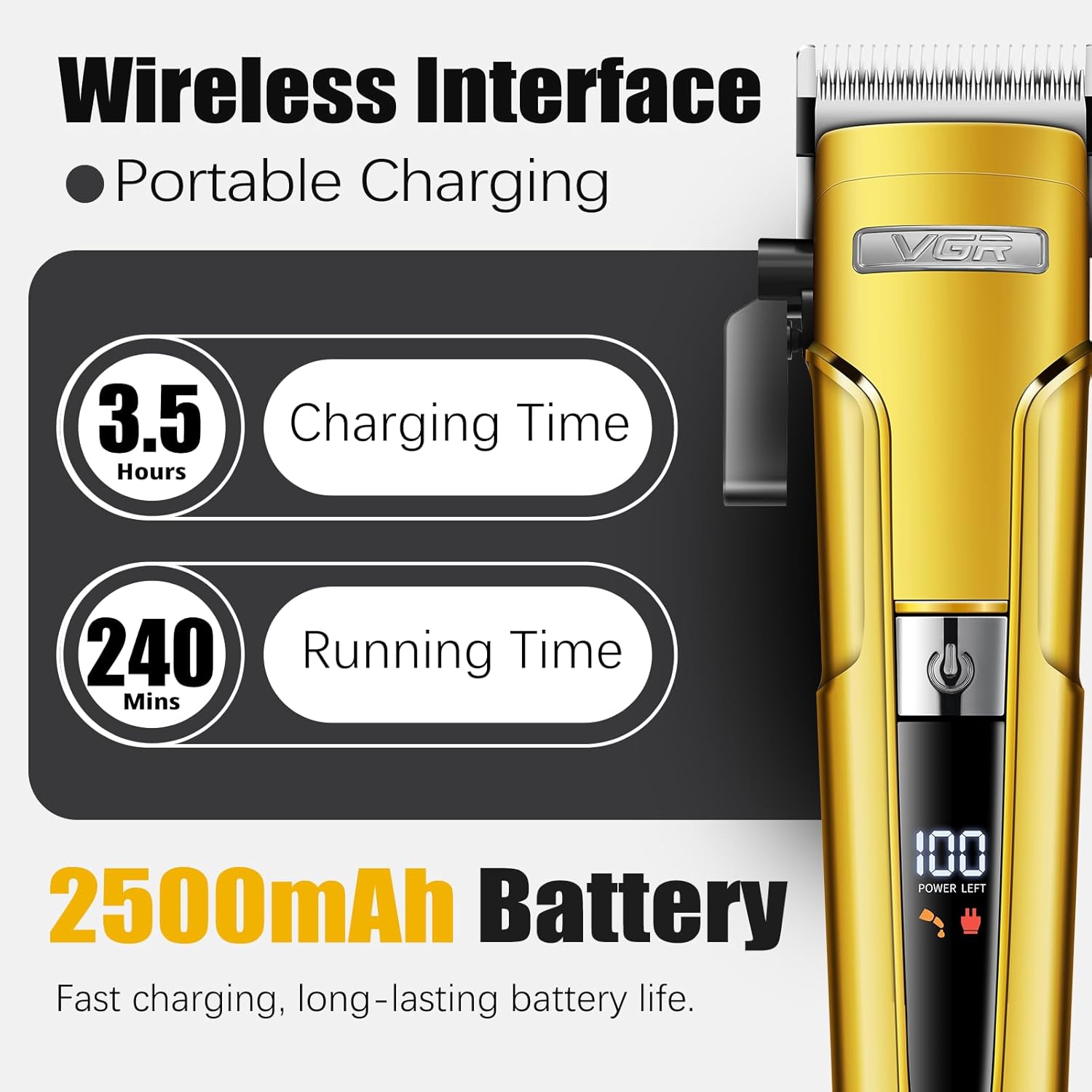

- Hair Clipper: 2500mAh battery, up to 240 minutes runtime after a 3.5-hour full charge.
- Hair Trimmer: 1400mAh battery, up to 200 minutes runtime after a 2-hour full charge.
- Foil Shaver: 1400mAh battery, up to 150 minutes runtime after a 2-hour full charge.
4.2 Charging Methods
- Using the Charging Base: Place the desired grooming tool onto the charging base. Ensure the contacts align. The LED display will activate to show charging status.
- Direct USB Charging: Connect one of the provided USB charging cables directly to the charging port on the bottom of the device and to a compatible USB power source.
4.3 LED Display
Each device features an LED display that clearly shows the remaining battery level. It also provides smart alerts for charging needs and when blade lubrication is required, ensuring optimal performance and longevity.
5. Setup and Operating Instructions
5.1 Attaching Guide Combs
To attach a guide comb, align the comb with the blade of the clipper or trimmer and push it firmly until it clicks into place. To remove, gently pull the comb away from the blade.
5.2 Powering On/Off
Press the power button located on the front of each device to turn it on or off. The LED display will illuminate upon activation.
5.3 Using the Hair Clipper
The hair clipper features an adjustable lever for fine-tuning cutting lengths. Use this lever in conjunction with the guide combs to achieve desired fades and tapers. Move the clipper against the direction of hair growth for an even cut.
5.4 Using the Hair Trimmer
The trimmer is designed for precise lines, edging, and intricate detailing. Hold the trimmer at an angle and use light pressure to create sharp outlines around the neckline, sideburns, and beard.
5.5 Using the Foil Shaver
The foil shaver provides a close, smooth finish. Use it on short stubble or for cleaning up areas after trimming. Move the shaver in short, gentle strokes against the direction of hair growth.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your VGR 694 grooming tools.
6.1 Cleaning the Blades
- Turn off the device and remove any attached guide combs.
- Use the provided cleaning brush to brush away loose hairs from the blades.
- For a more thorough clean, the blades can be rinsed under running water (ensure the device body is not submerged unless specified as waterproof). Dry thoroughly before reattaching or storing.
6.2 Lubrication
After every few uses or when the LED display indicates, apply a few drops of the included lubrication oil to the blades. Turn on the device for a few seconds to allow the oil to distribute evenly. This helps maintain smooth operation and prevents rust.
6.3 Storage
Store the devices and all accessories in a dry, cool place. Use the protective caps on the blades when not in use to prevent damage.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not turn on. | Low battery or device is off. | Charge the device fully. Ensure the power button is pressed firmly. |
| Poor cutting performance or pulling hair. | Blades are dull, dirty, or not lubricated. | Clean the blades thoroughly and apply lubrication oil. If blades are dull, consider replacement. |
| Device not charging. | Charging cable/base not properly connected or faulty. | Ensure cables are securely connected. Try a different USB port or power adapter. Check charging base contacts for debris. |
| LED display not working. | Device is off or battery is completely drained. | Turn on the device. Charge the device for at least 30 minutes. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | YS-V694 |
| Battery Type | Lithium-ion (3 C batteries included) |
| Clipper Battery Capacity | 2500mAh |
| Clipper Runtime | Up to 240 minutes |
| Clipper Charge Time | 3.5 hours |
| Trimmer Battery Capacity | 1400mAh |
| Trimmer Runtime | Up to 200 minutes |
| Trimmer Charge Time | 2 hours |
| Foil Shaver Battery Capacity | 1400mAh |
| Foil Shaver Runtime | Up to 150 minutes |
| Foil Shaver Charge Time | 2 hours |
| Clipper RPM | 6500 RPM |
| Trimmer RPM | 7000 RPM |
| Foil Shaver RPM | 7500 RPM |
| Blade Material | Ceramic and Carbon Steel |
| Charging Interface | USB-C and Charging Base |
| Item Weight | 1.6 Kilograms (3.53 Pounds) |
| Color | Gold |
9. Warranty and Support
VGR stands behind the quality of its products. This VGR 694 Professional Hair Clipper and Trimmer Set comes with:
- 30-Day Money Back Guarantee: If you are not satisfied with your purchase, you may return it within 30 days for a full refund.
- 1-Year Warranty: The product is covered by a 1-year limited warranty against manufacturing defects.
- 24-Hour Support: For any inquiries or assistance, please contact our customer support team, available 24 hours a day.
Please retain your proof of purchase for warranty claims.
