Magcubic Smart Projector HY350GT User Manual

1. Product Overview

The Magcubic Smart Projector HY350GT is a portable projector designed for versatile entertainment and presentation needs. It features 4K support, native 1080P resolution, and a built-in 4K TV stick for direct access to streaming applications. Key functionalities include automatic focus, keystone correction, obstacle avoidance, and screen alignment, ensuring a clear and properly framed image with minimal manual adjustment. Dual-band Wi-Fi and Bluetooth 5.1 provide robust connectivity options for various devices and audio accessories.

2. What's in the Box

• Magcubic Smart Projector HY350GT
• Power Adapter
• Remote Control
• User Manual (this document)

3. Setup Instructions

3.1 Initial Placement and Power Connection

Place the projector on a stable, flat surface. The flexible rotating stand allows for projection onto walls or ceilings. Connect the power adapter to the projector's power input port and then to a power outlet.

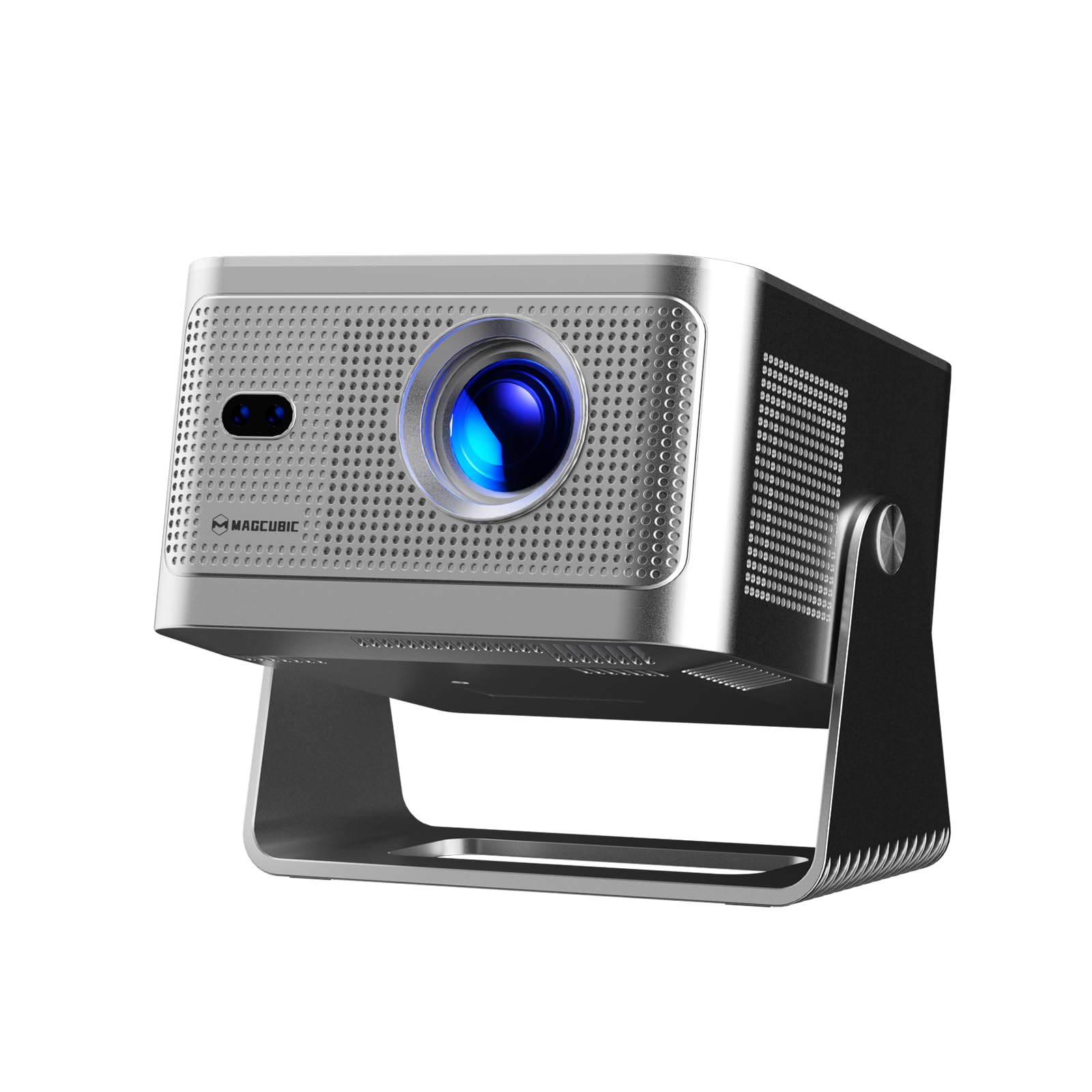

Image: The Magcubic HY350GT projector demonstrating its flexible rotating stand for various projection angles, including walls and ceilings.

3.2 Automatic Image Correction

Upon powering on, the projector will automatically perform several corrections:

• Auto Focus: The image will automatically sharpen.
• Auto Keystone Correction: The image will adjust to be rectangular, even if the projector is at an angle.
• Auto Obstacle Avoidance: The projector detects walls and barriers, adjusting the image to avoid interference.
• Auto Screen Alignment: The image will align itself to the projection surface.

Image: Visual representation of the projector's automatic screen assist features, including auto focus, keystone correction, obstacle avoidance, and screen alignment.

3.3 Network Connection

Navigate to the 'Settings' menu using the remote control. Select 'Network settings' to connect to your Wi-Fi network (2.4G or 5G). This enables access to built-in streaming apps and online content.

4. Operating Instructions

4.1 Remote Control and Voice Assistant

The included remote controls both the projector and the built-in streaming stick. Utilize the Voice Assistant feature by pressing the voice command button to quickly open apps, play movies, adjust volume, or check information.

Image: The projector's main screen showing various streaming apps and the remote control, highlighting its voice assistant capabilities.

4.2 Accessing Applications

The projector comes with a built-in 4K TV stick, providing access to a wide range of applications. Navigate to 'My Apps' or the 'Store' to browse and download additional streaming services and utilities.

Image: The projector's interface showing pre-installed and downloadable streaming applications.

4.3 Projection Settings

In the 'Settings' menu, select 'Projection settings' to fine-tune your display:

• Device Mode: Switch between Standard and Energy Saving modes.
• Installation Mode: Adjust for front projection, rear projection, or ceiling mounting.
• Digital Scaling: Adjust image size from 80% to 100%.
• Auto Focus: Toggle automatic focus on/off.
• Auto Four Corner Correction: Enable automatic trapezoidal correction.
• Intelligent Obstacle Avoidance: Enable automatic image adjustment around obstacles.
• Screen Recognition: Enable automatic screen detection and alignment.

4.4 Audio Output

The projector features a built-in 15W high-fidelity stereo speaker. For external audio, connect Bluetooth 5.1 compatible speakers or headphones via the 'Bluetooth' setting in the main menu.

4.5 External Connectivity

The rear panel of the projector includes:

• HDMI Port: Connect external devices such as laptops, gaming consoles (Switch, PS5), TV sticks, tablets, or smartphones.
• USB Port: Connect USB storage devices or a mouse for navigation.

Image: Detailed view of the projector's rear ports for HDMI, USB, and power connections.

4.6 Screen Mirroring

The projector supports screen mirroring from both Android and iOS devices. Access this feature through the main menu to cast content directly from your phone or tablet.

Image: A smartphone wirelessly casting its screen to the projector, demonstrating the screen mirroring capability.

5. Maintenance

• Lens Cleaning: Gently wipe the projector lens with a soft, lint-free cloth. Avoid abrasive materials or harsh chemicals.
• Ventilation: Ensure the projector's ventilation ports are clear of obstructions to prevent overheating. Do not block the air vents during operation.
• Storage: When not in use, store the projector in a cool, dry place, away from direct sunlight and extreme temperatures.

6. Troubleshooting

• No Image: Ensure the projector is powered on and the correct input source (HDMI, USB, or internal apps) is selected. Check all cable connections.
• Blurry Image: Allow the auto-focus feature to complete. If needed, manually adjust focus via the projection settings. Ensure the projection surface is flat.
• No Sound: Check the volume level on both the projector and any connected external audio devices. Verify Bluetooth connection if using external speakers.
• Connectivity Issues: For Wi-Fi, ensure the network password is correct and the projector is within range. For Bluetooth, ensure the external device is in pairing mode.
• Image Distortion: Allow auto keystone correction to complete. If necessary, manually adjust keystone settings in the projection menu.

7. Specifications

8. Warranty and Support

Magcubic offers a 30-day return guarantee for this product. Additionally, 24-hour live customer support and lifetime technical support are included to assist with any inquiries or issues.
