CKLMMC Full Over Full Bunk Bed with Desk and Storage Instruction Manual

Introduction

Thank you for choosing the CKLMMC Full Over Full Bunk Bed with Desk and Storage. This manual provides essential information for the safe assembly, operation, and maintenance of your new furniture. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Safety Information

WARNING: Failure to follow these warnings and instructions could result in serious injury or death.

• Always assemble the bed with adult supervision.
• Be cautious of pinch points around guardrails and ladder during assembly and use.
• Do not exceed the maximum weight capacity of 500 lbs for the entire bunk bed structure.
• Keep the area around the bed clear to prevent tripping hazards.
• Ensure all connections are tight before use. Periodically check and tighten hardware.
• The top bunk is not suitable for children under six years of age.
• Use only mattresses that are 6-8 inches thick for both upper and lower bunks.
• Always use the ladder for entering and exiting the upper bunk. Do not jump on the bed.

Parts List and Hardware

Before assembly, unpack all components and verify that you have received all parts listed in the included assembly guide. If any parts are missing or damaged, please contact customer support immediately. Do not proceed with assembly if parts are missing or damaged.

The bed includes various wooden components, slats, and hardware such as screws, bolts, and connectors. Refer to the separate detailed parts list and hardware diagram provided in your product packaging for specific identification.

Assembly Instructions

Assembly typically requires two adults. Ensure you have a clear, spacious area for assembly. Tools required (not included) usually include a Phillips head screwdriver and an Allen wrench (often provided with hardware).

Step 1: Review Dimensions and Layout

Familiarize yourself with the overall dimensions and components of the bunk bed to plan your assembly space effectively.

Image: Detailed dimensions of the bunk bed, including bed frame, desk, and storage units.

Step 2: Assemble the Bed Frames

Begin by assembling the headboards and footboards for both the upper and lower bunks. Attach the side rails to form the rectangular frames. Ensure all bolts are finger-tight at this stage.

Image: Side view of the bunk bed frame, illustrating the slat support system.

Step 3: Install Bed Slats

Place the wooden slats across the side rails for both the upper and lower bunks. Secure them using the provided screws. This forms the mattress support.

Image: Angled view of the bunk bed frame with slats in place.

Step 4: Attach Guardrails and Ladder

Securely attach the guardrails to the upper bunk frame. Then, attach the ladder to the designated side of the bunk bed. Ensure all connections are firm and stable.

Step 5: Assemble Desk and Bookshelf Unit

Assemble the desk and bookshelf components according to the detailed diagrams in your assembly guide. This unit typically attaches to one end of the bunk bed.

Image: Integrated desk and bookshelf unit attached to the bunk bed.

Step 6: Assemble and Install Drawers

Assemble the storage drawers. Once assembled, slide them into the designated space beneath the lower bunk. Ensure they glide smoothly.

Image: Open storage drawer, demonstrating its capacity.

Step 7: Final Tightening and Inspection

Once all components are assembled, go back and tighten all bolts and screws securely. Do not overtighten. Perform a final inspection to ensure all parts are correctly installed and the bed is stable.

Operating Instructions

Using the Bunk Beds

• Place appropriate size mattresses (Full size, 6-8 inches thick) on both the upper and lower bunks.
• Always use the ladder to access the upper bunk.
• Ensure guardrails are always in place on the upper bunk.

Using the Desk and Bookshelves

• The integrated desk provides a stable surface for study, work, or creative activities.
• Utilize the bookshelves for organizing books, stationery, and decorative items.
• Avoid placing excessively heavy items on the shelves to prevent damage.

Using the Storage Drawers

• The drawers beneath the lower bunk offer convenient storage for clothing, toys, or other personal belongings.
• Pull drawers out gently and push them in fully to prevent damage to the runners.

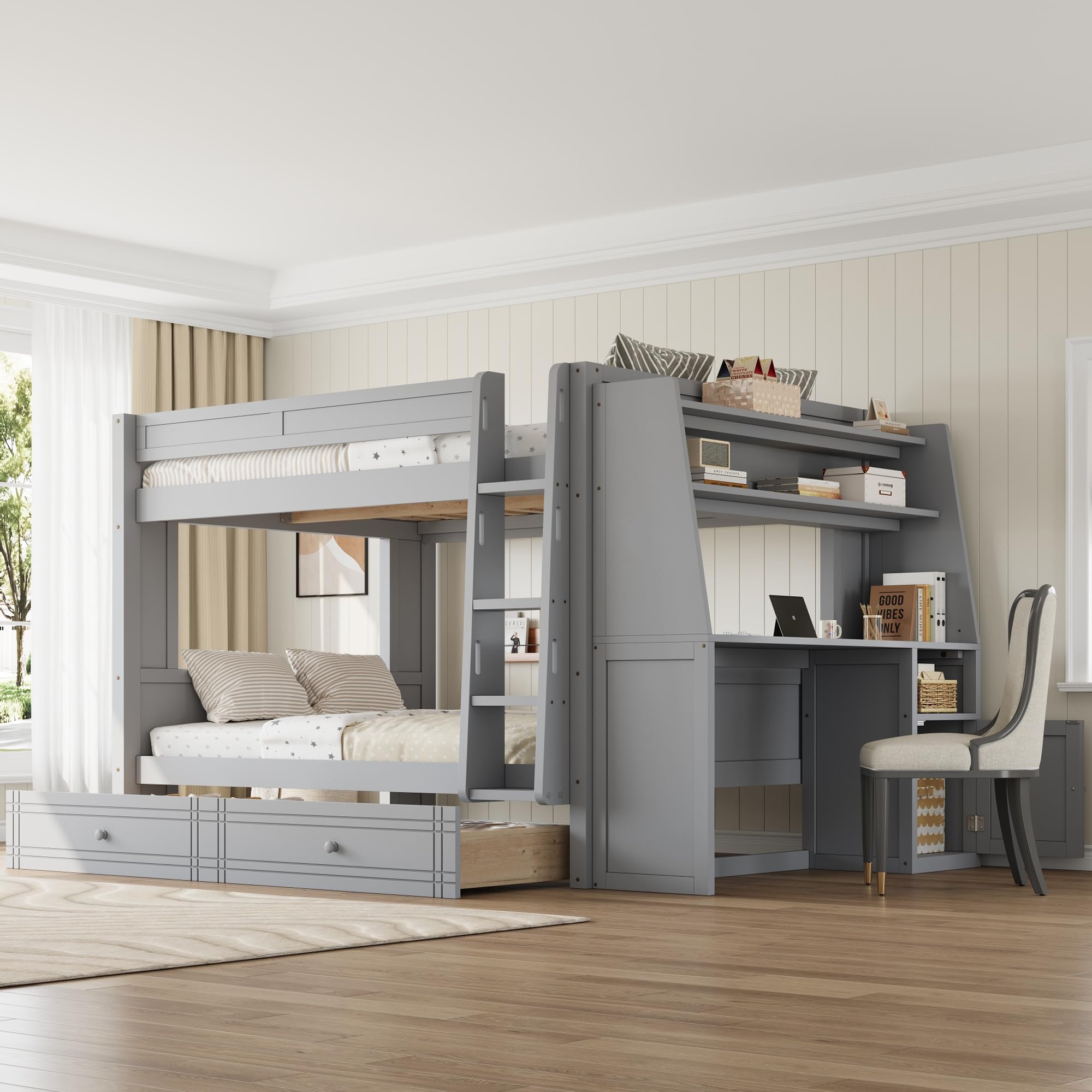

Image: The bunk bed fully assembled and in use, showcasing its integrated features.

Maintenance

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the finish.
• Hardware Check: Periodically (every 3-6 months) check all bolts, screws, and connections to ensure they remain tight. Tighten as necessary to maintain stability and safety.
• Wood Care: Protect the wood finish from direct sunlight and extreme temperature changes. Use coasters under drinks to prevent water marks.
• Moving the Bed: If moving the bed, disassemble it first to prevent structural damage. Do not drag the bed across the floor.

Troubleshooting

Squeaking Noises

If the bed develops squeaking noises, check all hardware connections. Loose bolts are a common cause. Tighten any loose connections. Ensure the bed is on a level surface.

Wobbly Structure

A wobbly bed structure indicates loose connections. Re-check all bolts and screws, especially those connecting the main frame components. Ensure the bed is assembled correctly according to the instructions.

Drawers Not Gliding Smoothly

Check for any obstructions in the drawer runners. Ensure the drawers are assembled correctly and that the runners are properly aligned and secured.

Specifications

Warranty and Support

For any questions regarding assembly, missing parts, or product issues, please contact CKLMMC customer support. Refer to your purchase documentation for specific warranty details and contact information.

We are committed to providing quality products and support to ensure your satisfaction.
