1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Generico EDILKAMIN SP.4 R1115040 Laguna Steel Crucible. This component is designed for specific EDILKAMIN pellet stove models. Please read this manual thoroughly before installation and use to ensure safe and efficient operation.
2. Safety Information
- Always ensure the pellet stove is completely turned off and cooled down before attempting any installation, removal, or maintenance of the crucible.
- Wear appropriate personal protective equipment (PPE), such as gloves, to prevent injury from sharp edges or hot surfaces.
- Refer to your pellet stove's main instruction manual for specific safety guidelines and procedures related to component replacement.
- Keep children and pets away from the appliance during installation and operation.
3. Product Overview
The EDILKAMIN SP.4 R1115040 Laguna Steel Crucible is an original replacement part manufactured from durable steel. It is designed to hold wood pellets during the combustion process in compatible EDILKAMIN pellet stoves. Proper functioning of the crucible is crucial for efficient and clean burning.
Figure 1: Front view of the steel crucible. This image displays the overall cylindrical structure with perforations for airflow and the distinctive upper opening.
Figure 2: Angled perspective of the crucible. This view provides a better understanding of the internal design and the distribution of the air holes.
Figure 3: Top view of the crucible. This image illustrates the circular opening where pellets are fed and the shape of the upper rim.

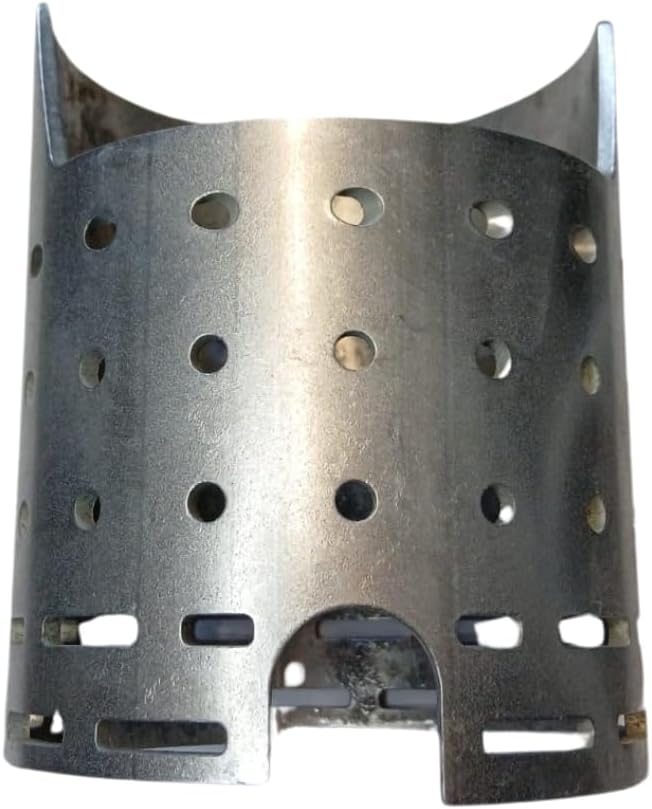

Figure 4: Side view of the crucible. This perspective highlights the full height of the component and the specific design of the air slots at its base.
4. Installation
This crucible is compatible with the following EDILKAMIN pellet stove models:
- Laguna P 24
- Laguna P 35
- Laguna 2 P
Installation Steps:
- Preparation: Ensure the pellet stove is completely cold and disconnected from the power supply. Open the combustion chamber door.
- Remove Old Crucible: Carefully lift out the old crucible from its seating in the combustion chamber. Note its orientation for correct placement of the new one.
- Clean Seating Area: Clean any ash or debris from the crucible's seating area within the combustion chamber to ensure a proper fit and optimal airflow.
- Install New Crucible: Place the new EDILKAMIN SP.4 R1115040 Laguna Steel Crucible into the designated seating area. Ensure it is seated firmly and correctly, matching the orientation of the original part. The cut-out section should typically face towards the pellet feed mechanism.
- Verify Fit: Gently press down and ensure the crucible is stable and does not wobble.
- Close Chamber: Close the combustion chamber door securely.
Note: If you are unsure about any step, consult a qualified technician or your pellet stove's specific instruction manual.
5. Operation
The crucible is a passive component within the pellet stove's combustion system. Once installed, its primary function is to hold the pellets as they are fed into the combustion chamber and to allow primary and secondary air to pass through its perforations for efficient burning. Proper operation relies on:
- Correct Installation: As described in Section 4.
- Cleanliness: A clean crucible ensures optimal airflow and prevents blockages, leading to better combustion and reduced ash buildup.
- Quality Pellets: Using high-quality, certified wood pellets will minimize ash and clinker formation, prolonging the life of the crucible and maintaining stove efficiency.
The crucible itself does not require active user interaction during stove operation, beyond ensuring it is clean before starting the stove.
6. Maintenance
Regular maintenance of the crucible is essential for the longevity and efficient performance of your pellet stove.
Cleaning:
- Daily/Before Each Use: Before starting the stove, ensure the crucible is free of ash and unburnt pellet residue. Use a vacuum cleaner designed for ash or a small brush to clear all perforations.
- Weekly/Bi-weekly: Remove the crucible and thoroughly clean it, ensuring all air holes are clear. Inspect for any signs of damage or excessive wear.
Inspection and Replacement:
- Periodically inspect the crucible for signs of warping, cracking, or excessive corrosion. While made of durable steel, extreme heat and repeated use can cause wear.
- If the crucible shows significant damage, or if the air holes become permanently blocked despite cleaning, it should be replaced to maintain optimal combustion efficiency and prevent potential issues with your stove.
- Use only original or approved replacement parts, such as the EDILKAMIN SP.4 R1115040 Laguna Steel Crucible, to ensure compatibility and performance.
7. Troubleshooting
Issues related to the crucible often manifest as poor combustion or excessive ash buildup. Below are common problems and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Poor flame quality / Incomplete combustion | Blocked air holes in the crucible. | Clean the crucible thoroughly, ensuring all perforations are clear. |
| Excessive ash or clinker formation | Poor quality pellets or insufficient airflow through the crucible. | Ensure crucible is clean. Use high-quality, certified pellets. Check stove's air settings. |
| Pellets overflowing the crucible | Incorrect pellet feed rate (stove setting) or crucible not seated correctly. | Verify crucible installation. Consult stove manual for pellet feed rate adjustment. |
| Crucible warping or cracking | Normal wear and tear, or extreme operating conditions. | Replace the crucible with a new original part. |
For issues not listed here, or if problems persist, consult your pellet stove's main instruction manual or contact a qualified service technician.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Generico |
| Model Code | SP.4 R1115040 Laguna |
| Material | Steel |
| Product Dimensions (L x W x H) | 14 x 7 x 7 cm (approximately 5.5 x 2.75 x 2.75 inches) |
| Item Weight | 500 g (approximately 1.1 lbs) |
| Compatibility | EDILKAMIN Laguna P 24, Laguna P 35, Laguna 2 P pellet stoves |
9. Warranty & Support
Warranty Information:
Specific warranty details for this replacement part may vary depending on the retailer and region of purchase. Please refer to your purchase documentation or contact the seller for information regarding warranty coverage.
Customer Support:
For technical assistance, questions about compatibility, or replacement part inquiries, please contact your original point of purchase or an authorized EDILKAMIN service center. Always provide the model code (SP.4 R1115040 Laguna) when seeking support.
