1. Introduction
Thank you for choosing the Momcozy 4-in-1 Compact Bottle Sterilizer and Dryer. This appliance is designed to sterilize and dry baby bottles, breast pump parts, pacifiers, and other baby essentials, ensuring a hygienic environment for your child. Please read this manual thoroughly before first use and keep it for future reference.
Note: This appliance is a sterilizer and dryer for baby essentials; it does not include a washing function.

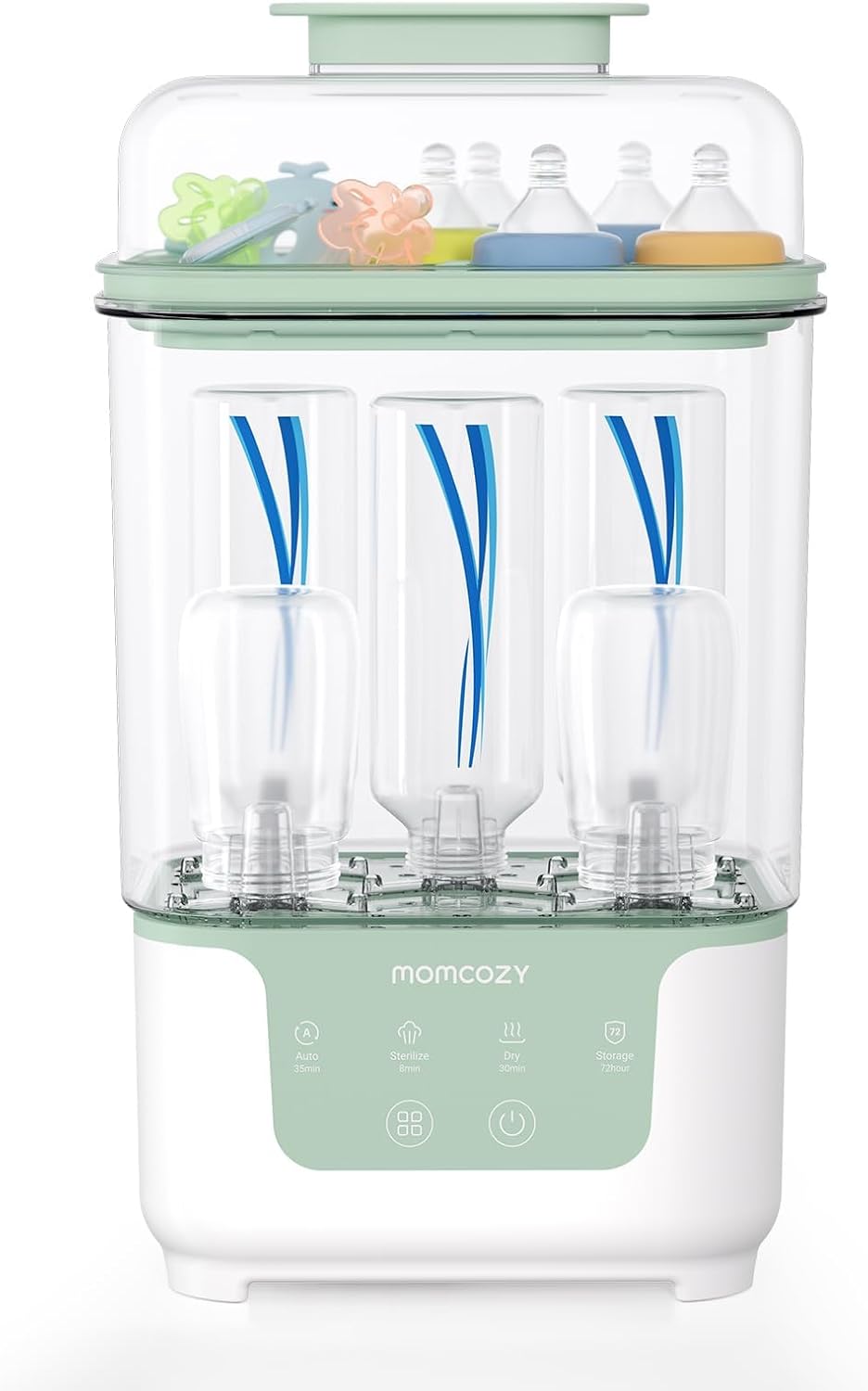

Image 1.1: The Momcozy 4-in-1 Compact Bottle Sterilizer and Dryer.
2. Safety Information
To ensure safe operation, always follow these basic safety precautions:
- Read all instructions before use.
- Do not immerse the base unit in water or other liquids.
- Keep the appliance out of reach of children.
- Always place the appliance on a stable, heat-resistant surface.
- Do not operate the appliance if the cord or plug is damaged.
- Use only distilled water for sterilization to prevent mineral buildup.
- Steam is hot; exercise caution when opening the lid after a cycle.
- Unplug the appliance when not in use and before cleaning.
3. Product Components
The Momcozy Sterilizer and Dryer consists of several parts designed for efficient operation and easy storage:
- Base Unit: Contains the heating element and control panel.
- Water Tray: Located within the base unit, for adding water for sterilization.
- Lower Basket: For larger items like bottles.
- Upper Basket: For smaller items like pacifiers, nipples, and breast pump parts.
- Lid: Covers the baskets during operation.
- Drying Rack (Included): A separate accessory for air-drying items.

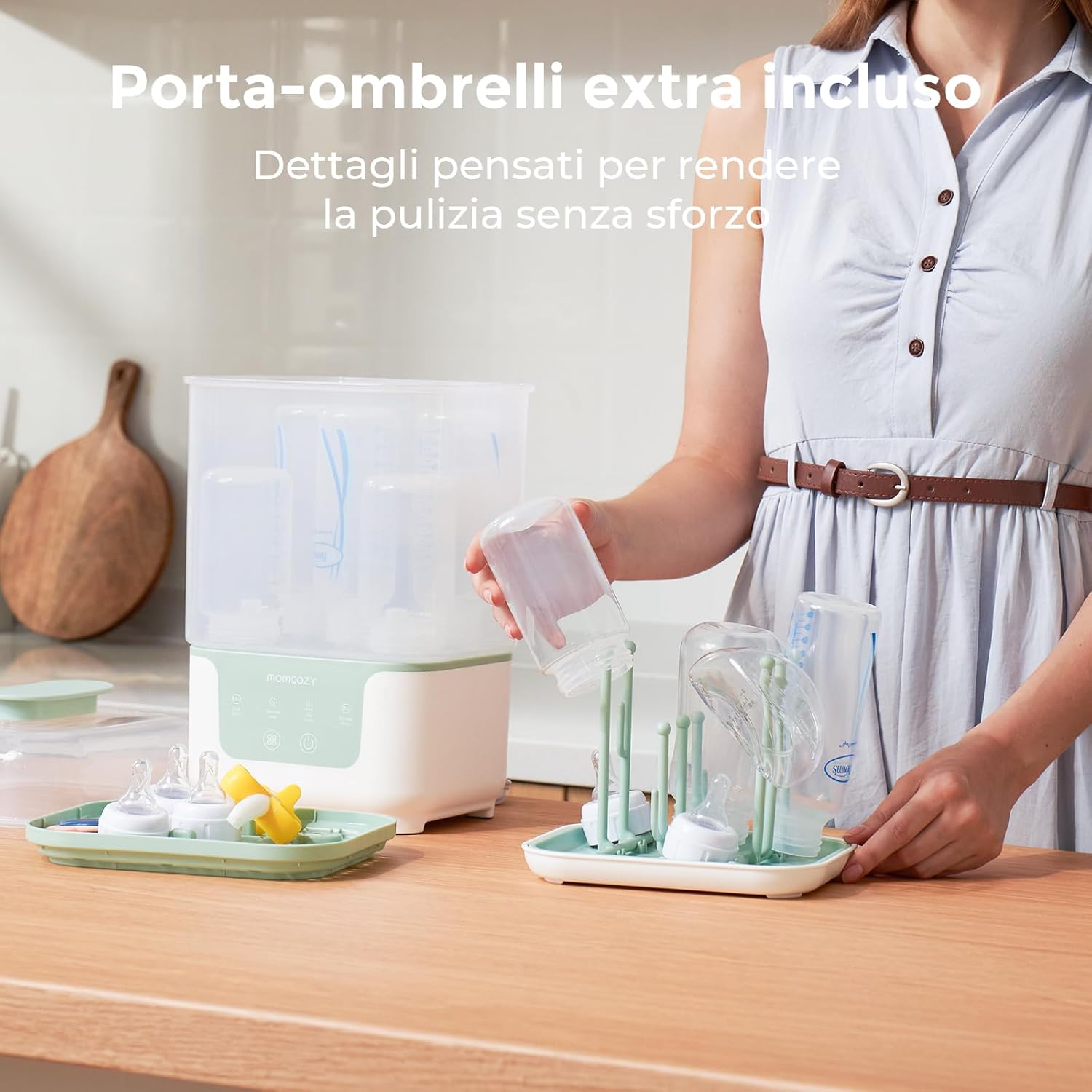

Image 3.1: The sterilizer unit alongside the included drying rack for additional items.
4. Setup
Follow these steps to set up your Momcozy Sterilizer and Dryer for first use:
- Unpack: Carefully remove all components from the packaging.
- Clean: Wash all removable parts (baskets, lid, drying rack) with warm soapy water, rinse thoroughly, and dry. Wipe the base unit with a damp cloth.
- Assemble: Place the lower basket onto the base unit, then the upper basket on top of the lower basket. Finally, place the lid securely on the upper basket.
- Position: Place the assembled unit on a flat, stable, heat-resistant surface away from walls and other appliances to allow for proper ventilation.
Image 4.1: The compact design allows for easy storage in kitchen cabinets when not in use.
5. Operating Instructions
The Momcozy Sterilizer and Dryer offers four modes: Auto, Sterilize, Dry, and Storage. The control panel is designed for intuitive operation.
5.1. Preparing Items for Sterilization and Drying
- Always wash bottles, nipples, and other items thoroughly with warm soapy water and rinse before placing them in the sterilizer.
- Place bottles upside down in the lower basket.
- Place smaller items like nipples, pacifiers, and breast pump parts in the upper basket.
- Ensure items are arranged to allow steam and air to circulate freely.

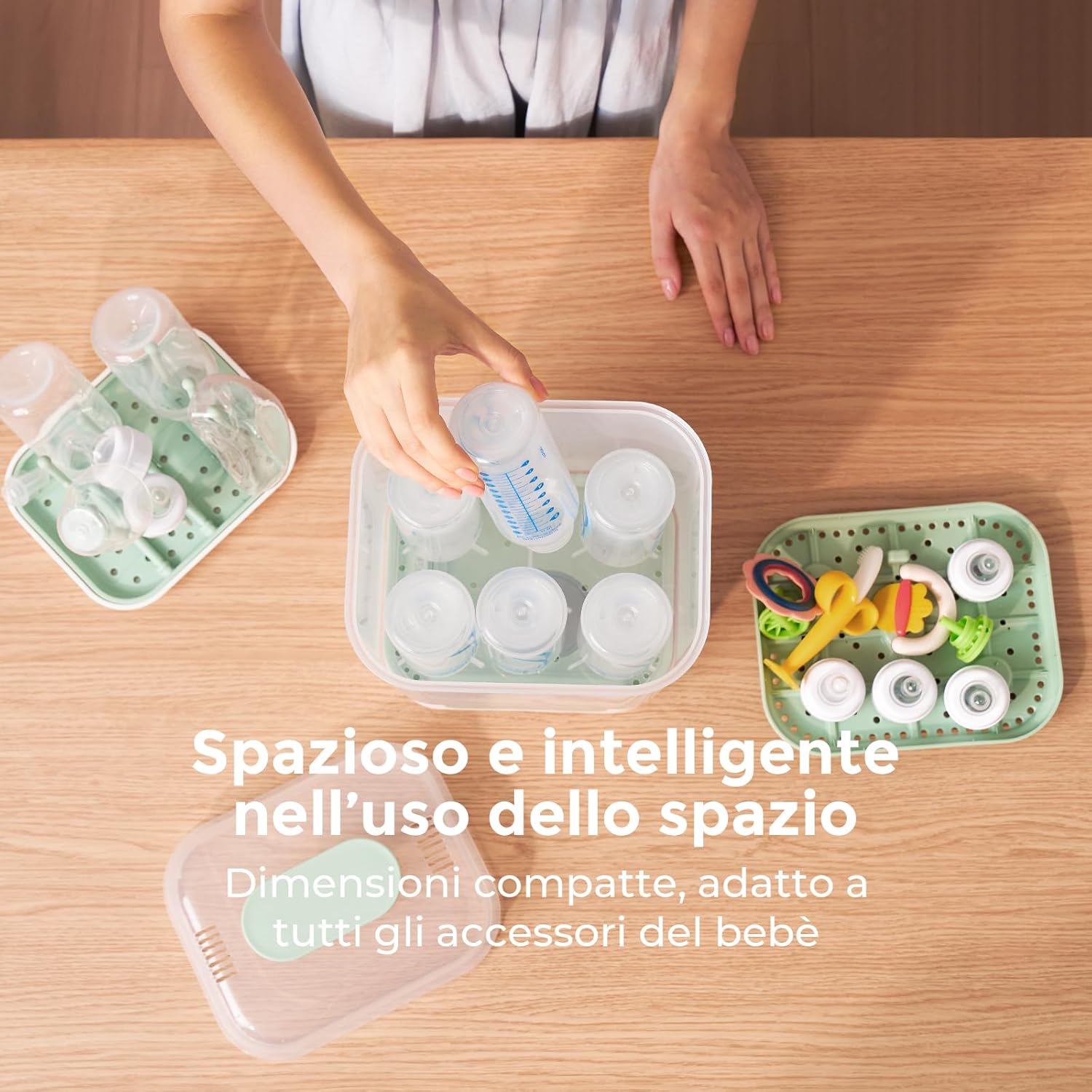

Image 5.1: The sterilizer's spacious interior accommodates up to 6 standard bottles and various accessories.
5.2. Adding Water
Pour approximately 100ml of distilled water into the water tray of the base unit. Do not overfill.
5.3. Selecting a Mode
The control panel features touch buttons for different functions:
- Auto (35 min): Sterilizes (8 min) and then dries (27 min) automatically.
- Sterilize (8 min): Steam sterilizes items.
- Dry (30 min): Dries items using hot air.
- Storage (72 hours): Keeps items sterile for up to 72 hours after a sterilization cycle.
Image 5.2: The intuitive control panel with clearly labeled functions for easy selection.
5.4. Starting a Cycle
- Plug the appliance into a power outlet.
- Press the desired mode button (Auto, Sterilize, or Dry).
- The indicator light for the selected mode will illuminate, and the cycle will begin.

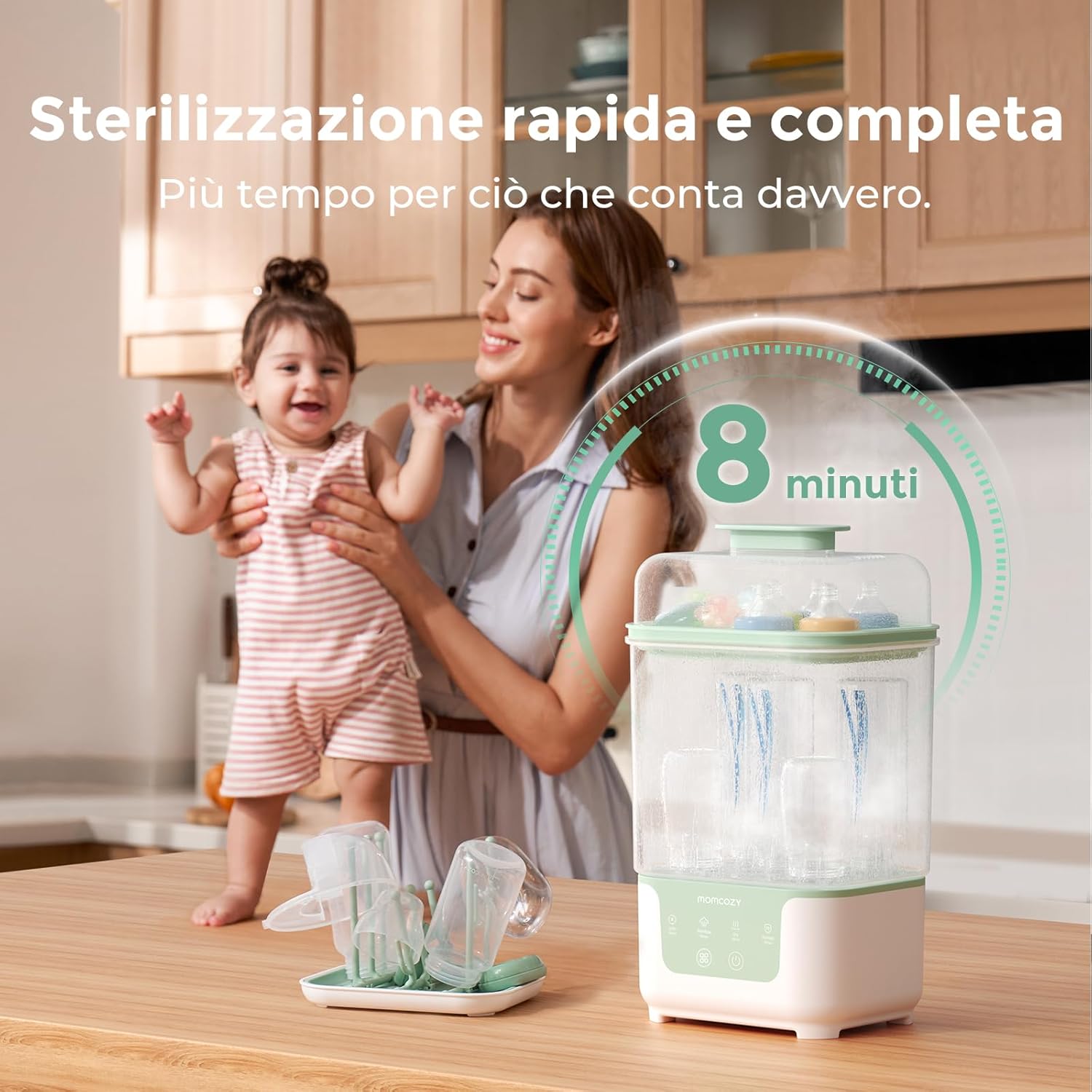

Image 5.3: The sterilizer actively sterilizing items with steam, completing the process in 8 minutes.
5.5. After the Cycle
- Once a cycle is complete, the appliance will beep, and the indicator light will turn off.
- Allow the unit to cool down for a few minutes before carefully opening the lid.
- Use tongs to remove hot items.
- If using the Storage function, items will remain sterile inside the closed unit for up to 72 hours.

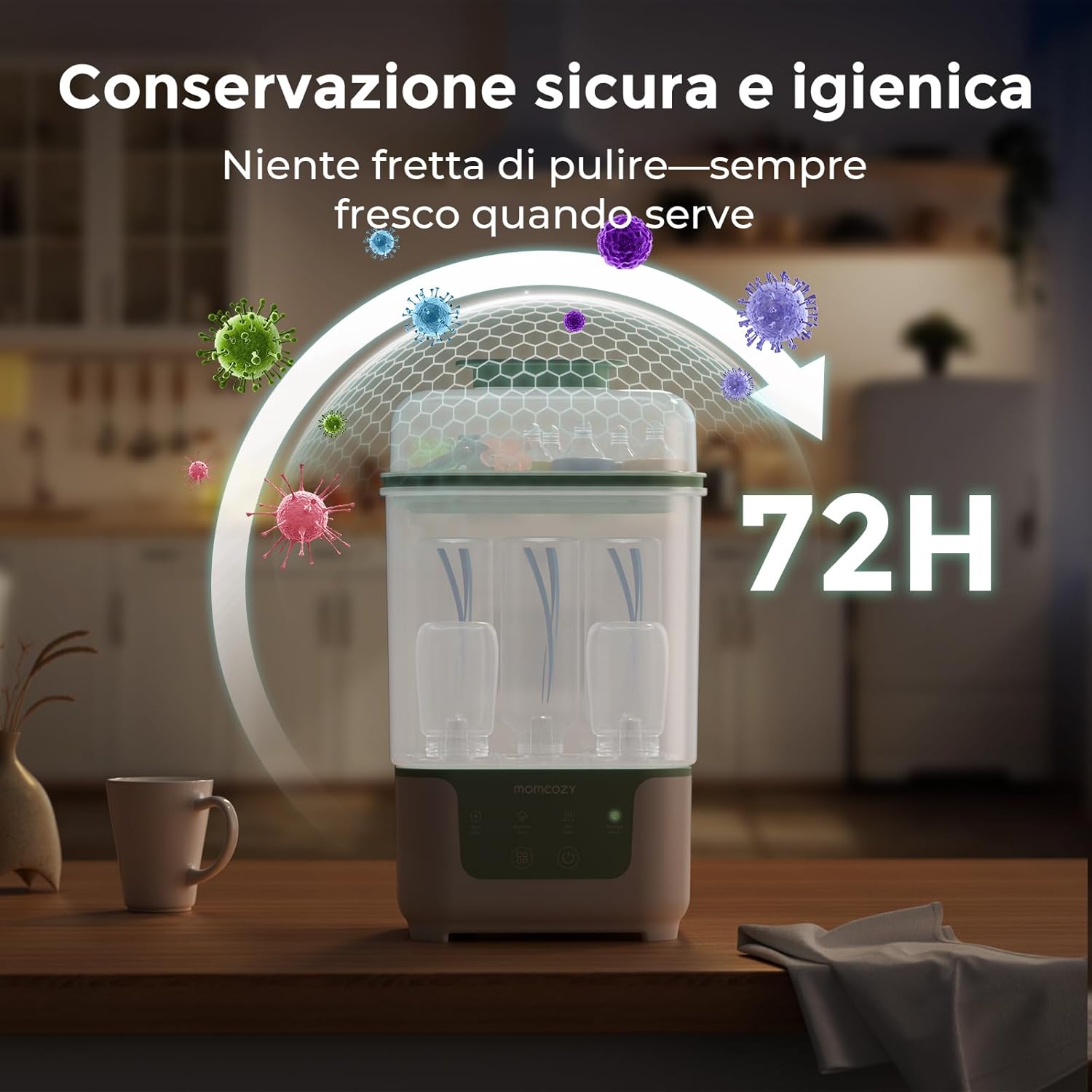

Image 5.4: The sterilizer maintains a sterile environment for up to 72 hours, ensuring items are ready when needed.
6. Maintenance and Cleaning
Regular cleaning is essential to maintain the performance and longevity of your sterilizer and dryer.
- Unplug: Always unplug the appliance and allow it to cool completely before cleaning.
- Empty Water Tray: Discard any remaining water from the water tray.
- Clean Baskets and Lid: Wash the upper basket, lower basket, and lid with warm soapy water, rinse, and dry. These parts are also dishwasher safe (top rack only).
- Clean Base Unit: Wipe the exterior of the base unit with a damp cloth. Do not immerse the base unit in water.
- Descaling: Mineral deposits (limescale) may build up on the heating plate over time, especially if tap water is used. To descale, mix 50ml of white vinegar with 100ml of water and pour it onto the heating plate. Let it sit for 30 minutes, then scrub gently with a brush or sponge. Rinse thoroughly with clean water and wipe dry. Perform descaling every 2-4 weeks, depending on water hardness.
- HEPA Filter: The appliance features an advanced HEPA filter for superior bacterial protection during drying. Check and replace the HEPA filter periodically as per manufacturer recommendations (replacement filters sold separately).
7. Troubleshooting
If you encounter any issues with your Momcozy Sterilizer and Dryer, refer to the following table for common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not turn on. | Not plugged in; power outlet faulty. | Ensure the power cord is securely plugged in. Test the outlet with another appliance. |
| Sterilization cycle not starting. | Insufficient water in the water tray. | Add the recommended amount of distilled water (approx. 100ml) to the water tray. |
| Items are still wet after drying cycle. | Overloaded unit; items not arranged properly; drying cycle too short. | Do not overload the baskets. Arrange items to allow air circulation. Select a longer drying cycle if available or run another dry cycle. |
| White/brown residue on heating plate. | Limescale buildup from tap water. | Descale the heating plate as described in the Maintenance section. Use distilled water for future cycles. |
| Unpleasant odor during operation. | New appliance odor; residue from previous use. | Run a sterilization cycle with only water a few times. Ensure all items are thoroughly cleaned before placing them in the sterilizer. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | BS04-EU |
| Dimensions (L x W x H) | Approximately 22.5 cm x 18.5 cm x 40 cm (fully assembled) |
| Weight | 2.48 kg |
| Material | Plastic (BPA-free) |
| Sterilization Method | Steam |
| Sterilization Time | 8 minutes |
| Drying Time | 27-30 minutes (depending on mode) |
| Storage Capacity | Up to 6 standard bottles and accessories |
| Sterile Storage Duration | Up to 72 hours |
Image 8.1: The compact dimensions of the Momcozy Sterilizer, measuring approximately 40cm in height.
9. Warranty and Support
Momcozy products are manufactured to high-quality standards. For warranty information, product support, or to purchase replacement parts (such as HEPA filters), please refer to the contact information provided with your purchase or visit the official Momcozy website. Keep your proof of purchase for warranty claims.
