1. Product Overview
The EF ECOFLOW DELTA 3 Ultra Plus Portable Power Station is a versatile and robust power solution designed for home backup, outdoor adventures, and off-grid living. It features a 3072Wh LiFePO4 battery, providing a continuous output of 3600W (with a 7200W surge capability). The system is expandable up to 11kWh with additional batteries, offering flexible power capacity to suit various needs.

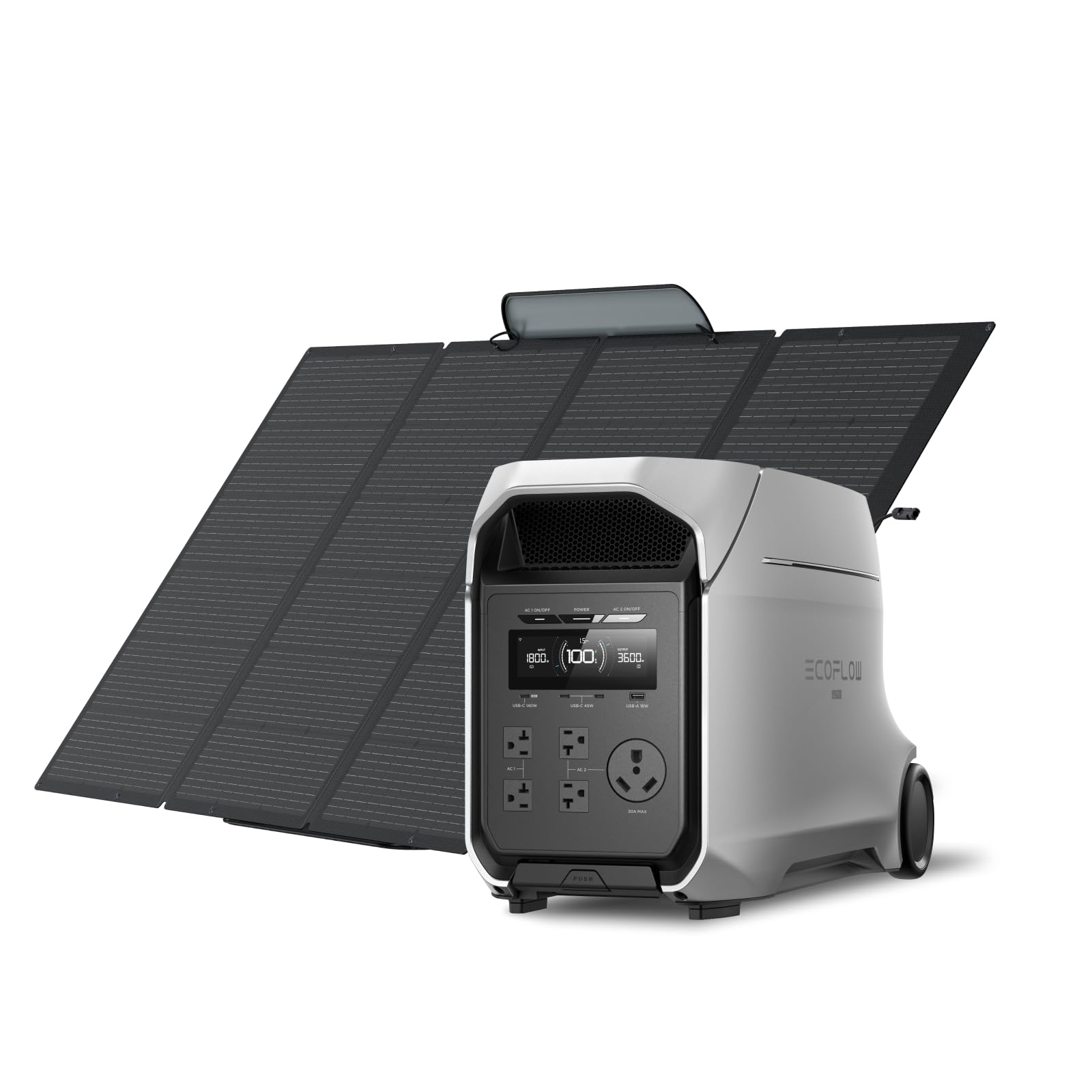

Image 1.1: The DELTA 3 Ultra Plus Portable Power Station with a 400W Solar Panel.
Key Features:
- Expandable Capacity: Adaptable from 3kWh to 11kWh by adding extra batteries, ideal for multi-day blackouts or extended trips.
- High Power Output: Delivers 3600W continuous power (7200W surge) with X-Quiet 3.0 technology, capable of powering heavy-duty appliances and tools.
- Multiple Charging Options: Supports 6 charging methods including home outlets, solar panels, car chargers, EV stations, generators, and the EcoFlow Smart Generator.
- Durable LiFePO4 Battery: Engineered for 10 years of daily use with an advanced LiFePO4 battery and EV-grade CTC structure.
- Uninterrupted Power Supply (UPS): Automatic switch to battery power in under 10 milliseconds during outages, protecting sensitive devices.
- Quiet Operation: Features X-Quiet 3.0 stepless fan control for whisper-quiet operation under loads (as low as 25dB when powering under 600W).
2. Setup Guide
2.1 Unboxing and Initial Inspection
Upon receiving your DELTA 3 Ultra Plus, carefully unpack all components. Verify that all items listed in the packing list are present and inspect for any visible damage. If any components are missing or damaged, contact customer support immediately.
2.2 Initial Charging
Before first use, it is recommended to fully charge the DELTA 3 Ultra Plus. Connect the power station to a standard AC wall outlet using the provided AC charging cable. The display will indicate the charging status and estimated time to full charge. The unit can reach 80% charge in under an hour via X-Stream fast charging.
Image 2.1: Wall charging the DELTA 3 Ultra Plus. 1800W input, 0-80% in 89 minutes.
2.3 Connecting the 400W Solar Panel
The 400W Solar Panel is designed for efficient outdoor charging. Unfold the solar panel and position it to receive maximum sunlight. Connect the solar panel to the DELTA 3 Ultra Plus using the provided solar charging cable. The power station's display will show the input wattage from the solar panel.
Image 2.2: Fast solar charging with multiple solar panels. 1600W input, 0-80% in 101 minutes.
Image 2.3: Detailed specifications for the 400W Portable Solar Panel.
2.4 Other Charging Methods
- Generator Charging: Connect to an EcoFlow Smart Generator for up to 3200W input, charging 0-80% in 53 minutes.
- Alternator Charging: Use an EcoFlow Alternator Charger Plus 1000 for 1000W input, charging 0-80% in 142 minutes.
- Car Charger: Connect to your vehicle's cigarette lighter port for on-the-go charging.
- EV Station: Utilize EV charging stations for convenient power top-ups.
Image 2.4: Visual representation of the six charging methods available for the DELTA 3 Ultra Plus.
3. Operating Instructions
3.1 Powering On/Off
To power on the DELTA 3 Ultra Plus, press and hold the main power button until the display illuminates. To power off, press and hold the main power button again until the display turns off.
3.2 Understanding the Display
The integrated display provides real-time information on battery level, input/output wattage, remaining run-time, and charging status. Monitor these indicators to manage your power usage effectively.
Video 3.1: An official EcoFlow video demonstrating the DELTA 3 Ultra Plus display and features.
3.3 Connecting Devices
The DELTA 3 Ultra Plus offers a variety of output ports:
- AC Outlets: 4 x AC Output (120V, 20A) for standard household appliances.
- USB Ports: 1 x USB-A Port (18W Max) and 3 x USB-C Ports (140W Max) for charging mobile devices and laptops.
- RV Port: TT-30 RV Port (120V, 30A) for RV power needs.
- DC Ports: Cigarette Lighter Port (12V, 10A) and Anderson Port (12V, 30A) for various DC devices.
Simply plug your devices into the appropriate ports. Ensure the total wattage of connected devices does not exceed the power station's rated output of 3600W (7200W surge).
Image 3.1: The front panel of the DELTA 3 Ultra Plus, highlighting its diverse output ports for easy home connection.
3.4 Smart Output Priority and Power Reserve
Utilize the EcoFlow app to manage Smart Output Priority, reducing waste and increasing runtime for essential devices. You can also set a Smart Power Reserve to automatically shed non-essential loads during outages, ensuring critical devices remain powered.
Image 3.2: Screenshots from the EcoFlow app demonstrating Smart Output Priority and Smart Power Reserve settings.
4. Maintenance
4.1 Battery Care
The DELTA 3 Ultra Plus uses a LiFePO4 battery, designed for long-term durability (10 years of daily use). To maximize battery lifespan, avoid prolonged storage at extremely low or high charge levels. Store the unit in a cool, dry place and recharge it periodically if not in use for extended periods.
Image 4.1: Illustration of automotive-grade full-tab LFP cells, which contribute to the battery's reliability and longevity.
4.2 Cleaning and Storage
Keep the power station clean and free from dust and debris. Use a dry, soft cloth for cleaning. When storing, ensure all ports are covered to prevent dust ingress. Store in a well-ventilated area away from direct sunlight and extreme temperatures.
4.3 Environmental Resistance
The DELTA 3 Ultra Plus is built with an EV-grade cell-to-chassis (CTC) structure, making it drop-resistant and protecting against condensation and bumps. It is designed to operate in various conditions, including freezing cold, scorching heat, humid environments (95% humidity tolerance), and coastal air (5% salt spray resistance).
Image 4.2: The EV-Grade CTC structure provides durability and protection against physical impacts.
Image 4.3: The DELTA 3 Ultra Plus is built to withstand extreme temperatures and environmental conditions.
5. Troubleshooting
5.1 Power Station Not Turning On
- Ensure the battery is not completely depleted. Connect to an AC outlet for charging.
- Press and hold the main power button for a few seconds to ensure it's properly engaged.
5.2 Devices Not Charging/Powering
- Check if the power station is turned on and the specific output ports (AC, USB, DC) are activated.
- Verify that the device's power consumption does not exceed the port's or the power station's maximum output.
- Ensure cables are securely connected.
5.3 Slow Charging
- For solar charging, ensure panels are in direct sunlight and free from obstructions. Adjust the angle for optimal exposure.
- Check the charging source's output. Lower wattage sources will result in slower charging times.
5.4 UPS Functionality
The DELTA 3 Ultra Plus provides an Uninterrupted Power Supply (UPS) function, automatically switching to battery power within 10 milliseconds during a power outage. This protects sensitive electronics from data loss or damage. No manual setup is required for this feature.
Image 5.1: The DELTA 3 Ultra Plus ensures zero interruption with its 10ms auto-switch UPS feature.
6. Technical Specifications
| Feature | Specification |
|---|---|
| Brand | EF ECOFLOW |
| Model Name | DELTA 3 Ultra Plus with 400W Solar Panel |
| Model Number | EF-DL-H02-3UP |
| Battery Type | LiFePO4 |
| Battery Capacity | 3072Wh (Expandable to 11kWh) |
| Rated Output Wattage | 3600W |
| Surge Wattage | 7200W |
| AC Output | 4 x 120V, 20A |
| RV Port | TT-30 (120V, 30A) |
| USB-A Output | 1 x 18W Max |
| USB-C Output | 3 x 140W Max |
| DC Output | Cigarette Lighter Port (12V, 10A), Anderson Port (12V, 30A) |
| AC Charging Input | 1800W (0-80% in 89 mins) |
| Solar Charging Input | 1600W (0-80% in 101 mins) |
| Generator Charging Input | Up to 3200W (0-80% in 53 mins) |
| Alternator Charging Input | 1000W (0-80% in 142 mins) |
| Product Dimensions | 24.1"L x 12.9"W x 15.6"H |
| Weight | Not explicitly stated, but implied portable. |
| UPS Function | <10ms auto-switch |
| Noise Level | 25dB (under 600W load) |
| Solar Panel Type | Monocrystalline silicon (400W) |
| Solar Panel Efficiency | 22.40% |
| Solar Panel IP Rating | IP68 (waterproof) |
7. Warranty & Support
7.1 Warranty Information
The EF ECOFLOW DELTA 3 Ultra Plus Portable Power Station comes with a 5-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
7.2 Customer Support
For technical assistance, troubleshooting, or warranty inquiries, please contact EF ECOFLOW customer support through their official website or the contact information provided in your product packaging. You can also visit the EF ECOFLOW Store on Amazon for additional resources.
