1. Product Overview
The Bosch UniversalImpactDrive 18V-210 is a powerful 18V cordless impact driver designed for woodworking and demanding DIY tasks. It features a brushless motor that delivers a maximum torque of 210 Nm and up to 3,300 revolutions per minute, ensuring efficient and rapid work. This compact and lightweight tool, with a short head length, is ideal for use in confined spaces and for overhead applications. It includes two speed settings for versatile power control, allowing for precise fastening of various screw sizes and materials. For enhanced visibility in dimly lit work areas, it is equipped with three integrated LED lights. This impact driver is part of the Bosch 18V POWER FOR ALL System, ensuring compatibility with a wide range of Bosch 18V batteries.
This diagram highlights the main features of the UniversalImpactDrive 18V-210, including its powerful brushless motor, compact and lightweight design for easy handling, integrated LED lights for improved visibility, two-speed settings for versatile power control, and a battery charge indicator.

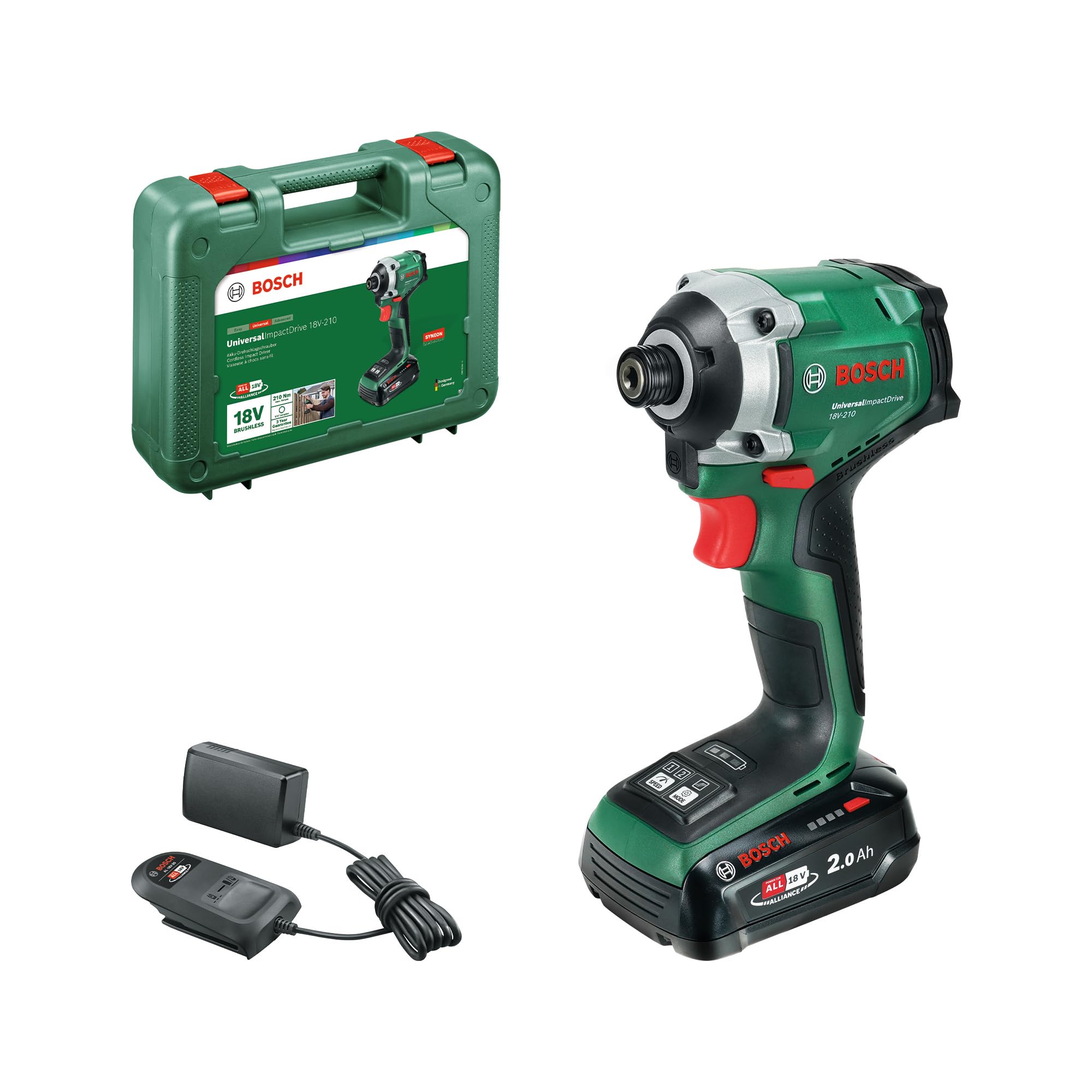

The Bosch UniversalImpactDrive 18V-210 cordless impact driver, shown here with its compatible 18V 2.0Ah battery and charger, ready for use.
2. Setup
2.1 Included Components
Verify that all components are present in the packaging:
- UniversalImpactDrive 18V-210 Impact Driver
- 1x PBA 18V 2.0Ah W-B Battery
- 1x AL18V-20 Charger
- 1x Carrying Case
2.2 Battery Installation and Charging
- Charging the Battery: Connect the AL18V-20 charger to a power outlet. Insert the PBA 18V 2.0Ah W-B battery into the charger. The charging indicator on the charger will show the charging status. Ensure the battery is fully charged before first use.
- Installing the Battery: Slide the charged battery into the base of the impact driver until it clicks securely into place. Ensure it is firmly seated to prevent accidental dislodgement during operation.
- Removing the Battery: Press the battery release button (usually located on the side of the battery) and slide the battery out of the tool.
2.3 POWER FOR ALL Alliance Compatibility
The Bosch UniversalImpactDrive 18V-210 is part of the POWER FOR ALL 18V Alliance, meaning its battery is compatible with a wide range of tools from Bosch and other alliance partners. This allows for flexibility and cost-efficiency by using one battery system across multiple devices.
The Bosch POWER FOR ALL 18V Alliance logo, illustrating the wide range of compatible tools and brands that share the same 18V battery system, ensuring versatility and cost-efficiency for users.
3. Operating Instructions
3.1 Bit Installation and Removal
- Installing a Bit: Pull the bit holder collar forward. Insert the desired 1/4" hex impact driver bit into the chuck until it locks into place. Release the collar. Gently pull on the bit to ensure it is securely seated.
- Removing a Bit: Pull the bit holder collar forward and pull the bit out.
Note: Always use impact-rated bits for optimal performance and durability, as standard driver bits may not withstand the high torque of an impact driver.
3.2 Power On/Off and Speed Control
- Power On: Press the trigger switch to start the tool. The speed is variable depending on how far the trigger is pressed.
- Power Off: Release the trigger switch.
- Speed Settings: The UniversalImpactDrive 18V-210 features two speed settings. Use the speed selector switch (typically located near the top of the handle) to choose between lower speed for delicate tasks or higher speed for faster fastening and harder materials.
- Direction of Rotation: Use the forward/reverse switch (located above the trigger) to select the desired rotation direction for driving or removing screws. Ensure the switch is in the central position for safety when not in use.
3.3 Integrated LED Lights
The tool is equipped with three LED lights that illuminate the work area when the trigger is pressed, providing improved visibility in poorly lit conditions.
An individual demonstrating the use of the Bosch UniversalImpactDrive 18V-210 for fastening screws into a wooden fence, showcasing its application in woodworking tasks.
A detailed view of the Bosch UniversalImpactDrive 18V-210 in action, driving a screw into a wooden surface. This demonstrates the tool's ability to handle various screw sizes and materials with its adjustable speed settings.
This image illustrates the compact design of the Bosch UniversalImpactDrive 18V-210, allowing for comfortable use in confined or overhead areas, as shown by the user working on a low wooden structure.
4. Maintenance
- Cleaning: Regularly clean the ventilation slots of the tool to prevent overheating. Use a soft, dry cloth to wipe down the housing. Do not use water or chemical cleaning agents.
- Battery Care: Store batteries in a cool, dry place away from direct sunlight. Do not expose batteries to extreme temperatures. For long-term storage, charge batteries to approximately 50-70%.
- Storage: When not in use, store the impact driver, battery, and charger in the provided carrying case in a dry, secure location, out of reach of children.
- Inspection: Periodically inspect the tool for any signs of damage, loose screws, or worn parts. If any damage is found, do not use the tool and contact customer support for assistance.
5. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Tool does not start | Battery not charged or improperly installed. | Ensure battery is fully charged and correctly inserted until it clicks. |
| Reduced power or performance | Low battery charge; incorrect speed setting for the task. | Recharge the battery. Select a higher speed setting if needed. |
| Bit not holding securely | Bit not fully inserted; worn bit holder. | Ensure bit is fully inserted and collar is released. If issue persists, contact service. |
| Tool overheats | Blocked ventilation slots; continuous heavy use. | Clean ventilation slots. Allow tool to cool down during prolonged heavy use. |
6. Technical Specifications
| Brand | Bosch |
| Model Number | 06039E7001 |
| Product Type | Cordless Impact Driver |
| Power Source | Battery Powered (18V) |
| Max Torque | 210 Nm |
| Max RPM | 3,300 rpm |
| Speed Settings | 2 |
| LED Lights | 3 Integrated LEDs |
| Item Weight | 1 Kilogram |
| Color | Green |
| ASIN | B0FQV6SRDC |
7. Warranty Information
Bosch power tools are manufactured with high-quality materials and undergo rigorous quality control. This product is covered by a manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region and product type. Please refer to the warranty card included with your product or visit the official Bosch website for detailed warranty information and registration.
Retain your proof of purchase for any warranty claims.
8. Customer Support
For technical assistance, spare parts, or service inquiries, please contact Bosch customer support. You can find contact information on the official Bosch website or through the documentation provided with your product.
When contacting support, please have your product model number (UniversalImpactDrive 18V-210) and serial number (if applicable) ready to expedite the service process.
Online Resources: Visit the official Bosch website for FAQs, product manuals, and service center locations.
