1. Important Safety Information
Read all instructions carefully before using the monitor. Keep this manual for future reference.
- Do not expose the monitor to rain or moisture.
- Do not open the monitor casing. There are no user-serviceable parts inside.
- Use only the power adapter and cables provided by Lenovo.
- Ensure proper ventilation around the monitor. Do not block ventilation openings.
- Avoid placing the monitor on an unstable surface.
- Disconnect the power cable from the outlet during lightning storms or when unused for long periods.
2. Package Contents
Verify that all items are present in your package:
- Lenovo Legion 27Q-10 Monitor
- Monitor Stand (Base and Neck)
- Power Cable
- DisplayPort (DP) Cable
- Quick Setup Guide
- Factory Calibration Report
- 4 Screws (for stand assembly)
Image: Contents of the Lenovo Legion 27Q-10 monitor box. This includes the monitor panel, the stand components (base and neck), a power cable, and a DisplayPort cable.
3. Monitor Overview
Familiarize yourself with the monitor's components and ports.
Front View

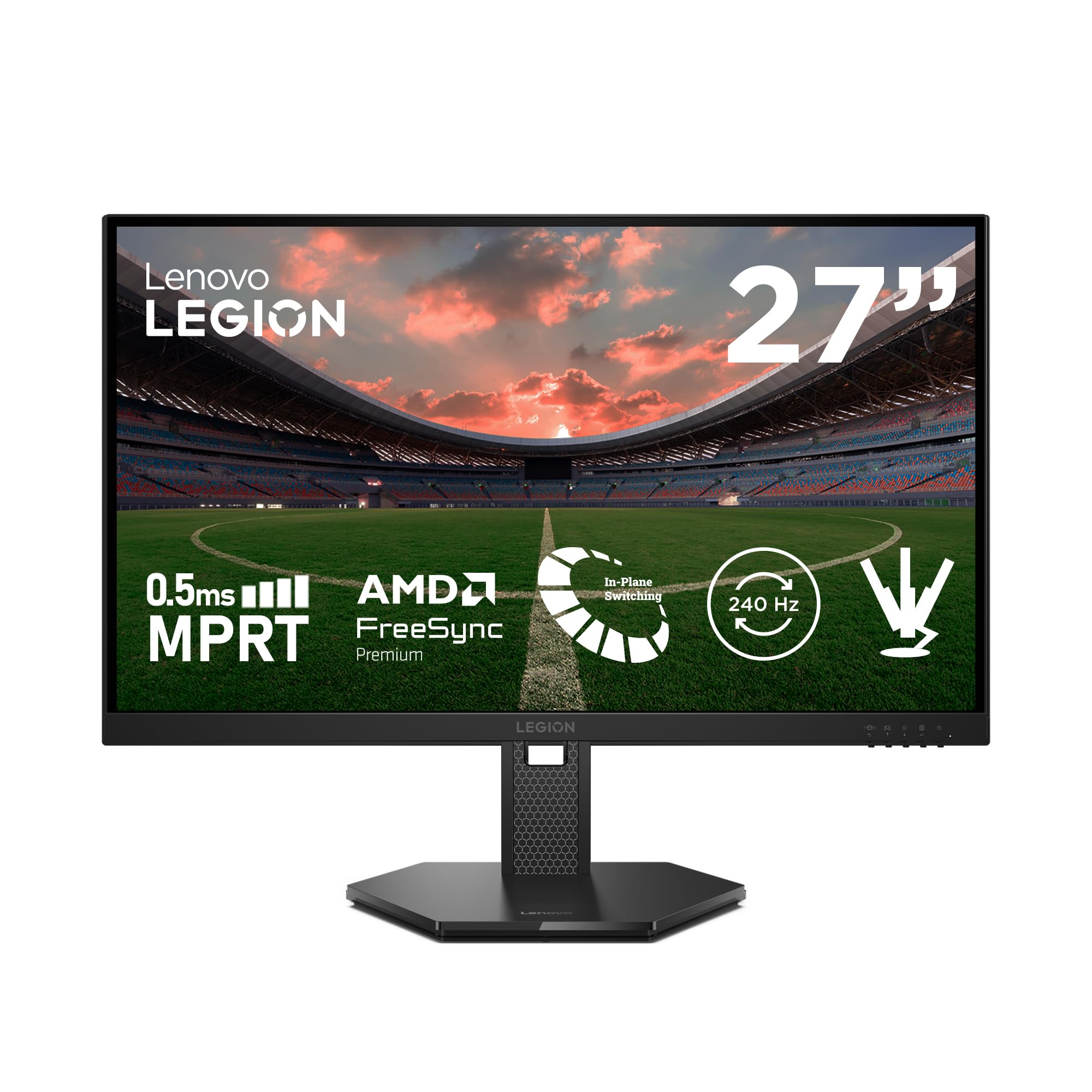

Image: Front view of the Lenovo Legion 27Q-10 monitor. The display features a 27-inch screen with narrow bezels on three sides, and the Legion logo is visible on the bottom bezel.
Rear View and Ports
Image: Diagram illustrating the rear ports of the monitor. From left to right, these include the power connector, two HDMI 2.1 TMDS ports, a DisplayPort 1.4, and a 3.5mm audio output jack.
Image: Rear view of the Lenovo Legion 27Q-10 monitor. The image highlights the hexagonal pattern on the stand neck and the area for VESA mount attachment, along with the rear panel design.
4. Setup
4.1 Stand Assembly
- Place the monitor panel face down on a soft, clean cloth to prevent scratches.
- Attach the stand neck to the monitor panel using the provided screws.
- Attach the stand base to the stand neck, securing it with the captive screw on the underside of the base.
- Carefully lift the assembled monitor and place it on a stable, flat surface.
4.2 VESA Mounting (Optional)
The monitor supports a 100mm x 100mm VESA mount. To use a VESA mount:
- Remove the stand from the monitor if it is already attached.
- Attach your VESA-compatible mounting bracket to the four screw holes on the back of the monitor.
- Follow the instructions provided with your VESA mount for installation.
4.3 Connecting to a Computer or Console
Connect your device using either a DisplayPort or HDMI cable.
- DisplayPort: Connect one end of the DisplayPort cable to the DisplayPort output on your computer/console and the other end to the DisplayPort input on the monitor.
- HDMI: Connect one end of an HDMI 2.1 cable to the HDMI output on your computer/console and the other end to one of the HDMI 2.1 inputs on the monitor.
4.4 Power Connection
Connect the power cable to the monitor's power input, then plug the other end into a grounded electrical outlet.
5. Operating the Monitor
5.1 Power On/Off
Press the power button located on the bottom right side of the monitor to turn it on or off.
5.2 On-Screen Display (OSD) Navigation
The OSD menu allows you to adjust various monitor settings. Use the control buttons (usually located on the bottom right or rear of the monitor) to navigate the menu.
- Press a button to activate the OSD menu.
- Use the directional buttons to move through options.
- Press the select button to confirm a selection.
- Press the exit button to close the OSD menu.
5.3 Adjusting Settings
Key settings you can adjust include:
- Brightness/Contrast: Adjust the overall luminance and difference between light and dark areas.
- Color Settings: Modify color temperature, gamma, and individual RGB levels.
- Picture Modes: Select predefined modes optimized for different content (e.g., Standard, Gaming, Movie, sRGB).
- Input Selection: Manually switch between DisplayPort and HDMI inputs.
5.4 Adaptive Sync (AMD FreeSync Premium Pro / VESA Adaptive Sync)
This monitor supports AMD FreeSync Premium Pro and VESA Adaptive Sync technologies to eliminate screen tearing and stuttering. Ensure your graphics card supports these technologies and that they are enabled in your graphics driver settings and the monitor's OSD menu.
5.5 Adjusting the Stand
The monitor stand offers ergonomic adjustments:
- Height Adjustment: Raise or lower the monitor up to 135 mm.
- Tilt: Adjust the screen angle from -5° to +22°.
- Swivel: Rotate the monitor horizontally up to 30° left or right.
- Pivot: Rotate the screen vertically from -90° to +90° for portrait mode.
Image: Side view of the Lenovo Legion 27Q-10 monitor, illustrating the range of motion for the stand, including tilt and height adjustment.
5.6 Eye Care Features
The monitor is certified with Eyesafe® Display 2.0 and TÜV Low Blue Light, designed to reduce eye strain during extended use by minimizing harmful blue light emissions without compromising color accuracy.
Image: The monitor displaying a game, with the TÜV Rheinland and Eyesafe Certified 2.0 logos prominently displayed, indicating its eye comfort features.
6. Maintenance
6.1 Cleaning the Screen
To clean the screen, first disconnect the power cable. Use a soft, lint-free cloth lightly dampened with water or a screen-cleaning solution. Do not spray liquid directly onto the screen.
6.2 General Care
- Keep the monitor away from direct sunlight and heat sources.
- Avoid placing heavy objects on the monitor or its cables.
- Do not use abrasive cleaners or solvents on any part of the monitor.
7. Troubleshooting
If you encounter issues with your monitor, refer to the following common problems and solutions:
| Problem | Possible Solution |
|---|---|
| No image on screen | Ensure the power cable is securely connected. Check if the video cable (DP/HDMI) is properly connected to both the monitor and the computer/console. Select the correct input source via the OSD menu. |
| Image flickering or unstable | Check the video cable connection. Ensure your graphics card drivers are up to date. Adjust the refresh rate in your operating system display settings. |
| Colors appear incorrect | Reset color settings to factory defaults in the OSD menu. Adjust color temperature or individual RGB values. Ensure the video cable is not damaged. |
| Monitor does not turn on | Verify the power cable is connected to a working outlet and the monitor. Try a different power outlet. |
| Adaptive Sync (FreeSync) not working | Ensure Adaptive Sync is enabled in the monitor's OSD menu. Verify your graphics card supports FreeSync Premium Pro and that it is enabled in your graphics driver control panel. Use a DisplayPort cable for optimal performance. |
8. Specifications
| Feature | Specification |
|---|---|
| Model Name | Legion 27Q-10 |
| Model Number | 68C6GAC4EU |
| Screen Size | 27 Inches |
| Panel Type | IPS |
| Resolution | QHD (2560 x 1440) |
| Aspect Ratio | 16:9 |
| Refresh Rate | 240 Hz |
| Response Time | 0.5 ms (MPRT) |
| Brightness | 300 nits |
| Contrast Ratio | 1000:1 |
| Color Gamut | 99% sRGB, 90% DCI-P3 |
| Viewing Angle | 178° (H/V) |
| Connectivity | 2x HDMI 2.1, 1x DisplayPort 1.4, 1x Audio Out (3.5mm) |
| Adaptive Sync | AMD FreeSync Premium Pro, VESA Adaptive Sync |
| Stand Adjustments | Height (135mm), Tilt (-5°/+22°), Swivel (±30°), Pivot (±90°) |
| VESA Mount | 100mm x 100mm |
| Power Consumption | 50 Watts (Max) |
| Dimensions (with stand) | 61.31 x 21.4 x 53.65 cm |
| Weight (with stand) | 6 kg |
| Color | Black |
9. Warranty and Support
This Lenovo Legion 27Q-10 monitor comes with a 3-year warranty from the date of purchase.
For technical support, warranty claims, or additional information, please visit the official Lenovo support website or contact your local Lenovo service center. Refer to the warranty card included in your package for specific terms and conditions.
Lenovo Support Website: https://support.lenovo.com
