RESIONE F69 Flexible 3D Printer Resin and Cleaning Tool Kit User Manual

1. Introduction

This manual provides essential instructions for the safe and effective use of the RESIONE F69 Flexible 3D Printer Resin and the accompanying 3D Printing Cleaning Tool Kit. Please read this manual thoroughly before using the products to ensure optimal results and safety.

2. Product Overview

2.1 RESIONE F69 Flexible 3D Printer Resin

The RESIONE F69 is a flexible resin designed for 3D printing, offering properties similar to rubber. It is characterized by its flexibility, tear resistance, and folding resistance, making it suitable for various applications requiring elastic or deformable parts.

RESIONE F69 Flexible 3D Printer Resin bottle and a 3D printed flexible part

Image 2.1.1: RESIONE F69 Flexible 3D Printer Resin bottle and an example of a flexible printed part.

Key Characteristics:

Flexibility and Durability: Shore hardness of 60-75A. The printed material is soft above 20°C and becomes harder and more impact-resistant at 5°C. It exhibits superior tear strength and can withstand thousands of folds.
Fine Detail Reproduction: Engineered to produce sharp and clear details in printed models.
Ease of Use: Formulated with a release agent to minimize adhesion to the FEP film during printing, ensuring smooth layer separation. The resin's composition helps maintain part integrity during printing, preventing deformation.
Versatile Application: Ideal for figure toys, footwear, seals, gaskets, transmission belts, flexible prototypes, and various doll accessories.

Close-up of 3D printed parts showing fine details and the RESIONE F69 resin bottle.

Image 2.1.2: Examples of fine details achievable with RESIONE F69 resin, alongside the resin bottle.

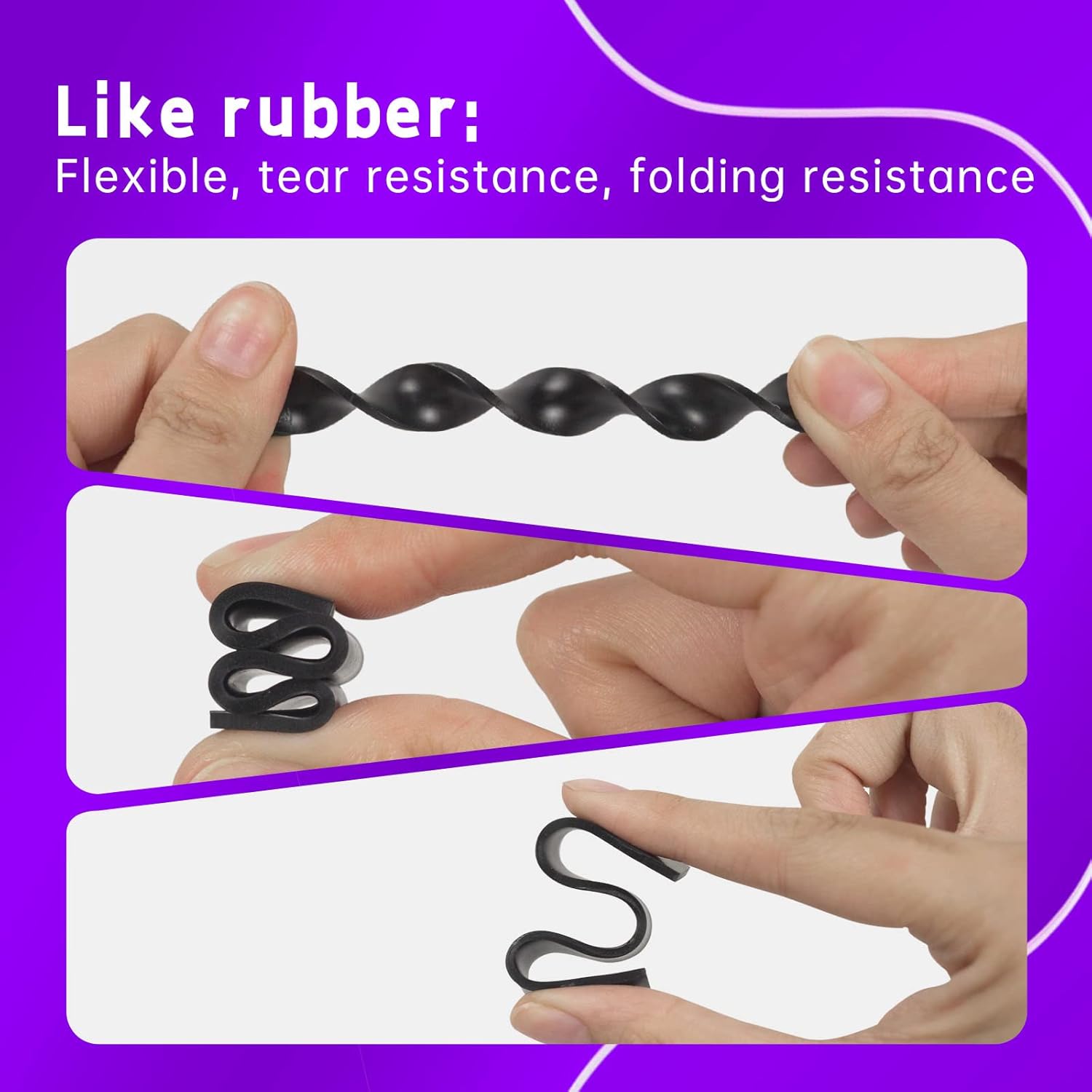

Hands demonstrating the flexibility and folding resistance of a 3D printed part made with RESIONE F69 resin.

Image 2.1.3: Demonstration of the rubber-like flexibility and folding resistance of RESIONE F69 resin prints.

Various applications of flexible resin including figure toys, wearable devices, and prototypes.

Image 2.1.4: Visual examples of wide applications for RESIONE F69 flexible resin.

Mechanical Properties:

Image 2.1.5: Mechanical properties of RESIONE F69 Flexible Resin.

Table 2.1: RESIONE F69 Mechanical Properties
Property	Value	Property	Value
Shore Hardness	60~75A	Elastic Modulus	2.0MPa
Tear Strength	47.2KN/m	Elongation at Break	255.1%
Tensile Strength	7.9MPa	Viscosity (25°C)	1250mPa.s

2.2 3D Printing Cleaning Tool Kit

The cleaning kit provides essential tools for maintaining your resin 3D printer and ensuring a clean working environment. It is designed for durability and reuse.

Contents of the 3D Printing Cleaning Kit including gloves, cloths, funnels, and scraper.

Image 2.2.1: Overview of the 3D Printing Cleaning Kit contents.

Kit Contents:

Nitrile Gloves: Thick and resistant to tearing and cleaning solution leakage.
Liner Gloves: Enhance comfort and extend the life of nitrile gloves.
Chip-Free Cleaning Cloths: For wiping surfaces without leaving residue.
Paper Funnels: For filtering resin.
Plastic Scraper: For removing cured resin from the build plate or vat.

Detailed breakdown of the cleaning kit items: Nitrile Rubber Gloves, Liner Gloves, Cleaning Cloth, Paper Funnel, Plastic Scraper.

Image 2.2.2: Individual components of the 3D Printing Cleaning Kit.

3. Safety Guidelines

Working with 3D printer resin requires adherence to strict safety protocols. Failure to follow these guidelines can result in personal injury or property damage.

Personal Protective Equipment (PPE): Always wear appropriate PPE, including nitrile gloves and safety glasses, when handling resin or cleaning tools.
Ventilation: Use resin in a well-ventilated area to avoid inhaling fumes. Consider using a respirator if ventilation is inadequate.
Skin Contact: Avoid direct skin contact with liquid resin. If contact occurs, wash immediately with soap and water. Do not use alcohol to clean resin from skin.
Eye Contact: In case of eye contact, flush eyes immediately with plenty of water for at least 15 minutes and seek medical attention.
Ingestion: Do not ingest resin. If ingested, do not induce vomiting. Seek immediate medical attention.
Storage: Store resin in its original opaque bottle, tightly sealed, in a cool, dry, and dark place, away from direct sunlight and heat sources. Keep out of reach of children and pets.
Disposal: Dispose of uncured resin and contaminated cleaning materials according to local regulations. Cured resin can typically be disposed of as regular plastic waste. Never pour liquid resin down drains.
Flammability: Keep resin away from open flames and ignition sources.

4. Setup

4.1 Resin Preparation

Ensure the resin bottle is at room temperature (20-25°C) for optimal viscosity.
Shake the resin bottle thoroughly for at least 1-2 minutes before each use to ensure pigments and components are evenly mixed.
Carefully pour the desired amount of resin into your 3D printer's resin vat. Avoid overfilling.

4.2 Cleaning Kit Preparation

Before handling any resin or cleaning tasks, put on a pair of liner gloves, followed by a pair of nitrile gloves from the kit.
Prepare your workspace by laying down cleaning cloths to protect surfaces from resin spills.

5. Operating Instructions

5.1 Using RESIONE F69 Resin for Printing

Printer Settings: Refer to your 3D printer's manual for recommended exposure settings for flexible resins. Initial layer exposure times are typically longer, and normal layer exposure times may vary based on printer type (LCD/DLP/SLA) and power. Start with recommended settings and adjust as needed.
Printing Environment: Maintain a stable room temperature (20-30°C) during printing to ensure consistent resin performance.
Post-Processing (Washing): After printing, carefully remove the model from the build plate. Wash the printed part in isopropyl alcohol (IPA) or a dedicated resin cleaner for 2-5 minutes to remove uncured resin. Use a soft brush if necessary for intricate details.
Post-Processing (Curing): Cure the washed model using a UV curing station or direct sunlight until fully hardened. Curing times vary based on UV light intensity and model thickness. Ensure the model is completely dry before curing.

5.2 Using the Cleaning Tool Kit

Regular cleaning is crucial for maintaining your 3D printer and ensuring print quality.

Cleaning the Build Plate: Use the plastic scraper to carefully remove any cured resin residue from the build plate. Wipe the build plate with a cleaning cloth dampened with IPA.
Cleaning the Resin Vat: If there is uncured resin in the vat, use a paper funnel to filter the resin back into its original bottle. This removes any cured particles or debris. Then, use a cleaning cloth and IPA to gently clean the FEP film and the interior of the resin vat. Be extremely careful not to scratch the FEP film.
General Cleanup: Use cleaning cloths to wipe down any resin spills on the printer or workspace.

Person wearing gloves using a scraper to clean a resin 3D printer vat, with cleaning cloths and a funnel visible.

Image 5.2.1: Demonstration of using the cleaning kit to maintain a resin 3D printer.

6. Maintenance

6.1 Resin Storage

Always store RESIONE F69 resin in its original opaque bottle, tightly sealed, to prevent exposure to light and air.
Keep the resin in a cool, dry, and dark environment, ideally between 15-30°C. Avoid direct sunlight or extreme temperatures.
Ensure the bottle is stored upright to prevent leakage.

6.2 Printer and Vat Maintenance

Regularly inspect the FEP film in your resin vat for any damage, scratches, or cloudiness. Replace the FEP film if necessary to ensure print quality and prevent resin leaks.
Keep the printer's LCD screen clean and free of dust or cured resin. Use a soft, lint-free cloth and IPA for cleaning.
Ensure the build plate is clean and properly leveled before each print.

7. Troubleshooting

This section addresses common issues encountered during resin 3D printing. For more specific issues, consult your 3D printer's manual or the RESIONE support resources.

Table 7.1: Common Troubleshooting Scenarios
Problem	Possible Cause	Solution
Prints not sticking to build plate	Improper leveling, insufficient bottom exposure, cold resin, dirty build plate.	Re-level build plate, increase bottom exposure time, warm resin to room temperature, clean build plate thoroughly.
Failed prints / Partial prints	Incorrect exposure settings, FEP film damage, resin contamination, insufficient supports.	Adjust exposure times, inspect/replace FEP film, filter resin, add more supports in slicing software.
Sticky / Soft prints after curing	Insufficient washing, inadequate curing, old/expired resin.	Wash prints longer or with fresh IPA, increase UV curing time, ensure resin is within shelf life.
Resin leaking from vat	Damaged FEP film, loose screws on vat.	Immediately stop printing, drain resin, replace FEP film, tighten vat screws.

8. Specifications

8.1 RESIONE F69 Flexible 3D Printer Resin

Brand: RI RESIONE
Model: F69
Type: Flexible 3D Printer Resin
Shore Hardness: 60-75A
Tear Strength: 47.2KN/m
Tensile Strength: 7.9MPa
Elongation at Break: 255.1%
Viscosity (25°C): 1250mPa.s

8.2 3D Printing Cleaning Tool Kit

Brand: RI RESIONE
Contents: Nitrile Gloves, Liner Gloves, Chip-Free Cleaning Cloths, Paper Funnels, Plastic Scraper

9. Warranty and Support

For warranty information, technical support, or further inquiries regarding the RESIONE F69 Flexible 3D Printer Resin or the 3D Printing Cleaning Tool Kit, please visit the official RI RESIONE website or contact their customer service directly. Keep your purchase receipt for warranty claims.

RI RESIONE Official Website: Visit the RI RESIONE Store on Amazon
