1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of the FESTO ESBF-BS-63-685-25P-S1 Electric Drive. Please read this manual thoroughly before using the product and retain it for future reference. Adherence to these instructions is crucial for optimal performance and longevity of the device.
2. Safety Information
Always observe general safety regulations and accident prevention guidelines when working with industrial equipment. Failure to follow these safety instructions may result in personal injury, property damage, or malfunction of the device.
- Qualified Personnel: Installation, operation, and maintenance must only be performed by qualified and authorized personnel.
- Electrical Safety: Ensure all electrical connections are made according to local and national electrical codes. Disconnect power before performing any maintenance or installation.
- Mechanical Hazards: Moving parts can cause injury. Ensure all safety guards are in place before operation. Do not reach into the operating area during use.
- Environmental Conditions: Operate the device within its specified environmental limits (temperature, humidity, etc.).
- Original Parts: Use only original FESTO spare parts and accessories to ensure proper function and safety.
3. Product Overview
The FESTO ESBF-BS-63-685-25P-S1 is an electric drive designed for precise linear motion applications in industrial automation. It integrates a motor and a linear actuator into a compact unit, providing controlled and repeatable positioning.
Figure 3.1: Full view of the FESTO ESBF-BS-63-685-25P-S1 Electric Drive. This image displays the complete assembly of the linear electric drive, highlighting its elongated, cylindrical body with the FESTO branding visible on the side. The drive shaft with its end fitting is visible at one end.
Figure 3.2: Alternative angle view of the FESTO ESBF-BS-63-685-25P-S1 Electric Drive. This perspective shows the drive from a slightly different angle, emphasizing the smooth, silver-colored casing and the robust construction of the unit. The mounting points and the motor housing are also visible.

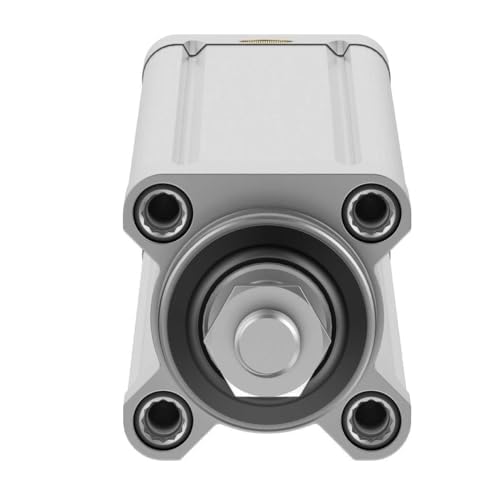

Figure 3.3: End view of the FESTO ESBF-BS-63-685-25P-S1 Electric Drive, showing the shaft. This close-up image focuses on the output shaft of the electric drive, including the threaded end and securing nut, indicating the mechanical interface for connection to external components.
Figure 3.4: End view of the FESTO ESBF-BS-63-685-25P-S1 Electric Drive, showing the motor housing. This image provides a detailed view of the opposite end of the drive, where the motor is integrated. It shows the robust casing and the mounting holes for secure installation.
4. Setup and Installation
Proper installation is critical for the performance and safety of the electric drive. Refer to the detailed installation instructions provided with the product packaging for specific mounting configurations and electrical connections.
- Mounting: Securely mount the electric drive to a stable and rigid surface using appropriate fasteners. Ensure proper alignment to prevent undue stress on the drive and connected components.
- Electrical Connection: Connect the motor power supply and control signals according to the wiring diagram. Verify correct voltage and current ratings. Ensure all connections are tight and insulated.
- Mechanical Connection: Attach the load to the drive shaft. Ensure the connection is secure and free from excessive play. Avoid applying side loads that exceed the drive's specifications.
- Grounding: Properly ground the electric drive and associated control components to prevent electrical hazards.
5. Operating Instructions
The FESTO ESBF-BS-63-685-25P-S1 Electric Drive is typically controlled via an external motor controller or PLC. Refer to the controller's manual for specific programming and command protocols.
- Power On: Apply power to the motor controller and the electric drive. Observe any indicator lights for system status.
- Initialization: Some systems may require an initialization or homing sequence upon power-up. Follow the controller's instructions for this procedure.
- Motion Control: Send commands from the control system to initiate linear motion. Monitor the drive's movement and ensure it operates within expected parameters.
- Emergency Stop: Familiarize yourself with the emergency stop procedures for the entire system.
6. Maintenance
Regular maintenance ensures the reliable operation and extends the lifespan of your electric drive. Always disconnect power before performing any maintenance tasks.
- Inspection: Periodically inspect the drive for signs of wear, damage, or loose connections. Check cables for fraying or damage.
- Cleaning: Keep the drive clean and free from dust, debris, and corrosive substances. Use a soft, dry cloth for cleaning. Do not use harsh chemicals.
- Lubrication: Refer to the product's technical data sheet for any specific lubrication requirements. Some drives are maintenance-free, while others may require periodic re-lubrication of bearings or lead screws.
- Fastener Torque: Verify that all mounting bolts and mechanical connections are tightened to the specified torque values.
7. Troubleshooting
This section provides general guidance for common issues. For complex problems, contact FESTO technical support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Drive does not move | No power supply; Incorrect wiring; Controller error; Emergency stop active | Check power connections; Verify wiring against diagram; Consult controller manual; Reset emergency stop |
| Inaccurate positioning | Loose mechanical connection; Encoder issue; Controller tuning required | Tighten connections; Check encoder feedback; Perform controller auto-tuning |
| Unusual noise or vibration | Misalignment; Worn bearings; Loose components; Overload | Check alignment; Inspect bearings; Tighten fasteners; Reduce load or check sizing |
8. Specifications
The following table outlines key specifications for the FESTO ESBF-BS-63-685-25P-S1 Electric Drive. For a complete list of technical data, refer to the official FESTO product datasheet.
| Specification | Value |
|---|---|
| Model Number | ESBF-BS-63-685-25P-S1 |
| Part Number | 574090 |
| Manufacturer | FESTO |
| ASIN | B0FJZH2GPM |
| Date First Available | July 25, 2025 |
9. Warranty and Support
This FESTO product is covered by the manufacturer's standard warranty. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official FESTO website. In case of technical issues or support inquiries, please contact FESTO customer service or your authorized distributor.
For returns or replacements, please adhere to the return policy of your point of purchase, which typically allows for returns within 30 days of purchase for refund or replacement.
