1. Introduction

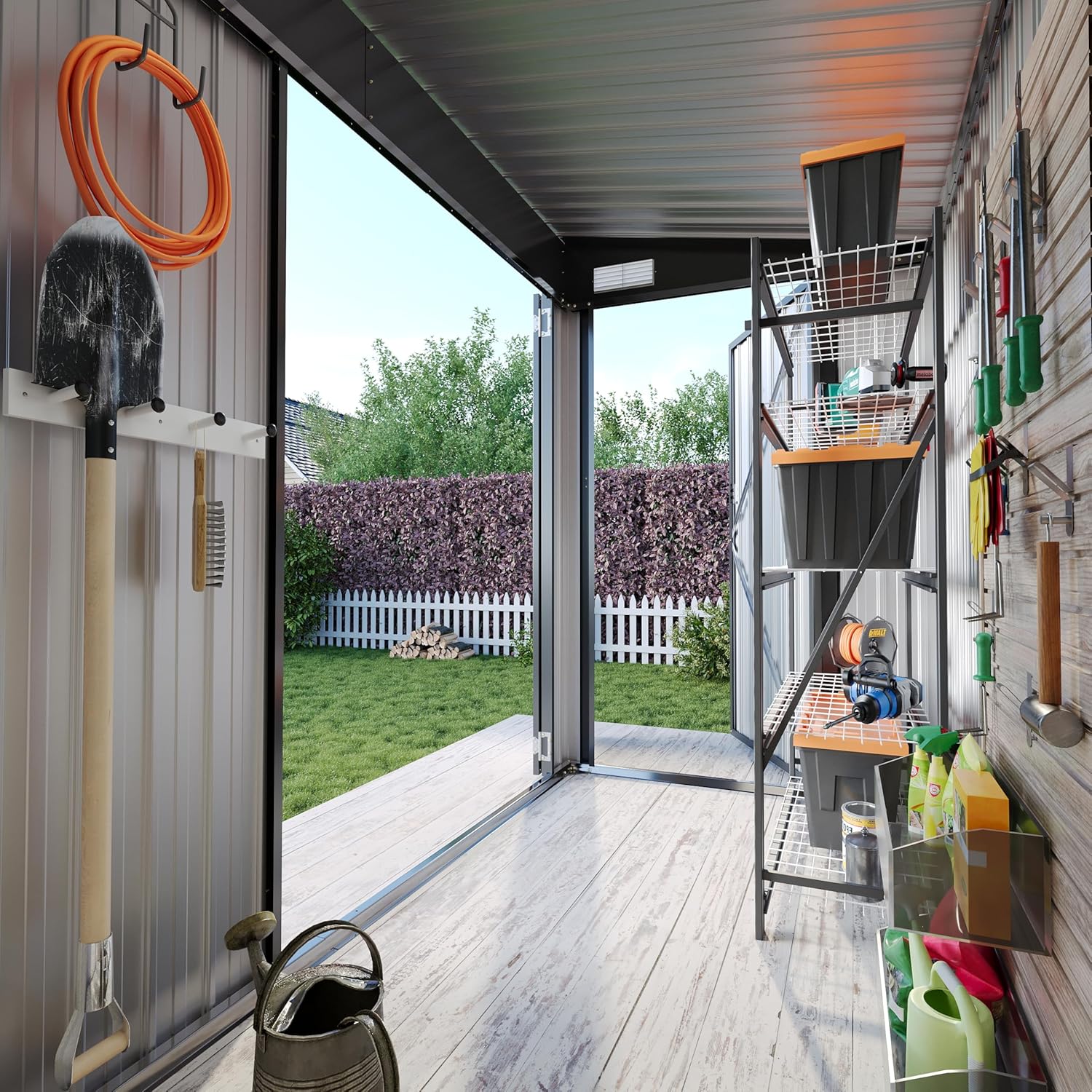

The Aoxun 4' x 8' Outdoor Storage Shed (Model IS302BK02A) is a durable and versatile metal storage solution designed for outdoor use. This shed provides ample space for organizing various outdoor items, including garden tools, bicycles, and other equipment, helping to maintain a tidy and organized outdoor area.
Key features include a multigate design with three lockable doors for convenient access and a sloping roof engineered for efficient water drainage, preventing accumulation and protecting contents.
2. Safety Information
Please read and understand all safety warnings before assembly and use of the shed. Failure to follow these instructions may result in injury or damage to the product.
- Exercise caution when storing heavy items to prevent structural strain.
- Follow all assembly instructions carefully and precisely.
- Be aware of potential electrical hazards if installing near power sources.
- Handle all components with care during construction due to the presence of sharp edges, which may cause injury.
- Ensure the shed is assembled on a level and stable surface.
- Do not climb on the roof of the shed.
- Keep children and pets away from the assembly area.
3. Package Contents
Before beginning assembly, verify that all parts and hardware listed in the included parts list are present and undamaged. All components are clearly numbered for easy identification.
Typical package contents include:
- Galvanized steel panels (walls, roof, doors)
- Frame components (beams, supports)
- Hardware kit (screws, nuts, bolts, washers)
- Door handles and locking mechanisms
- Assembly instructions manual
4. Assembly Instructions
Assembly of the Aoxun Outdoor Storage Shed requires careful attention to detail. It is recommended that 2 to 4 persons participate in the assembly process, which typically takes a minimum of 120 minutes. Please wear the provided gloves during assembly to protect your hands.
Required Tools:
- Ladder
- Electric Screwdriver
- Measuring Tape
- Level
Important Note: Many panels come with a surface protection film to prevent scratches during transport. Please remove this film before assembly.
General Assembly Steps:
- Prepare the Foundation: Ensure the chosen site is level and firm. A concrete slab or treated timber foundation is recommended for optimal stability and longevity.
- Assemble the Base Frame: Connect the numbered base frame components according to the illustrated instructions. Ensure all connections are secure and the frame is square.
- Install Wall Panels: Attach the wall panels to the base frame, following the numerical sequence provided in the manual. Secure each panel firmly with the designated hardware.
- Construct the Roof Frame: Assemble the roof support beams and connect them to the top of the wall panels.
- Attach Roof Panels: Carefully place and secure the roof panels onto the roof frame. Ensure proper overlap for water resistance. The sloping roof design facilitates quick water drainage.

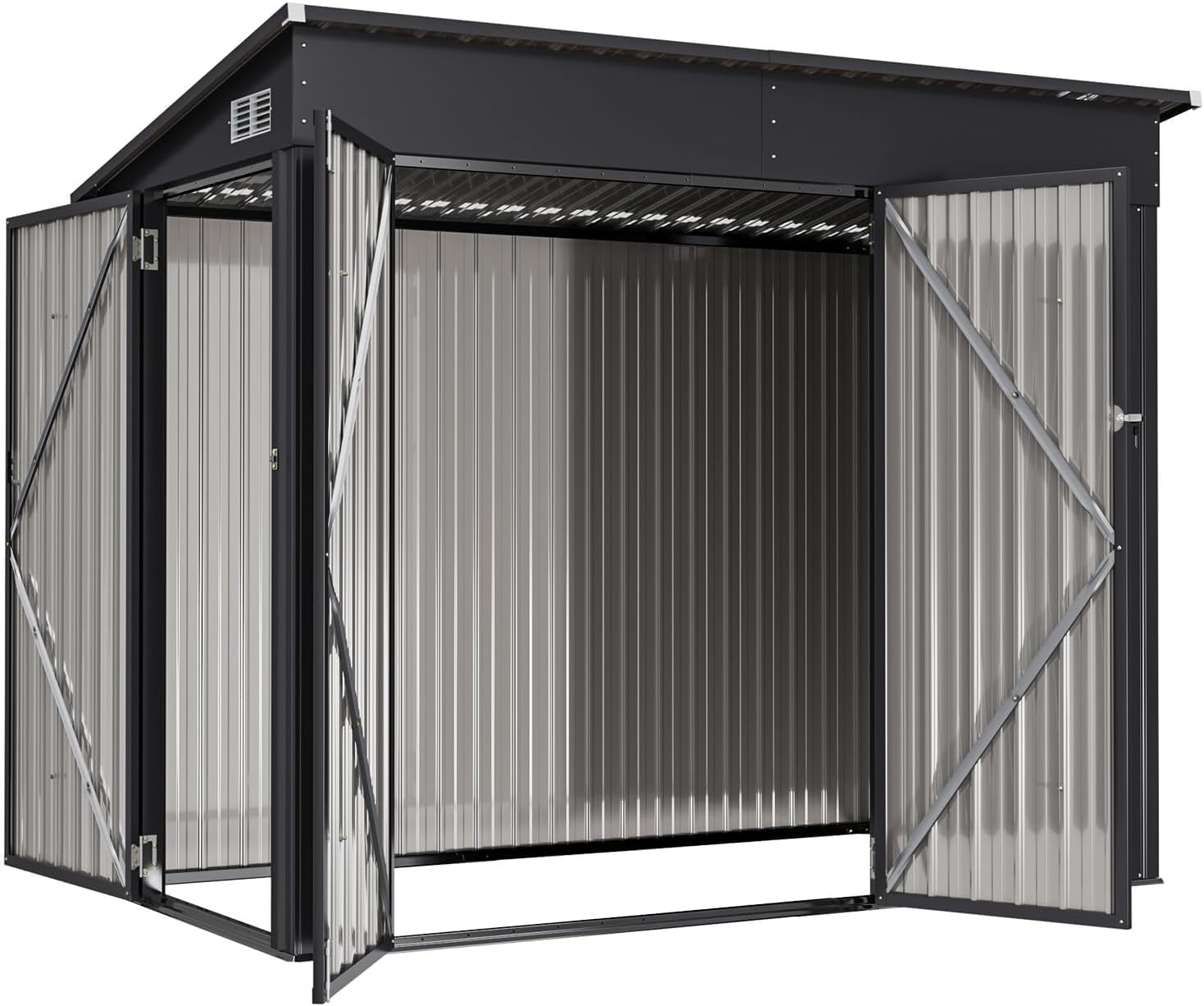

- Install Doors: Mount the three doors (front and side) onto their respective hinges. Attach door handles and install the triple lockable mechanisms.
- Final Checks: Verify that all screws and bolts are tightened, and the shed is stable. Check door alignment and locking functionality.
5. Operating Instructions
The Aoxun Outdoor Storage Shed is designed for ease of use and secure storage.
- Door Operation: The shed features a multigate design with three doors (one main double door and two side doors). To open, unlatch the internal locking mechanisms and pull the doors outwards. To close, push the doors firmly shut and engage the latches.
- Locking Mechanism: Each door is equipped with a lockable mechanism to ensure the safety and security of your stored items. Use a padlock (not included) with the integrated locking points for added security.
- Ventilation: The shed includes shutter vents designed to promote air circulation and reduce condensation inside the unit. Ensure these vents are not obstructed.
6. Maintenance
Regular maintenance will ensure the longevity and optimal performance of your Aoxun Outdoor Storage Shed.
- Cleaning: Clean the exterior of the shed periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the powder-coated finish.
- Rust Prevention: The shed is constructed from galvanized steel with a powder coating to resist rust. However, inspect for any scratches or damage to the coating and touch up with appropriate rust-inhibiting paint if necessary to prevent corrosion.
- Drainage: Ensure the sloping roof remains clear of debris (leaves, snow) to allow for efficient water drainage. Regularly check and clear gutters if installed nearby.
- Door Mechanisms: Lubricate door hinges and locking mechanisms annually to ensure smooth operation.
- Structural Integrity: Periodically check all bolts and screws to ensure they remain tight. Re-tighten any loose fasteners to maintain the shed's stable construction.
7. Troubleshooting
This section addresses common issues you might encounter with your Aoxun Outdoor Storage Shed.
| Problem | Possible Cause | Solution |
|---|---|---|
| Difficulty during assembly (e.g., screw holes not aligning) | Panels not perfectly aligned; slight manufacturing tolerance. | Ensure all panels are loosely fitted before tightening any screws. Apply gentle pressure to align holes. If necessary, use a drill to slightly widen misaligned holes (use caution). |
| Doors do not close or latch properly | Shed not level; hinges misaligned; debris in tracks. | Verify the shed is on a perfectly level surface. Adjust hinges if possible. Clear any obstructions from door tracks or frames. |
| Water leakage inside the shed | Improper roof panel overlap; gaps at base; damaged seals. | Inspect roof panel overlaps and ensure they are sealed correctly. Check for gaps between the base and the ground; consider adding a sealant. Examine door and window seals for damage and replace if needed. |
| Shed feels unstable or wobbly | Loose fasteners; uneven foundation. | Re-tighten all screws and bolts throughout the structure. Ensure the foundation is completely level and stable. Consider anchoring the shed to the ground for increased stability. |
8. Specifications
- Brand: Aoxun
- Model Number: IS302BK02A
- Color: Black
- Material: Metal (Galvanized Steel)
- Product Dimensions: 87"D x 91.5"W x 72.2"H
- Item Weight: 122 Pounds
- Style: Modern
- Base Material: Metal
- Top Material Type: Metal
- Water Resistance Level: Water Resistant
- Chamber Depth: 87 Inches
- Frame Material: Metal
- Door Style: Simple
- Assembly Required: Yes
- Manufacturer: Aoxun
- Door Width: 91.5 Inches
- Door Height: 30.8 Inches
9. Warranty and Support
Aoxun is committed to providing quality products and customer satisfaction.
- Returns: This product is eligible for 30-day easy returns from the date of purchase. Please refer to the retailer's return policy for detailed instructions.
- Customer Support: For any questions regarding assembly, parts, or product functionality, please contact Aoxun Direct customer support.
- Contact Information: Please refer to your purchase documentation or the Aoxun official website for the most current customer support contact details.
