LEKATO CPD-1000 Electronic Drum Set Instruction Manual

1. Introduction

Thank you for choosing the LEKATO CPD-1000 Electronic Drum Set. This portable electric drum set is designed to provide an authentic drumming experience with quiet mesh pads and a wide range of sounds. This manual will guide you through the setup, operation, and maintenance of your new instrument.

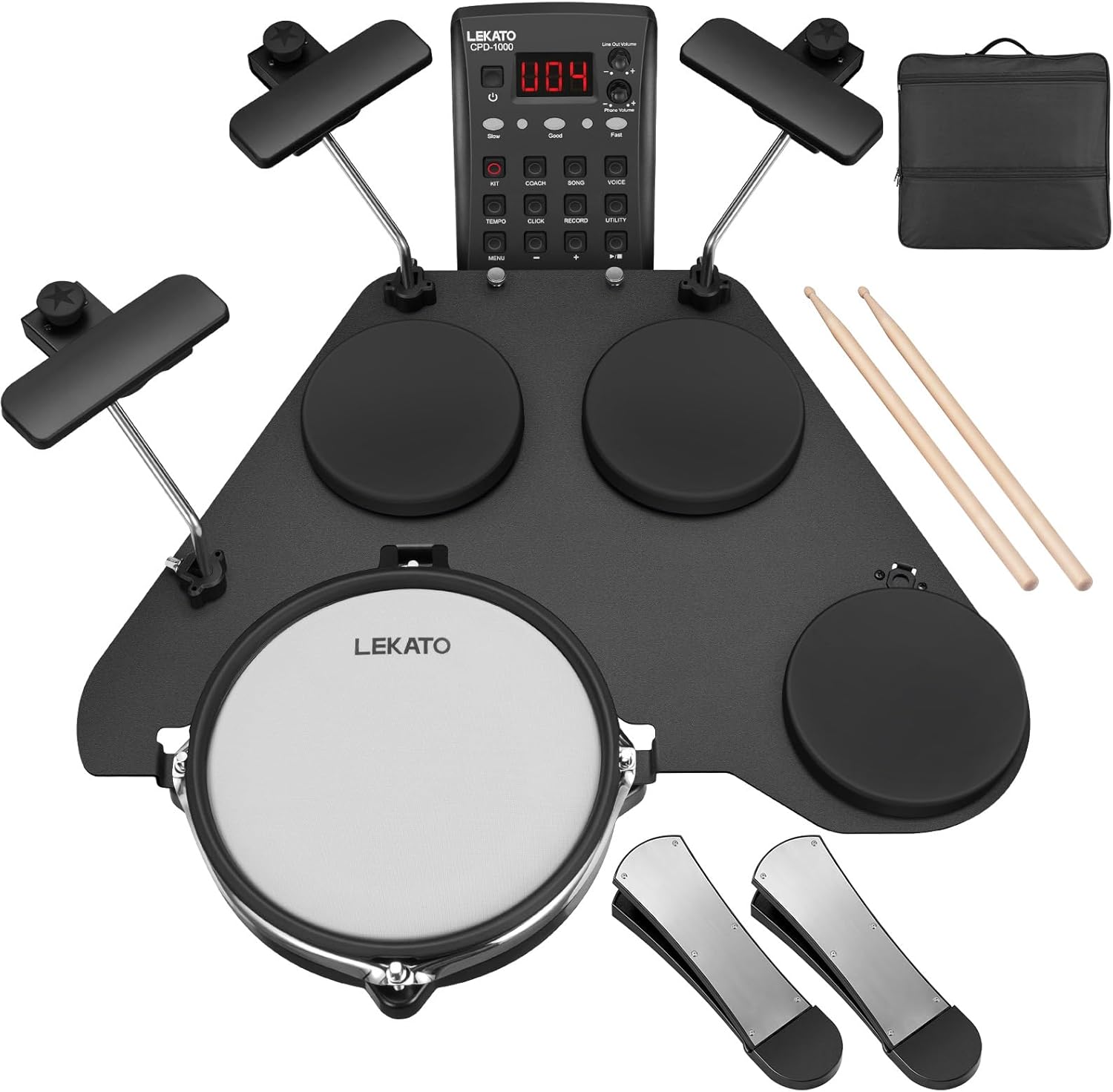

The CPD-1000 features a double-layer mesh snare for realistic rebound, three silicone toms, and three silicone cymbals for responsive play. It includes over 220 drum sounds, 10 preset kits, and 5 customizable kits. Connectivity options include AUX input for external audio, USB-MIDI for computer integration, and robust footswitch pedals for dynamic control.

2. Package Contents

Before assembly, please verify that all components are present:

• Main Pad (1x)
• Cymbal (3x)
• Adapter (1x)
• Pedal (2x)
• Wiring Harness (1x)
• Shoulder Bag (1x)
• Drum Key and Screws
• Drum Sticks
• User Manual

3. Setup

3.1 Assembly

The LEKATO CPD-1000 is designed for easy assembly and portability. It can be set up on a 14-inch snare drum stand or a tabletop.

1. Place the main pad unit on a stable surface or a compatible drum stand.
2. Attach the cymbal triggers to their designated positions on the main unit using the provided hardware. Adjust their height and angle for comfortable playing.
3. Connect the footswitch pedals to the main unit. Ensure they are placed on a stable surface to prevent movement during play.
4. Connect the wiring harness to the main pad unit and then to each individual pad (snare, toms, cymbals) and pedals. Ensure all connections are secure.

3.2 Power Connection

Connect the provided power adapter to the DC 9V input on the drum module and plug it into a standard electrical outlet.

3.3 Audio Connections

• Headphone Output: Connect headphones to the 3.5mm PHONE OUT jack for private practice.
• Line Output: Connect to an amplifier or mixing console using the 6.35mm OUTPUT jack.
• AUX Input: Connect an external audio device (e.g., smartphone, MP3 player) to the 3.5mm AUX IN jack to play along with your favorite music.

3.4 USB MIDI Connection

Connect the drum module to a computer using a USB cable for MIDI functionality. This allows for recording into Digital Audio Workstations (DAW) or controlling virtual instruments.

3.5 Assembly Video Guide

For a visual guide on the assembly process, please refer to the following video:

4. Operating Instructions

4.1 Power On/Off

Press the POWER button on the drum module to turn the unit on or off.

4.2 Sound Selection and Drum Kits

The CPD-1000 offers over 220 drum sounds and 10 preset drum kits. You can also create and save up to 5 freely combinable drum kits.

• Press the KIT button to cycle through the preset drum kits.
• Use the +/- buttons to adjust parameters or select different sounds within a kit.

4.3 Playing the Pads

All pads on the CPD-1000 are touch-sensitive, including the snare, hi-hat, crash, ride, and tom pads (Tom1, Tom2, Tom3). The sound produced will vary based on the force and speed of your strike, providing a dynamic playing experience.

The robust footswitch pedals are designed to eliminate crosstalk and support dynamic input, ensuring clean and responsive kick and hi-hat control.

4.4 Practice Features

• Demo Songs: The module includes 30 demo songs for practice and inspiration. Use the SONG button to select and play demo tracks.
• Metronome: Activate the built-in metronome using the CLICK button to improve timing and accuracy. Adjust the tempo with the TEMPO button.
• Coach Mode: Engage COACH mode for guided practice exercises, helping beginners develop fundamental drumming skills.
• Recording: Use the RECORD function to capture your drumming sessions for review and progress tracking.

4.5 Advanced Pad Settings

The drum module allows for fine-tuning of individual pad parameters to customize your playing experience. Access these settings via the UTILITY button and navigate using the +/- buttons.

• Threshold: Adjusts the minimum force required to trigger a sound.
• Sensitivity: Controls how responsive the pad is to different playing dynamics.
• Crosstalk: Minimizes unwanted triggering of adjacent pads.
• Curve: Modifies the velocity response curve of the pad.
• Retrig-Cancel: Helps prevent double-triggering.
• Rim-Adjust: Adjusts the sensitivity of rim shots on the snare pad.

5. Maintenance

5.1 Cleaning

To maintain the longevity and performance of your drum set:

• Wipe down the pads and module with a soft, dry cloth after each use.
• For stubborn dirt, use a slightly damp cloth and then dry thoroughly.
• Avoid using abrasive cleaners, solvents, or waxes, as these can damage the surfaces.

5.2 Storage

When not in use, store the drum set in a cool, dry place away from direct sunlight and extreme temperatures. The drum set is designed for portability, with removable stands and a travel bag for convenient storage and transport.

6. Troubleshooting

If you encounter any issues with your LEKATO CPD-1000, please refer to the following common solutions:

• No Sound:
  • Ensure the power adapter is securely connected and the unit is powered on.
  • Check headphone or speaker connections and their volume levels.
  • Verify that the main volume on the drum module is turned up.
  • Confirm all pad cables are correctly plugged into the module.
• Pads Not Responding or Double Triggering:
  • Check the cable connection for the affected pad.
  • Adjust the pad's Threshold, Sensitivity, Crosstalk, and Retrig-Cancel settings in the Utility menu (refer to Section 4.5).
  • Ensure drumsticks are not damaged or excessively worn.
• Footswitch Issues (Kick/Hi-Hat):
  • Ensure the footswitch cables are securely connected.
  • Check for any obstructions preventing full depression of the pedal.
  • Adjust the sensitivity settings for the kick and hi-hat pedals in the Utility menu.
• MIDI Connectivity Problems:
  • Verify the USB cable is properly connected to both the module and the computer.
  • Ensure the correct MIDI drivers are installed on your computer (if required).
  • Check MIDI input settings within your DAW or software.

If the issue persists, please contact LEKATO customer support for further assistance.

7. Specifications

8. Warranty and Support

For information regarding product warranty, please refer to the warranty card included in your package or visit the official LEKATO website. Keep your proof of purchase for warranty claims.

If you require technical assistance, have questions about your product, or need to report an issue, please contact LEKATO customer support through their official channels. Contact details can typically be found on the product packaging or the LEKATO brand website.
