1. Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your VINGLI Automatic Suction-Side Pool Vacuum Cleaner. Designed for both in-ground and above-ground pools, this cleaner offers powerful suction and efficient debris removal, ensuring a pristine pool environment.
Image: VINGLI Suction-Side Pool Cleaner banner, indicating its use for in-ground and above-ground pools.
2. Safety Information
Please read and understand all safety warnings and instructions before operating the pool cleaner. Failure to follow these instructions may result in property damage or injury.
- Always disconnect the pool cleaner from the filtration system before performing any maintenance or cleaning.
- Ensure the pool pump is off before connecting or disconnecting the cleaner.
- Keep children and pets away from the pool area while the cleaner is in operation.
- Do not operate the cleaner if any parts are damaged or missing.
- This cleaner is designed for pool use only. Do not use for other purposes.
3. Package Contents
Verify that all components are present and undamaged upon opening the package. If any parts are missing or damaged, contact VINGLI customer support.

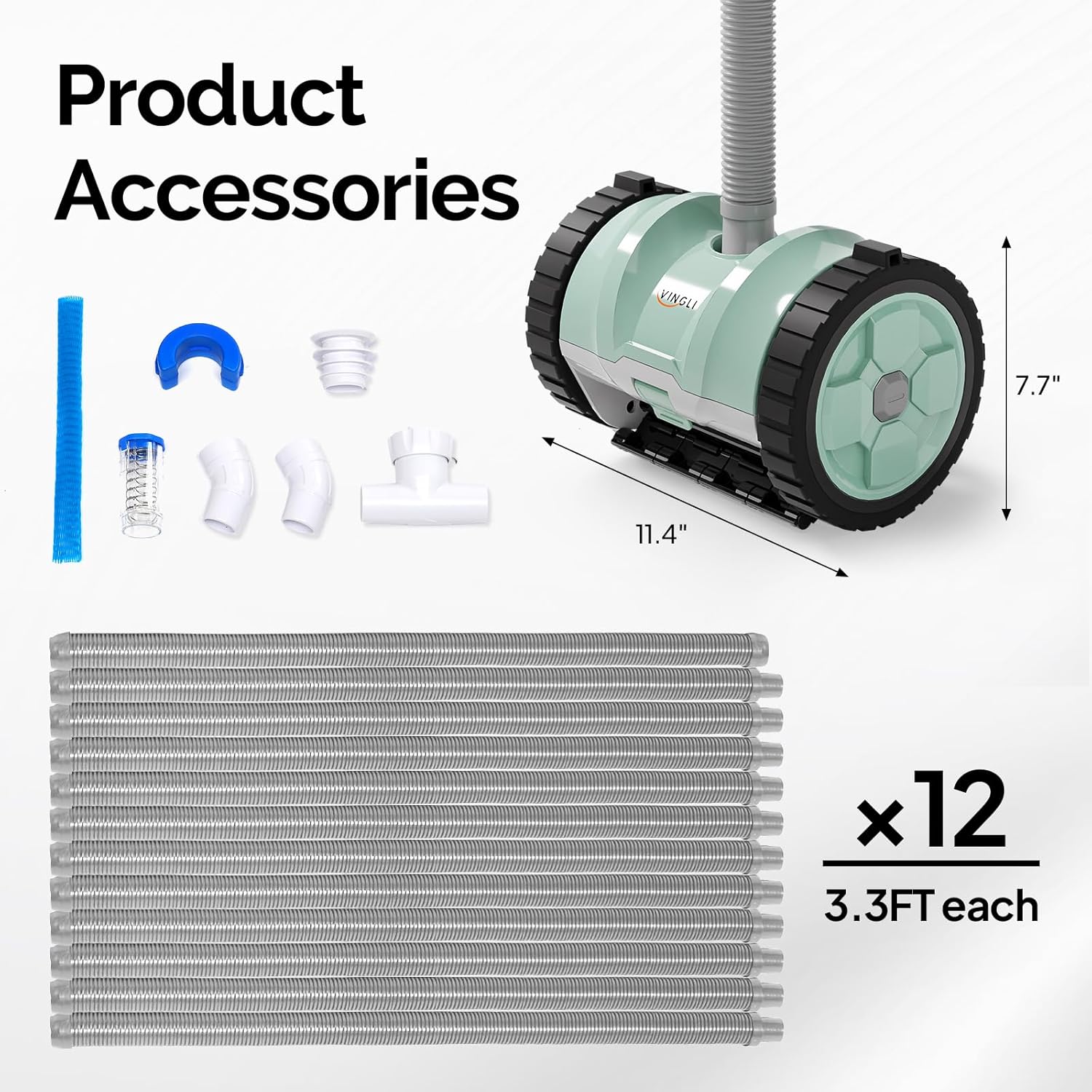

Image: Diagram showing the pool cleaner body with dimensions (11.4" x 7.7" x 7.7") and various accessories including 12 hose segments (3.3ft each), hose protector, flow meter, elbow connectors, regulator valve, compression adapter, and hose float.
The package includes:
- Cleaner body
- Hose protector
- Flow meter
- Elbow connectors (2)
- Regulator valve
- Compression Adapter
- Hose float
- Hose Set - 12 segments (3.3 ft each, 1.5" diameter), totaling 39.6 feet. (11 Standard Male/Female Hoses, 1 Standard Female/Female Hose)
Image: Detailed diagram labeling each cleaner component, including the cleaner body, hose protector, flow meter, elbow connectors, regulator valve, compression adapter, hose float, and the 12 hose segments.
4. Setup and Installation
The VINGLI pool cleaner is designed for quick and easy assembly, typically within minutes, without the need for tools.
- Assemble the Hoses: Connect the 12 hose segments together to achieve the desired length for your pool. The total length is 39.6 feet. Ensure connections are secure to prevent suction loss.
- Connect to Cleaner Body: Attach one end of the assembled hose to the inlet port on the top of the cleaner body.
- Connect to Skimmer/Suction Line: Connect the other end of the hose to your pool's skimmer or dedicated suction line. Ensure your pool pump meets the minimum requirement of 1.5HP/1100W for optimal performance.
- Submerge the Cleaner: Slowly submerge the cleaner and hose into the pool, allowing them to fill with water and release any trapped air. This helps ensure proper suction.
Image: The VINGLI pool cleaner positioned next to its coiled 40-foot hose, demonstrating the ample length provided for comprehensive pool coverage.
5. Operating Instructions
Once assembled and connected, the VINGLI pool cleaner operates automatically, utilizing your pool's filtration system for power.
5.1. Starting Operation
- Ensure the cleaner is fully submerged and all air is purged from the hose.
- Turn on your pool pump. The cleaner will begin to move and collect debris.

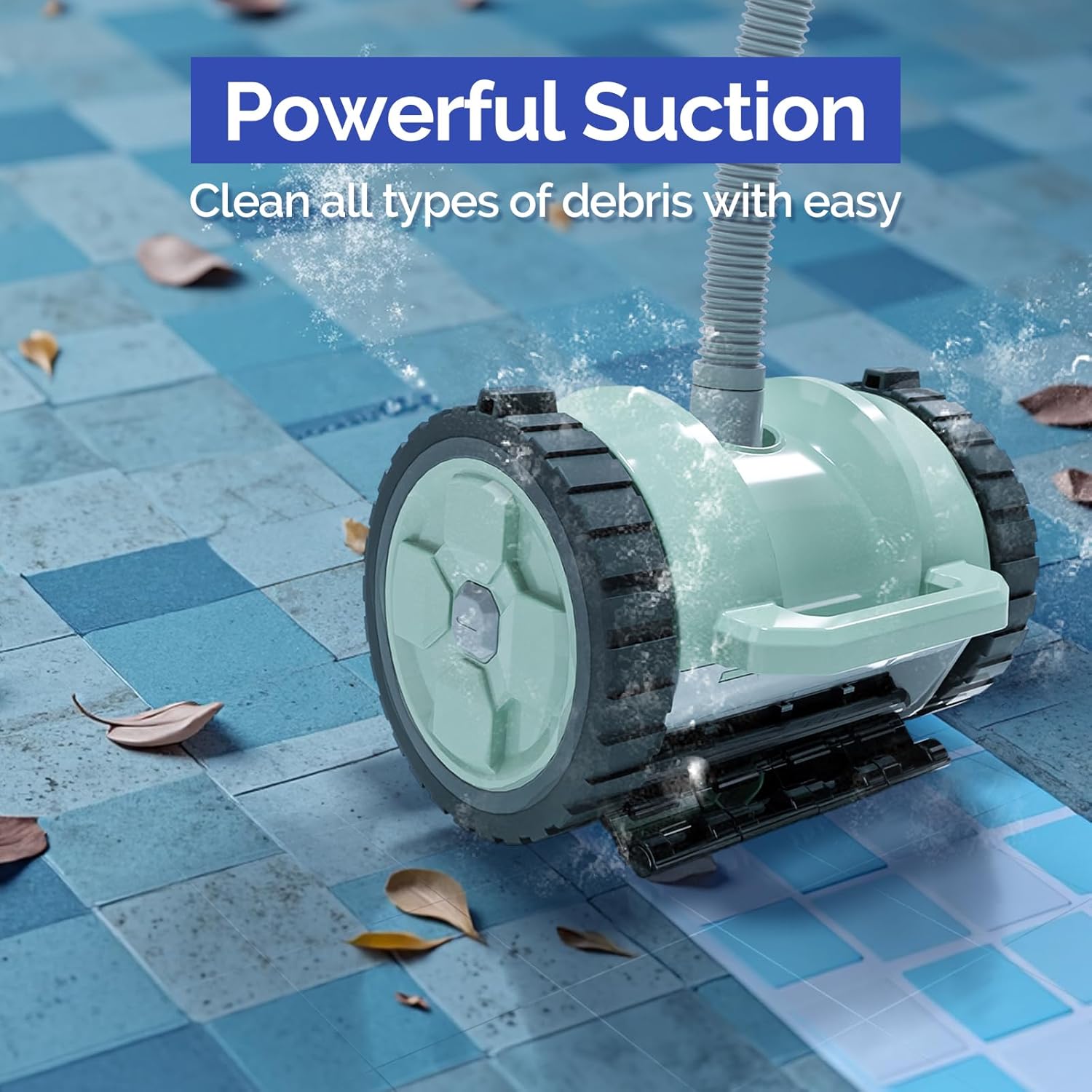

Image: The VINGLI pool cleaner actively cleaning debris, such as leaves, from the pool floor, demonstrating its powerful suction capability.
Image: The pool cleaner shown operating on both the pool wall and floor, illustrating its versatile cleaning capabilities.
5.2. Adjusting Suction Power
The cleaner features an adjustable suction power mechanism to optimize cleaning for different debris types and pool conditions.
Image: A close-up of the adjustable suction power dial on the hose, with arrows indicating increase (+) and decrease (-) in suction, alongside a smaller image of the cleaner.
- Locate the regulator valve on the hose.
- Turn the dial to increase or decrease suction as needed. Higher suction is effective for heavier debris, while lower suction might be suitable for lighter particles or to prevent the cleaner from sticking to the bottom.
5.3. Wall-Climbing and Obstacle Navigation
The advanced tire system and flexible skirt design enable the cleaner to navigate various pool surfaces, climb walls, and clear obstacles like drains.
Image: The pool cleaner demonstrating its ability to travel easily on all surfaces, including over a drain, highlighting its specialized tire tread design for enhanced traction.
Image: An illustration of the cleaner's flexible skirt design, emphasizing its seamless adaptation to various surface types for maximum cleaning efficiency.
5.4. Convenient Handle Design
The cleaner features a convenient handle for easy placement and retrieval from the pool.
Image: The pool cleaner submerged in water, highlighting its convenient handle design for easy lifting and maneuvering.
5.5. Maximum Operating Depth
The cleaner is designed for underwater operation with a maximum depth of 9.8 feet and a shallowest depth of 3.3 feet.
Image: The pool cleaner operating underwater, with an overlay indicating a maximum depth of 9.8 feet and a shallowest depth of 3.3 feet.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your VINGLI pool cleaner.
- Empty Debris: Periodically check and empty your pool's skimmer basket or pump strainer, as the cleaner directs debris into your filtration system.
- Inspect Hoses: Regularly inspect the hose segments for any kinks, cracks, or damage that could affect suction. The scratch-resistant hoses are designed to protect your pool's finish.
- Check Cleaner Body: Ensure the cleaner's intake port and skirt are free from large debris or obstructions. The clog-resistant design minimizes interruptions.
- Storage: When not in use for extended periods, store the cleaner and hoses in a cool, dry place away from direct sunlight.
7. Troubleshooting
This section addresses common issues you might encounter with your pool cleaner.
| Problem | Possible Cause | Solution |
|---|---|---|
| Cleaner is not moving or moving slowly. | Insufficient pump power; air in the system; clogged skimmer/filter; hose kinked or damaged. | Ensure pump meets 1.5HP/1100W minimum; purge air from hose; clean skimmer basket/filter; check hose for kinks/damage. |
| Cleaner is not picking up debris effectively. | Low suction power; debris stuck in cleaner intake; worn components. | Adjust regulator valve to increase suction; clear any obstructions from cleaner intake; inspect for worn parts. |
| Cleaner gets stuck frequently. | Hose too long/short; pool obstacles; low suction. | Adjust hose length for optimal coverage; remove large pool toys/obstacles; ensure adequate suction. |
| Cleaner is making unusual noises. | Air in the system; internal obstruction. | Purge air from hose; check cleaner for internal blockages. The cleaner is designed for whisper-quiet operation. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Name | suction side pool cleaner-2 |
| Power Source | Pump (requires minimum 1.5HP/1100W pool pump) |
| Hose Length | 12 meters (approx. 39.6 feet) - 12 segments of 3.3 feet each |
| Item Weight | 18.7 pounds |
| Product Dimensions | 11.4"L x 7.7"W x 7.7"H |
| Material | Plastic |
| Installation Type | Suction side |
| Assembly Time | Approx. 2 minutes |
| Special Features | Adjustable Jets, Adjustable Suction Power, Heavy-Duty, Wall-Climbing, Clog-Resistant |
| Color | Green&Gray |
| UPC | 840323501491 |
9. Warranty and Support
VINGLI offers hassle-free protection for your product. If any part is found to be defective, it will be replaced free of charge. Your satisfaction is guaranteed.
For any issues or inquiries, please contact VINGLI customer support. Refer to your purchase documentation for specific contact details or visit the official VINGLI store on Amazon: VINGLI Store.
