Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Hauslane 30 Inch Island Range Hood, Model IS-200SS-30. Please read all instructions carefully before beginning installation or use. Retain this manual for future reference.
Image: Front view of the Hauslane 30 Inch Island Range Hood, Model IS-200SS-30, showcasing its stainless steel and tempered glass design.
Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury to persons. This appliance is intended for household use only.
- Ensure proper installation by a qualified technician in accordance with all local codes and standards.
- Disconnect power before servicing or cleaning the unit.
- Do not operate the range hood with damaged wiring or if it has been dropped or damaged.
- Maintain adequate ventilation in the room when the range hood is used simultaneously with gas or other fuel-burning appliances.
- Clean grease filters regularly to prevent grease fires.
Setup and Installation
The Hauslane IS-200SS-30 Island Range Hood is designed for built-in mount installation. It offers dual venting options: ducted or ductless (recirculating).
Components Included:
- Range Hood Unit
- Dishwasher-safe baffle filters (1 for the 30-inch model)
- 6-inch round adapter for ducted installation
- Mounting hardware and chimney sections
Image: All components included with the Hauslane Island Range Hood, laid out for inspection prior to installation. This includes the main hood unit, chimney sections, baffle filters, mounting brackets, and hardware.
Venting Options:
- Ducted Venting: For optimal performance, connect the range hood to a 6-inch round duct system that vents to the outside. The necessary adapter is included.
- Ductless (Recirculating) Venting: For installations where external venting is not possible, charcoal filters (sold separately) can be installed to filter air before recirculating it back into the kitchen.

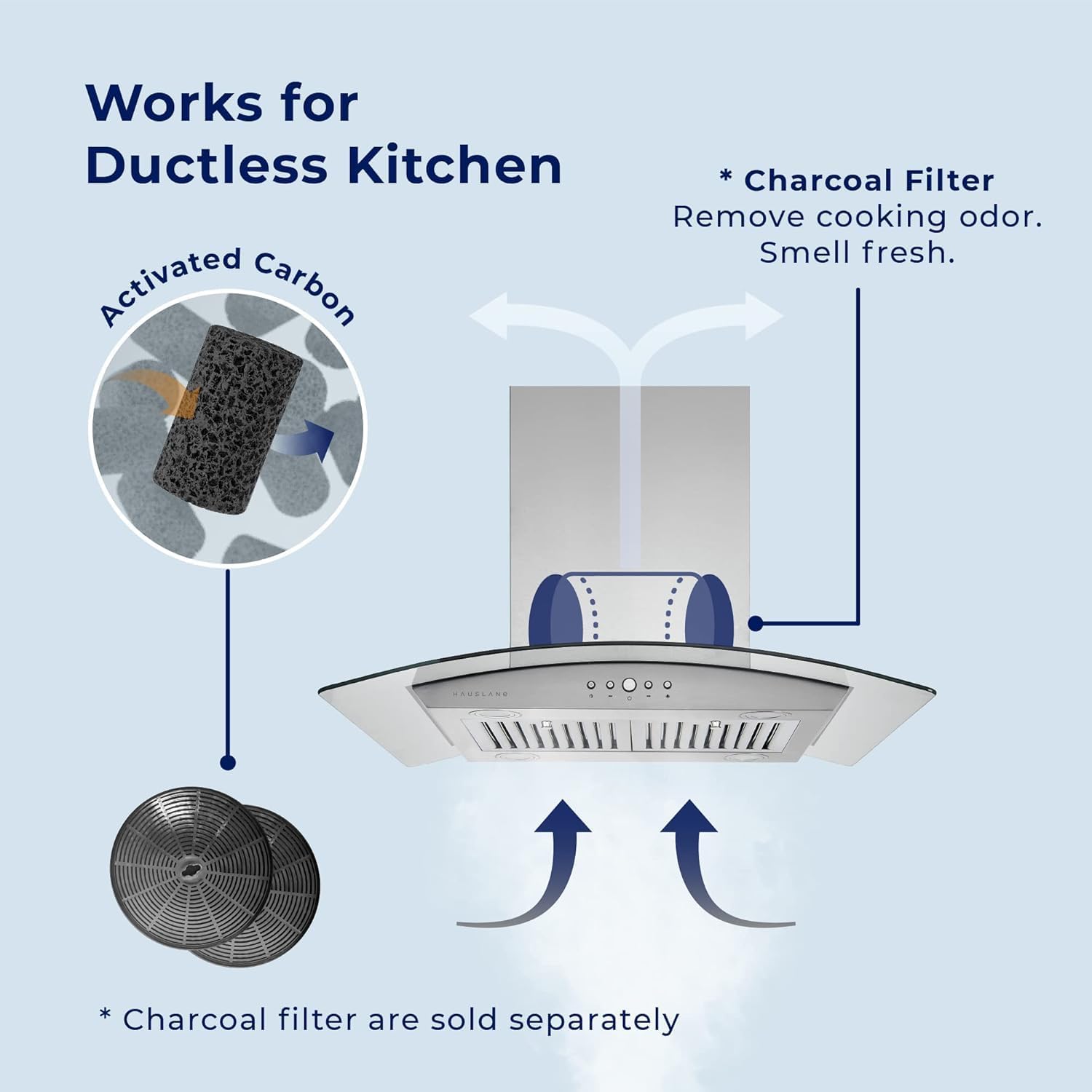

Image: Diagram illustrating the ductless operation of the range hood, showing air being drawn through the baffle filters, then through optional charcoal filters, and finally recirculated into the kitchen.
Ceiling Height Adaptability:
The range hood is adaptable for ceilings up to 10 feet. Optional chimney extensions are available and sold separately for higher ceiling installations.
Dimensions:
The product dimensions are approximately 23.62 inches (D) x 29.5 inches (W) x 48.5 inches (H). Refer to the detailed dimension diagram for precise measurements required for installation planning.

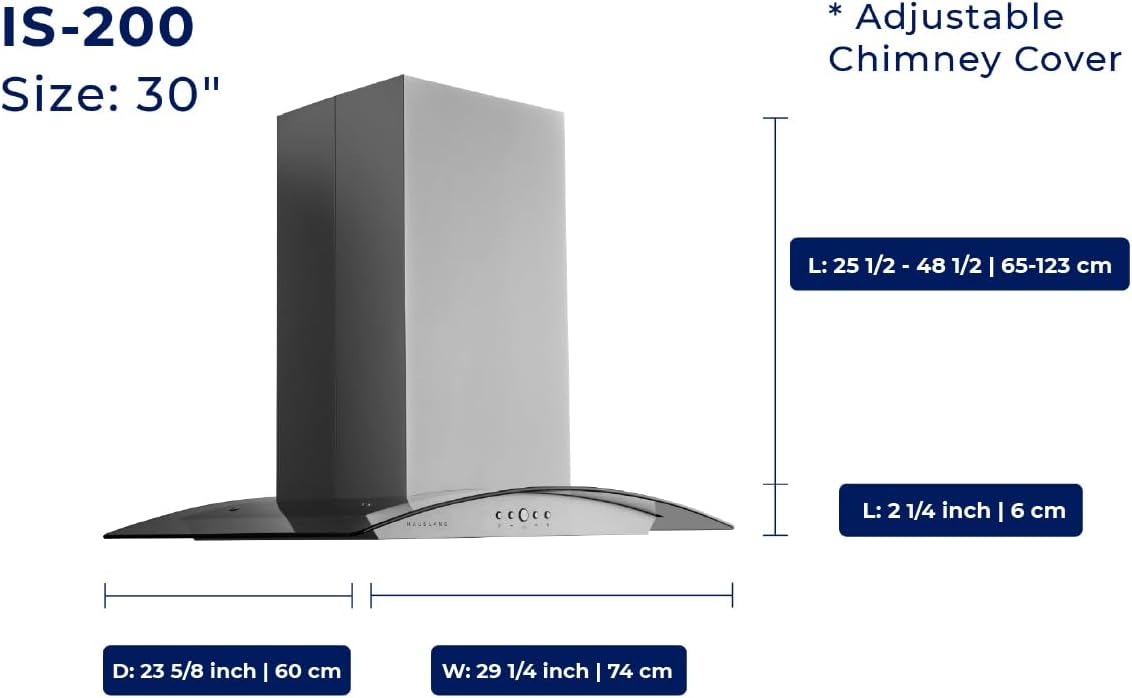

Image: Technical diagram displaying the key dimensions of the Hauslane IS-200 Island Range Hood, including depth, width, and adjustable chimney height.
Operating Instructions
The Hauslane IS-200SS-30 features user-friendly push-button controls for fan speed and lighting.
Control Panel:
The control panel is located on the front of the hood and features push buttons for various functions. The dual control design allows operation from either side of your kitchen island.

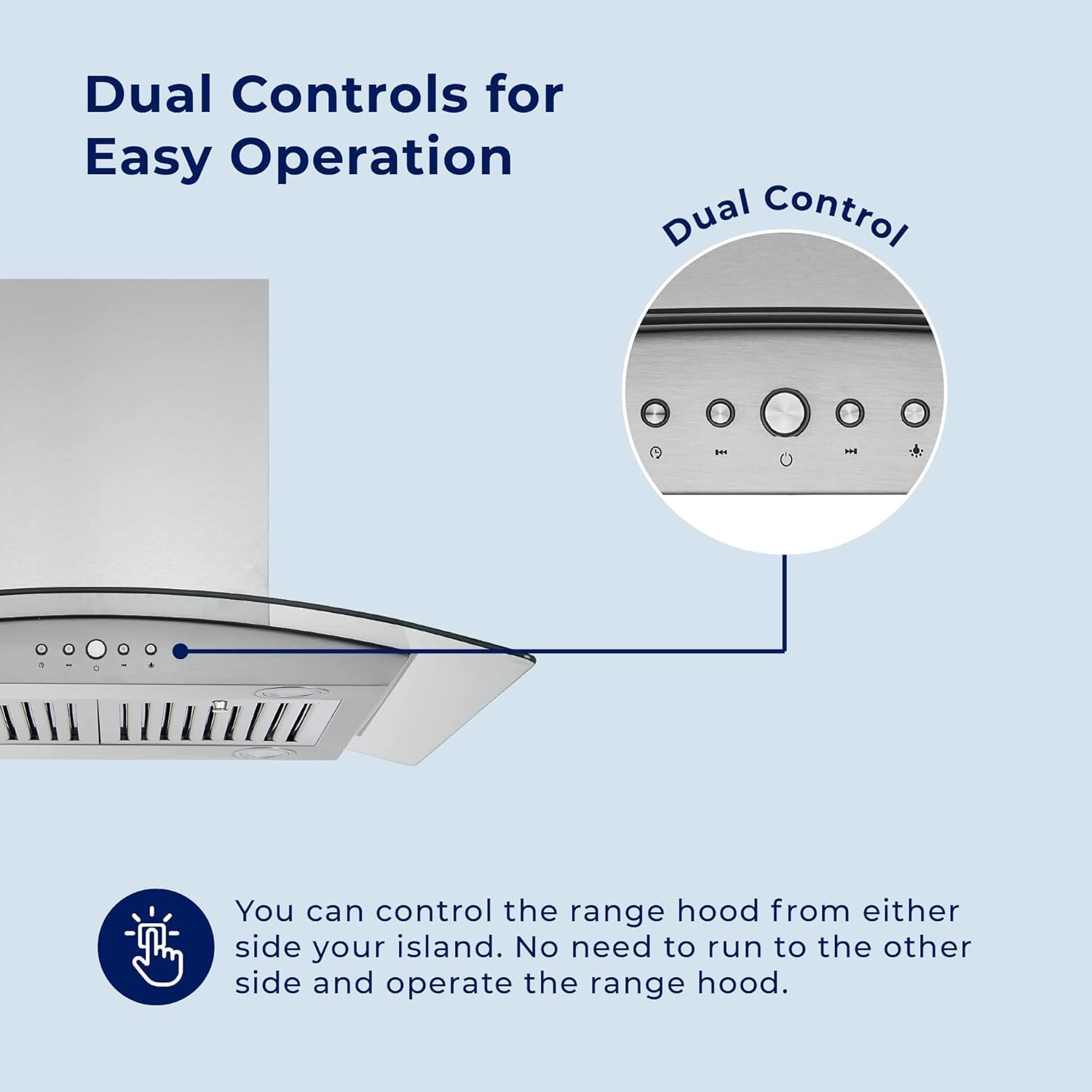

Image: Close-up view of the range hood's control panel, highlighting the push buttons for fan speed, light, and power, accessible from both sides of the island.
Fan Speed Settings:
The range hood offers 3 fan speed settings to accommodate different cooking needs, from light simmering to heavy frying. The maximum airflow capacity is 900 Cubic Feet Per Minute (CFM).
- Low Speed: Ideal for light cooking and maintaining air quality.
- Medium Speed: Suitable for general cooking tasks.
- High Speed: Recommended for heavy cooking, searing, or when significant smoke and odors are present.
LED Lighting:
Activate the integrated professional-grade LED lighting to illuminate your cooking surface. These energy-efficient lights provide clear visibility while cooking.
Image: Detailed view of one of the integrated LED lights on the underside of the range hood, providing bright illumination for the cooking area.
Maintenance
Regular maintenance ensures optimal performance and longevity of your range hood.
Cleaning Baffle Filters:
The stainless steel baffle filters are dishwasher-safe for easy cleaning. It is recommended to clean them monthly, or more frequently depending on cooking habits.
- Turn off the range hood and disconnect power.
- Carefully remove the baffle filters by releasing their latches.
- Place filters in a dishwasher or wash by hand with hot, soapy water.
- Ensure filters are completely dry before reinstalling.
Image: Underside view of the range hood, clearly showing the removable stainless steel baffle filters and the integrated LED lights.
Cleaning Exterior Surfaces:
Clean the stainless steel and tempered glass surfaces with a soft cloth and a non-abrasive cleaner specifically designed for these materials. Avoid harsh chemicals or abrasive pads that can scratch the finish.
Charcoal Filter Replacement (Ductless Mode):
If using the range hood in ductless mode, charcoal filters (sold separately) should be replaced every 3-6 months, depending on usage, to maintain effective odor removal.
Troubleshooting
Refer to the following common issues and solutions before contacting customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not operate | No power supply; Motor malfunction | Check power connection and circuit breaker; Contact support if motor is faulty. |
| Lights do not work | Bulb failure; Wiring issue | Check LED connections; Contact support for wiring issues. |
| Poor suction performance | Clogged filters; Improper ducting; Obstruction | Clean or replace filters; Ensure ducting is correctly installed and free of blockages. |
| Excessive noise | Loose components; Motor issue; Improper installation | Check for loose screws or parts; Ensure proper installation; Contact support if motor is noisy. |
Specifications
| Feature | Specification |
|---|---|
| Model Number | IS-200SS-30 |
| Air Flow Capacity | 900 Cubic Feet Per Minute (CFM) |
| Material | Stainless Steel |
| Noise Level | 8.5 Sones |
| Mounting Type | Built-In Mount (Island Canopy Hood) |
| Included Components | Dishwasher-safe baffle filters (1 for 30" model), 6" round adapter |
| Amperage | 3.2 Amps |
| Controls Type | Push Button (Dual Control) |
| Voltage | 120 Volts |
| Number of Speeds | 3 |
| Item Weight | 51 Pounds |
| Light Source Type | LED |
| Wattage | 384 watts |
| Filter Type | Baffle |
| Ventilation Type | Ducted/Vented, Ductless/Recirculating |
| Product Dimensions | 23.62"D x 29.5"W x 48.5"H |
| Annual Energy Consumption | 1000 Watts |
| Special Features | Dishwasher-Safe Baffle Filters, Dual Control, Recirculating System |
| Finish Type | Brushed |
Warranty
The Hauslane 30 Inch Island Range Hood, Model IS-200SS-30, comes with a 2-Year Protection warranty. Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, refer to the official Hauslane website or contact customer support.
Image: Graphic displaying the '2 Year Protection' warranty and ETL certification logos, indicating product quality and safety standards.
Customer Support
For further assistance, technical support, or warranty inquiries, please visit the official Hauslane website or contact their customer service department. Ensure you have your model number (IS-200SS-30) and purchase date available when contacting support.
