sonecesiya Roller Brush and HEPA Filter Replacement Parts Manual

1. Introduction

This manual provides instructions for the installation and maintenance of the sonecesiya Roller Brush and HEPA Filter Replacement Parts, designed for the Shunzao OSOTEK H100 Pro HotWave Handheld Wet Dry Vacuum Cleaner. Regular replacement of these components is crucial for maintaining optimal cleaning performance and air filtration efficiency of your vacuum cleaner.

2. Compatibility

These replacement parts are specifically engineered for 100% compatibility with the Shunzao OSOTEK H100 Pro HotWave Handheld Wet Dry Vacuum Cleaner. Ensure your vacuum cleaner model matches this specification before installation.

3. Package Contents

The replacement kit includes the following items:

• 1 x Roller Brush
• 1 x HEPA Filter

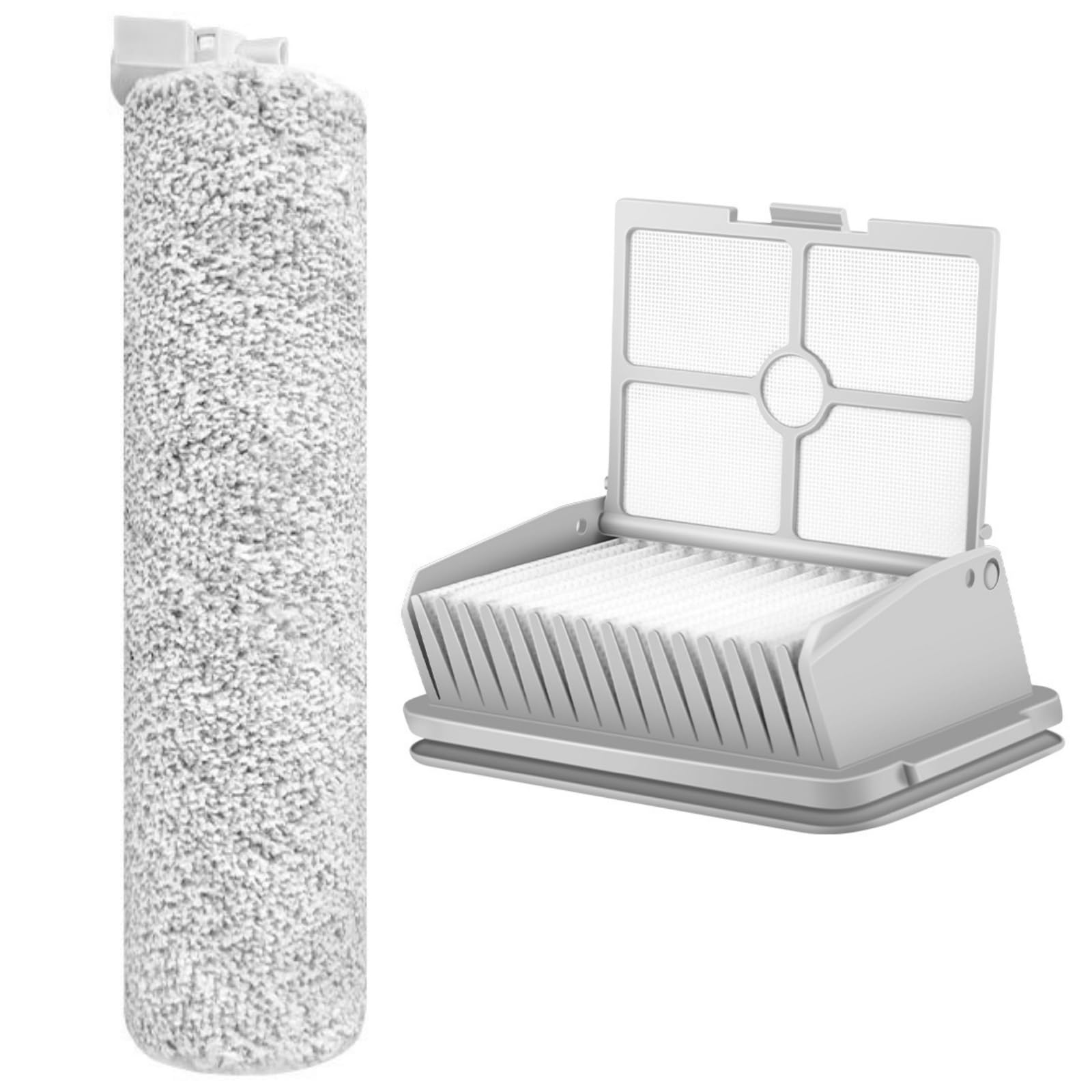

Image 1: Overview of the sonecesiya Roller Brush and HEPA Filter Replacement Parts Kit.

4. Setup and Installation

Follow these steps to replace the roller brush and HEPA filter in your Shunzao OSOTEK H100 Pro vacuum cleaner.

4.1. HEPA Filter Installation

1. Ensure the vacuum cleaner is turned off and unplugged from its power source.
2. Locate the filter compartment on your vacuum cleaner. Refer to your vacuum's original manual for precise location if needed.
3. Carefully remove the old HEPA filter. Dispose of it responsibly.
4. Insert the new sonecesiya HEPA filter into the compartment, ensuring it is seated correctly and securely. The filter is designed for easy installation and removal.
5. Close the filter compartment cover.

Image 2: The HEPA filter replacement part.

Image 3: Detailed view showing the HEPA filter paper and its structure for trapping dust particles.

4.2. Roller Brush Installation

1. Turn off and unplug the vacuum cleaner.
2. Access the roller brush compartment, typically located at the bottom of the vacuum head.
3. Remove any retaining clips or covers as per your vacuum's design.
4. Carefully remove the old roller brush. Clean any debris from the compartment.
5. Insert the new sonecesiya roller brush, ensuring the ends align with the drive mechanism.
6. Replace any covers or clips to secure the roller brush.

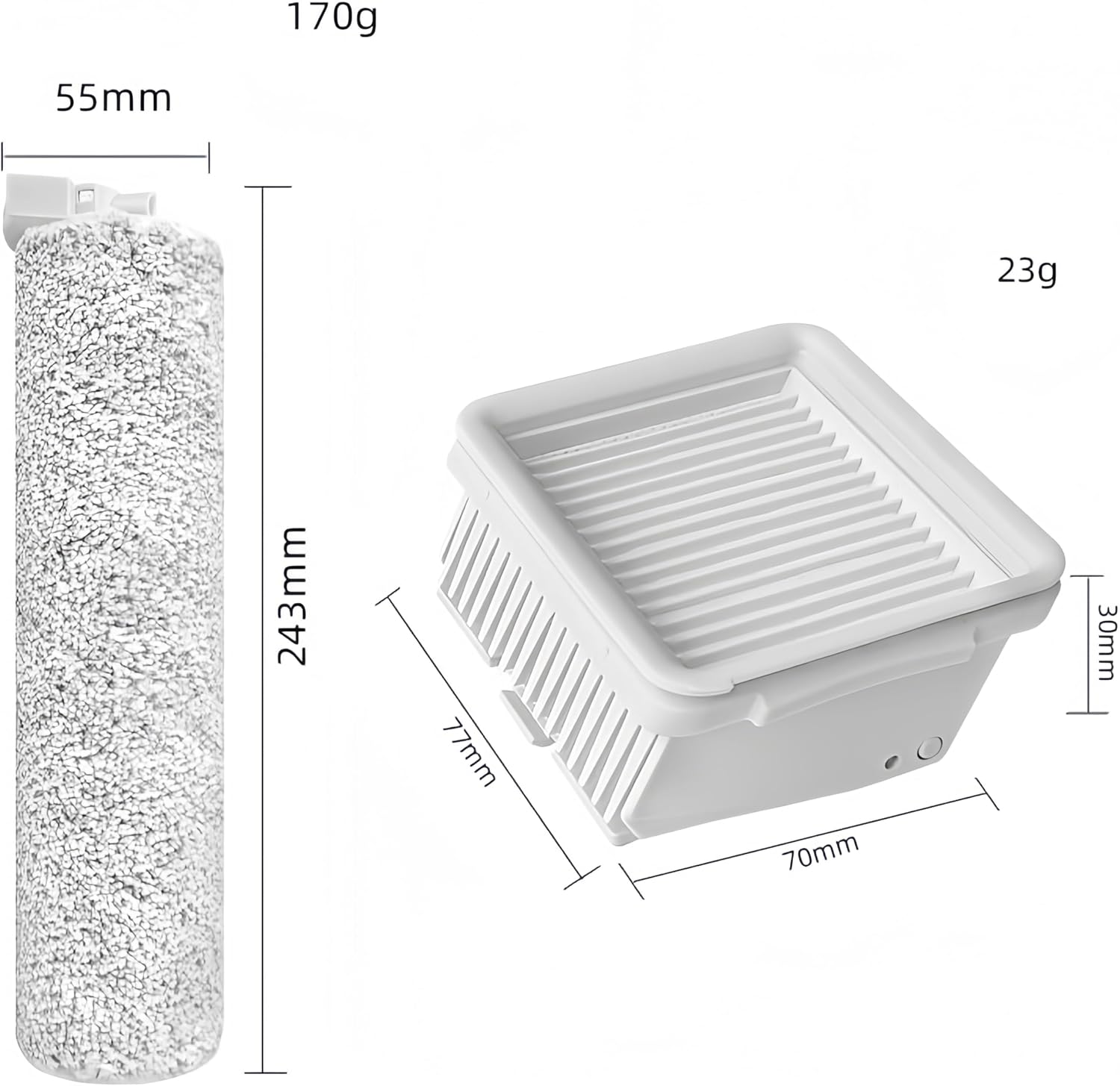

Image 4: Dimensions of the roller brush (243mm length, 55mm width) and filter (77mm length, 70mm width, 30mm height).

5. Operating Benefits

Utilizing these replacement parts ensures your vacuum cleaner operates at its peak efficiency:

• Superior Filtration: The HEPA filter effectively captures 99.97% of particles as small as 0.3 microns, including fine dust, allergens, and other impurities. This prevents microscopic debris from recirculating into the air, promoting a cleaner and healthier environment.
• Enhanced Cleaning: The roller brush, made of microfiber and soft velvet, is designed for effective cleaning across various floor types such as hardwood, tile, marble, and laminate. Its bristle arrangement efficiently loosens and lifts dirt, dust, pet dander, and other particles without causing damage to floors.

6. Maintenance

Regular maintenance of your replacement parts is essential for extending the lifespan of your vacuum cleaner and ensuring consistent performance.

6.1. HEPA Filter Maintenance

The HEPA filter should be rinsed with a mild cleaner in warm water. Allow it to air dry completely before reinstallation. Do not use harsh chemicals or machine wash. Regular cleaning and timely replacement are crucial for maintaining optimal filtration.

6.2. Roller Brush Maintenance

Periodically inspect the roller brush for tangled hair or debris. Remove any obstructions to ensure smooth operation. The high-temperature resistant materials ensure the brush maintains its effectiveness under demanding cleaning conditions.

Clean or replace accessories according to the frequency of use to keep the vacuum cleaner at its best working performance.

7. Troubleshooting

If you experience reduced cleaning performance or suction after installing new parts, consider the following:

• Reduced Suction: Ensure the HEPA filter is clean and fully dry before reinstallation. Check that the filter compartment is securely closed.
• Poor Debris Pickup: Verify that the roller brush is free from tangles and rotates freely. Confirm it is correctly installed in its compartment.
• Unusual Noises: Check both the filter and roller brush for any foreign objects or improper seating.

If issues persist, refer to the original vacuum cleaner manual or contact customer support.

8. Specifications

9. Warranty and Support

sonecesiya is committed to providing high-quality products and service. Our products undergo strict quality inspection before shipment. If you have any questions or require assistance with your replacement parts, please contact sonecesiya customer service directly. We are dedicated to ensuring your satisfaction.
