1. Product Overview
This manual provides detailed instructions for the assembly, operation, and maintenance of your Chrangmay Modern 9-Drawer Chest. Designed for versatile storage, this unit features a modern aesthetic with a durable walnut finish and ample space for organizing various items in your living room, bedroom, hallway, or other areas.

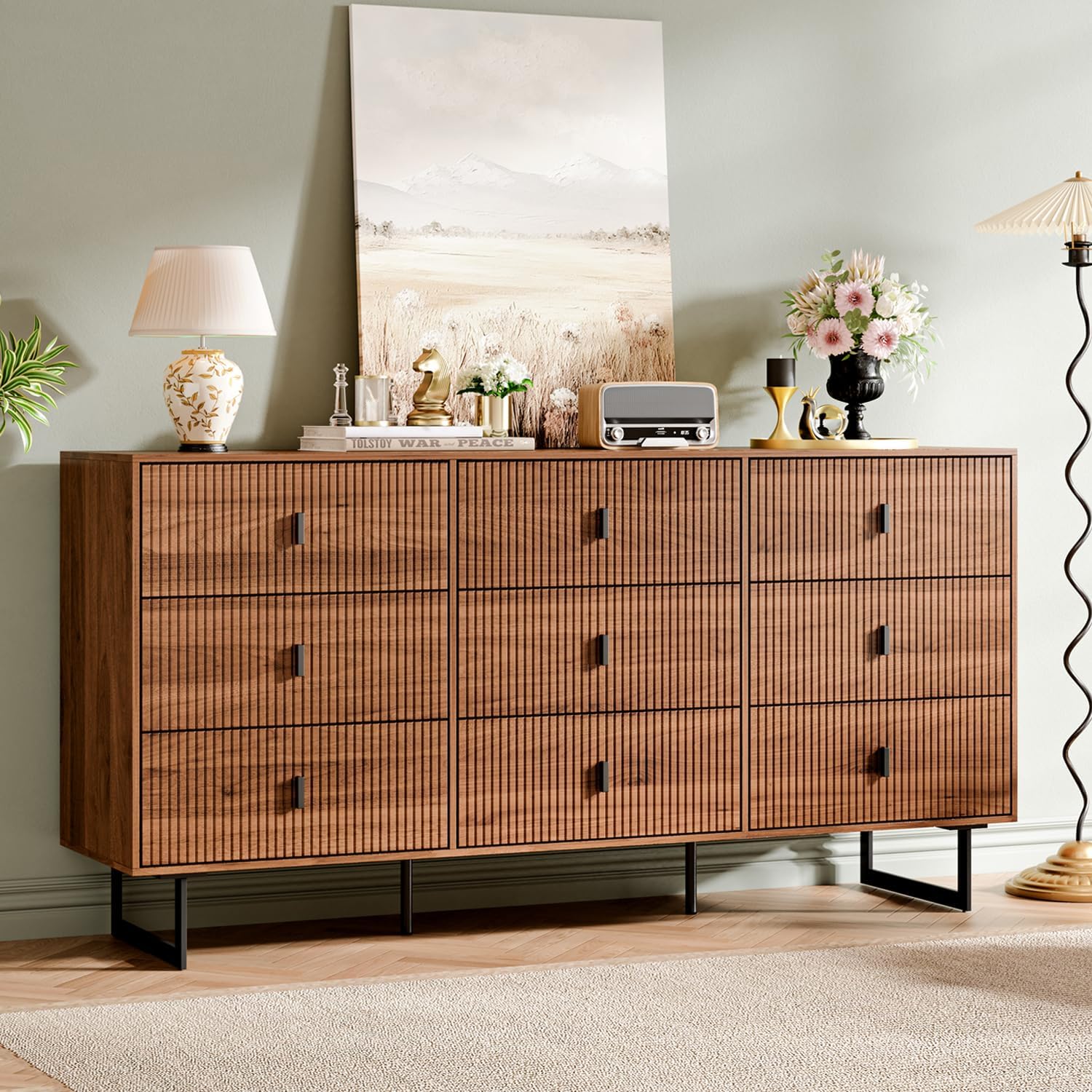

Figure 1: Chrangmay Modern 9-Drawer Chest, Walnut.
2. Safety Information
Please read all safety warnings and instructions carefully before assembly and use. Failure to follow these instructions may result in injury or damage to the product.
2.1 Anti-Tipping Device
To prevent serious injury from furniture tipping over, this chest of drawers must be securely attached to the wall using the provided anti-tipping device. Always install the anti-tipping device as instructed.

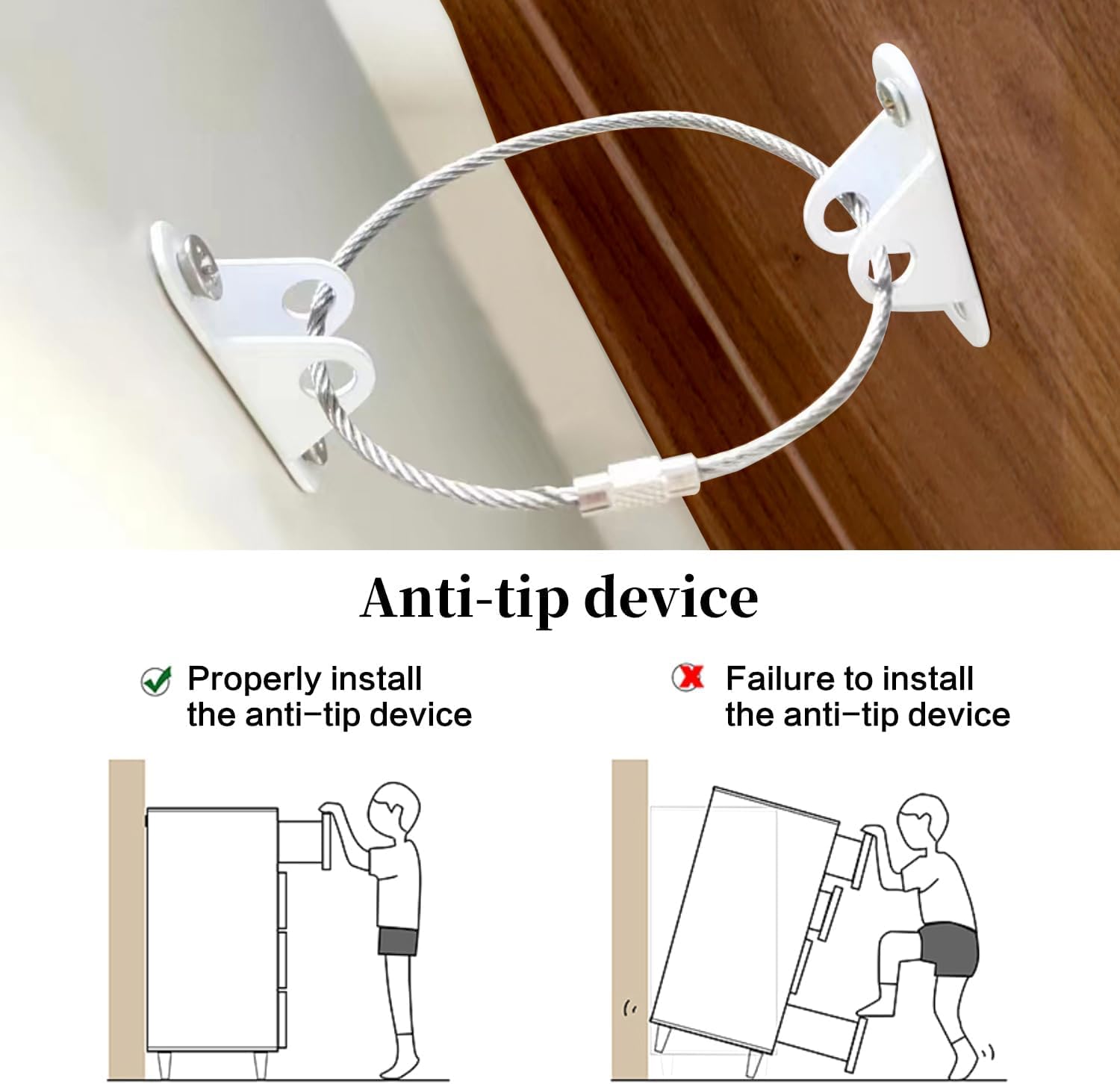

Figure 2: Anti-tip device installation to prevent tipping.
- Never allow children to climb or hang on drawers, doors, or shelves.
- Place the heaviest items in the lowest drawers.
- Do not place heavy objects on top of the chest unless it is securely anchored.
- Ensure all drawers are closed when not in use.
3. Package Contents
Verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact customer support.
- 9 Drawers Dresser (1 unit)
- Accessory Packs (1 set, containing hardware)
- Installation Instructions (1 manual)
- Middle leg (2 units)
- U-shaped legs (2 units)
- Anti-tipping device (1 set)
4. Assembly Instructions
This product requires self-assembly. The assembly process is designed to be straightforward with clear, concise instructions provided in the included manual. Please follow the steps carefully.
4.1 Preparation
- Clear a spacious area for assembly.
- Lay out all components and hardware, comparing them against the package contents list.
- Gather necessary tools (e.g., screwdriver, hammer - not included unless specified).
4.2 Step-by-Step Assembly
Refer to the dedicated 'Installation Instructions' manual included in your package for detailed, illustrated steps. Key steps include:
- Assemble the main frame of the chest.
- Attach the U-shaped legs and middle legs to the base. Ensure adjustable feet are oriented correctly.
- Assemble each of the 9 drawers, ensuring smooth sliding rails are correctly installed.
- Insert the assembled drawers into the chest frame.
- Install the anti-tipping device to a wall stud or appropriate anchor point.
Figure 3: Sturdy metal legs provide stable support.
Figure 4: Adjustable feet for stability on various floor types.
5. Operation
Your Chrangmay 9-Drawer Chest is designed for easy and efficient storage.
5.1 Using the Drawers
The 9 drawers slide easily on ball bearings, allowing for effortless opening and closing. Each drawer has a load capacity of approximately 30 lbs. The spacious design accommodates various items, from clothing to household essentials.
Figure 5: Open drawers demonstrating ample storage space.
Figure 6: Smooth sliding rails ensure easy drawer operation.
5.2 Placement and Usage
This versatile chest can be used in various settings:
- Bedroom: Ideal for organizing clothes, linens, and personal items.
- Living Room: Can serve as a stylish storage cabinet or media console, supporting TVs up to 75 inches.
- Hallway/Entryway: Perfect for storing keys, mail, and other daily necessities.
- Children's Room/Nursery: Provides safe and accessible storage for toys and baby essentials, especially with the anti-tip device installed.

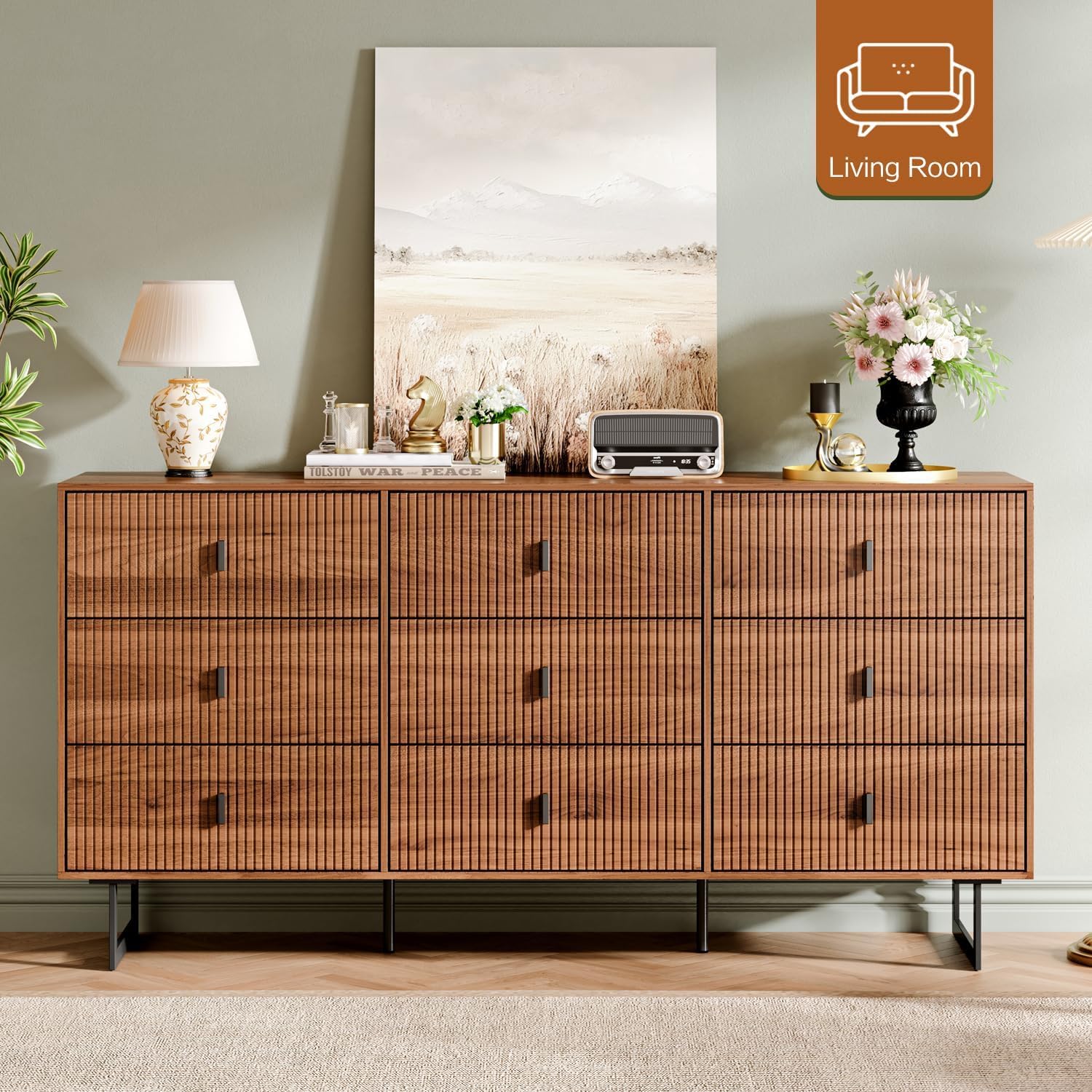

Figure 7: Dresser functioning as a media console in a living room.
6. Care and Maintenance
To ensure the longevity and appearance of your Chrangmay 9-Drawer Chest, follow these care guidelines:
- Cleaning: Wipe with a dry cloth. For minor spills, a lightly damp cloth can be used, followed immediately by a dry cloth. Avoid harsh chemicals or abrasive cleaners.
- Material: The dresser is constructed from scratch-resistant, moisture-resistant MDF boards.
- Protection: Avoid direct sunlight and extreme temperature changes to prevent warping or fading.
- Hardware: Periodically check and tighten all screws and fasteners to maintain structural integrity.
Figure 8: Detail of the durable walnut finish and modern reeded drawer front.
7. Troubleshooting
If you encounter any issues with your chest of drawers, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Drawers do not close smoothly or are misaligned. | Incorrect installation of drawer slides or uneven assembly. | Ensure drawer slides are installed correctly and aligned. Check that the chest frame is assembled squarely and all fasteners are tightened. Adjust the adjustable feet to level the unit. |
| Chest feels wobbly or unstable. | Uneven floor surface or loose connections. | Adjust the adjustable feet at the bottom of the legs to level the chest. Tighten all assembly screws. Ensure the anti-tipping device is securely installed. |
| Missing parts or damaged components upon arrival. | Shipping damage or packaging error. | Do not proceed with assembly. Contact Chrangmay customer service immediately for assistance and replacement parts. |
8. Product Specifications
| Feature | Detail |
|---|---|
| Brand | Chrangmay |
| Model Name | dougui |
| Material | Engineered Wood (MDF) |
| Finish Type | Polished, Walnut |
| Product Dimensions (D x W x H) | 15.75" x 63" x 31.5" (40cm x 160cm x 80cm) |
| Number of Drawers | 9 |
| Drawer Load Capacity | Approx. 30 lbs per drawer |
| Item Weight | 52 Pounds (23.6 kg) |
| Required Assembly | Yes |
| Additional Features | Adjustable Feet, Anti-Tipping Device |
| Product Care Instructions | Wipe with Dry Cloth |
Figure 9: Detailed product dimensions.
9. Warranty and Customer Support
Chrangmay is committed to providing high-quality products and excellent after-sales service. If you encounter any product problems, have questions about assembly, or require replacement parts, please contact our customer support team.
9.1 Contact Information
Please refer to the contact details provided in your purchase documentation or visit the official Chrangmay website for support.
9.2 Return Policy
This product is eligible for a 30-day easy return policy. Please refer to your retailer's specific return guidelines for more information.
