HUAYEE HY14C Mini Excavator User Manual

Introduction

This manual provides comprehensive instructions for the safe and efficient operation, maintenance, and troubleshooting of your HUAYEE HY14C Mini Excavator. The HY14C is a 1.4-ton mini excavator equipped with a 13.5 HP Briggs & Stratton gasoline engine, designed for various excavation tasks in confined spaces. Key features include a swing function, hydraulic thumb clamp, and a semi-automatic quick coupler for versatile attachment use.

Safety Information

Always prioritize safety when operating heavy machinery. Read and understand all safety decals on the machine and this manual before operation. Failure to follow safety instructions can result in serious injury or death.

• Ensure all operators are trained and familiar with the machine's controls and capabilities.
• Wear appropriate personal protective equipment (PPE), including hard hat, safety glasses, hearing protection, and steel-toed boots.
• Inspect the excavator before each use for any damage, leaks, or loose components.
• Operate only on stable, level ground. Be aware of overhead and underground utilities.
• Keep bystanders, especially children, away from the operating area.
• Never operate the machine under the influence of alcohol or drugs.
• Turn off the engine and remove the key before performing any maintenance or adjustments.

Components Overview

Familiarize yourself with the main components of the HY14C Mini Excavator.

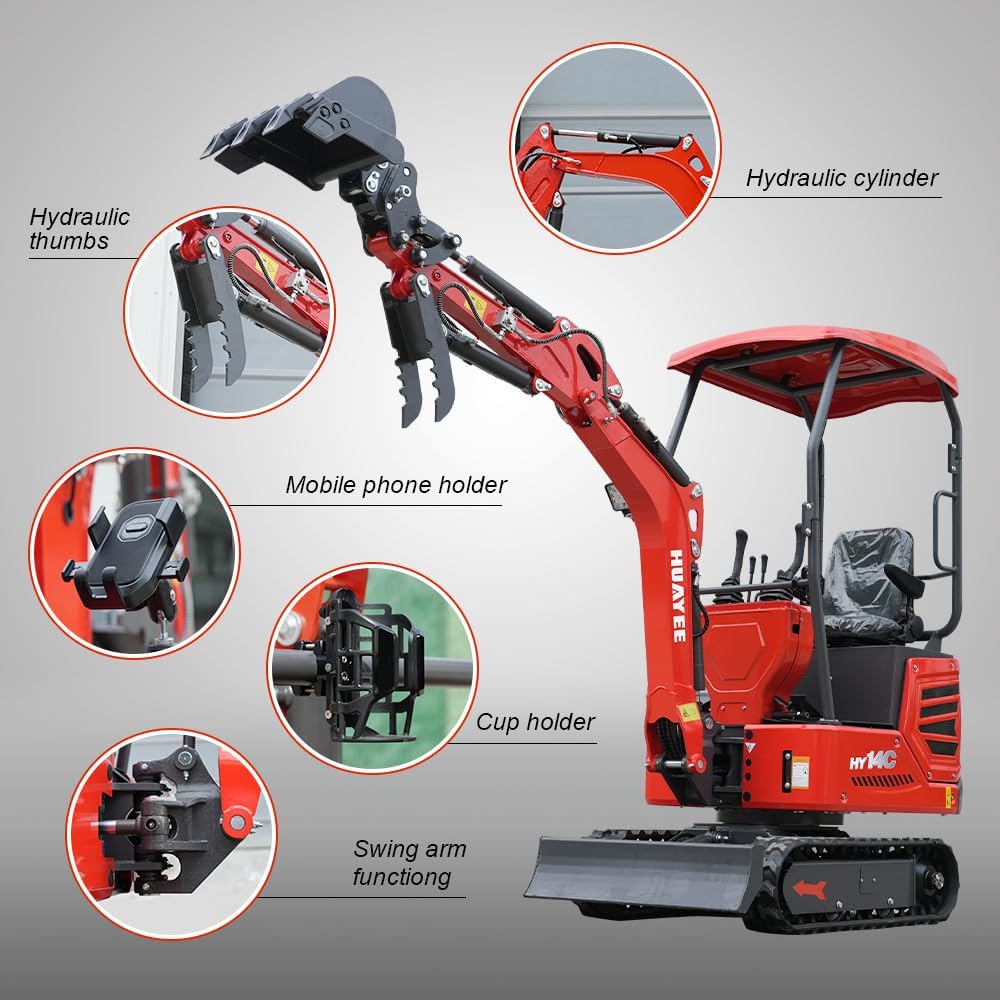

Figure 1: Key components of the HY14C Mini Excavator, highlighting the hydraulic thumbs, mobile phone holder, cup holder, swing arm function, and hydraulic cylinder.

• Briggs & Stratton Engine



  The HY14C is powered by a 13.5 HP Briggs & Stratton XR2100 gasoline engine. This engine is designed for reliable performance, efficiency, and low operating noise, ensuring consistent power for excavation tasks.

• Hydraulic Thumb Clamp

  The hydraulically powered thumb clamp allows for real-time adjustment based on the size and weight of the object being grasped. It features a wide opening angle and strong clamping force, making it ideal for handling irregular materials like rocks and logs.

• Side Swing Function



  Figure 2: The excavator's side swing capability allows for precise positioning in tight spaces.

  The upper structure of the excavator can rotate laterally by approximately 70-90 degrees. This function enables the boom, stick, and bucket to reach areas perpendicular to the machine's longitudinal axis, facilitating efficient operation in confined spaces such as alongside buildings or between closely spaced obstacles.

• Semi-Automatic Quick Coupler

  This system combines mechanical and hydraulic components, using a hydraulic cylinder to assist in the locking and unlocking of attachments. While some manual alignment may be required, it simplifies the process of changing attachments, enhancing efficiency and ease of use.

• Hydraulic Cooler

  The hydraulic cooler maintains the optimal temperature of the hydraulic oil by using air or water as a heat-exchange medium. This is crucial for ensuring the normal operation of hydraulic components, reducing wear, and extending the service life of the hydraulic system, especially during long-term and high-intensity work.

• Driving Console



  Figure 3: The ergonomic driving console with clearly arranged controls.

  The driving console features a humanized design with comfortable seating and a logical layout of control levers and buttons, making it easy for a single operator to manage the machine.

Setup

1. Unpacking and Inspection: Upon delivery, carefully unpack the excavator. Inspect for any visible damage during transit. Report any damage to the carrier immediately.
2. Fluid Checks: Before first use, check all fluid levels, including engine oil, hydraulic fluid, and fuel. Refer to the specifications section for recommended fluid types and capacities.
3. Battery Connection: Ensure the battery is securely connected. If disconnected for shipping, connect the positive (+) cable first, then the negative (-) cable.
4. Fueling: Fill the fuel tank with unleaded gasoline. Do not overfill.
5. Attachment Installation: If attachments are not pre-installed, use the semi-automatic quick coupler to securely attach the desired implement (e.g., bucket, hydraulic thumb). Ensure the locking mechanism is fully engaged.

Operating Instructions

Starting the Engine

1. Ensure the parking brake is engaged and all control levers are in the neutral position.
2. Insert the key into the ignition and turn it to the "ON" position.
3. If the engine is cold, apply choke as needed.
4. Turn the key to the "START" position. Release once the engine starts.
5. Allow the engine to warm up for a few minutes before beginning operation.

Basic Controls and Movement

• Travel Levers: Use the two travel levers (typically foot pedals or hand levers) to control forward and reverse movement of the tracks.
• Boom Control: Operate the boom lever to raise and lower the main arm.
• Stick Control: Operate the stick lever to extend and retract the stick (forearm).
• Bucket Control: Operate the bucket lever to curl in or dump out the bucket.
• Swing Control: Use the dedicated swing lever to rotate the upper structure of the excavator left or right.
• Dozer Blade Control: Use the dozer blade lever to raise or lower the front blade for leveling or stabilization.

Using the Hydraulic Thumb Clamp

The hydraulic thumb clamp is controlled by a dedicated lever or button on the control panel. Activate the control to open or close the thumb, allowing you to grasp and manipulate objects such as logs, rocks, or debris. Adjust the clamping force as needed for different materials.

Stopping the Engine

1. Park the excavator on level ground.
2. Lower all attachments to the ground.
3. Engage the parking brake.
4. Allow the engine to idle for a few minutes to cool down.
5. Turn the ignition key to the "OFF" position.
6. Remove the key to prevent unauthorized use.

Maintenance

Regular maintenance is crucial for the longevity and optimal performance of your HY14C Mini Excavator. Refer to the maintenance schedule below.

Daily Checks (Before Operation)

• Check engine oil level.
• Check hydraulic fluid level.
• Inspect tracks for damage or excessive wear.
• Check for any fluid leaks.
• Ensure all lights and safety features are operational.
• Clean debris from the engine compartment and radiator.

Weekly / Every 50 Hours

• Lubricate all grease points (boom, stick, bucket pins, swing bearing).
• Check air filter and clean if necessary.
• Inspect battery terminals for corrosion and clean if needed.
• Check track tension and adjust if required.

Monthly / Every 200 Hours

• Change engine oil and oil filter.
• Inspect fuel filter and replace if necessary.
• Check hydraulic hoses and fittings for wear or damage.
• Inspect fan belt tension.

Annual / Every 500 Hours

• Replace hydraulic fluid and filter.
• Replace fuel filter.
• Inspect and adjust valve clearances (refer to engine manual).
• Check and clean spark plug.

Troubleshooting

This section provides solutions to common issues you might encounter with your HY14C Mini Excavator. For problems not listed here, or if solutions do not resolve the issue, contact customer support.

Specifications

Detailed technical specifications for the HUAYEE HY14C Mini Excavator.

Figure 4: HY14C Mini Excavator dimensions and key digging parameters.

Figure 5: Comprehensive technical specifications for the HY14C Mini Excavator.

Warranty and Support

For warranty information, technical support, or any other inquiries regarding your HUAYEE HY14C Mini Excavator, please contact HUAYEE MECHANICAL directly. They are the seller and provide customer support.

Returns: This product is eligible for 30-day easy returns.

Figure 6: Contact information for HUAYEE MECHANICAL for support and inquiries.

When contacting support, please have your model number (HY14C) and purchase details ready to assist with faster service.
