KOMFOTT Twin Over Twin House Bunk Bed with Slide and Ladder - Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your KOMFOTT Twin Over Twin House Bunk Bed. Please read this manual thoroughly before assembly and use to ensure safe and correct operation. Keep this manual for future reference.

Image 1.1: The KOMFOTT Twin Over Twin House Bunk Bed, featuring a house-shaped frame, slide, and ladder.

2. Safety Information

Your safety is paramount. Please adhere to the following guidelines to prevent injury or damage to the product.

• Always follow assembly instructions carefully to prevent instability.
• Be cautious of sharp edges and pinch points when assembling and using the bunk bed.
• Do not exceed the maximum weight capacity of 250 lbs.
• Keep the area around the bunk bed clear to prevent tripping hazards.
• Ensure all connections are securely tightened before use and periodically check for looseness.
• The top bunk is not suitable for children under 6 years of age.
• Use only mattresses that meet the recommended thickness and dimensions.
• Do not attach or hang items on any part of the bunk bed that are not designed for use with the bed; for example, but not limited to, hooks, belts, or ropes.

3. Components List

Verify that all components are present and undamaged before beginning assembly. If any parts are missing or damaged, contact customer support.

Package Contents:

• 1 x House Bunk Bed Frame (disassembled)
• 1 x User Guide (this document)
• Hardware Pack (screws, bolts, Allen key, etc.)

Refer to the included hardware diagram for a complete list of fasteners and small parts.

4. Assembly Instructions

Assembly is required for this product. It is recommended that two adults perform the assembly. Clear a spacious area for assembly and keep all parts organized.

Required Tools (Not Included):

• Phillips Head Screwdriver
• Rubber Mallet (optional, for gentle tapping)

General Assembly Steps:

1. Unpack and Identify Parts: Carefully unpack all components from the boxes. Lay them out on a soft, clean surface to prevent scratches. Identify each part using the provided parts list and diagrams.
2. Assemble Bed Ends: Begin by attaching the side rails to the headboards and footboards for both the upper and lower bunks. Ensure all connections are finger-tightened initially.
3. Install Slat Supports: Secure the plywood slats to the bed frames. Ensure even spacing and firm attachment for mattress support.
4. Attach Guardrails: Install the full-length guardrails to the upper bunk, ensuring they are securely fastened to prevent falls.
5. Assemble House Frame: Construct the decorative house-shaped frame on top of the upper bunk.
6. Install Ladder and Slide: Attach the 3-step ladder and the slide. Both are reversible and can be positioned on either side of the bed to suit your room layout. Ensure they are firmly secured.
7. Final Tightening: Once all components are in place, systematically tighten all screws and bolts using the provided Allen key and your screwdriver. Do not overtighten.

Image 4.1: Key structural features: 14 robust plywood slats, solid wood frame, and full-length guardrails.

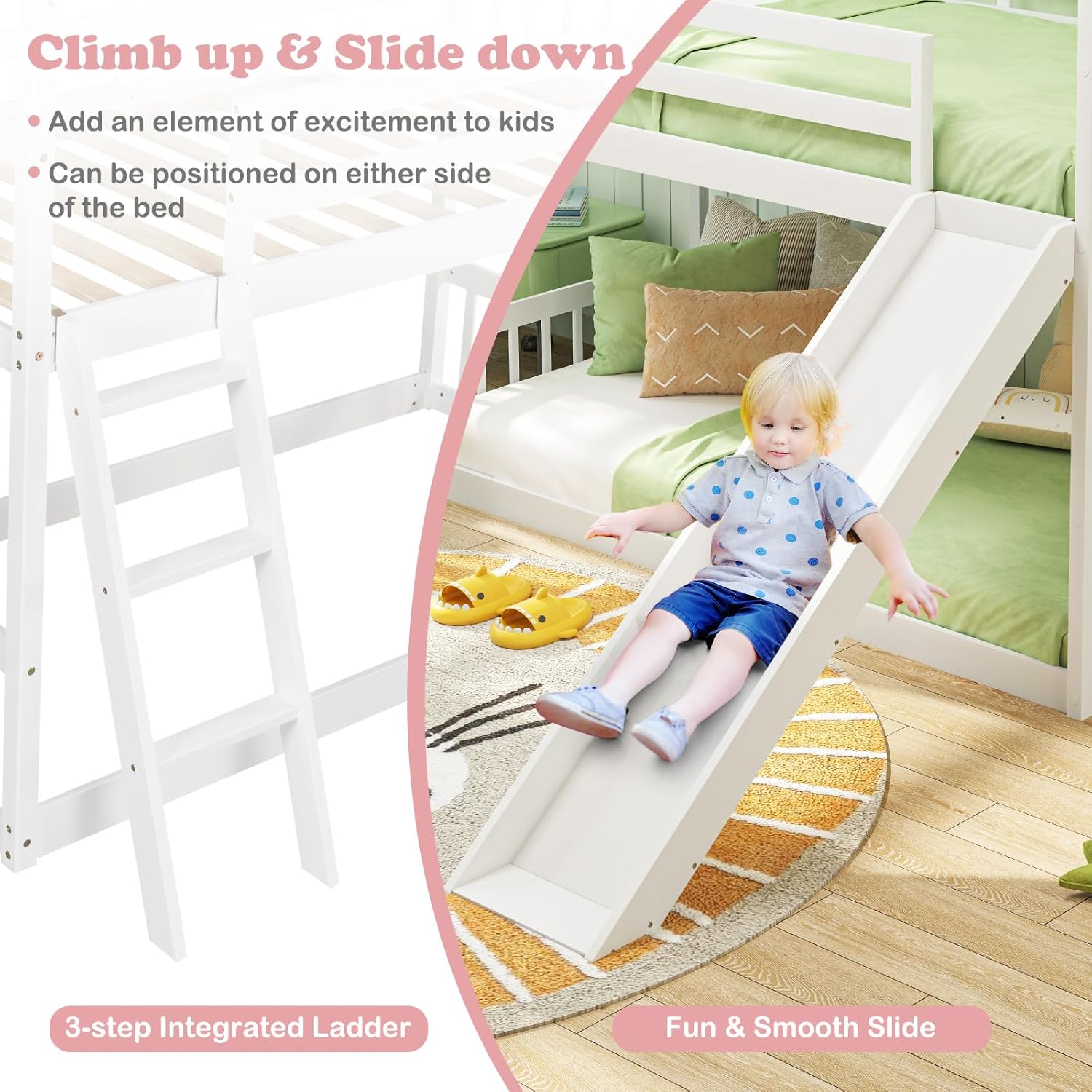

Image 4.2: The reversible 3-step integrated ladder and fun slide for access.

5. Operating Instructions

This bunk bed is designed for children and teens, offering a safe and functional sleeping and play area.

Mattress Placement:

• The bed is designed for a twin size mattress.
• The recommended mattress thickness is up to 6 inches.
• No box spring is needed due to the platform bed design.
• The spacious 31-inch clearance underneath the top bunk can accommodate an additional twin size mattress on the floor, or be used for storage or play.

Using the Ladder and Slide:

• Always use the ladder to access the top bunk. Do not climb on the guardrails or other parts of the bed.
• Ensure the slide is clear of obstructions before use.
• Supervise young children when using the slide and ladder.

Image 5.1: The charming house-shaped design can be customized with decorations (not included).

6. Maintenance

Regular maintenance will prolong the life and ensure the safety of your bunk bed.

Cleaning:

• Wipe surfaces with a soft, damp cloth.
• Avoid using harsh chemicals or abrasive cleaners, as they may damage the finish.
• Dry thoroughly after cleaning.

Inspection:

• Periodically check all bolts, screws, and connections to ensure they are tight. Retighten if necessary.
• Inspect the wooden frame and slats for any signs of damage, cracks, or splinters.
• Ensure the guardrails, ladder, and slide are securely attached and free from damage.

7. Troubleshooting

If you encounter any issues with your bunk bed, refer to the following common solutions.

Common Issues:

• Bed feels wobbly or unstable: Check all assembly connections and tighten any loose bolts or screws. Ensure the bed is on a flat, level surface.
• Squeaking noises: Identify the source of the squeak. Often, tightening bolts or applying a small amount of lubricant (e.g., paraffin wax) to contact points between wood can resolve this.
• Parts do not align during assembly: Double-check the orientation of the parts against the assembly diagrams. Ensure you are using the correct hardware for each step. Do not force parts together.

If problems persist, contact KOMFOTT customer support for assistance.

8. Specifications

Detailed product specifications for the KOMFOTT Twin Over Twin House Bunk Bed.

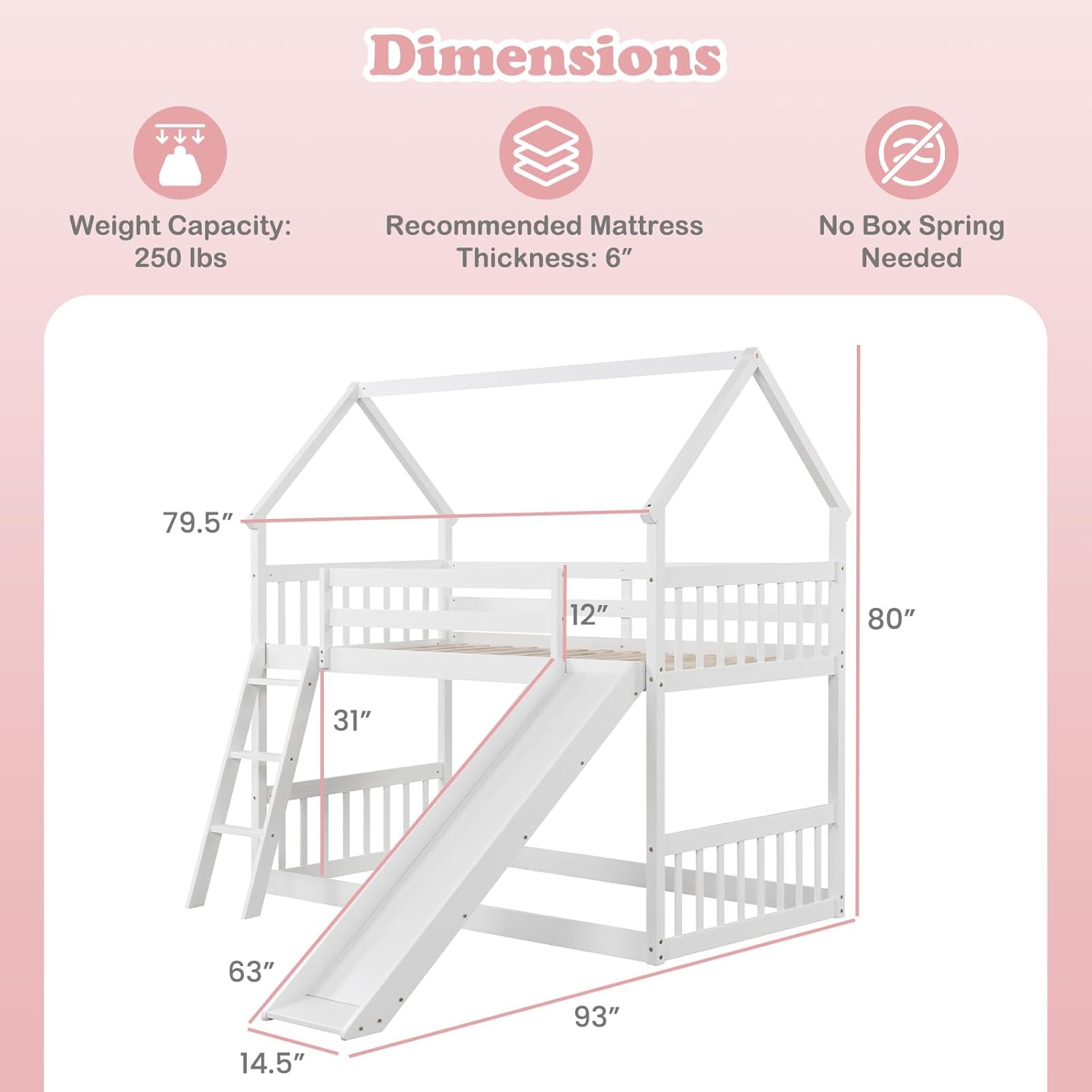

Image 8.1: Product dimensions and key measurements.

9. Warranty & Support

KOMFOTT is committed to providing quality products. For specific warranty information, please refer to the documentation included with your purchase or visit the official KOMFOTT website.

Customer Support:

For assistance with assembly, missing parts, or any other inquiries, please contact KOMFOTT customer service. Contact details can typically be found on the product packaging or the brand's official website.

You can also visit the KOMFOTT Store on Amazon for more information.
