Introduction
This manual provides essential information for setting up, operating, and maintaining your UPERFECT 15.6-inch FHD Portable Touchscreen Monitor. Please read it thoroughly before using the product to ensure optimal performance and longevity. This monitor is designed to enhance your productivity and entertainment experience with its versatile connectivity and intuitive touchscreen functionality.
Package Contents
Please check the box for the following items:
- 15.6-inch Portable Monitor
- Smart Cover (doubles as a stand)
- USB-C to USB-C Cable
- USB-A to USB-C Cable
- Mini HDMI to HDMI Cable
- Power Adapter (5V 3A)
- M3*5mm VESA Screws (4 pcs)
Product Features
- 10-Point Capacitive Touchscreen: Provides precise and fluid interaction for various tasks.
- 15.6-inch Full HD (1920x1080) IPS Display: Offers clear images, vivid colors, and a wide 178-degree viewing angle.
- HDR Support: Enhances contrast and color range for a more immersive visual experience.
- Eye Care Technology: Includes a blue light filter to reduce eye strain during prolonged use.
- Ultra-Portable Design: With only 0.4 inches thickness and 1.5 lbs weight, it is ideal for travel and remote work.
- Integrated Smart Cover: Protects the screen and functions as a stable stand for desktop use.
- VESA Mount Compatible: Supports 75x75mm VESA mounting for fixed installations or multi-monitor setups.
- Versatile Connectivity: Features two full-function USB-C ports, one Mini HDMI port, and a 3.5mm audio jack for wide device compatibility.
- Dual Integrated Speakers: Delivers clear and balanced audio for an enhanced multimedia experience.
- Multiple Display Modes: Supports Mirror, Extend, and Second Monitor modes, as well as horizontal and vertical display orientations.
Setup and Connections
The UPERFECT portable monitor offers flexible connectivity options. No drivers are required for most connections.
Understanding the Ports
- Mini HDMI Port: For video and audio input from devices with HDMI output.
- Type C 3.1 Ports (x2): Full-function ports for power, video, audio, and touch signal transmission.
- 3.5mm Audio Jack: For connecting external headphones or speakers.
- Pulley Button: Used to navigate the On-Screen Display (OSD) menu and adjust settings.
- Power/Back Button: Used to power the monitor on/off and to go back in the OSD menu.
Connecting to Devices

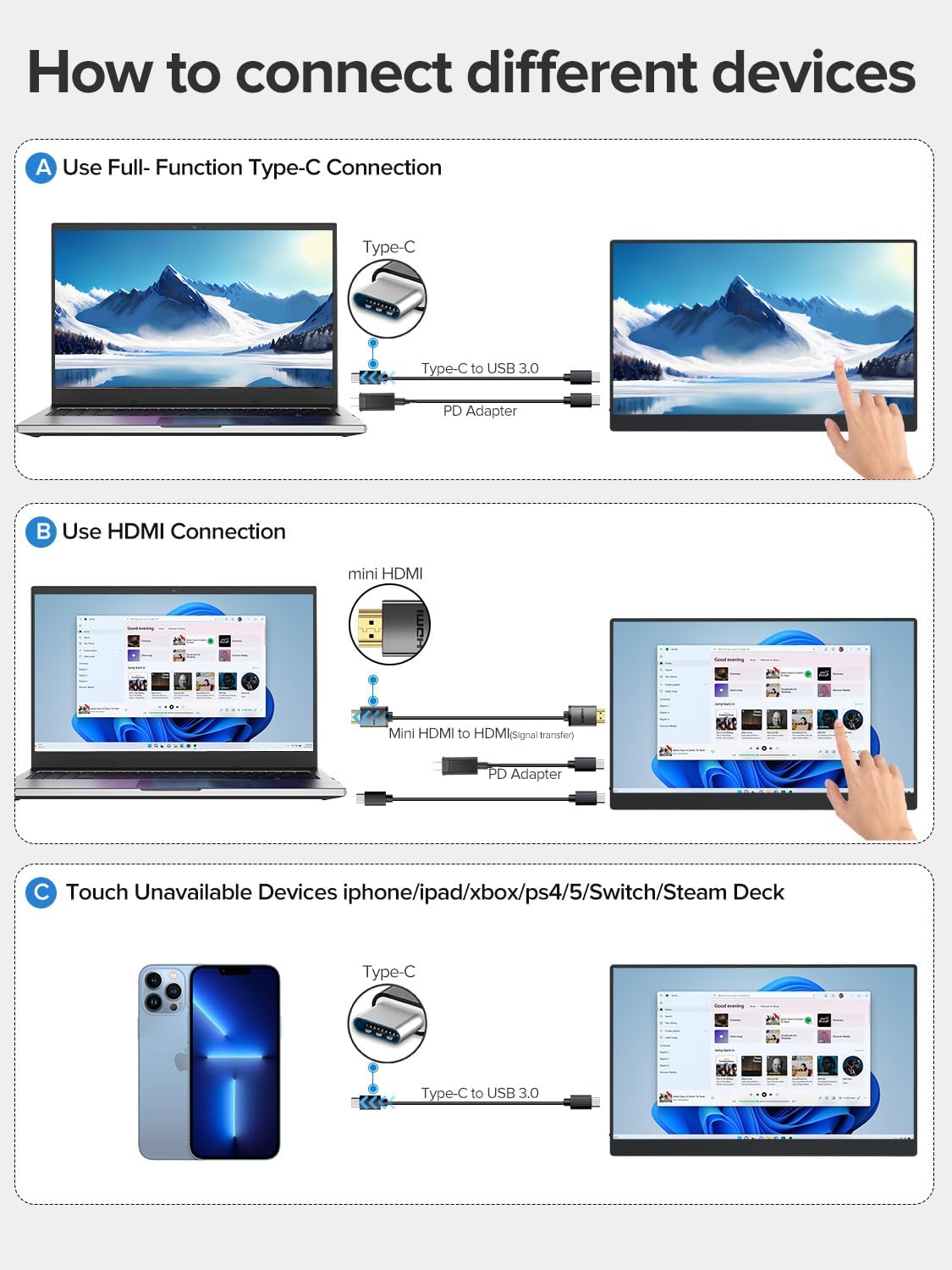

Refer to the diagram below for common connection methods:
- Using a Full-Function USB-C Cable: Connect one end of the USB-C to USB-C cable to your device's full-function USB-C port and the other end to one of the monitor's Type C 3.1 ports. This single cable can transmit power, video, audio, and touch signals. An additional power adapter may be needed for some devices or if the monitor requires more power.
- Using HDMI and USB-A to USB-C Cables: Connect the Mini HDMI to HDMI cable from your device's HDMI port to the monitor's Mini HDMI port for video and audio. Then, connect the USB-A to USB-C cable from your device's USB-A port to one of the monitor's Type C 3.1 ports for power and touch functionality. An additional power adapter may be required.
- Devices Without Touch Support: For devices like iPhones, iPads, Xbox, PS5, Nintendo Switch, or Steam Deck, you can connect for display and audio using the appropriate cables (e.g., USB-C for video/power or HDMI for video/audio). Touch functionality will not be available for these devices.
Using the Protective Case as a Stand
The included smart cover can be folded to create a stable stand for your monitor. Watch the video below for a demonstration.
Operating Instructions
Power On/Off
- To power on the monitor, press the Power/Back Button.
- To power off the monitor, press and hold the Power/Back Button for a few seconds until the screen turns off.
On-Screen Display (OSD) Menu
The OSD menu allows you to adjust various display settings. Use the Pulley Button to navigate and select options, and the Power/Back Button to exit or go back.
- Press the Pulley Button to open the OSD menu.
- Roll the Pulley Button up or down to navigate through menu options.
- Press the Pulley Button to select an option or confirm a setting.
- Press the Power/Back Button to go back to the previous menu or exit the OSD.
Touch Functionality
The monitor features a 10-point capacitive touchscreen for intuitive interaction. Touch functionality depends on the connected device.
- Multi-Touch Support: Fully supported for Windows PCs, Android phones, and tablets, allowing for gestures like pinch-to-zoom, scrolling, and swiping.
- Single-Touch Support: For Mac devices (MacBook, iMac, Mac mini), single-touch gestures are supported.
- No Touch Support: Devices such as iPhones, iPads, Xbox, PS5, Nintendo Switch, and Steam Deck do not support touch input on this monitor. The monitor will function as a non-touch display for these devices.
Display Modes
The monitor supports various display configurations to suit your needs:
- Mirror Mode: Duplicates your primary screen's content onto the portable monitor.
- Extend Mode: Extends your desktop across both screens, providing more workspace. You can set the portable monitor as your main screen.
- Second Screen Mode: Uses the portable monitor as a secondary display. Note that touch functionality may be limited or unavailable in this mode for certain operating systems or devices.
- Orientation: The monitor supports both horizontal (landscape) and vertical (portrait) orientations. Adjust settings on your connected device as needed.
Maintenance
- Cleaning the Screen: Use a soft, lint-free cloth slightly dampened with water or a screen-cleaning solution. Avoid harsh chemicals or abrasive materials.
- Cleaning the Body: Wipe the monitor's body with a soft, dry cloth.
- Storage: When not in use, store the monitor in its protective case in a cool, dry place away from direct sunlight and extreme temperatures.
- Handling: Avoid dropping the monitor or subjecting it to strong impacts. Do not place heavy objects on top of it.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No display/No signal | Incorrect cable connection; Insufficient power; Incorrect input source selected. | Ensure cables are securely connected. Connect the power adapter. Check your device's display settings. Use the OSD menu to select the correct input source. |
| Touch function not working | Incorrect cable connection; Device does not support touch; Operating system limitations. | Ensure the USB-C cable (or USB-A to USB-C for HDMI) is connected and supports touch data. Verify your device's compatibility with touch input. Some devices/OS configurations may limit touch functionality. |
| Screen flickering | Cable issue; Power instability. | Try a different cable. Ensure the monitor is receiving stable power, especially if using a single USB-C connection. Connect the dedicated power adapter. |
| No sound | Volume too low; Incorrect audio output selected on device; Faulty cable. | Adjust monitor volume via OSD. Check your device's audio output settings. Ensure cables are properly connected. |
Specifications
| Feature | Specification |
|---|---|
| Model Number | UP15605 |
| Screen Size | 15.6 Inches |
| Resolution | FHD 1080p (1920 x 1080 Pixels) |
| Panel Type | IPS LCD |
| Refresh Rate | 60 Hz |
| Response Time | 1 Millisecond |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 2000:1 |
| Brightness | 300 lm (nits) |
| Viewing Angle | 178 Degrees |
| Screen Surface | Matte |
| Color Gamut Value | 125% |
| Special Features | USB Hub, Touchscreen, Portable, Flicker-Free, Ultra-Thin, HDR, Eye Care, Contrast Enhancement, G-Sync Compatible |
| Hardware Interface | Mini HDMI, USB-C (x2) |
| Product Dimensions (DxWxH) | 35 x 22 x 1 cm |
| Weight | 2 Kilograms (approx. 1.5 lbs) |
| Compatible Devices | Desktop PC, Laptop, Smartphone, Tablet, Game Consoles |
Warranty and Support
Your UPERFECT monitor comes with a one-year warranty from the date of purchase, covering manufacturing defects. Please retain your proof of purchase for warranty claims.
For technical support, warranty inquiries, or any questions regarding your product, please contact UPERFECT customer service through the retailer's platform or the official UPERFECT website. Our support team is available to assist you with any issues you may encounter.
