1. Introduction
This manual provides instructions for the installation, operation, and maintenance of your Leadfan 10.1-inch IPS touchscreen car stereo, Model A, designed specifically for Toyota Camry vehicles manufactured between 2012 and 2014. Please read this manual thoroughly before installation and use to ensure proper function and safety.
Important Note:
- This is Model A, which is designed for Toyota Camry vehicles that DO NOT have a large screen navigation system or a J.B.L sound system.
- If your car has a large screen or supports a J.B.L sound system, you require Model B. Ensure you have the correct model for your vehicle configuration.
Image 1.1: Before and After Installation Comparison with Key Features
2. Setup and Installation
2.1 Package Contents
Before beginning installation, verify that all components are present in the package:
- 1280*720 HD IPS Touchscreen Android Radio Headunit
- Radio Kit
- Frame for Toyota Camry 2012 2013 2014
- AHD Backup Camera
- Reversing Camera Input Cable
- GPS Antenna
- WiFi & Bluetooth Signal Booster Cable
- Plug and Play Power Harness
- External Microphone
- User Manual
- 2 USB Cables
- RCA Cable

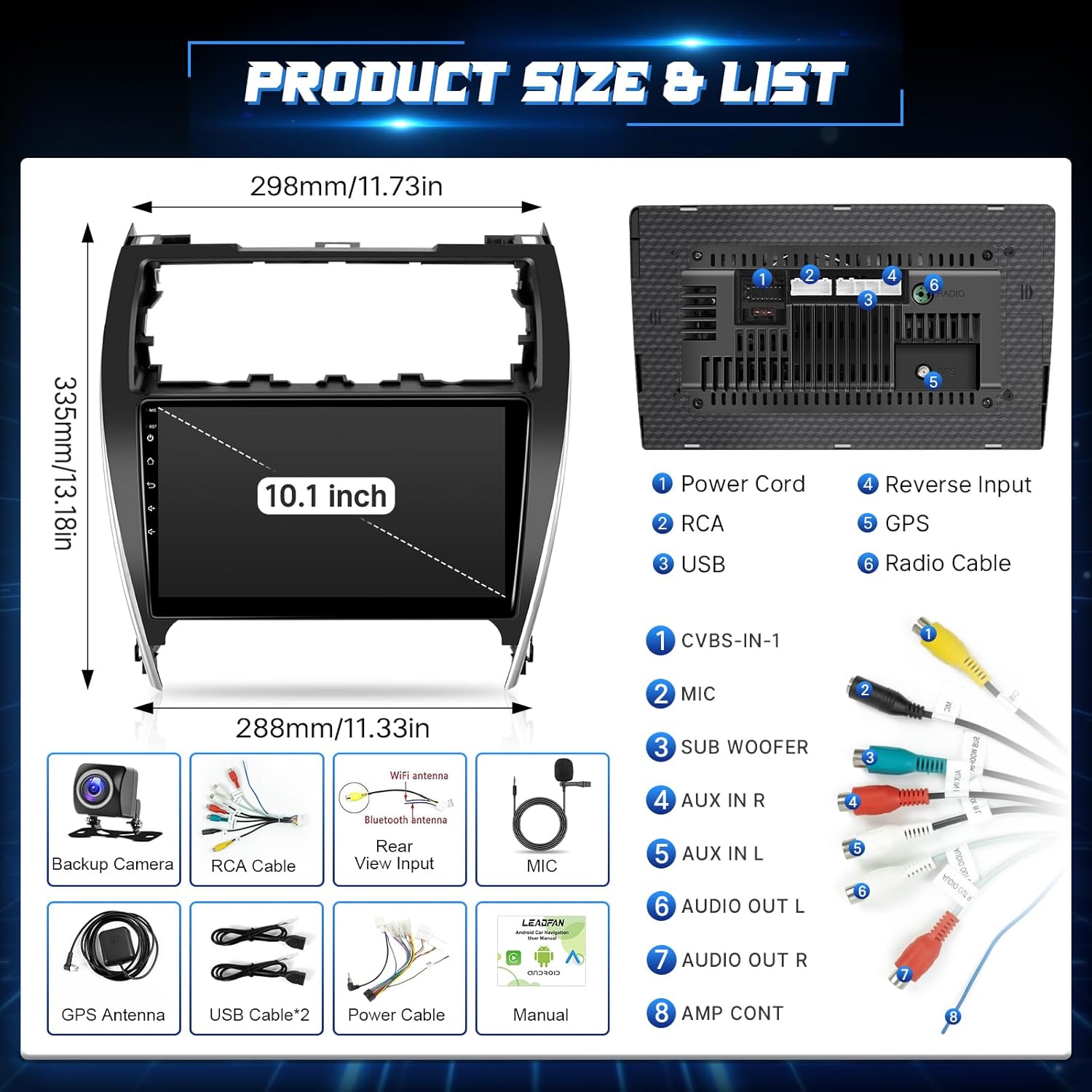

Image 2.1: Product Dimensions and Included Components
2.2 Wiring Connections Overview
The system is designed for plug-and-play installation. Refer to the included wiring diagrams and the image below for specific connections. Ensure all cables are securely connected to prevent functionality issues.
- Power Cord: Connects to the vehicle's power harness.
- RCA Cables: For audio/video input/output, including subwoofer.
- USB Cables: For external USB devices and wired Mirror Link.
- Reverse Input: Connects to the backup camera.
- GPS Antenna: For navigation functionality.
- Radio Cable: For FM/AM radio reception.
- External Microphone: For improved call quality and voice commands.
2.3 Backup Camera Connection
The included AHD backup camera provides a clear view when reversing. Follow these steps for connection:
- Connect the reversing camera input cable to the designated port on the head unit (labeled 'Reverse Input').
- Connect the camera's power cable to the vehicle's reversing light positive and negative terminals.
- Ensure the white plug on the video extension line is securely connected to the radio; otherwise, Bluetooth and WiFi functionalities may be unavailable.
Image 2.2: Backup Camera Wiring Diagram
3. Operating Instructions
3.1 Power On/Off and Basic Navigation
To power on the unit, start your vehicle. The unit will typically power on automatically. To power off, turn off your vehicle's ignition. Navigate the interface using the 10.1-inch IPS touchscreen.
3.2 Wireless CarPlay and Android Auto
The car stereo supports wireless Apple CarPlay and Android Auto for seamless smartphone integration. This allows you to access navigation, make calls, send messages, and listen to music directly from your phone's interface on the car stereo screen.
- Ensure Bluetooth and Wi-Fi are enabled on your smartphone.
- On the car stereo, select the CarPlay or Android Auto application.
- Follow the on-screen prompts to pair your phone via Bluetooth and establish the wireless connection.
- Use voice commands (Siri or Google Assistant) for hands-free operation.
Image 3.1: Wireless CarPlay and Android Auto Interface
3.3 Mirror Link Functionality
Mirror Link allows you to synchronize your smartphone screen with the car stereo display.
- Android Devices: Supports bidirectional control via wired USB connection or wireless Wi-Fi/hotspot.
- iPhone Devices: Supports unidirectional control (phone screen displayed on stereo) via wireless Wi-Fi/hotspot.
Image 3.2: Mirror Link Connection Methods
3.4 GPS Navigation and WiFi Connectivity
The unit includes a GPS module for navigation. You can use both offline and online maps.
- Offline Maps: Connect to Wi-Fi or your phone's hotspot to download offline maps via the menu.
- Online Maps: Use online navigation services when connected to Wi-Fi or a hotspot.
- App Downloads: With Wi-Fi connected, you can download various applications like YouTube, Spotify, and more from the app store, similar to a smartphone.
Image 3.3: GPS Navigation Interface
3.5 Bluetooth 5.1, FM/RDS Radio, and EQ Settings
- Bluetooth 5.1: Pair your mobile phone for hands-free calling and audio streaming. Access your address book and make voice calls directly from the stereo.
- FM/RDS Radio: Tune into FM radio stations. The RDS function displays station information. You can save your favorite stations.
- EQ Settings: Adjust the audio output with the 10-band equalizer options to customize your listening experience.
Image 3.4: FM Radio and DSP EQ Settings
3.6 Steering Wheel Control (SWC)
The unit supports steering wheel control functions, allowing you to manage volume, answer calls, and control media playback without taking your hands off the wheel.
- Access the SWC settings menu on the stereo.
- Follow the on-screen instructions to program each button on your steering wheel to the desired function.
Image 3.5: Steering Wheel Control Setup
3.7 Split Screen Functionality
Utilize the split-screen feature to run two applications simultaneously, such as navigation and music playback, enhancing multitasking while driving.
Image 3.6: Split Screen in Use
4. Maintenance
4.1 Screen Cleaning
To clean the touchscreen, power off the unit. Use a soft, lint-free cloth slightly dampened with water or a screen-cleaning solution. Avoid harsh chemicals or abrasive materials that could damage the screen.
4.2 Software Updates
Periodically check the manufacturer's website or the unit's settings for available software updates. Updates can improve performance, add new features, and fix bugs. Follow the provided instructions carefully when performing updates.
4.3 General Care
Avoid exposing the unit to extreme temperatures, direct sunlight for prolonged periods, or excessive moisture. Ensure proper ventilation around the unit to prevent overheating.
5. Troubleshooting
If you encounter issues with your Leadfan car stereo, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not power on. | Incorrect wiring, blown fuse, vehicle power issue. | Check power harness connections. Verify vehicle's fuse box for any blown fuses. Ensure the vehicle's ignition is on. |
| No sound or distorted audio. | Speaker wiring issues, incorrect audio settings, volume too low. | Check speaker connections. Adjust volume and EQ settings. Ensure RCA cables are properly connected. |
| CarPlay/Android Auto not connecting wirelessly. | Bluetooth/Wi-Fi off on phone, incorrect pairing, white plug on camera cable not connected. | Ensure Bluetooth and Wi-Fi are active on your phone. Re-pair the device. Verify the white plug on the reversing camera input cable is securely connected to the head unit. |
| GPS signal is weak or inaccurate. | GPS antenna placement, environmental interference. | Ensure the GPS antenna is placed in an unobstructed location (e.g., dashboard). Avoid areas with tall buildings or heavy tree cover. |
| Steering Wheel Controls not working. | Incorrect wiring, unprogrammed buttons. | Verify SWC wiring connections. Re-program the steering wheel buttons through the unit's settings. |
| Backup camera not displaying. | Camera wiring, reverse trigger not connected. | Check the camera's power and video input connections. Ensure the reverse trigger wire is correctly connected to the vehicle's reverse light circuit. |
| Unit is incompatible with my Toyota Camry. | Incorrect model variant purchased. | Confirm your vehicle's specifications (large screen navigation, J.B.L sound system). This is Model A, which is NOT compatible with vehicles having these features. If your car has these features, you need Model B. |
6. Specifications
| Feature | Detail |
|---|---|
| Item Weight | 2.57 pounds |
| Package Dimensions | 17.09 x 12.28 x 7.56 inches |
| Item Model Number | 2012-2014 Toyota Camry Car Play |
| Display Size | 10.1 Inches |
| Voice Command | Microphone, Touchscreen |
| Brand | Leadfan |
| Model Name | 2012-2014 Toyota Camry Android Radio + AHD Camera + MIC |
| Vehicle Service Type | Car |
| Screen Size | 10.1 Inches |
| Special Features | 2 USB, Plug-and-play Harness, Steering Wheel Control, Hands-Free Calling, Voice Control, Android 11 touchscreen, split-screen, GPS Module, IP68 AHD backup camera, 1080p video player, video and audio output, AUX audio and video input, external mic jack in RCA cable, Apple CarPlay, Android Auto, Mirrorlink, Bluetooth & WiFi, FM, DSP, RDS, AUX, EQ, RAC Audio/Video Output, Rear View Camera Input, Waterproof, Lane Assist |
| Connectivity Technology | Wired Connection: USB (Android Phone: Mirrorlink), Wireless Connection: Bluetooth & Wi-Fi (IOS/Android: Carplay & Android Auto & Mirrorlink) |
| Map Type | North America, Street or Road, Worldwide |
| Audio Output Mode | Stereo |
| Mounting Type | Dashboard Mount |
7. Warranty
This Leadfan car stereo comes with a 1 Year Warranty from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by improper installation, misuse, accidents, or unauthorized modifications.
8. Support
For further assistance, technical support, or if you have questions regarding compatibility, please contact Leadfan customer service. You can typically find support options through the retailer's platform where you purchased the product.
To contact customer service:
- Navigate to the product page on the retailer's website.
- Look for the seller information, usually labeled "Sold by" or "Ships from".
- Click on the seller's name (e.g., "Leedfan") to visit their storefront or seller profile.
- Locate the "Ask a question" button or similar contact option to reach customer support.
Image 8.1: How to Contact Customer Service
When contacting support, please provide your car model, year, and a picture of your car's center console for accurate assistance, especially if you are unsure about compatibility.
