1. Product Overview
The KOTLIE EM-308A is a versatile multi-function coffee machine designed to cater to various coffee preferences. It features a powerful 1400W motor and 19 bar pressure for optimal extraction, ensuring a rich aroma and taste. This machine is compatible with five different coffee formats: Nespresso, A Modo Mio, Dolce Gusto capsules, 44mm ESE Pads, and ground coffee. It also offers 4 temperature settings and 7 water volume options, along with the ability to prepare both hot and cold beverages.

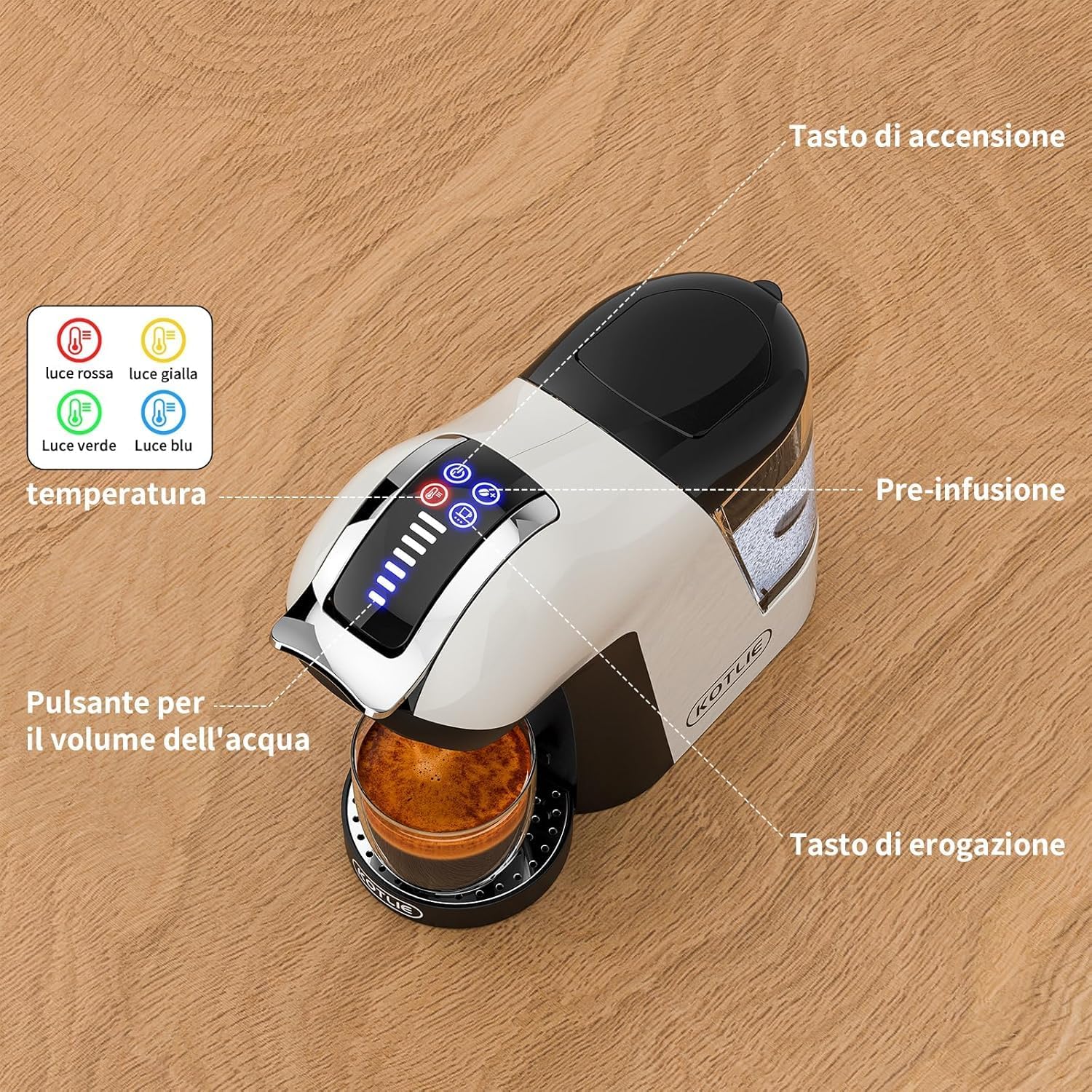

Image 1.1: Overview of the KOTLIE EM-308A coffee machine with key components labeled. Labels include Power button, Temperature indicators (red, yellow, green, blue lights), Water volume button, Pre-infusion indicator, and Dispense button.
Image 1.2: Detailed diagram illustrating the various parts of the coffee machine. Key parts include (1) Power button, (2) Temperature selection button, (3) Coffee dispense button, (4) Pre-infusion button, (5) Water volume selection button, (6) Handle, (7) Adapter, (8) Coffee outlet, (9) Drip tray support, (10) Drip tray, (11) Water reservoir, (12) Reservoir lid, (13) Inner reservoir lid.
Included Components
Image 1.3: All components included with the KOTLIE EM-308A. These are: (1) Water tank, (2) Coffee machine, (3) Drip tray, (4) User manual, (5) Coffee scoop/tamper, (6) Nespresso Original Adapter, (7) Dolce Gusto Adapter, (8) A Modo Mio Adapter, (9) Ground coffee filter (51mm), (10) ESE Pads filter (44mm), (11) Shared adapter for ground coffee and ESE Pads.
2. Setup
- Unpacking: Carefully remove all components from the packaging. Retain packaging for future transport or storage.
- Cleaning: Before first use, wash the water tank, drip tray, and all adapters with warm, soapy water. Rinse thoroughly and dry. Wipe the exterior of the machine with a damp cloth.
- Placement: Place the coffee machine on a stable, flat, and heat-resistant surface, away from water sources and heat. Ensure adequate ventilation around the machine.
- Water Tank Installation: Fill the water tank (1) with fresh, cold water up to the MAX line. Place the water tank securely onto the back of the machine.
- Power Connection: Plug the power cord into a grounded electrical outlet.
- First Use Rinse Cycle: Before brewing coffee, perform a rinse cycle. Fill the water tank, place a cup under the coffee outlet, and press the dispense button without any capsule or ground coffee in the adapter. Repeat this process 2-3 times to clean the internal system.
3. Operating Instructions
Compatibility and Adapters
The KOTLIE EM-308A supports various coffee formats using dedicated adapters:
- Nespresso Original capsules
- A Modo Mio capsules
- Dolce Gusto capsules
- 44mm ESE Pads
- Ground coffee
Image 3.1: Visual representation of the different coffee formats compatible with the machine: Nespresso Original, A Modo Mio, Ground Coffee, Dolce Gusto, and ESE Pad (44mm).
Image 3.2: The specific adapters for Nespresso Original, Dolce Gusto, A Modo Mio, and the shared adapter for ground coffee and 44mm ESE Pads. For ground coffee and ESE Pads, simply change the filter within the shared adapter.
Brewing Process (4 Simple Steps)
Image 3.3: A visual guide to the four-step brewing process.
- Step 1: Insert Coffee. Open the machine's handle and insert the appropriate adapter with your chosen capsule, ESE pad, or ground coffee. Close the handle firmly.
- Step 2: Adjust Settings. Use the temperature selection button to choose your desired temperature (indicated by colored lights: Red, Yellow, Green, Blue). Use the water volume selection button to set the desired water quantity (indicated by blue bars).
- Step 3: Start Extraction. Place a cup on the drip tray. Press the coffee dispense button to begin the brewing process. The machine will automatically stop when the selected water volume is reached.
- Step 4: Enjoy. Your coffee is now ready to be enjoyed.
Hot and Cold Beverages
The EM-308A allows for both hot and cold beverage preparation, making it suitable for all seasons.
Image 3.4: The machine can prepare both hot coffee (left) and iced coffee (right), offering versatility for different preferences and seasons.
Beverage Options
Image 3.5: Examples of beverages that can be prepared, including Espresso, Macchiato, Cappuccino, Tea, Caffè Latte, and Caffè Americano.
Image 3.6: A diagram illustrating how to create various coffee drinks like Espresso, Coffee Latte, Cappuccino, Espresso Macchiato, Americano, and Coffee Mocha. You can add water, milk, or chocolate to your liking.
4. Maintenance
Cleaning
- Daily Cleaning: After each use, empty and rinse the drip tray and water tank. Wipe the coffee outlet area with a damp cloth.
- Adapter Cleaning: Remove and rinse the used adapter after each brew. For ground coffee filters, ensure all coffee grounds are removed.
- Exterior Cleaning: Wipe the exterior of the machine with a soft, damp cloth. Do not use abrasive cleaners or immerse the machine in water.
Descaling
Regular descaling is essential to maintain machine performance and extend its lifespan. The frequency depends on water hardness and usage. Follow these general steps:
- Empty the water tank and fill it with a descaling solution (follow the descaling product's instructions) or a mixture of water and white vinegar (1:1 ratio).
- Place a large container under the coffee outlet.
- Run several brewing cycles without any coffee until the water tank is empty.
- Rinse the water tank thoroughly and fill it with fresh water.
- Run several more brewing cycles with fresh water to rinse out any descaling solution residue.
5. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not turn on | No power supply; Power button not pressed. | Check power cord connection; Press the Power button. |
| No coffee dispenses | Water tank empty; Adapter not correctly inserted; Clogged nozzle. | Fill water tank; Ensure adapter is securely in place; Perform a descaling cycle. |
| Coffee is cold/not hot enough | Incorrect temperature setting; Machine not preheated. | Select a higher temperature setting; Allow machine to preheat fully (indicator light stable). |
| Water leaks from machine | Water tank not properly seated; Drip tray full; Damaged seal. | Re-seat water tank; Empty drip tray; Contact customer support if seal is damaged. |
| Coffee tastes weak | Too much water selected; Incorrect coffee type/grind. | Select a smaller water volume; Use appropriate coffee for the chosen adapter. |
If you encounter problems not listed here, or if the suggested solutions do not resolve the issue, please contact KOTLIE customer support.
6. Specifications
Image 6.1: Product specifications including model number, dimensions, weight, water tank capacity, pressure, preheating time, standby time, auto-off time, and wattage.
| Feature | Detail |
|---|---|
| Model Number | EM-308A |
| Brand | KOTLIE |
| Dimensions (L x W x H) | 31.7 cm x 12.4 cm x 29 cm |
| Weight | 3 kg |
| Water Tank Capacity | 1 Liter |
| Pressure | 19 Bar |
| Wattage | 1400 W |
| Voltage | 220V (AC) |
| Preheating Time | Approx. 35 seconds |
| Auto-Off Time | 1 Hour |
| Compatible Coffee Types | Nespresso Original, A Modo Mio, Dolce Gusto, 44mm ESE Pads, Ground Coffee |
| Special Features | Portable, Removable Water Tank, Automatic Shut-off, Hot & Cold Beverages, 4 Temperature Levels, 7 Water Volume Levels |
7. Warranty and Support
Specific warranty information for the KOTLIE EM-308A coffee machine is not provided in the available product data. Please refer to the warranty card included with your product or contact KOTLIE customer service directly for details regarding warranty coverage and terms.
Customer Support
For technical assistance, troubleshooting, or any questions regarding your KOTLIE EM-308A coffee machine, please contact KOTLIE customer support through their official website or the contact information provided in your product packaging.
