1. Introduction
Thank you for choosing the Yaheetech Outdoor Patio Swivel Chairs. This set of 2 rocker dining chairs features durable texteline fabric and a sturdy metal frame, designed for comfort and longevity in your outdoor living spaces. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure you get the most out of your new patio chairs.
2. Safety Information
Please read all instructions carefully before assembly and use. Keep this manual for future reference.
- Ensure all parts are present and undamaged before beginning assembly.
- Assemble the chairs on a soft, clean surface to prevent scratching.
- Do not overtighten screws during assembly; tighten them firmly once all parts are aligned.
- The maximum weight capacity for each chair is 300 lbs (136 kg). Do not exceed this limit.
- Keep children and pets away from the assembly area.
- Regularly check all bolts and connections to ensure they remain tight.
- Avoid placing chairs on uneven surfaces to prevent tipping.
3. Package Contents
Verify that all components are included in your package:
- Chair Frames (2 sets)
- Texteline Seats and Backrests (2 sets)
- Swivel Bases (2)
- Assembly Hardware (bolts, washers, nuts)
- Assembly Tool (Allen wrench)
- Instruction Manual
4. Setup and Assembly
Assembly typically takes approximately 30 minutes per chair. Follow these steps carefully:
- Unpack all components and lay them out on a protected surface. Identify each part according to the parts list (not provided in this manual, refer to included physical manual).
- Attach the chair backrest to the seat frame using the provided hardware. Do not fully tighten bolts yet.
- Connect the armrests to the assembled backrest and seat frame. Ensure proper alignment of all holes before inserting bolts.
- Secure the chair frame to the swivel base.
- Once all components are loosely assembled, carefully place the chair upright and gently rock it to ensure all parts settle into place. Then, progressively tighten all bolts evenly until secure. Do not overtighten.
- Verify the chair's stability and smooth swivel/rocking motion before use.
Figure 4.1: Product Dimensions. Each chair measures approximately 27.5 inches deep, 22.5 inches wide, and 38 inches high, with a seat depth of 19 inches.
Figure 4.2: Key features of the chair, highlighting its 360-degree rotation, 15-degree rocking capability, durable metal frame, adjustable foot pads, and breathable texteline backrest.
5. Operating Instructions
Your Yaheetech Patio Swivel Chairs are designed for comfort and versatility:
- 360° Swivel: The chair base allows for a full 360-degree rotation, providing easy movement and interaction in any direction.
- 15° Rocking: Enjoy a gentle and relaxing 15-degree rocking motion for added comfort.
- Ergonomic Design: The backrest is ergonomically designed to provide head support, lower back support, and relaxation for hips and legs.

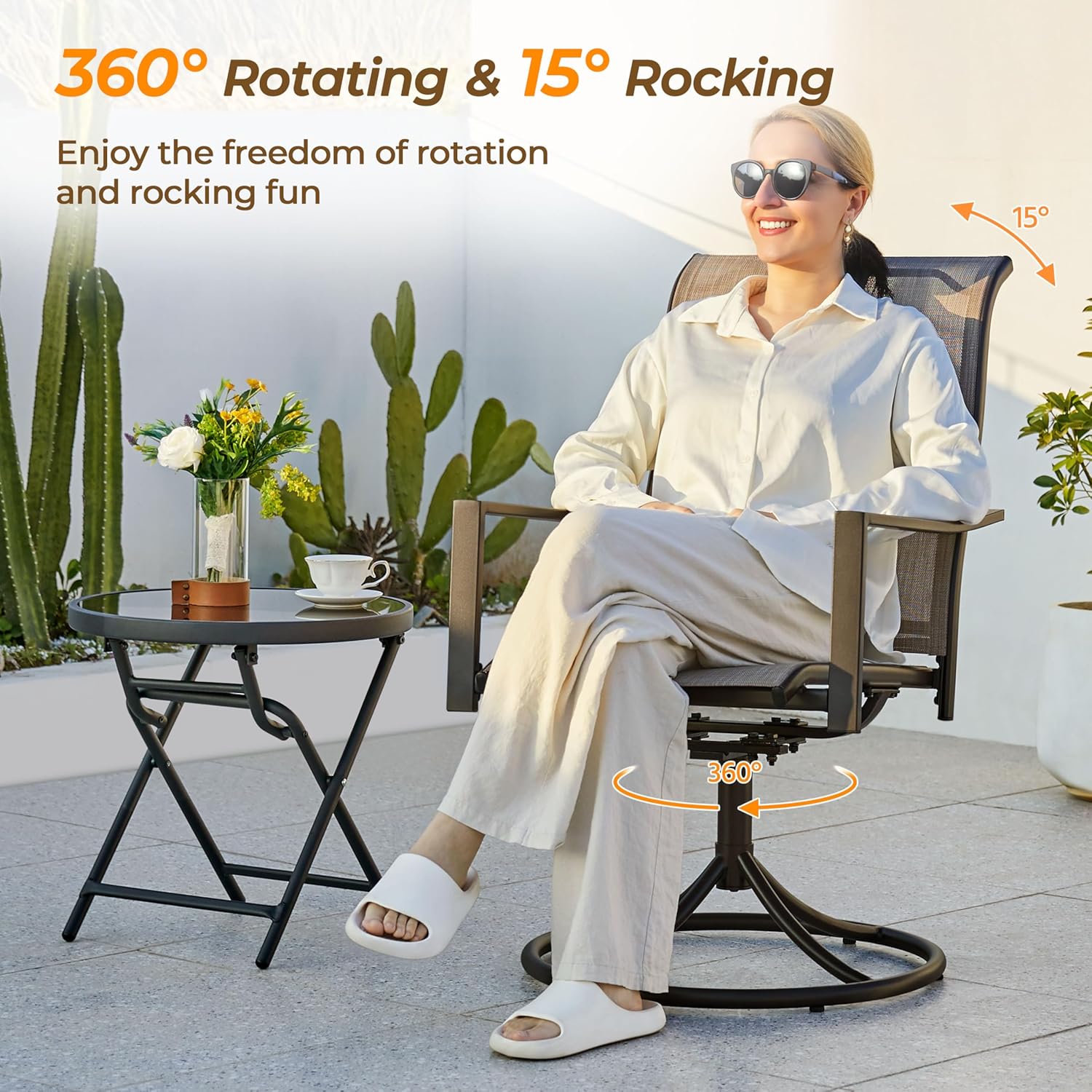

Figure 5.1: A user demonstrating the comfortable 360-degree rotation and 15-degree rocking motion of the chair.
Figure 5.2: Illustration of the ergonomic backrest providing support at the head, lower back, and promoting relaxation for the hips and legs.
Video 5.1: Official product video demonstrating the features and use of the Yaheetech Patio Swivel Dining Chairs.
6. Maintenance and Care
To ensure the longevity and appearance of your chairs, follow these simple maintenance guidelines:
- Cleaning: Both the texteline fabric and powder-coated iron frame are easy to clean. Simply wipe them down with a damp cloth. For more stubborn dirt, you can rinse them with a hose in the garden.
- Drying: After cleaning, allow the chairs to dry naturally in a cool, shaded area.
- Seasonal Refreshing: Regular cleaning and drying will help maintain the chairs' condition for seasonal use.
- Storage: During prolonged periods of non-use or harsh weather conditions, it is recommended to store the chairs indoors or cover them with a protective outdoor furniture cover.
- Inspection: Periodically inspect all bolts and connections for tightness and re-tighten if necessary.
Figure 6.1: Detail of the heavy-duty metal frame, which is powder-coated for enhanced durability and weather resistance.
Figure 6.2: The texteline backrest material is breathable, elastic, and designed for outdoor durability and weather resistance, making it easy to clean.
7. Troubleshooting
If you encounter any issues with your chairs, please refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Chair feels wobbly or unstable. | Loose bolts or uneven assembly. | Ensure all bolts are tightened evenly. Place the chair on a flat surface and gently rock it to settle components, then re-tighten. Adjust foot pads if applicable. |
| Difficulty with assembly (holes not aligning). | Parts may be misaligned or not fully seated. | Do not fully tighten any bolts until all parts are loosely assembled. This allows for minor adjustments. If issues persist, double-check part orientation against the physical manual's diagrams. |
| Squeaking during swivel or rocking. | Lack of lubrication in the swivel mechanism or loose connections. | Apply a silicone-based lubricant to the swivel mechanism. Check and tighten all bolts on the base and frame. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Yaheetech |
| Model Name | Patio Swivel Chairs |
| Item Model Number | Patio Swivel Chairs-615208 |
| Color | Brown |
| Product Dimensions (D x W x H) | 27.5" x 22.5" x 38" (69.85 cm x 57.15 cm x 96.52 cm) |
| Seat Depth | 19 inches (48.26 cm) |
| Item Weight (per chair) | Approx. 19.35 lbs (8.78 kg) - Total 38.7 lbs for set of 2 |
| Weight Capacity (per chair) | 300 lbs (136 kg) |
| Material | Powder-coated Iron Frame, Texteline Fabric |
| Special Features | Ergonomic, Swivel (360°), Rocking (15°), Durable |
| Unit Count | 2.0 Count |
9. Warranty and Support
For warranty information and customer support, please refer to the documentation included with your purchase or contact Yaheetech directly through their official website or the retailer where the product was purchased. Please have your model number and purchase date available when contacting support.
You can visit the official Yaheetech store for more information: Yaheetech Store
