Topeak Quick Release Fork Drybag 5.8L Instruction Manual

1. Introduction

This manual provides detailed instructions for the proper installation, operation, and maintenance of your Topeak Quick Release Fork Drybag 5.8L. Designed for cyclists, this 5.8-liter quick-release system fork bag offers a convenient solution for carrying additional gear on your bicycle's front forks.

Key features include a QuickClick quick-release design for fast installation and removal, a roll-top closure, and durable TPU material to ensure contents remain dry and secure. An integrated air release valve simplifies packing by allowing excess air to be expelled.

2. Safety Information

• Always ensure the bag is securely attached to the fork mounts before riding.
• Do not exceed the maximum load capacity of 3 kg (6.6 lbs) to maintain bicycle stability and prevent damage.
• Distribute weight evenly if using two bags to maintain balance.
• Regularly inspect the mounting system for wear or damage. Replace components if necessary.
• Ensure the bag does not interfere with steering, braking, or wheel rotation.

3. Package Contents

The Topeak Quick Release Fork Drybag package includes:

• 1 x Topeak Fork Drybag 5.8L
• 1 x Quick Release Mounting System (pre-attached or separate, depending on packaging)

Note: Mounting hardware (screws, bolts) for attaching the quick release system to your fork bottle bosses may be sold separately or included with your bicycle. Please check your bicycle's specifications.

4. Setup and Installation

4.1 Attaching the Mounting System to Your Fork

The Topeak Quick Release Fork Drybag utilizes a mounting system designed to attach to your bicycle's front fork bottle bosses. Ensure your fork has appropriate mounting points.

1. Align the quick release mounting plate (if separate) with the bottle bosses on your bicycle fork.
2. Secure the mounting plate using appropriate screws and washers (not included with the bag, typically provided with the bike or purchased separately). Tighten securely, but do not overtighten.
3. Verify the mounting plate is stable and does not wobble.

Figure 1: Rear view of the Topeak Fork Drybag, highlighting the integrated quick release mounting plate. This plate attaches to your bicycle's fork.

4.2 Attaching the Drybag to the Mounting System

1. With the mounting plate securely installed on your fork, align the drybag's quick release mechanism with the plate.
2. Slide the drybag downwards onto the mounting plate until it clicks firmly into place. A distinct click indicates a secure attachment.
3. Gently pull on the bag to ensure it is locked and cannot be easily dislodged.

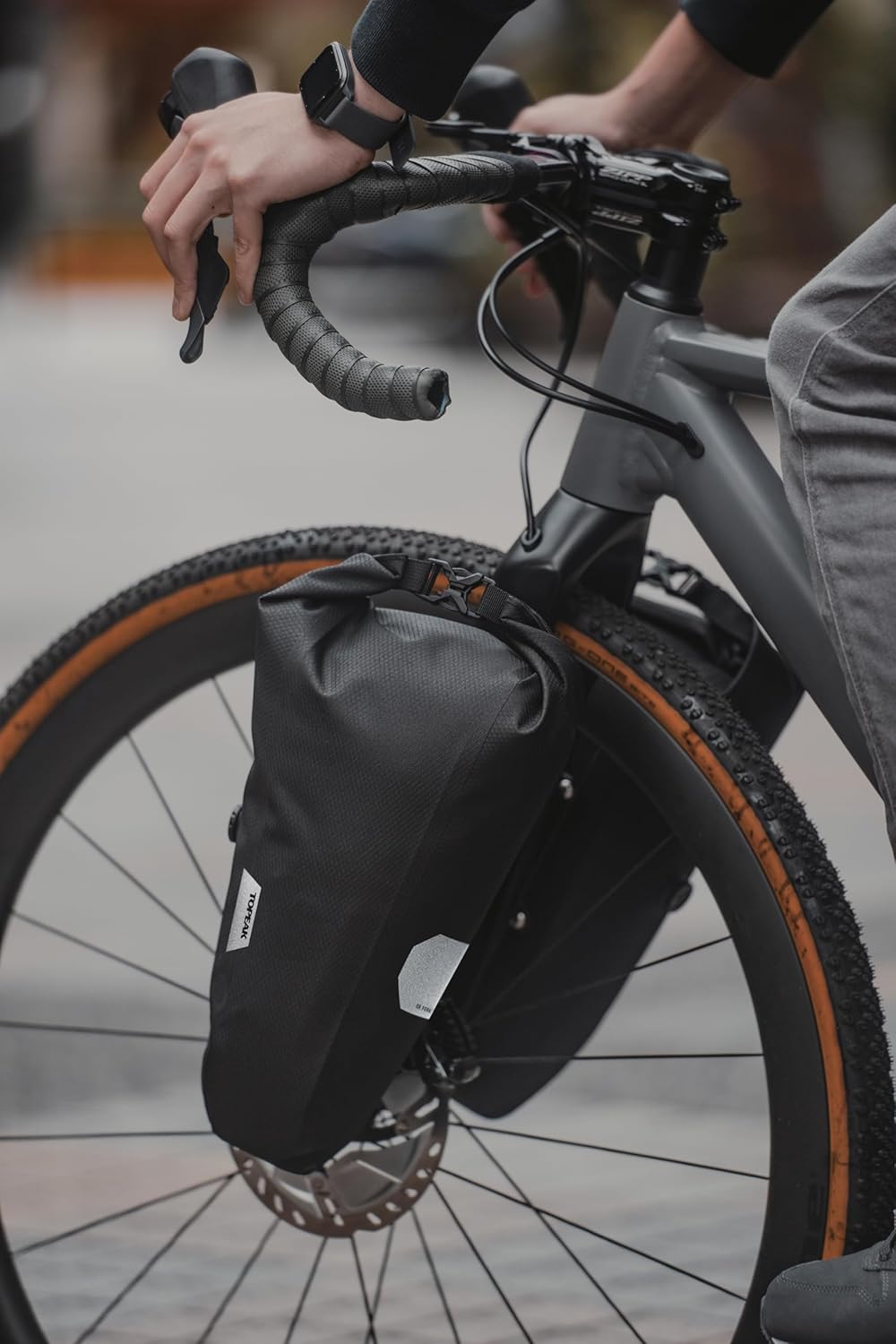

Figure 2: The Topeak Fork Drybag securely attached to the front fork of a bicycle, ready for use.

Figure 3: A bicycle equipped with two Topeak Fork Drybags, demonstrating a balanced setup for increased carrying capacity.

5. Operating Instructions

5.1 Packing the Drybag

• Place items inside the drybag. Ensure sharp objects are protected to prevent damage to the bag's material.
• Roll-Top Closure: To ensure waterproof sealing, roll the top edge of the bag down at least three times. Secure the buckles on the sides.
• Air Release Valve: For compact packing, after rolling the top, press the air release valve located on the side of the bag to expel excess air. Close the valve securely once air is released.

5.2 Releasing the Drybag

The QuickClick system allows for easy removal of the drybag from your bicycle.

1. Locate the release lever on the quick release mounting system.
2. Press the lever firmly.
3. While holding the lever, lift the drybag upwards to detach it from the fork mounting plate.

Figure 4: A hand demonstrating the action of pressing the quick release lever to disengage the drybag from its mount.

Figure 5: The drybag being lifted away from the fork mount, illustrating the quick release mechanism in action.

The integrated carry handle allows for easy transport of the drybag once removed from the bicycle.

6. Maintenance

• Cleaning: Wipe the drybag with a damp cloth and mild soap. Rinse thoroughly and allow to air dry completely before storage. Do not use harsh chemicals or abrasive cleaners.
• Storage: Store the drybag in a cool, dry place away from direct sunlight when not in use.
• Inspection: Periodically check the bag's material, seams, and the quick release mechanism for any signs of wear, tears, or damage. Ensure the air release valve is clean and functions correctly.

7. Troubleshooting

• Bag not attaching securely: Ensure the mounting plate is correctly installed and tightened. Check for any obstructions in the quick release mechanism.
• Difficulty releasing the bag: Ensure the release lever is fully depressed. Check for dirt or debris in the mechanism.
• Water ingress: Verify the roll-top closure is rolled down at least three times and buckles are secured. Ensure the air release valve is fully closed. Inspect the bag for any punctures or tears.
• Bag wobbles during ride: Confirm the mounting plate is tightly secured to the fork. Ensure the drybag is fully clicked into the mounting plate. Do not exceed the maximum load capacity.

8. Specifications

Note: Values for weight and dimensions are approximate, based on package information, as specific product dimensions were not clearly provided.

9. Warranty and Support

For warranty information, product support, or to purchase replacement parts, please visit the official Topeak website or contact their customer service department.

Official Topeak Website: www.topeak.com

Please retain your proof of purchase for any warranty claims.
