Bazyths Smart Compact Toilet User Manual (Model ZY695A Mini)

Product Overview

The Bazyths Smart Compact Toilet (Model ZY695A Mini) is designed to enhance your bathroom experience with advanced technology and space-saving features. This one-piece toilet integrates a built-in tank and bidet functions, offering convenience and hygiene in a compact form factor. Key features include automatic lid operation, foot sensor controls, warm water cleansing, a heated seat, and a powerful warm air dryer.

Figure 1: The Bazyths Smart Compact Toilet (Model ZY695A Mini) installed in a compact bathroom setting, highlighting its space-saving design.

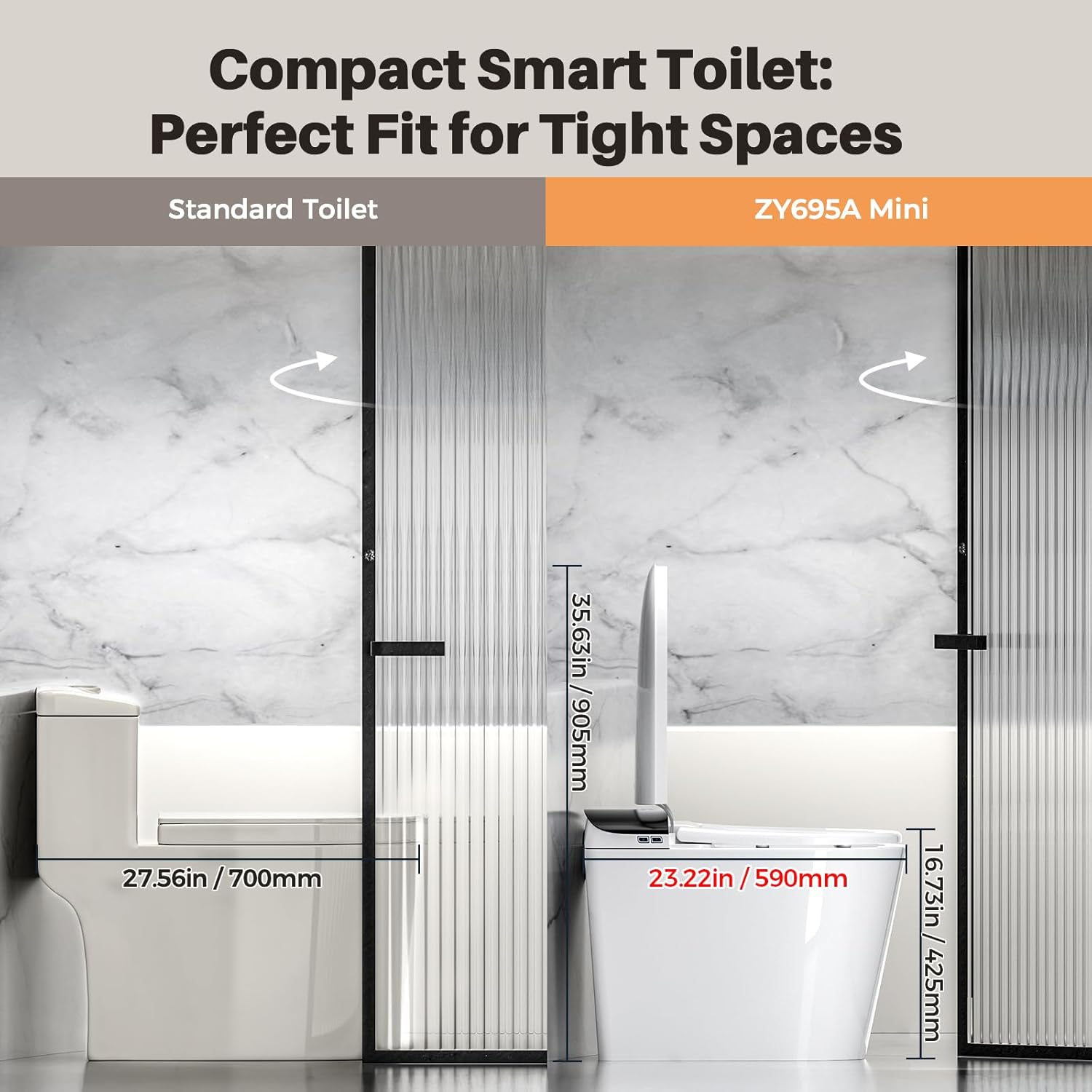

Figure 2: A visual comparison illustrating the compact dimensions of the ZY695A Mini smart toilet compared to a standard toilet, demonstrating its suitability for tight spaces.

Setup and Installation

Installation of the Bazyths Smart Compact Toilet is designed to be straightforward, similar to a standard toilet. All necessary components for installation are included in the package.

Included Components:

Figure 3: Overview of the product dimensions and a list of included accessories such as the remote control, battery box, angle valve, manual, flange, and other necessary parts.

• Remote Control
• Battery Box (batteries not included)
• Angle Valve
• User Manual
• Flange and other installation accessories

Power Connection:

This smart toilet requires an AC power outlet for full functionality. Ensure a suitable outlet is available near the installation site. The power cord can be discreetly routed if necessary.

Power-Off Flushing (Battery Backup):

In the event of a power outage, the toilet can still be flushed using the provided battery backup system. The battery box requires 10 AA batteries (not included) to enable flushing during power interruptions. This ensures continuous convenience and peace of mind.

Figure 4: Illustration of the power-off flushing feature, showing the battery box connection for continued operation during power outages.

Operating Instructions

The Bazyths Smart Compact Toilet offers a range of intelligent features for a touch-free and comfortable experience.

Automatic Lid Operation and Foot Sensor:

The toilet lid automatically opens when a user approaches, detected by a radar sensor. Both the lid and seat will automatically close approximately 2 minutes after the user leaves the sensor range. Alternatively, a foot sensor on the side of the toilet allows for manual opening/closing of the lid or seat, and flushing.

Figure 5: The smart lid automatically opens and closes, with options for foot-activated control and power outage flushing.

Figure 6: Detailed flowcharts showing the touch-free operation, including automatic lid opening/closing and foot sensor activation for seat and flush.

Flushing:

The toilet features an off-seat flush function, automatically activating the flush when the user leaves the seat. It also has a built-in tank design that ensures reliable flushing even with low or unstable water pressure, operating effectively under zero water pressure conditions.

Figure 7: A comparison highlighting the ZY695A Mini's superior flushing performance due to its built-in tank, offering shorter flushing times and lower water consumption.

Bidet Functions:

Enjoy personalized cleansing with four modes: rear wash, feminine wash, oscillating wash, and warm/cool wash. You can adjust the spray position, water temperature, and pressure to your preference. The bidet also includes a hot and cold massage feature for added comfort.

Figure 8: Automatic cleaning features of the bidet, including hot and cold massage, rear and front wash options, and the self-cleaning, detachable nozzle.

Heated Seat and Warm Air Dryer:

The seat features built-in temperature sensors that automatically adjust the seat temperature based on room temperature, ensuring comfort in all seasons. The powerful warm air dryer offers four adjustable temperature settings (room temperature, 95°F, 113°F, 131°F) and a 3-minute cycle for efficient drying.

Figure 9: Adjustable temperature settings for the heated seat and warm air dryer, providing maximum comfort.

Remote Control and LED Display:

All features can be easily controlled via the included remote control. The toilet also features a frameless LED display on top, providing information about its status, and a gentle nightlight for guidance in the dark.

Figure 10: The intelligent side control buttons and the comprehensive remote control for managing all toilet features.

Figure 11: The sleek frameless LED display provides intuitive information, complemented by a gentle nightlight for safe navigation in the dark.

Maintenance

Proper maintenance ensures the longevity and optimal performance of your Bazyths Smart Compact Toilet.

Foam Shield System:

The toilet features a high-density foam shield system that helps control splashes and block odors. You can use Bazyths Foam Shield Cleaner (purchased separately) by installing the bottle into the designated compartment under the back panel. The foam can be dispensed manually via the remote control or set to automatically dispense when the seat is occupied.

Figure 12: The high-density foam shield system, designed for superior splash control and odor blocking, ensuring a cleaner and fresher bathroom environment.

Self-Cleaning and Detachable Nozzle:

The bidet nozzle self-cleans before and after each use to ensure high hygiene standards. Its detachable design allows for easy removal and convenient manual cleaning when needed.

Quality Assurance Information:

• Water Test: Each toilet undergoes a water test before shipping to ensure proper function. Any residual water droplets inside the toilet upon opening the box are normal and are from this quality check, not a defect.
• Fire Cracks: Small cracks in unglazed areas are normal and occur due to the high-temperature firing process at 1280°C. These do not affect quality, cause leakage, or impact performance.

Figure 13: Details regarding the factory water test and the normal occurrence of small fire cracks in the ceramic, assuring product quality.

Troubleshooting

This section addresses common concerns and provides solutions for your Bazyths Smart Compact Toilet.

• No Power/Functionality: Ensure the toilet is properly plugged into a working AC outlet. If a power outage occurs, verify that 10 AA batteries are installed in the battery backup box to enable basic flushing.
• Low or Unstable Water Pressure: The built-in tank design is specifically engineered to overcome issues with low or unstable water pressure, allowing the toilet to function effectively even under zero water pressure conditions.
• Water Droplets Inside Upon Arrival: As mentioned in the Maintenance section, residual water from factory testing is normal and does not indicate a defect.
• Small Cracks in Unglazed Areas: These are normal results of the high-temperature firing process and do not affect the toilet's quality, performance, or lead to leakage.

Frequently Asked Questions (FAQs):

• Q: How long is the power cord? A: The power cord is 1.2 meters (approximately 3.9 feet) long.
• Q: What voltage does the toilet require? A: It operates on standard US voltage: 110V–120V.
• Q: I noticed water droplets inside the toilet upon opening the box. Is this normal? A: Yes, it's normal. Each toilet undergoes a water test before shipping to ensure proper function. Any residual water is from this quality check and is not a defect.

Specifications

Warranty and Support

Bazyths is committed to providing high-quality products and excellent customer service.

• Return Policy: This product is eligible for a 30-day easy return policy.
• Customer Support: For any inquiries or assistance, please contact Bazyths customer support.
• Additional Resources:
  • User Guide (PDF)
  • Installation Manual (PDF)
