GIANTEX Triple Bunk Bed with Storage Stair

Important Safety Information

Please read and understand all instructions before assembling and using this bunk bed. Keep this manual for future reference.

• Age Restriction: Children under 6 years old are not recommended to sleep on the upper bunk.
• Guardrails: Always use guardrails on the upper bunk to prevent falls. Ensure they are securely installed.
• Weight Limit: Do not exceed the maximum weight limit of 200 lbs (90.72 kg) per bed.
• Mattress Thickness: Use a mattress with a maximum thickness of 6 inches (15.24 cm) for all beds to ensure proper guardrail height.
• Assembly: Ensure all connections are tight and secure before use. Periodically check and tighten hardware.
• Ventilation: Ensure adequate ventilation around the bed.
• No Jumping: Do not allow jumping on the bed.
• Prohibited Items: Do not attach or hang items on any part of the bunk bed that are not designed for use with the bed, for example, but not limited to, hooks, belts, or jump ropes.

Product Overview

The GIANTEX Triple Bunk Bed is designed to provide a space-saving sleeping solution for multiple children. It features a robust solid wood structure and includes a 4-step storage staircase for added functionality.

Image: Overall view of the GIANTEX Triple Bunk Bed, showcasing the upper twin bed, two lower twin beds, and the integrated storage staircase.

Key Features:

• Triple Bed Configuration: One upper twin-size bed and two lower twin-size beds.
• Integrated Storage Staircase: A 4-step staircase with three built-in storage compartments for books, toys, clothes, or bed sheets.
• Solid Wood Construction: Crafted from robust solid wood with 24 plywood slats for stability and durability.
• No Box Spring Needed: Designed with an embedded surface to support mattresses directly.
• Enhanced Safety: Equipped with 12-inch high guardrails and protective handrails on the upper bunk and staircase. ASTM and CPSIA compliant.
• Under-Bed Clearance: 12 inches of clearance beneath the lower beds for easy cleaning and additional storage.

Setup and Assembly

Assembly of the GIANTEX Triple Bunk Bed requires two adults and approximately 2-3 hours. Ensure all parts are present before beginning assembly. A user guide with detailed diagrams is included in the packaging.

Before You Begin:

• Unpack all components and lay them out on a clean, soft surface (e.g., a rug or blanket) to prevent scratches.
• Verify that all hardware and parts listed in the included user guide are present. If any parts are missing or damaged, contact customer support immediately.
• Gather necessary tools: Phillips head screwdriver, Allen wrench (usually included).

Assembly Steps (General Guidance):

1. Assemble the Lower Bed Frames: Connect the side rails, headboards, and footboards for the two lower twin beds. Ensure all bolts are finger-tight at this stage.
2. Attach Slats to Lower Beds: Secure the plywood slats to the lower bed frames. Evenly space and fasten them according to the user guide.
3. Assemble the Upper Bed Frame: Construct the upper twin bed frame, including its side rails, headboard, and footboard.
4. Attach Slats to Upper Bed: Secure the plywood slats to the upper bed frame.
5. Assemble the Storage Staircase: Follow the specific instructions for the 4-step storage staircase. This typically involves assembling the frame, installing the steps, and inserting the storage compartments.
6. Connect Upper Bed to Lower Structure and Staircase: Carefully lift and position the upper bed frame onto the lower bed structure and connect it to the staircase. This step often requires two people.
7. Install Guardrails and Handrails: Securely attach the guardrails to the upper bunk and any protective handrails to the staircase.
8. Final Tightening: Once all components are in place and aligned, systematically tighten all bolts and screws using the provided Allen wrench and screwdriver. Do not overtighten.

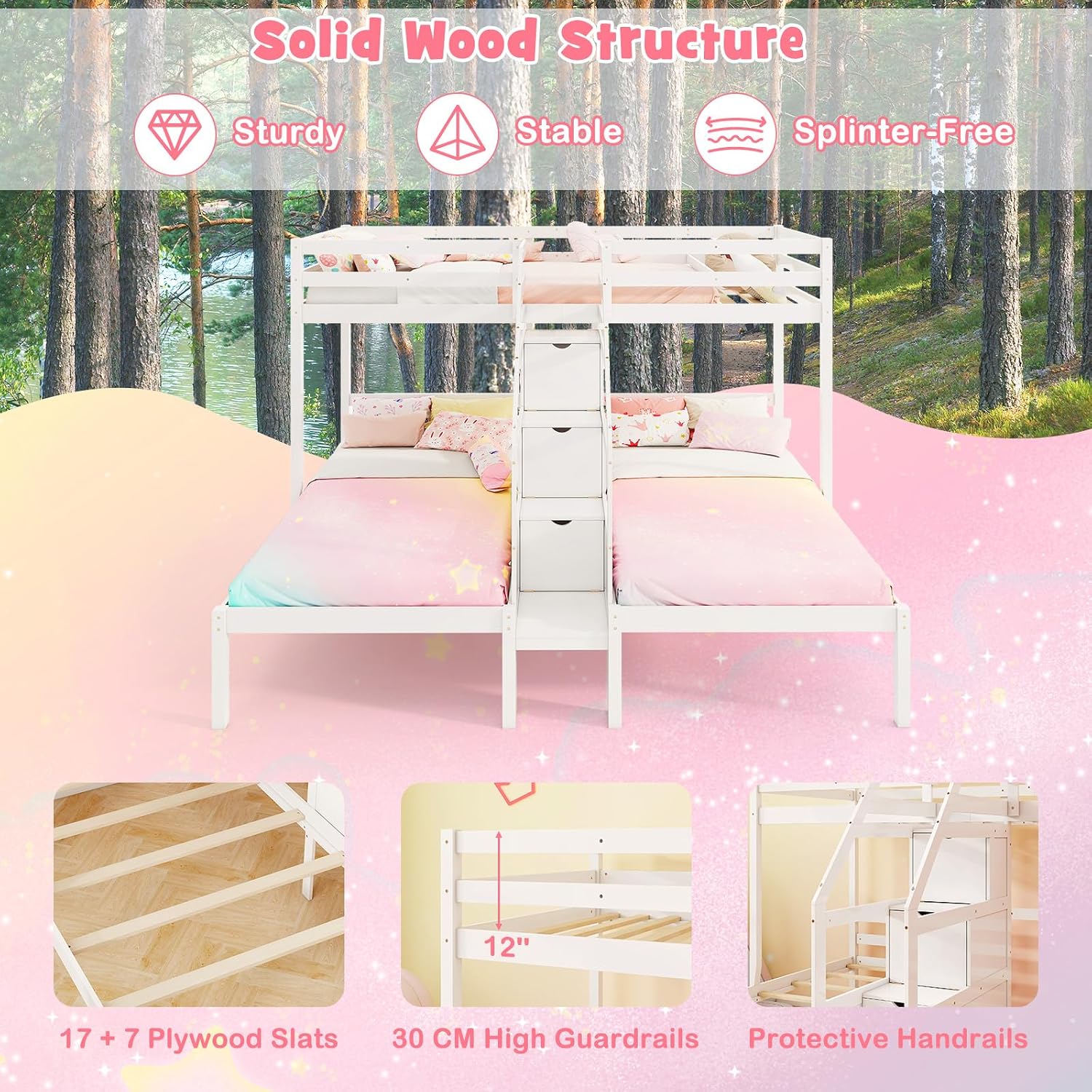

Image: Detail of the solid wood structure, plywood slats, 12-inch high guardrails, and protective handrails, illustrating key safety and structural components.

Image: Close-up of the 4-step climbing stair, highlighting the integrated hidden storage compartments within each step.

Operating Instructions

This section provides guidance on the proper use of your GIANTEX Triple Bunk Bed.

• Accessing the Upper Bunk: Use the integrated 4-step staircase to safely access the upper bunk. Always use the handrails for support.
• Using Storage: The storage compartments within the staircase are designed for lightweight items such as books, small toys, or clothing. Do not overload these compartments.
• Mattress Placement: Place twin-size mattresses directly onto the embedded platform beds. Ensure the mattress thickness does not exceed 6 inches to maintain the effectiveness of the guardrails.

Image: Illustration showing the recommended mattress thickness (≤ 6 inches) for the triple embedded platform beds and a reminder about the age restriction for the upper bunk.

Maintenance

Proper maintenance will extend the life and ensure the safety of your bunk bed.

• Cleaning: Wipe clean with a damp cloth and mild soap. Avoid using harsh chemicals, abrasive cleaners, or excessive moisture, as these can damage the finish.
• Hardware Check: Periodically (e.g., every 3-6 months) check all bolts, screws, and connections to ensure they are tight. Retighten as necessary to maintain structural integrity.
• Wood Care: Protect the wood from direct sunlight and extreme temperature changes to prevent warping or cracking.
• Under-Bed Area: Utilize the 12-inch under-bed clearance for easy sweeping and cleaning.

Image: View of the 12-inch under-bed clearance, demonstrating space for cleaning devices like robot vacuums and for additional storage bins.

Troubleshooting

This section addresses common issues you might encounter during assembly or use.

• Missing Parts: If any parts are missing from your package, refer to the parts list in your user guide and contact GIANTEX customer support with the specific part numbers.
• Misaligned Holes: During assembly, do not fully tighten any bolts until all components are loosely fitted. This allows for minor adjustments to align holes. If holes are significantly misaligned, double-check that you are using the correct parts for that step.
• Wobbly Bed: Ensure all bolts and screws are securely tightened. A wobbly bed often indicates loose connections. Re-check all hardware.
• Squeaking Noises: Squeaking can be caused by loose connections or friction between wood parts. Tighten all hardware. Applying a small amount of paraffin wax or silicone spray to contact points (not on load-bearing joints) can sometimes help, but ensure it does not compromise structural integrity.
• Difficulty with Storage Drawers/Doors: Ensure the staircase frame is assembled squarely. Check for any obstructions or misaligned tracks if applicable.

Specifications

Image: Detailed dimensions of the GIANTEX Triple Bunk Bed, including length, width, height, and load capacity per bed.

Customer Support

For any questions, missing parts, or assistance with your GIANTEX Triple Bunk Bed, please contact GIANTEX customer support. Refer to the contact information provided in your product packaging or on the official GIANTEX website.

Please have your model number (GX-11008-HY) and purchase information ready when contacting support.
