Kayuneed Electric Shoe Dryer User Manual

1. Introduction

Thank you for choosing the Kayuneed Electric Shoe Dryer. This device is designed to efficiently dry and sterilize various types of footwear and gloves, ensuring they remain dry, clean, and odor-free. Featuring 360° heat circulation, intelligent timing, and UV sterilization, it provides a convenient and effective solution for daily use at home or while traveling.

This manual provides essential information on the product's features, setup, operation, maintenance, and troubleshooting. Please read it thoroughly before using the product to ensure safe and optimal performance.

2. Safety Instructions

To prevent injury or damage to the product, please observe the following safety precautions:

Always unplug the dryer from the power outlet when not in use, before cleaning, or before performing any maintenance.
Do not immerse the dryer in water or any other liquid. Avoid using it in excessively wet environments.
Keep the device out of reach of children and pets.
Ensure proper ventilation around the dryer during operation. Do not cover the ventilation holes.
Do not use the dryer if the power cord or plug is damaged. Contact customer support for assistance.
This appliance is equipped with an automatic shut-off feature to prevent overheating. If the device shuts off unexpectedly, unplug it and allow it to cool down before attempting to use it again.
Do not attempt to disassemble or repair the dryer yourself. Refer all servicing to qualified personnel.
The dryer is designed for shoes and gloves. Do not use it for drying other items or for purposes other than its intended use.
The 48°C displayed on the timer is for decoration only and does not represent the actual temperature. The device operates at a safe, constant temperature suitable for drying.

3. Package Contents

Verify that all items are present in the package:

1 x Kayuneed Electric Shoe Dryer (Model HXQ-01)
1 x User Manual (English)

4. Product Features

The Kayuneed Electric Shoe Dryer incorporates advanced features for effective and convenient drying:

360° Heat Circulation: Ensures even drying by distributing hot air throughout the footwear, effectively removing moisture and odor.
Intelligent Timer: Adjustable drying time from 30 to 120 minutes (30/60/90/120mins) to suit different material thicknesses and moisture levels, with automatic shut-off.
Constant Temperature Drying: Reaches a constant temperature within 15 seconds of activation, providing efficient and safe drying at approximately 48°C.
UV Sterilization: Integrated UV function effectively eliminates bacteria, fungi, and odors, keeping shoes and gloves hygienic.
Foldable Design: 90° foldable for compact storage and portability, ideal for home use and travel. Includes a leather handle for easy carrying.
Low Noise Operation: Operates quietly, ensuring a peaceful environment during use.
High-Quality Material: Constructed from high-temperature resistant and environmentally friendly plastic.

Kayuneed Electric Shoe Dryer in folded position — The Kayuneed Electric Shoe Dryer in its compact, folded state.

Kayuneed Electric Shoe Dryer with shoes, illustrating 360 degree safe drying, timing, digital display, and integrated storage — The dryer in use, demonstrating 360° safe drying, intelligent timing, digital display, and integrated storage capabilities.

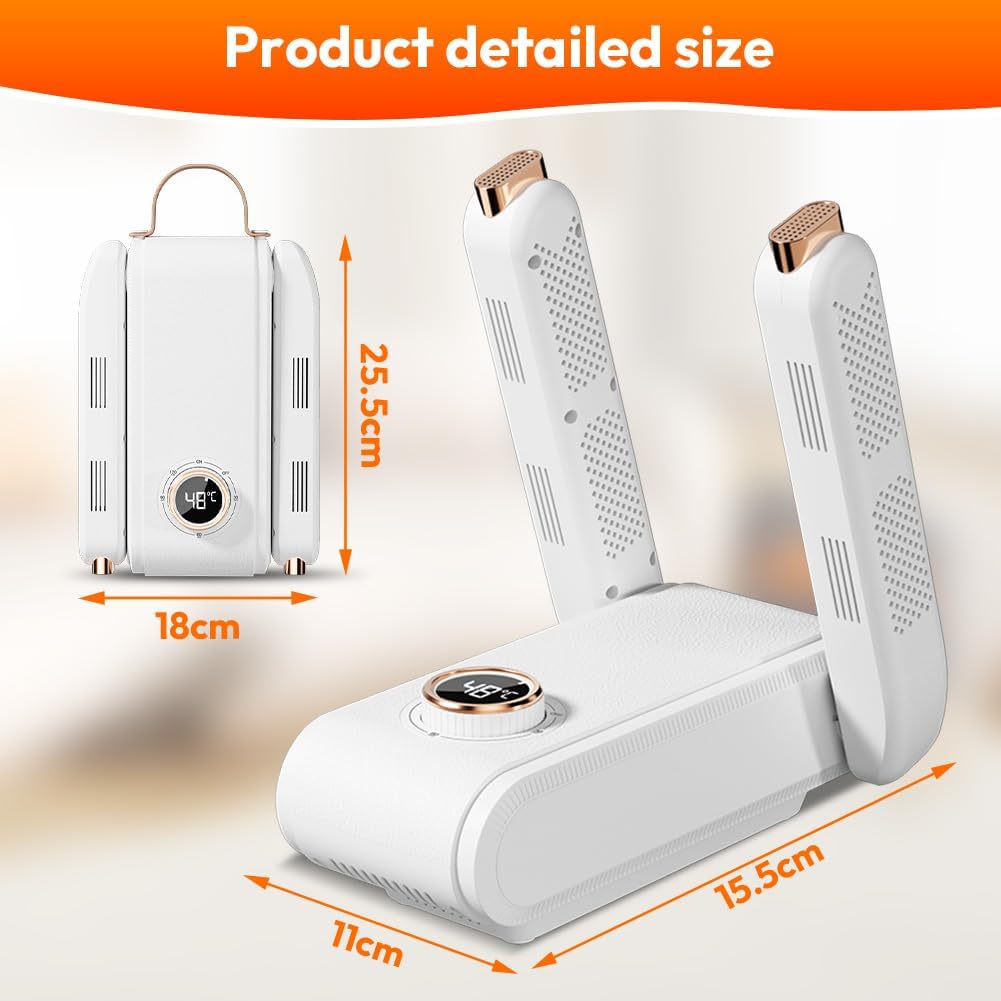

Dimensions of the Kayuneed Electric Shoe Dryer, showing 25.5cm height and 18cm width when folded, and 15.5cm length and 11cm width when unfolded — Detailed dimensions of the dryer, both folded (25.5cm x 18cm) and unfolded (15.5cm length, 11cm width).

Kayuneed Electric Shoe Dryer with various types of footwear, highlighting features like high temperature resistant material, 360 degree constant temperature, intelligent thermostat, and foldable storage — The dryer's versatility with different shoe types, emphasizing its high-temperature resistant material, 360° constant temperature, intelligent thermostat, and foldable design.

Close-up view of the Kayuneed Electric Shoe Dryer's internal mechanisms, showing 360 degree hot air circulation, high precision uniform speed fan, intelligent constant temperature chip, and UV purification — An inside look at the dryer's technology: 360° hot air, precision fan, intelligent constant temperature, and UV purification.

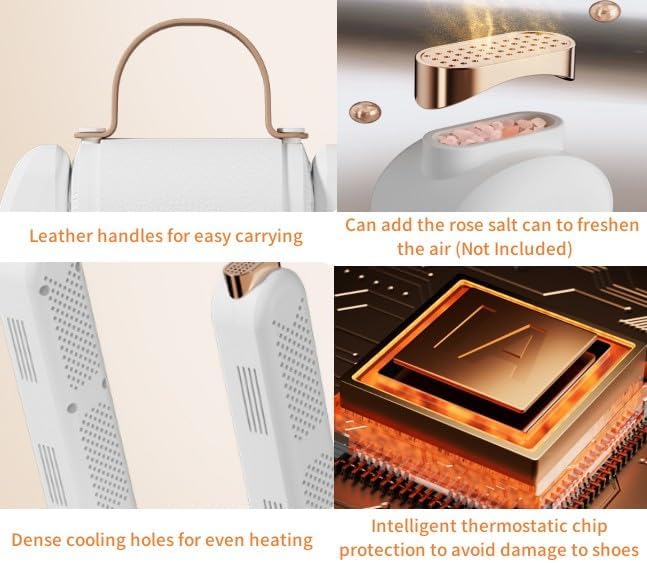

Detailed features of the Kayuneed Electric Shoe Dryer, including leather handles for carrying, a compartment for rose salt (not included) for air freshening, dense cooling holes for even heating, and an intelligent thermostatic chip for protection — Key design elements: leather handles, optional rose salt compartment for freshening, dense cooling holes, and an intelligent thermostatic chip for safety.

The Kayuneed Electric Shoe Dryer in its folded state, demonstrating how it can be easily stored in a cabinet or on a shelf — The dryer's foldable design allows for convenient storage in various spaces, such as cabinets or shelves.

5. Setup

Follow these steps for initial setup:

Unpack: Carefully remove the shoe dryer and all components from the packaging.
Inspect: Check the device for any visible damage. If damaged, do not use and contact customer support.
Place: Position the dryer on a stable, flat, and heat-resistant surface. Ensure there is adequate space around the device for air circulation.
Unfold: Gently unfold the drying arms to their upright position.
Connect: Plug the power cord into a suitable electrical outlet.

6. Operating Instructions

Using your Kayuneed Electric Shoe Dryer is simple:

Prepare Footwear/Gloves: For best results, remove any excess dirt or debris from the items to be dried.
Place Items: Carefully place your shoes, boots, or gloves onto the drying arms. Ensure the items are positioned to allow for maximum airflow.
Set Timer: Rotate the timer dial to select the desired drying duration (30, 60, 90, or 120 minutes). Refer to the 'Drying Recommendations' table below for guidance.
Start Drying: The dryer will automatically begin operation once the timer is set. The UV sterilization function will also activate.
Monitor: While the dryer operates automatically, it is advisable to periodically check the drying progress, especially for delicate materials.
Automatic Shut-off: The device will automatically turn off once the set drying time has elapsed.
Remove Items: Once drying is complete, carefully remove your dry and fresh items from the dryer.
Unplug: Unplug the dryer from the power outlet after use.

7. Drying Recommendations

The exact drying time may vary depending on the thickness of the material and the degree of moisture. The table below provides general recommendations:

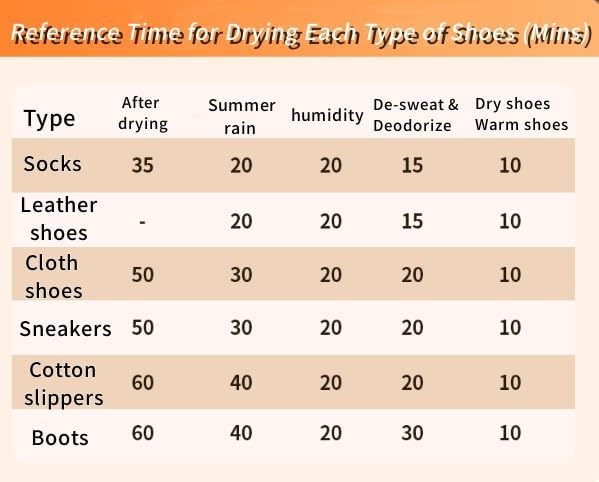

Reference Time for Drying Each Type of Shoes (Minutes)
Type	After Drying	Summer Rain	Humidity	De-sweat & Deodorize	Dry Shoes Warm Shoes
Socks	35	20	20	15	10
Leather shoes	-	20	20	15	10
Cloth shoes	50	30	20	20	10
Sneakers	50	30	20	20	10
Cotton slippers	60	40	20	20	10
Boots	60	40	20	30	10

Table showing reference drying times for various types of shoes and conditions — Visual representation of the drying time recommendations for different footwear types.

8. Maintenance

Proper maintenance ensures the longevity and optimal performance of your shoe dryer:

Cleaning: Before cleaning, always unplug the dryer and allow it to cool completely. Wipe the exterior surfaces with a soft, dry cloth. Do not use abrasive cleaners, solvents, or harsh chemicals.
Storage: When not in use, fold the dryer for compact storage. Store it in a cool, dry place away from direct sunlight and moisture.
Ventilation: Ensure the ventilation holes remain clear of dust and debris to maintain efficient airflow.

9. Troubleshooting

If you encounter any issues with your Kayuneed Electric Shoe Dryer, refer to the following table for common problems and solutions:

Problem	Possible Cause	Solution
Dryer does not turn on.	No power supply. Timer not set.	Ensure the power cord is securely plugged into a working outlet. Rotate the timer dial to select a drying duration.
Drying is not effective.	Items are too wet or thick. Insufficient drying time. Poor air circulation.	Pre-dry excessively wet items. Increase the drying time according to the recommendations. Ensure items are placed properly on the arms and ventilation holes are clear.
Dryer shuts off unexpectedly.	Overheating protection activated.	Unplug the dryer and allow it to cool down for at least 30 minutes before restarting. Ensure proper ventilation.
Unusual noise during operation.	Obstruction in fan. Internal component issue.	Unplug the dryer and check for any visible obstructions. If the noise persists, discontinue use and contact customer support.

10. Specifications

Technical details of the Kayuneed Electric Shoe Dryer:

Brand Name: Kayuneed
Model Info: HXQ-01
Color: White
Material: High-temperature resistant and environmentally friendly Plastic
Folded Dimensions: Approximately 25.5 x 18 cm
Item Weight: Approximately 750 g (0.75 kg)
Features: 360° Heat Circulation, UV Sterilization, Intelligent Timer (30/60/90/120 mins), Foldable Design, Constant Temperature Heating (approx. 48°C)

11. Warranty and Support

For warranty information, technical support, or any inquiries regarding your Kayuneed Electric Shoe Dryer, please contact the manufacturer or distributor:

Manufacturer: SHENZHENSHIYUANGUANMAOYIOUXIANGONGSI
Contact Email: snowflakesflying18@163.com
EU Representative (for compliance): evatmaster Consulting GmbH, Bettinastr. 30, 60325 Frankfurt am Main, Germany
EU Representative Contact: Tel: +496995179070, Email: contact@evatmaster.com

Please retain your proof of purchase for any warranty claims.

Product packaging with manufacturer and contact information, including CE and UKCA marks — Packaging displaying manufacturer and contact details, along with compliance markings.
