Introduction
This manual provides comprehensive instructions for the safe and effective use of your POSEIDON Tattoo Pen Kit. Please read this manual thoroughly before operation to ensure proper setup, usage, and maintenance of your equipment.
The POSEIDON Tattoo Pen Kit is designed for both beginners and experienced artists, offering a complete set of tools for tattooing. It includes a tattoo pen, two rechargeable batteries, various cartridge needles, inks, and essential accessories for practice and application.
Package Contents
Upon opening your POSEIDON Tattoo Pen Kit, verify that all the following items are present:
- 1 x POSEIDON Tattoo Pen
- 2 x Rechargeable Batteries (1500mAH capacity each)
- 20 x Tattoo Cartridge Needles (Assorted sizes: 1205RL*5, 1207RL*5, 1209RS*5, 1007RM*5)
- 1 x Self-Adhesive Tattoo Grip Cover
- 1 x TYPE-C Charging Cable
- 40 x Ink Caps
- 1 x Practice Skin
- 2 x Transfer Paper
- 10 x 5ml Tattoo Ink (Assorted colors)
- 1 x 30ml Black Tattoo Ink
- 1 x Pair of Tattoo Gloves
- 4 x Table Mats
- 1 x Tattoo Sticker
Product Features

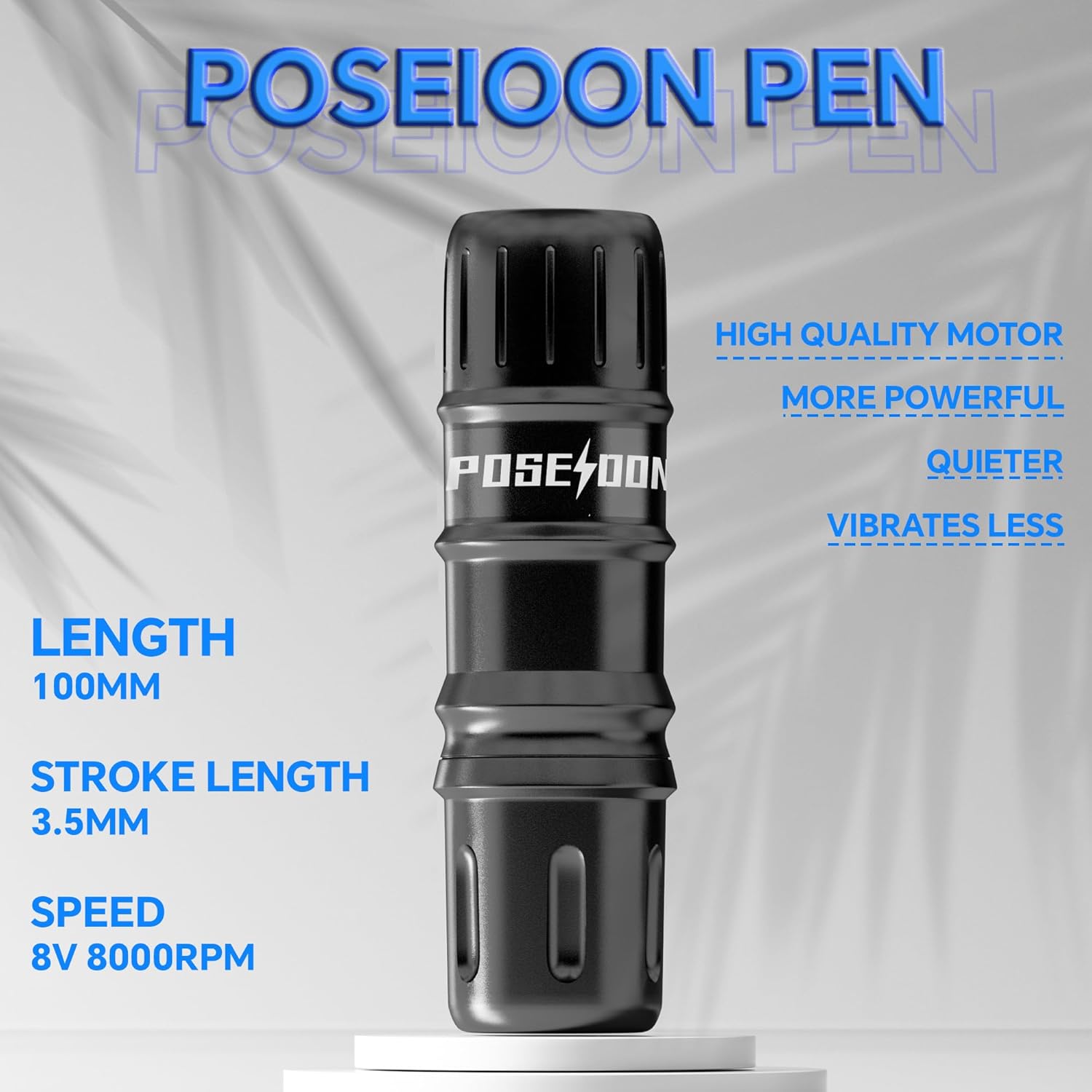

POSEIDON Tattoo Pen
The POSEIDON tattoo machine pen is constructed from premium aluminum alloy, ensuring durability and a lightweight design. It incorporates advanced motor technology for consistent power and safety during tattooing. The ergonomic design is compatible with all standard tattoo needles.
- Material: Premium Aluminum Alloy
- Working Voltage: 6-11V
- Motor: Advanced motor technology for power and safety
- Ergonomics: High-quality design for comfortable grip
- Compatibility: Compatible with all tattoo needles
Tattoo Batteries
The kit includes two 1500mAH lithium-ion batteries to extend your tattooing sessions without interruption. These batteries offer 5-level voltage adjustment from 6 to 11 volts and provide 3-6 hours of operation on a full charge, depending on voltage and motor load.
- Quantity: 2 batteries included
- Capacity: 1500mAH each
- Working Voltage: 6-11V (5-level adjustment)
- Battery Life: 3-6 hours per full charge
- Charging Time: Approximately 2 hours
Tattoo Cartridge Needles
POSEIDON tattoo cartridge needles feature disposable joints and are sterilized by EO gas, individually packaged for hygiene. The tips are designed for stable work, easy coloring, faster ink absorption, and improved ink flow.
- Sterilization: EO gas, individual packs
- Material: Special materials for stable work
- Ink Flow: Designed for faster absorption and better flow
- Types Included: Round Liners (RL), Round Shaders (RS), Round Magnum (RM), Magnum Softedge (M)
Setup Instructions
- Charge Batteries: Before first use, fully charge both batteries using the provided TYPE-C charging cable. Connect the cable to the battery and a suitable USB power adapter (not included). The display will indicate charging status.
- Assemble Tattoo Pen:
- Attach one of the charged batteries to the top of the POSEIDON Tattoo Pen. Ensure it clicks securely into place.
- Select the desired tattoo cartridge needle. Carefully insert the needle into the front end of the tattoo pen, twisting slightly until it locks into position.
- Prepare Workspace: Lay out a table mat to maintain a clean and sterile environment. Arrange your ink caps, inks, and other necessary tools.
- Ink Preparation: Pour a small amount of desired tattoo ink into individual ink caps.
- Practice Skin/Transfer Paper: If practicing, prepare your practice skin. Use the transfer paper to apply your design onto the practice skin if desired.
Operating Instructions
- Power On: Long press the power button on the battery to turn on the tattoo pen. The display will illuminate, showing the current voltage.
- Adjust Voltage: Use the "+" and "-" buttons on the battery to adjust the working voltage between 6V and 11V. Start with a lower voltage and gradually increase as needed for your specific tattooing requirements.
- Start Tattooing: Once the desired voltage is set, the pen is ready for use. Dip the needle into the ink cap to load ink.

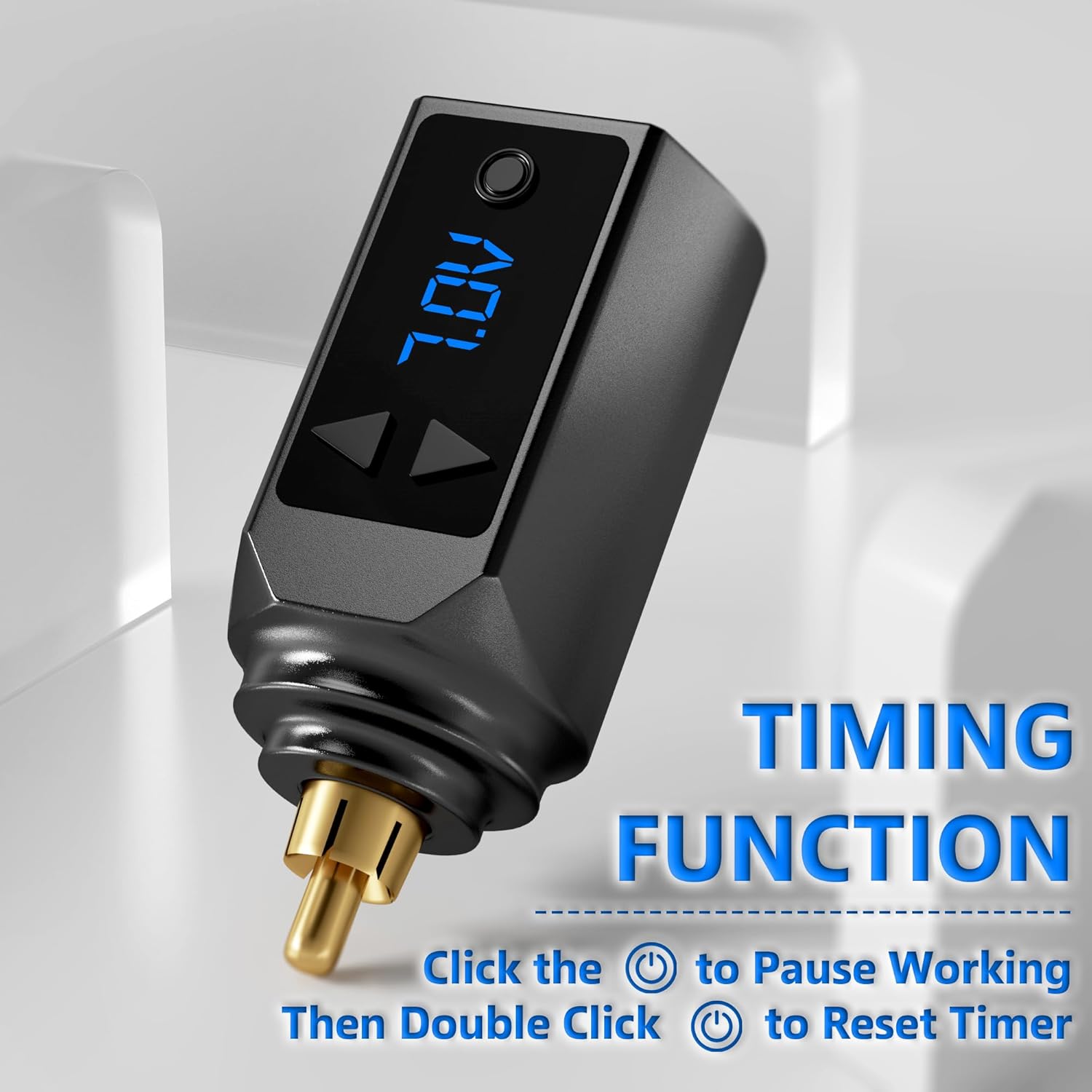

- Timing Function: The battery features a timing function. Click the power button once to pause the working timer. Double-click the power button to reset the timer.
- Power Off: Long press the power button to turn off the tattoo pen after use.
Note: For optimal performance and to prevent overheating, avoid continuous operation at maximum voltage for extended periods. If the pen feels warm, allow it to cool down before resuming use.
Maintenance
- Cleaning: After each use, carefully remove the needle cartridge and dispose of it properly. Wipe down the tattoo pen and battery with a clean, damp cloth. For thorough cleaning, use a disinfectant wipe suitable for electronic devices. Do not submerge the pen or battery in liquid.
- Storage: Store the tattoo pen and batteries in a cool, dry place away from direct sunlight and extreme temperatures. Keep all components in their original packaging or a dedicated storage case to prevent damage.
- Battery Care: To prolong battery life, avoid fully discharging the batteries frequently. Recharge them when the power level is low. If storing for an extended period, charge them to about 50% capacity.
- Needle Handling: Always handle needle cartridges with care. They are single-use and should be disposed of in a sharps container immediately after use.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Tattoo pen not turning on. | Battery is not charged or not properly connected. | Ensure the battery is fully charged. Reattach the battery securely to the pen. |
| Pen runs weakly or inconsistently. | Low battery charge; incorrect voltage setting; needle issue. | Recharge the battery. Increase the voltage setting. Replace the needle cartridge. |
| Needle not absorbing ink. | Needle cartridge is faulty or not properly seated. | Ensure the needle cartridge is fully inserted and locked. Try a new needle cartridge. |
| Battery display not working. | Battery is completely discharged or damaged. | Charge the battery. If it still doesn't work, the battery may need replacement. |
Specifications
- Product Dimensions: 8.46 x 7.87 x 3.9 inches
- Item Weight: 2.07 Pounds
- Batteries: 2 Lithium Ion batteries (1500mAH each, included)
- Manufacturer: Vidattx
- Model Number (ASIN): B0DM594VRF
- Tattoo Pen Working Voltage: 6-11V
- Battery Working Voltage: 6-11V (5-level adjustment)
- Battery Life: 3-6 hours (depending on voltage and motor)
- Battery Charging Time: Approximately 2 hours
Safety Information
WARNING: Keep this product and all its components away from children. This kit is intended for professional or supervised adult use only. Always follow proper hygiene and sterilization protocols when performing tattooing procedures. Use only on practice skin until proficient. The included inks are for practice use only and should not be used on human skin.
- Always wear protective gloves during setup and operation.
- Ensure your workspace is clean and sterile.
- Dispose of used needles in a designated sharps container.
- Do not attempt to disassemble or modify the tattoo pen or batteries.
- Avoid contact with eyes and mouth.
Warranty and Support
Vidattx provides a replacement or refund for all products. If you encounter any issues or require assistance with your POSEIDON Tattoo Pen Kit, please contact customer service for support. Your satisfaction is our priority.
For customer service inquiries, please refer to the contact information provided with your purchase or visit the official Vidattx website.
