Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your ketive 43-inch Outdoor Extra Large Dog House. Designed for medium to large dogs, this durable wooden kennel offers a comfortable and secure shelter for both indoor and outdoor use. Please read all instructions carefully before beginning assembly or use.
Setup and Assembly
Your ketive dog house is designed for straightforward assembly with pre-drilled holes and clearly identified components. Please follow these steps carefully.
Video: Assembly Guide for the ketive Dog House.
Assembly Steps:
- Attach the door curtain (#9) to the front panel (#1) using screws B.
- Fix the small roof (#12), left support (#13), and right support (#14) to the front panel (#1) using screws B.
- Connect the front panel (#1), back panel (#2), left panel (#3), right panel (#4), and middle upper panel (#11) using screws A to form the main structure.
- Secure the support for the bottom panel (#10) to the left panel (#3) and right panel (#4) using screws A.
- Place the bottom panel (#5) onto the wooden bar supports.
- Attach the wooden nameplate (#15) to the front panel (#1).
- Install the iron wraps (#16) on the back panel (#2) and front panel (#1) using screws E.
- Fix the right roof (#8) to the front panel (#1) and back panel (#2) using screws D.
- Attach the left roof (#7) to the left panel (#3) using screws C.
- Install the metal support on the left roof (#7) and back panel (#2) using screws C.
Image: Additional Bottom Support. This image shows the additional bottom support structure, which enhances stability and increases the weight capacity of the dog house.
Image: Durability Features. This image highlights the robust construction of the dog house, featuring waterproof rubber footpads and an anti-chewing frame for enhanced durability.
Operating Instructions
The ketive dog house offers several features for your pet's comfort and your convenience.
Ventilation and Protection
The flip-up window allows for adjustable ventilation, ensuring fresh air circulation. The detachable PVC curtains at the entrance help to block drafts and provide protection from wind and rain.
Personalization
A dedicated space is provided for a DIY nameplate, allowing you to personalize your pet's home.
Placement
This dog house is suitable for both indoor and outdoor environments. Ensure it is placed on a level surface to maintain stability and proper drainage.
Image: Key Features. This image details key features such as the flip-up window for ventilation, PVC door flap curtains for weather protection, the asphalt roof, and the customizable DIY nameplate.
Image: Indoor & Outdoor Use. This image illustrates the versatility of the dog house, showing it used comfortably in both indoor and outdoor settings.
Maintenance
Regular maintenance will ensure the longevity and hygiene of your dog house.
Cleaning
The removable floor and hinged roof design facilitate easy and thorough cleaning. Simply lift the roof and remove the floor panels to access the interior. Use mild soap and water for cleaning, and ensure all parts are dry before reassembly.
Image: Easy to Clean. This image demonstrates the ease of cleaning, showing how the roof can be opened and the floor removed for thorough maintenance.
Durability
The solid fir wood construction and anti-chewing iron frame are designed for durability. Periodically inspect the structure for any signs of wear or damage and address them promptly to maintain its integrity and extend its lifespan.
Troubleshooting
If you encounter any issues with your ketive dog house, please refer to the following general advice:
- Assembly Issues: Double-check all connections and ensure screws are tightened securely according to the assembly instructions. Refer to the assembly video and diagrams if needed.
- Stability Concerns: Ensure the dog house is placed on a flat, level surface. The raised feet are designed to prevent moisture and improve airflow, but a stable base is crucial for overall stability.
- Weather Protection: Verify that the asphalt roof is properly installed and the PVC curtains are in place to provide optimal protection from elements like rain and wind.
For further assistance, please contact customer support.
Specifications

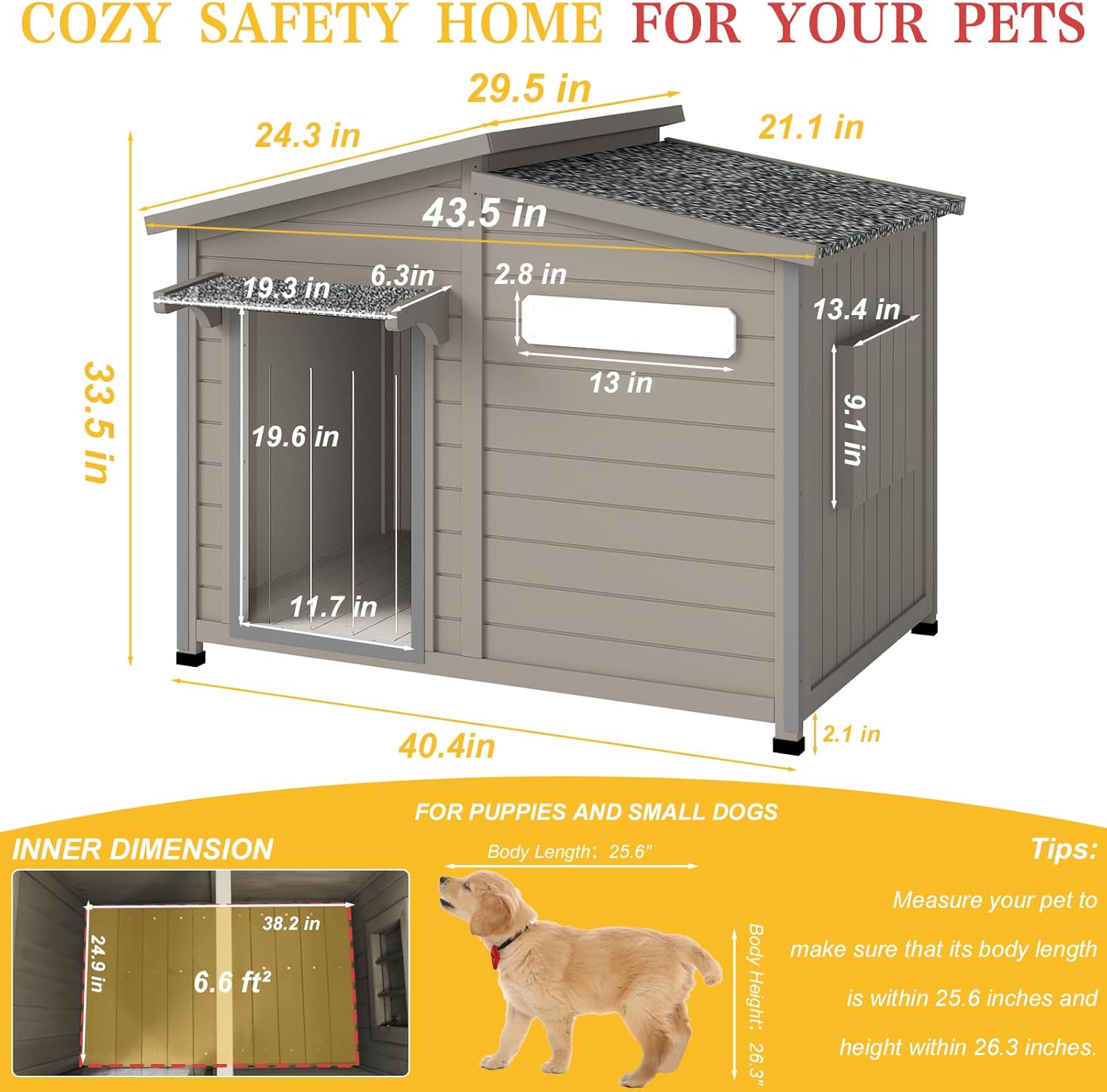

Image: Product Dimensions. This diagram provides detailed measurements for the ketive dog house, including overall and interior dimensions.
| Feature | Detail |
|---|---|
| Brand | ketive |
| Model Number | Dog House 69 |
| Overall Dimensions | 43.5" L x 29.5" W x 33.5" H (110.5D x 74.9W x 85.1H Centimetres) |
| Interior Dimensions | 38.2" L x 24.9" W x 28.9" H (6.6 sq ft) |
| Material | Fir Wood |
| Color | Grey |
| Item Weight | 33.22 Pounds (15.07 kg) |
| Weight Capacity | Up to 270 lbs (base support) |
| Assembly Required | Yes |
| Suitable Dog Size | Medium to Large Dogs (up to 30 lbs for medium dogs, check interior dimensions for larger breeds) |
Warranty and Support
For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official ketive website. Our customer support team is available to assist with any questions or concerns regarding your dog house.
