Introduction
Thank you for choosing the CLEANmaxx Rotary Dust Mite Vacuum Cleaner, Model 15062. This appliance is designed to effectively remove dust mites, allergens, and other particles from various textile surfaces in your home. Featuring UV-C light sterilization, ultrasonic function, heat treatment, and a HEPA filter, it provides a hygienic cleaning solution, especially beneficial for allergy sufferers.
Please read this instruction manual thoroughly before first use to ensure safe and optimal operation of your device. Keep this manual for future reference.
Safety Instructions
- Always ensure the power supply matches the voltage specified on the appliance.
- Do not immerse the appliance in water or any other liquid.
- Keep the appliance away from children and pets.
- Do not use the appliance on wet surfaces or to vacuum liquids.
- Avoid direct exposure to the UV-C light. The appliance is equipped with a safety feature that automatically switches off the UV-C light when lifted more than 2.5 degrees from the surface.
- Do not block the air vents during operation.
- Unplug the appliance from the power outlet before cleaning or performing any maintenance.
- Do not use the appliance if the power cord or plug is damaged.
- Use only original CLEANmaxx accessories and spare parts.
Product Overview
The CLEANmaxx Dust Mite Vacuum Cleaner combines several technologies for thorough cleaning:
- UV-C Light: Sterilizes surfaces without chemicals, targeting mites and bacteria.
- Heat Function (55°C): Reduces humidity in textiles, helping to prevent mold growth.
- Ultrasonic Function: Aids in dislodging dust mites from fabric fibers.
- Rotary Brush: Lifts dust mites and dirt from surfaces at up to 3500 rotations per minute without damaging the material.
- Powerful Suction: 13 kPa suction power with a maximum of 400 watts for deep cleaning.
- 3-Stage Cyclone Filtration System: Includes a washable HEPA 13 filter and a metal pre-filter.
- Ionic Function: Purifies the air in the room during operation.
- Digital Display: Shows active modes for easy monitoring.
Image: The CLEANmaxx dust mite vacuum cleaner in operation, showing the UV-C light and suction path. This image highlights the primary function of removing 99.9% of mites and the sterilization capability with UV-C light at 270 nm wavelength.
Image: Close-up of the digital display on the CLEANmaxx vacuum cleaner, showing icons for Hot Air, UV, Ultrasonic, Anion (Ionic), and Vibration (Rotary Brush). This display provides a quick overview of the active cleaning modes.
Setup
- Unpack the Appliance: Carefully remove the vacuum cleaner and all accessories from the packaging.
- Inspect for Damage: Check the appliance for any signs of damage. Do not use if damaged.
- Ensure Proper Filter Installation: The HEPA filter and metal pre-filter should be correctly seated in the dust container. Refer to the Maintenance section for details on filter assembly.
- Connect to Power: Plug the power cord into a suitable electrical outlet (230 Volt). The appliance is corded and requires continuous power during operation.
Operating Instructions
Powering On/Off
- To turn on the appliance, press the power button located on the handle. The digital display will illuminate.
- To turn off the appliance, press the power button again.
Selecting Cleaning Modes
The CLEANmaxx vacuum cleaner offers multiple cleaning modes that can be activated via the touch control panel:
- UV-C Light: Automatically activates when the vacuum head is placed flat on a surface. It deactivates if lifted more than 2.5 degrees for safety.
- Heat Function (Hot Air): Activates to reduce moisture in textiles.
- Ultrasonic Function: Helps to loosen dust mites from fibers.
- Rotary Brush (Vibration): Engages the brush for deep cleaning and lifting embedded dirt.
- Ionic Function (Anion): Releases negative ions to purify the surrounding air.
You can select desired modes by touching the corresponding icons on the digital display. The display will show which functions are active.
Image: The vacuum cleaner operating on a mattress, illustrating the ultrasonic and 55°C heat functions. The heat function reduces humidity and prevents mold formation.
Image: A detailed view of the rotary brush mechanism and suction path. This image highlights the powerful rotary brush (3500 rpm), 13 kPa suction power, and 400 W maximum power for deep cleaning against mites and allergens.
Image: The vacuum cleaner in use, demonstrating the ionic function. Negative ions are released to purify and refresh indoor air sustainably.
Cleaning Surfaces
The CLEANmaxx vacuum cleaner is suitable for various textile surfaces:
- Mattresses: Move the vacuum cleaner slowly and evenly across the mattress surface. The UV-C light will activate automatically.
- Bedding, Pillows, Blankets: Ensure the fabric is spread flat for optimal contact.
- Upholstered Furniture (Sofas, Armchairs): Apply gentle pressure and move steadily.
- Carpets and Rugs: The rotary brush is effective for lifting dirt from carpet fibers.
- Pet Beds: Helps remove pet hair and dander.
For best results, move the appliance slowly over the surface to allow the UV-C light, heat, and ultrasonic functions to work effectively. The wide cleaning area (130 mm) allows for efficient coverage.
Image: A collage showing the CLEANmaxx vacuum cleaner's versatility on various home textiles, including mattresses, baby beds, bedding, carpets, cushions, upholstered furniture, and dog beds.
Image: A family enjoying restful sleep, contrasted with images of allergy symptoms and common allergens like mites, bacteria, pet hair, and household dust. This illustrates how the vacuum removes visible and hidden allergens for allergy sufferers.

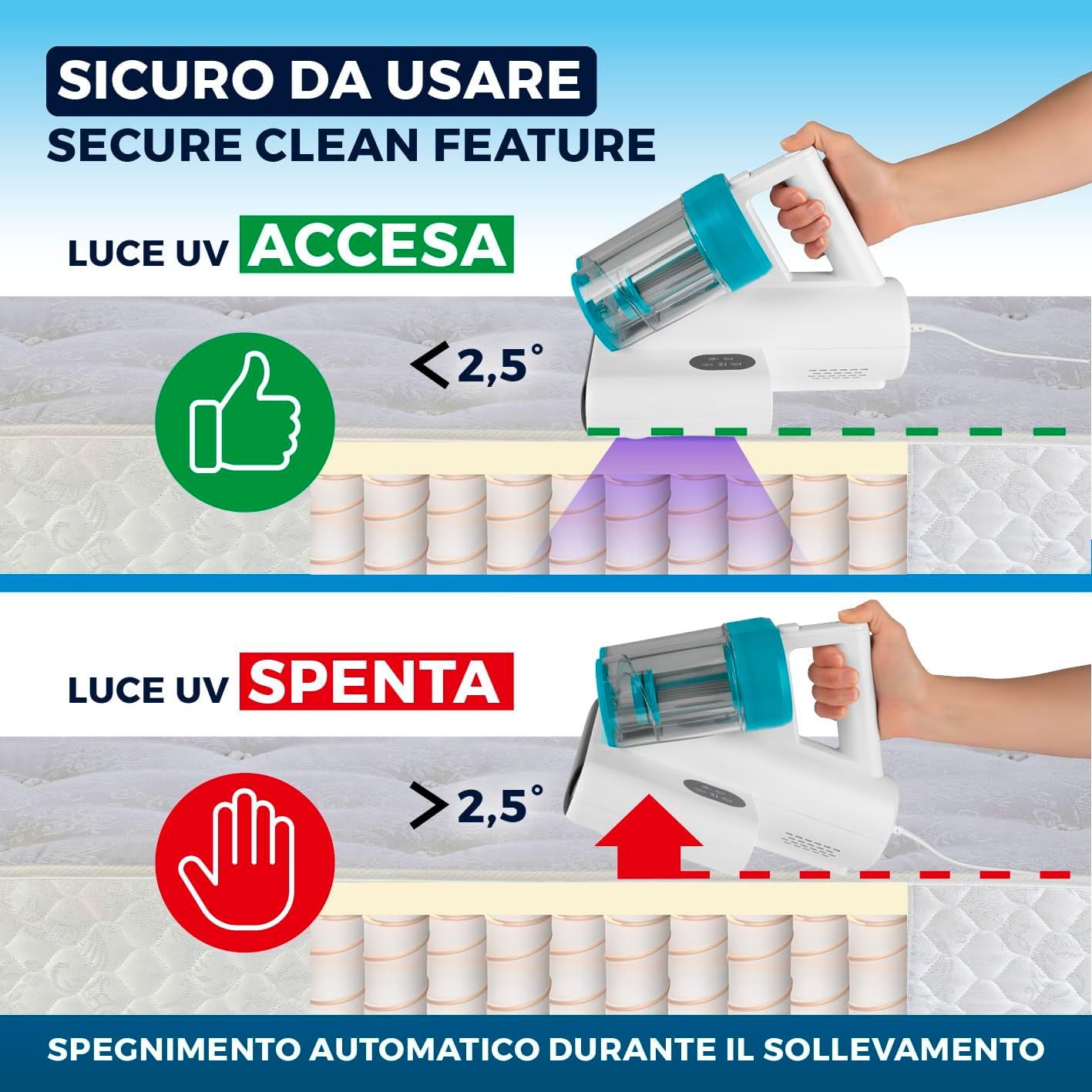

Image: Diagram illustrating the UV safety feature. The UV light is ON when the vacuum is flat (less than 2.5° angle) and OFF when lifted (greater than 2.5° angle), ensuring safe operation.

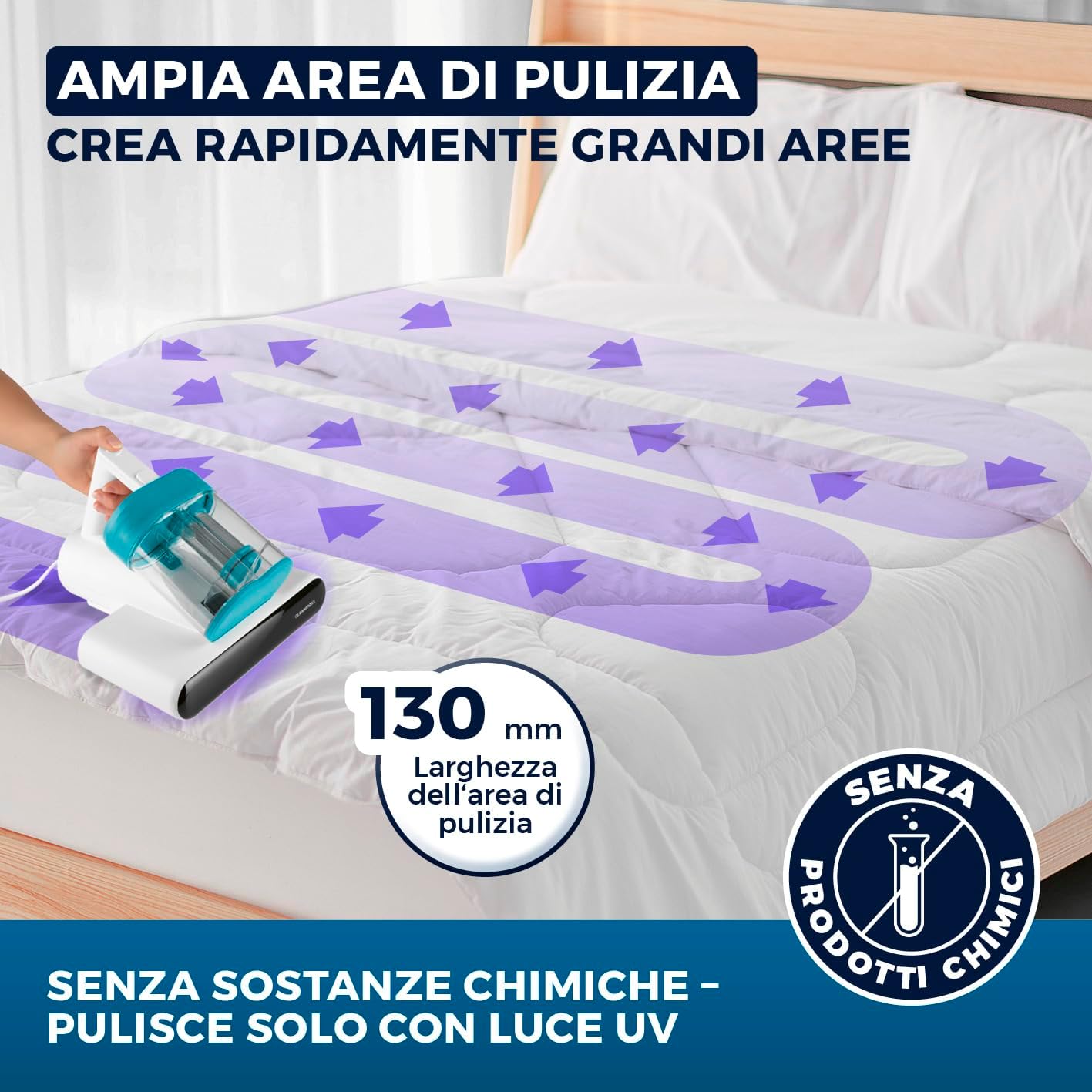

Image: A visual representation of the vacuum cleaner covering a wide cleaning area of 130 mm on a blanket. It emphasizes chemical-free cleaning using only UV light.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your CLEANmaxx vacuum cleaner.
Emptying and Cleaning the Dust Container
The 500 ml dust container should be emptied regularly, especially when the fill level is visible. It is designed for easy removal and cleaning.
- Ensure the appliance is unplugged from the power outlet.
- Press the release button to detach the dust container from the main unit.
- Carefully remove the metal pre-filter and the HEPA filter from the dust container.
- Empty the collected dust and debris into a waste bin.
- Rinse the dust container and the metal pre-filter under running water. Ensure they are completely dry before reassembling.
- The HEPA filter is washable. Rinse it under running water until clean. Allow it to air dry completely for at least 24 hours before reinserting. Do not use a dryer or heat to dry the HEPA filter.
- Once all components are dry, reassemble the filters into the dust container and reattach the container to the main unit until it clicks into place.

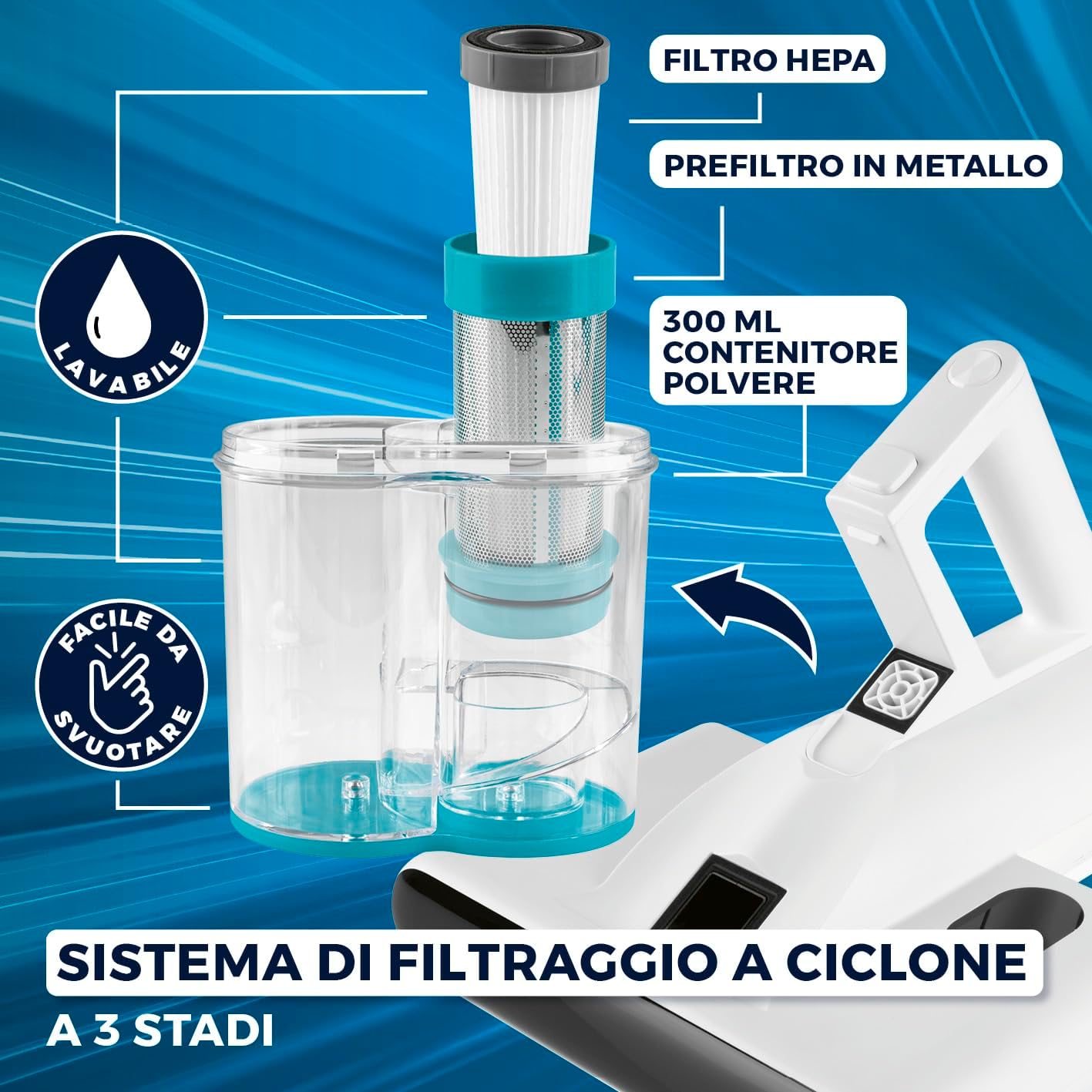

Image: Diagram illustrating the 3-stage cyclone filtration system, showing the HEPA filter, metal pre-filter, and the 300 ml dust container. It highlights that the filter is washable and the container is easy to empty.
Cleaning the Rotary Brush
Periodically check the rotary brush for tangled hair or fibers. Use the included cleaning brush to remove any obstructions.
Storage
Store the appliance in a cool, dry place, away from direct sunlight and out of reach of children.
Troubleshooting
- Appliance does not turn on:
- Check if the power cord is securely plugged into the outlet.
- Ensure the power outlet is functional.
- Reduced suction power:
- The dust container may be full. Empty and clean it.
- The HEPA filter or pre-filter may be clogged. Clean or replace them as necessary.
- Check for blockages in the suction nozzle or rotary brush.
- UV-C light does not turn on:
- Ensure the vacuum head is placed flat on the surface (angle less than 2.5 degrees).
- Check if the UV-C lamp is damaged. Contact customer support if it needs replacement.
- Unusual noise during operation:
- Check the rotary brush for any foreign objects or tangled hair.
- Ensure all parts, especially the dust container, are correctly assembled.
Specifications
| Brand | CLEANmaxx |
| Model Name | CLEANmaxx |
| Model Number | 15062 |
| Special Feature | UV Light, Ultrasonic Function, Heat Function, Ionic Function |
| Filter Type | HEPA 13 |
| Recommended Surfaces | Mattresses, Bedding, Upholstery, Carpets |
| Power Source | Corded Electric |
| Voltage | 230 Volt |
| Electrical Power | 400 Watt |
| Suction Power | 13 kPa |
| Dust Container Capacity | 500 ml |
| Item Weight | 2.59 Kilograms |
| Dimensions (L x W x H) | 33.5 x 26.5 x 24 cm |
| Control Method | Touch |
| Included Components | HEPA Filter, Cleaning Brush |
Warranty and Support
Warranty Information
This CLEANmaxx product comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms, conditions, and duration. Keep your proof of purchase for any warranty claims.
Customer Support
If you have any questions, require technical assistance, or need to report a problem with your CLEANmaxx Dust Mite Vacuum Cleaner, please contact the manufacturer's customer support. Contact details can typically be found on the product packaging, the manufacturer's official website, or the warranty documentation.
