DATOUBOSS 6200W Hybrid Solar Inverter 48V User Manual

1. Introduction

This user manual provides comprehensive instructions for the safe and efficient operation, installation, and maintenance of your DATOUBOSS 6200W Hybrid Solar Inverter. Please read this manual thoroughly before installation and use, and keep it for future reference.

The DATOUBOSS 6200W Hybrid Solar Inverter is a versatile power solution integrating a 6200W pure sine wave inverter, a 120A MPPT solar charge controller, and a 100A AC charger. It supports battery-less operation and includes a Battery Management System (BMS) for enhanced battery longevity. This inverter is suitable for various applications including RVs, camping, and home emergency power, providing reliable power from solar, battery, or grid sources.

2. Safety Instructions

WARNING: Failure to follow these safety instructions may result in electric shock, fire, serious injury, or death.

• Ensure all electrical connections are secure and properly insulated to prevent short circuits.
• Only qualified personnel should perform installation and maintenance.
• Do not operate the inverter if it is damaged or appears to be malfunctioning.
• Keep the inverter away from water, moisture, and flammable materials.
• Ensure proper ventilation around the inverter to prevent overheating.
• The inverter features comprehensive protection mechanisms including:
  • Short-circuit protection
  • Overcurrent protection
  • Overvoltage protection
  • Undervoltage protection
  • Overload protection
  • Backfill protection
  • Over-temperature protection

This image illustrates the various safety protections integrated into the inverter, such as short circuit, overcurrent, overvoltage, undervoltage, overload, backfill, and over-temperature protection, ensuring safe and reliable operation.

3. Product Overview

3.1 Key Features

• 6200W Pure Sine Wave Output: Provides stable and clean power for sensitive electronics.
• 120A MPPT Solar Charge Controller: Maximizes solar power harvesting efficiency.
• Battery-less Operation: Can power loads directly from PV array or AC grid without a connected battery.
• BMS Protection System: Monitors battery status to prevent overcharge and deep discharge, extending battery lifespan.
• LCD Display and LED Indicators: Real-time system data and operational status display.
• Multiple Charging Modes: Solar priority, utility priority, solar and utility hybrid charging.
• Multiple Output Modes: PV priority, utility priority, inverter priority.
• Intelligent Heat Dissipation: Fans adjust speed based on device temperature.

This image displays the main unit of the DATOUBOSS 6200W Hybrid Solar Inverter, highlighting its compact and robust design.

3.2 Component Description

This diagram provides a detailed overview of the inverter's components, including the Liquid Crystal Display (LCD), status and error indicators, function keys, and various connection ports such as AC Input, Main Out & Second Out, WiFi/RS-232, Battery Communication/RS-485, Alternator Interface, Battery Input, Power ON/OFF Switch, and PV Input.

4. Setup and Installation

Proper installation is crucial for the safe and efficient operation of your hybrid solar inverter. Follow these steps carefully.

4.1 Unboxing and Initial Inspection

Carefully remove the inverter from its packaging. Inspect the unit for any signs of damage during transit. Ensure all accessories listed in the packing list are present.

This image highlights the main features of the 6200W Hybrid Solar Inverter, including its 120A MPPT solar charge controller, 6200W maximum PV array power, and 500VDC maximum PV array open circuit voltage. It also shows the included user manual and mounting hardware.

4.2 Electrical Connections

All wiring should comply with local and national electrical codes. Use appropriate wire gauges for all connections.

• Battery Connection: Connect the 48V battery bank to the DC Input terminals. Ensure correct polarity (positive to positive, negative to negative). The inverter supports various battery types including lead-acid (AGM, GEL, FLD) and lithium (LI, SLD, USER).
• Solar Panel Connection: Connect your PV array to the PV Input terminals. The inverter supports a maximum PV array open circuit voltage of 500V DC and an MPPT voltage range of 60-500V DC.
• AC Input Connection: Connect the AC grid or generator to the AC Input terminals.
• AC Output Connection: Connect your loads (appliances) to the AC Output terminals.
• Grounding: Ensure the inverter is properly grounded to prevent electrical hazards.

This diagram provides a visual guide for connecting the solar panels, generator, power grid, 48V battery packs, and various home appliances to the DATOUBOSS Hybrid Solar Inverter.

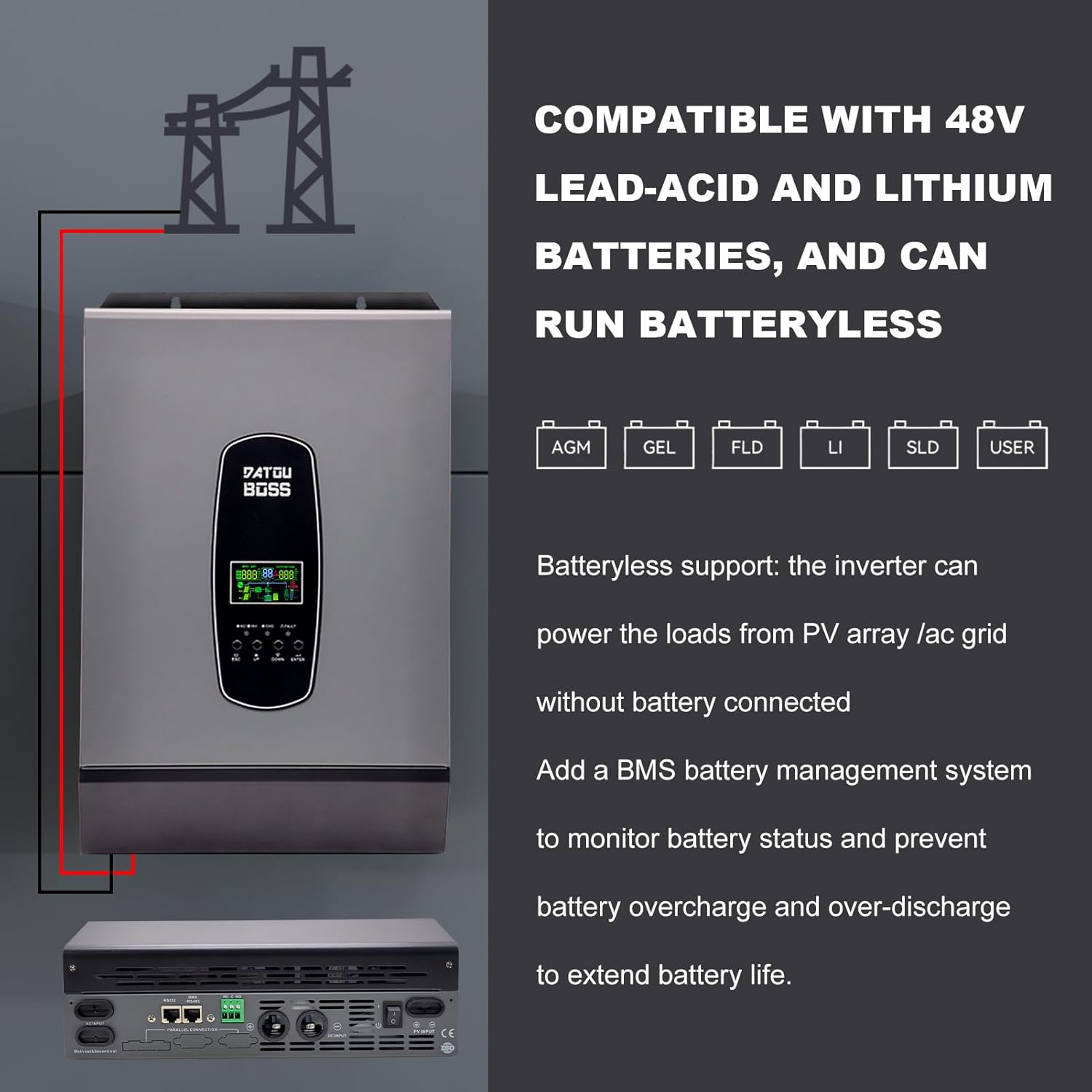

This image illustrates the inverter's compatibility with 48V lead-acid (AGM, GEL, FLD) and lithium (LI, SLD, USER) batteries. It also highlights the capability for battery-less operation, where the inverter can power loads directly from the PV array or AC grid, and the integrated BMS for battery management.

4.3 Installation Video Guide

For a detailed visual guide on the installation process, please refer to the official product videos below:

5. Operating Instructions

5.1 LCD Display and Indicators

The inverter features an LCD display that shows real-time system data and operational status. Three LED indicators dynamically show system data, providing a quick overview of the inverter's operation.

Refer to Figure 3.2 for the layout of the LCD display and function keys.

5.2 Charging and Output Modes

The inverter offers flexible charging and output modes to suit various energy management needs:

• Four Charging Modes:
  1. Solar Priority (CSO)
  2. Utility Priority
  3. Solar and Utility Hybrid Charging (SNU - default)
  4. Only Solar (OSO)
• Three Output Modes:
  1. PV Priority (USB Utility First)
  2. Utility Priority (SUB Solar First - default)
  3. Inverter Priority (SBU Priority)

This image visually explains the different charging and output modes available, allowing users to configure the inverter based on their specific power requirements and energy sources.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your DATOUBOSS Hybrid Solar Inverter.

• Cleaning: Periodically clean the exterior of the inverter with a dry, soft cloth. Ensure ventilation openings are free from dust and debris.
• Connection Checks: Regularly inspect all electrical connections (battery, solar, AC input/output) for tightness and signs of corrosion. Loose connections can lead to overheating and poor performance.
• Fan Inspection: Check the cooling fans for any obstructions or unusual noises. The intelligent heat dissipation system relies on clear airflow.
• Environmental Conditions: Ensure the inverter is operating within its specified temperature range and in a dry environment.

7. Troubleshooting

If you encounter issues with your inverter, refer to the following common problems and solutions. The LCD display will show corresponding error codes to assist in diagnosis.

For persistent issues or error codes not listed, please contact DATOUBOSS customer support.

8. Specifications

9. Warranty and Support

• Warranty: The DATOUBOSS 6200W Hybrid Solar Inverter comes with a 24-month warranty from the date of purchase.
• Return Policy: Enjoy a 30-day unconditional return guarantee.
• Customer Support: For any inquiries, technical assistance, or warranty claims, please contact our 7x24 customer support. You can find more information and contact details on the official DATOUBOSS store: DATOUBOSS Store.
