1. Important Safety Information
Please read this manual carefully before using the Midea NY2009-24UR electric oil-filled radiator. Keep these instructions for future reference. Failure to follow these instructions may result in electric shock, fire, or personal injury.
- Overheat Protection: The radiator is equipped with an automatic overheat protection system that will shut off the unit if it becomes too hot.
- Tip-Over Protection: A safety tip-over switch automatically turns off the heater if it is accidentally knocked over.
- Safe Design: The unit features rounded edges and a protective back cover to prevent cuts, bumps, and burns during operation.
- Always place the radiator on a firm, level surface.
- Do not cover the radiator or block its air vents.
- Keep flammable materials at least 1 meter (3 feet) away from the radiator.
- Do not use in bathrooms, laundry areas, or similar indoor locations where water may be present.
2. Product Overview
The Midea NY2009-24UR is an efficient and portable oil-filled electric radiator designed for indoor heating. It features advanced heating technology, multiple safety functions, and convenient controls.
Figure 1: Front view of the Midea NY2009-24UR Electric Oil-Filled Radiator.
3. Setup
Follow these steps to set up your Midea NY2009-24UR radiator:
- Unpack: Carefully remove the radiator from its packaging. Retain packaging for storage or return if necessary.
- Positioning: Place the radiator on a stable, flat surface in the desired room. Ensure there is adequate clearance around the unit for proper air circulation. The integrated wheels and handle allow for easy movement.
- Power Connection: Unwind the power cord from the hidden storage compartment. Plug the power cord into a grounded 230V AC electrical outlet. Ensure the outlet is suitable for the radiator's power requirements (2000W).
Figure 2: The radiator features wheels and a handle for easy portability between rooms.
4. Operating Instructions
The Midea NY2009-24UR radiator can be controlled via its LED touchscreen or the included remote control.
4.1 Control Panel and Remote Control

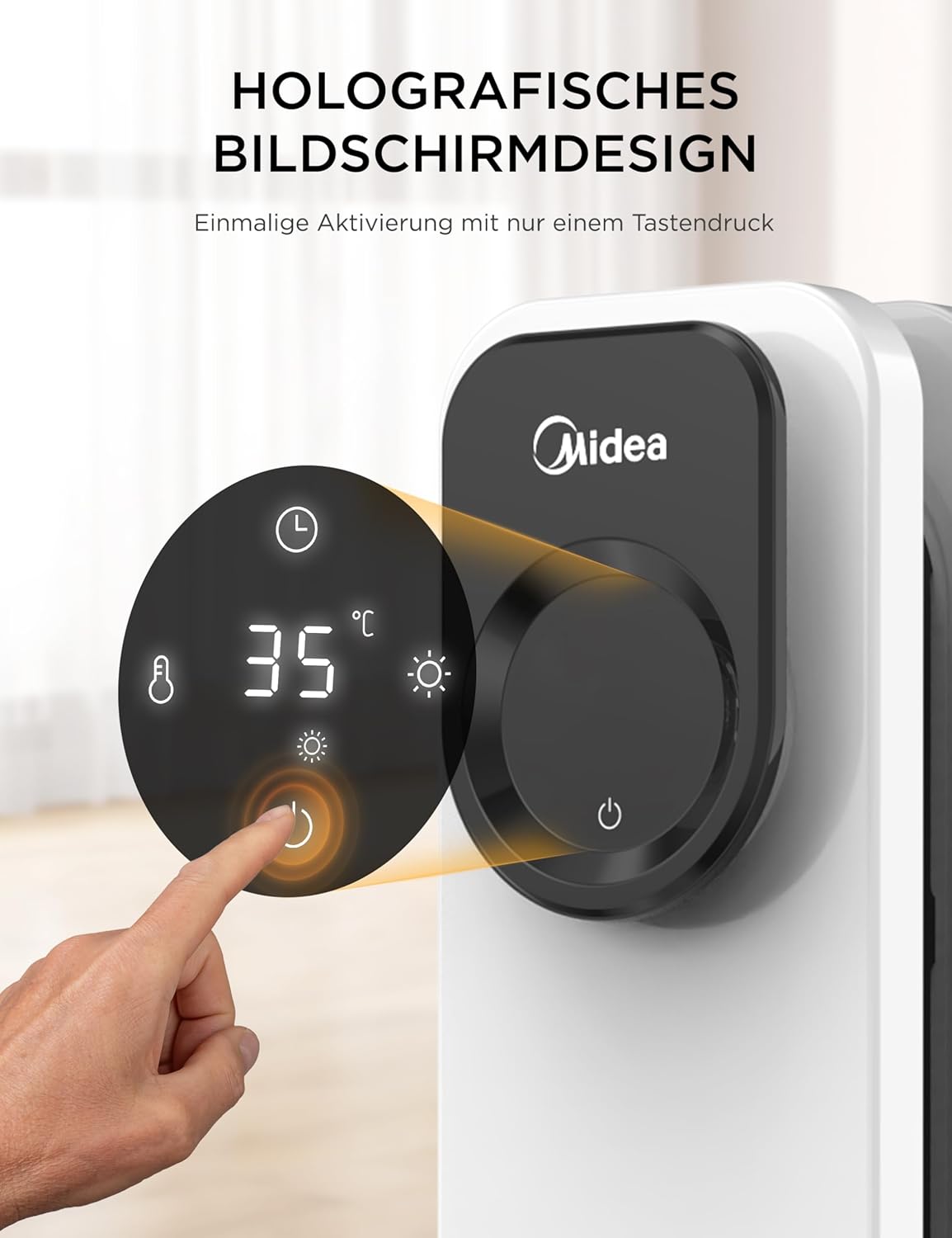

Figure 3: The holographic screen design provides a clear LED touchscreen for easy activation and control.
Figure 4: The LED touch panel and remote control allow convenient temperature and mode adjustments.
4.2 Basic Operation
- Power On/Off: Press the power button on the control panel or remote to turn the unit on or off.
- Temperature Adjustment: Use the temperature controls to set your desired room temperature between 5°C and 35°C. The integrated thermostat will maintain the set temperature.
- Heating Modes: Select from three heating power modes: 1000W, 1300W, or 2300W, depending on your heating needs.
- 24-Hour Timer: Set the timer to automatically turn the radiator on or off at specific times within a 24-hour period.
- Silent Operation: The radiator operates quietly, making it suitable for bedrooms and quiet environments.
- Automatic Shut-off: If the screen is not operated for 60 seconds, it will automatically turn off, displaying only the thermometer symbol to indicate the radiator is still in operation.
Figure 5: Enjoy quiet operation and automatic screen shut-off for an undisturbed environment.
4.3 Heating Technology
The radiator utilizes Arrowfly heating technology with a chevron-shaped circuit design and 9 enlarged fins for efficient heat distribution.
Figure 6: Arrowfly heating technology with innovative, herringbone-like circuits increases heat oil flow speed, resulting in 30% higher heating efficiency and a 20% faster heating effect compared to traditional models.
Figure 7: The U-shaped heating fins provide 14.5% wider heat coverage for faster heat conduction.
5. Maintenance
Regular maintenance ensures optimal performance and longevity of your radiator.
- Cleaning: Before cleaning, always unplug the radiator and allow it to cool completely. Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Storage: When not in use, store the radiator in a cool, dry place. Use the hidden power cord storage to keep the cord tidy.
- Inspection: Periodically check the power cord and plug for any signs of damage. If damaged, do not use the radiator and contact customer support.
6. Troubleshooting
If you experience issues with your Midea NY2009-24UR radiator, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Radiator does not turn on. | No power supply. Tip-over switch activated. Overheat protection activated. | Ensure the power cord is securely plugged into a working outlet. Check if the unit is on a stable, flat surface. Unplug the unit, let it cool down for 30 minutes, then plug it back in. |
| Radiator is not heating effectively. | Incorrect temperature setting. Low power mode selected. Room size too large for unit. | Increase the set temperature. Select a higher power mode (e.g., 2300W). Ensure the radiator is appropriately sized for the room. |
| Unusual noises or odors. | New unit odor. Internal issue. | A slight odor is normal for new heaters and will dissipate. If noises or strong odors persist, unplug immediately and contact customer support. |
Figure 8: The radiator includes multiple safety features such as overheat and tip-over protection for secure operation.
7. Specifications
| Feature | Specification |
|---|---|
| Model Number | NY2009-24UR |
| Brand | Midea |
| Power | 2000 Watts |
| Voltage | 230 Volts |
| Dimensions (L x W x H) | 28 x 34.5 x 64 cm |
| Weight | 9.1 Kilograms |
| Number of Heating Modes | 3 (1000W, 1300W, 2300W) |
| Temperature Control Range | 5°C to 35°C |
| Special Features | Portable, Overheat Protection, Tip-over Protection, 24-hour Timer, LED Touchscreen, Remote Control |
8. Warranty and Support
Midea products are manufactured to the highest quality standards. For warranty information, please refer to the warranty card included with your product or visit the official Midea website.
If you have any questions, require technical assistance, or need to report a problem with your radiator, please contact Midea customer support:
- Website: www.midea.com (Please check for local support contact details)
- Customer Service: Refer to your product packaging or the Midea website for regional contact numbers and email addresses.
