1. Safety Information
Please read all instructions carefully before installation and operation. Retain this manual for future reference.
- Electrical Safety: Ensure the power supply matches the voltage requirements (120 Volts). All electrical wiring should be performed by a qualified electrician. Always disconnect power before servicing or cleaning.
- Installation: Install the range hood according to the instructions provided. Ensure proper ventilation and secure mounting to prevent hazards.
- Maintenance: Regularly clean grease filters to prevent grease buildup, which can be a fire hazard.
- Children: Keep children away from the appliance during operation and maintenance.
2. Product Overview
The TAZPI 500 CFM Under Cabinet Range Hood is designed to efficiently remove smoke, grease, and odors from your kitchen. Constructed from durable stainless steel, it features a powerful 3-speed exhaust fan and bright LED lighting for enhanced visibility.
Image: The TAZPI range hood demonstrating 500 CFM powerful airflow over a stovetop, effectively removing cooking fumes. Features include a 30-inch wide suction area, 3-fan speed, and high suction power.
Image: The TAZPI range hood operating with an ultra-quiet noise level, indicated as only 55dB max, ensuring a peaceful kitchen environment.
3. Package Contents
Verify that all components are present in the package:
- TAZPI Under Cabinet Range Hood (Model: TPS30-FBM-001)
- 5-Layer Aluminum Mesh Filters (Pre-installed)
- LED Lights (Pre-installed)
- Carbon Filter (Included for ductless use)
- Aluminum Exhaust Pipe (Included for ducted use)
- Mounting Hardware
- User Manual
4. Specifications
| Model | TPS30-FBM-001 |
| Material | Stainless Steel |
| Air Flow Capacity | 500 Cubic Feet Per Minute (CFM) |
| Noise Level | 55 Decibels (Max) |
| Number of Speeds | 3 |
| Mounting Type | Under Cabinet Mount |
| Ventilation Type | Ducted/Vented, Ductless/Recirculating |
| Light Source Type | LED (2*3W) |
| Voltage | 120 Volts |
| Wattage | 35 watts |
| Filter Type | Mesh (5-layer aluminum) |
| Product Dimensions | 29.7" x 19.7" x 5.4" (Length x Depth x Height) |
Image: Detailed product specifications including weight, size (29.7"x19.7"x5.4"), top and back venting options, 43-inch power cord length, and a 3-prong plug.
5. Setup and Installation
The TAZPI range hood is designed for easy installation by following the step-by-step instructions in the user manual. For electrical wiring, it is recommended to consult qualified professionals.
5.1 Mounting Options
This range hood is designed for under-cabinet mounting. Ensure the cabinet opening is suitable for a 30-inch unit. The unit can also be installed against a wall if preferred.
5.2 Venting Modes
The range hood supports both ducted (outdoor vented) and ductless (indoor recirculating) installations.
- Ducted Mode: For outdoor venting, connect the included aluminum exhaust pipe to the top or rear vent opening and direct it outside.
- Ductless Mode: For indoor recirculation, install the included carbon filter. This filter helps remove odors before the air is recirculated back into the kitchen.
Image: Illustration of the powerful motor and the two venting modes: Ducted Mode, Ductless Mode, and conversion to recirculating mode with an included carbon filter.
5.3 Electrical Connection
The unit operates on 120 Volts and comes with a 3-prong plug. Ensure a suitable electrical outlet is available near the installation area.
6. Operating Instructions
The range hood features user-friendly push-button controls for fan speed and lighting.

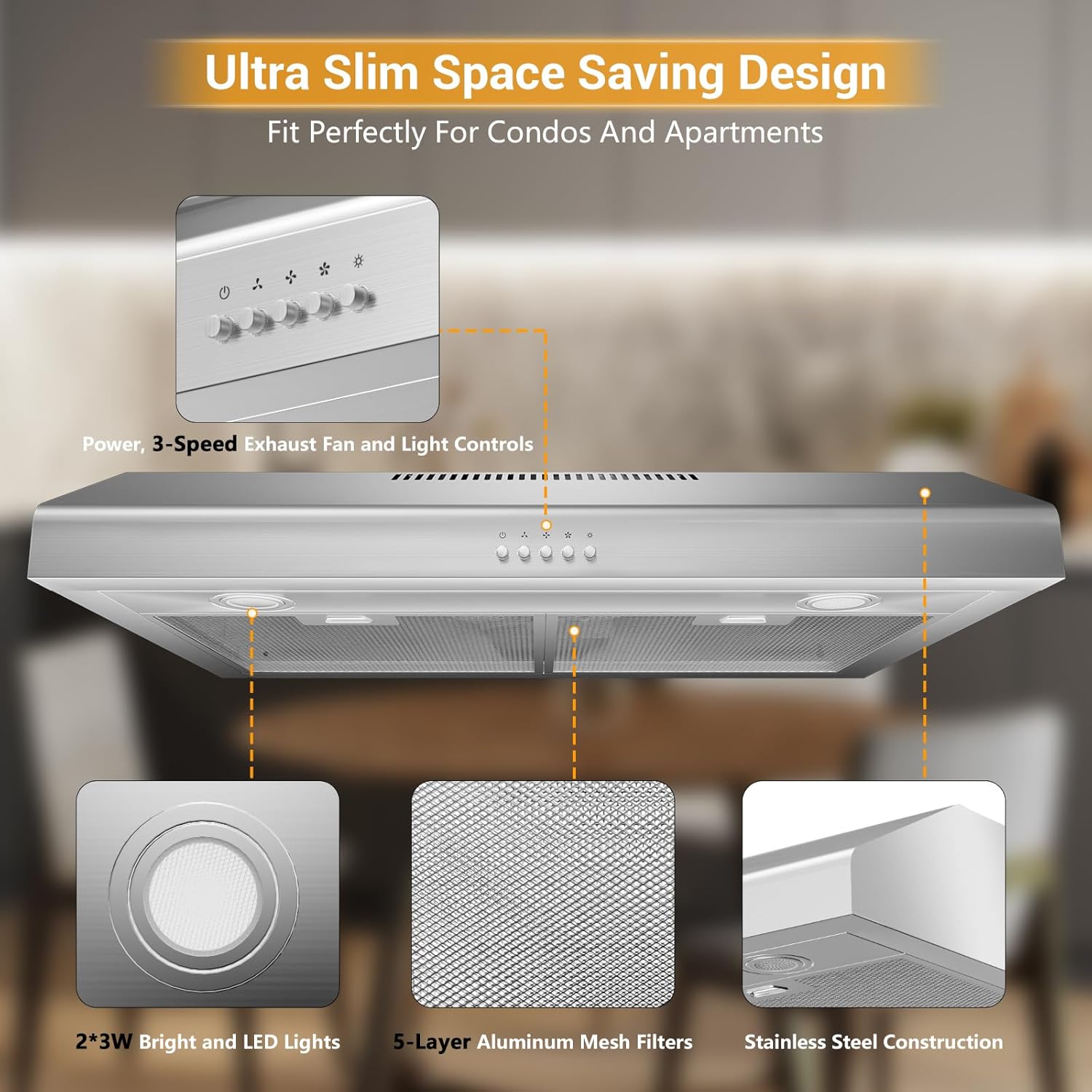

Image: The TAZPI range hood's ultra-slim, space-saving design, highlighting the control panel with power, 3-speed exhaust fan, and light controls. Also shows 2*3W bright LED lights, 5-layer aluminum mesh filters, and stainless steel construction.
6.1 Fan Speed Control
Press the fan speed buttons to select one of the three available speeds (low, medium, high) to match your cooking needs. The 500 CFM motor effectively removes smoke and odors.
6.2 LED Light Control
Press the light button to turn the two 3W LED lights on or off. These lights provide sufficient illumination for your cooking area.
Image: The TAZPI range hood with its bright LED lights illuminating the cooking surface, demonstrating how the double 3W LED lamps provide a well-lit cooking area.
7. Maintenance
Regular maintenance ensures optimal performance and longevity of your range hood.
7.1 Cleaning Aluminum Mesh Filters
The 5-layer aluminum mesh filters capture grease effectively. For cleaning:
- Turn off the range hood and disconnect power.
- Remove the filters by releasing their latches.
- Wash the filters with warm, soapy water or place them in a dishwasher.
- Allow filters to dry completely before re-installing.
Image: Illustration showing the detachable 5-layer aluminum mesh filters, demonstrating how they efficiently filter out grease and other solid particles, and how to clean them under running water.
7.2 Carbon Filter Replacement (Ductless Mode)
If using the range hood in ductless mode, the carbon filter should be replaced periodically (typically every 3-6 months, depending on usage) to maintain odor absorption efficiency.
- Turn off the range hood and disconnect power.
- Remove the aluminum mesh filters to access the carbon filters.
- Twist and remove the old carbon filters.
- Install new carbon filters by twisting them into place.
- Re-install the aluminum mesh filters.
7.3 LED Light Maintenance
The LED lights are designed for long life. If replacement is necessary, ensure the power is disconnected and consult the full user manual for specific instructions or contact customer support.
7.4 General Cleaning
Wipe the exterior stainless steel surfaces with a soft cloth and a mild, non-abrasive cleaner. Avoid using harsh chemicals or abrasive pads that could scratch the finish.
8. Troubleshooting
If you encounter issues with your range hood, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not operate | No power supply; Fan motor fault | Check power connection and circuit breaker. If problem persists, contact support. |
| Lights do not work | LED bulb fault; Wiring issue | Ensure power is connected. If lights are faulty, contact support for replacement. |
| Poor suction | Clogged filters; Improper installation; Incorrect venting mode | Clean or replace filters. Verify proper ducting or carbon filter installation. Ensure no obstructions in the vent path. |
| Excessive noise | Loose parts; Obstruction in fan; Improper installation | Check for loose screws or components. Remove any obstructions from the fan blades. Ensure the unit is securely mounted. |
9. Warranty and Support
TAZPI is committed to customer satisfaction and provides efficient and timely after-sales service. For any assistance, questions, or warranty claims regarding your range hood, please contact TAZPI customer support.
Refer to your purchase documentation or the TAZPI official website for specific warranty terms and contact information.
