1. Introduction
Thank you for choosing the Alpicool C9PT 9L Portable Car Refrigerator. This manual provides essential information for the safe and efficient operation of your new appliance. Please read it thoroughly before use and keep it for future reference.
This portable refrigerator is designed for cooling and freezing food and beverages, making it ideal for use in vehicles, camping, and other outdoor activities. It features a robust compressor for reliable performance and can operate as both a refrigerator and a freezer.
Image: The Alpicool portable car refrigerator in an outdoor setting, highlighting its versatility for various uses.
2. Safety Instructions
To ensure safe operation and prevent injury or damage, please observe the following safety precautions:
- Do not operate the appliance if it is visibly damaged.
- Do not block the ventilation openings. Ensure adequate airflow around the unit.
- Do not use electrical devices inside the refrigerator unless recommended by the manufacturer.
- Do not immerse the appliance in water or expose it to heavy rain.
- Handle the power cables carefully. Do not pinch or damage them.
- Keep the appliance away from heat sources and direct sunlight.
- Ensure the power supply voltage matches the specifications of the appliance.
- This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
3. Package Contents
Before first use, please check that all items are present and undamaged:
- Alpicool C9PT Car Refrigerator
- DC Cable (12V/24V)
- AC Cable with Adapter (220V-240V)
- User Manual
Image: Contents of the Alpicool C9PT package, including the refrigerator unit, DC cable, AC adapter, and user manual.
4. Product Overview
Familiarize yourself with the main components and features of your Alpicool C9PT refrigerator:
Image: Detailed view of the Alpicool C9PT, highlighting key components such as the door hinge, LED display, charging port, heat dissipation cover, inner compartment, and door latch.
- Door Hinge System: Ensures smooth opening and closing of the lid.
- LED Display: Shows current temperature and settings.
- Charging Port: For connecting DC or AC power cables.
- Heat Dissipation Cover: Vents for efficient heat release from the compressor.
- Inner Compartment: The main storage area for items to be cooled or frozen.
- Door Latch: Secures the lid during transport.
5. Setup
Follow these steps for initial setup:
- Unpacking: Carefully remove the refrigerator from its packaging. Retain packaging for future transport or storage.
- Placement: Place the refrigerator on a stable, level surface. Ensure there is at least 10 cm of space around all sides for proper ventilation. Avoid placing it in direct sunlight or near heat sources.
- Power Connection:
- DC 12V/24V: Connect the DC cable to the refrigerator's charging port and then to your vehicle's 12V/24V socket.
- AC 220V-240V: Connect the AC adapter to the refrigerator's charging port, then plug the AC cable into a standard wall outlet.
- Initial Cleaning: Before placing food or beverages inside, wipe the interior with a damp cloth and mild detergent. Dry thoroughly.
Image: A person demonstrating how to lift the lightweight Alpicool C9PT refrigerator using its notched bottom for easy handling.
6. Operating Instructions
The Alpicool C9PT can function as both a refrigerator and a freezer, offering versatile temperature control.
Image: Illustration of the Alpicool C9PT's dual functionality, capable of freezing items like meat and ice cream, and refrigerating items such as drinks and produce.
6.1. Power On/Off
- Press the 'ON/OFF' button on the control panel to turn the unit on or off. The LED display will illuminate when powered on.
6.2. Temperature Adjustment
The temperature can be adjusted between -20°C and +20°C (-4°F to 68°F).
- Press the 'SET' button to enter temperature setting mode.
- Use the 'UP' and 'DOWN' arrows to adjust the desired temperature.
- The display will flash during adjustment and then stabilize to the current internal temperature after a few seconds.
Image: The Alpicool C9PT placed in a car trunk, illustrating its adjustable temperature range from -20°C to 20°C and its shockproof design suitable for travel.
6.3. Cooling Modes (ECO/MAX)
The refrigerator offers two cooling modes:
- MAX Mode: Provides maximum cooling performance for rapid temperature reduction.
- ECO Mode: Optimizes energy consumption for extended battery life, suitable for maintaining temperature.
- To switch between modes, press the 'SET' button repeatedly until 'ECO' or 'MAX' appears on the display, then confirm with 'SET' or wait for it to set automatically.
Image: The Alpicool C9PT highlighting its powerful yet quiet compressor, with temperature ranges for both refrigeration and freezing, and a noise level below 45dB.
6.4. Battery Protection Settings
The unit features a 3-stage battery protection system to prevent your vehicle battery from discharging completely.
- Press and hold the 'SET' button for 3 seconds to enter battery protection setting mode.
- Use the 'UP' or 'DOWN' arrows to select the desired protection level: H1 (Low), H2 (Medium), H3 (High).
- H1 (Low): The refrigerator will cut off power at a lower voltage, allowing for longer operation but risking deeper battery discharge.
- H2 (Medium): A balanced setting for typical use.
- H3 (High): The refrigerator will cut off power at a higher voltage, providing maximum battery protection but potentially shorter operation time.
Image: A table detailing the 3-stage battery protection modes (Low, Medium, High) and their corresponding cut-out and cut-in voltage references for both 12V and 24V DC power sources.
6.5. Recommended Temperatures for Food Storage
Optimal temperatures for various items:
Image: An illustration of the Alpicool C9PT's internal dimensions and capacity, along with a guide for recommended temperatures for common food items like drinks, fruits, vegetables, milk, ice cream, and meat.
- Drinks: 5°C (41°F)
- Fruits: 5-8°C (41-46°F)
- Vegetables: 3-10°C (37-50°F)
- Milk: 10°C (50°F)
- Ice Cream: -10°C (14°F)
- Meat: -18°C (0°F)
7. Maintenance
Regular maintenance ensures optimal performance and longevity of your refrigerator.
7.1. Cleaning
- Always disconnect the power before cleaning.
- Clean the interior and exterior with a damp cloth and a mild, non-abrasive detergent.
- Do not use abrasive cleaners, wire brushes, or sharp objects to clean the unit.
- Ensure the ventilation openings are free from dust and debris. Use a soft brush or vacuum cleaner to clean them.
- Dry all parts thoroughly before reconnecting power.
7.2. Defrosting
The Alpicool C9PT features a manual defrost system.
- If a layer of ice forms inside the compartment, disconnect the power and allow the ice to melt naturally.
- Remove melted water with a cloth. Do not use sharp tools to remove ice, as this can damage the cooling system.
8. Troubleshooting
If you encounter issues with your refrigerator, refer to the following table for common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not turn on | No power supply; Faulty cable; Blown fuse | Check power connection; Replace cable; Check vehicle/home fuse. |
| Poor cooling performance | Temperature set too high; Door not closed properly; Excessive items inside; Poor ventilation; High ambient temperature | Adjust temperature; Ensure door is sealed; Reduce contents; Clear ventilation; Move to cooler area. |
| Unusual noise | Appliance not level; Items inside rattling; Fan obstruction | Place on a level surface; Secure items; Check for obstructions in fan. |
| Error code on display | Specific system fault | Refer to the full user manual for specific error code meanings or contact customer support. |
If the problem persists after attempting these solutions, please contact customer support.
9. Specifications
Detailed technical specifications for the Alpicool C9PT 9L Portable Car Refrigerator:
- Model Number: C9PT
- Capacity: 9 Liters
- Product Dimensions (D x W x H): 32D x 42.5W x 25.2H cm
- Weight: 6.3 kg
- Voltage: 12V / 24V DC, 220V-240V AC
- Rated Power: 45W
- Cooling Method: Compressor
- Temperature Range: -20°C to +20°C (-4°F to 68°F)
- Refrigerant: R-600A
- Defrost System: Manual
- Annual Energy Consumption: 43 kWh per year
- Noise Level: <45dB

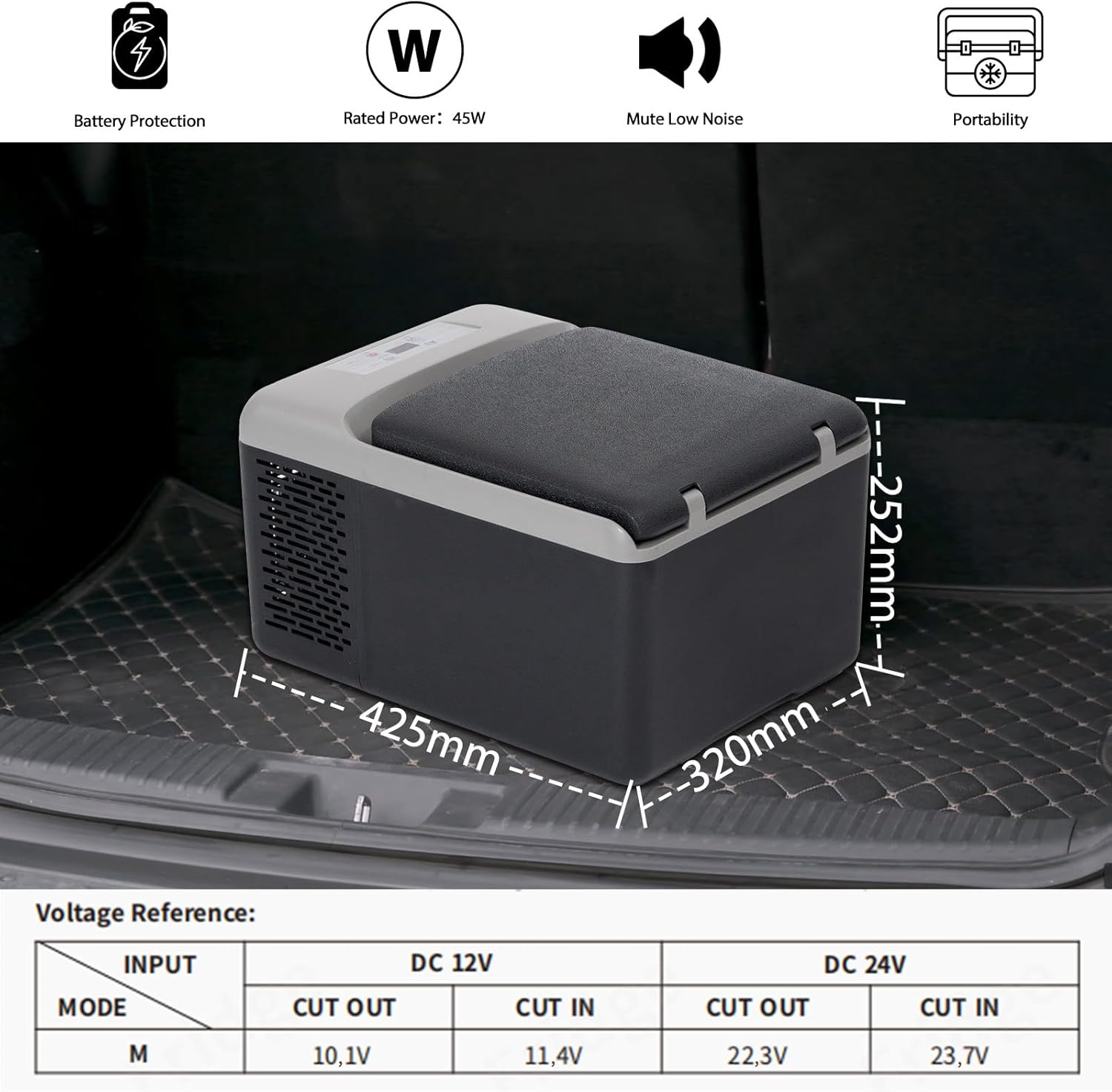

Image: Technical diagram illustrating the physical dimensions of the Alpicool C9PT and a voltage reference table for battery protection settings.

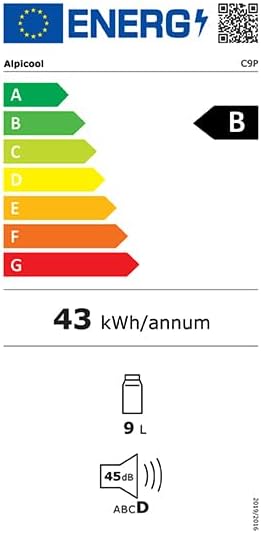

Image: The EU Energy Label for the Alpicool C9P, indicating its energy efficiency class B, annual energy consumption of 43 kWh, 9-liter capacity, and a noise level of 45dB.
Image: The official Product Information Sheet for the Alpicool C9PT, providing comprehensive details on energy labeling, dimensions, general product parameters, and manufacturer information. For more details, refer to the EPREL database.
10. Warranty and Support
Alpicool products are manufactured to high-quality standards and come with a manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions.
For technical support, warranty claims, or any questions regarding your Alpicool C9PT refrigerator, please contact Alpicool customer service:
- Manufacturer: Alpicool
- Email: cs@alpicool.com
- Address: c/o ZHU Consulting GmbH, Am Seestern 8, 40547 Düsseldorf/Germany
Please have your model number (C9PT) and purchase date ready when contacting support.
