Vipdrive Urbanite 1.2 Electric Bike User Manual

Introduction

This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your Vipdrive Urbanite 1.2 Electric Bike. Please read this manual thoroughly before using the bicycle to ensure proper function and longevity. Retain this manual for future reference.

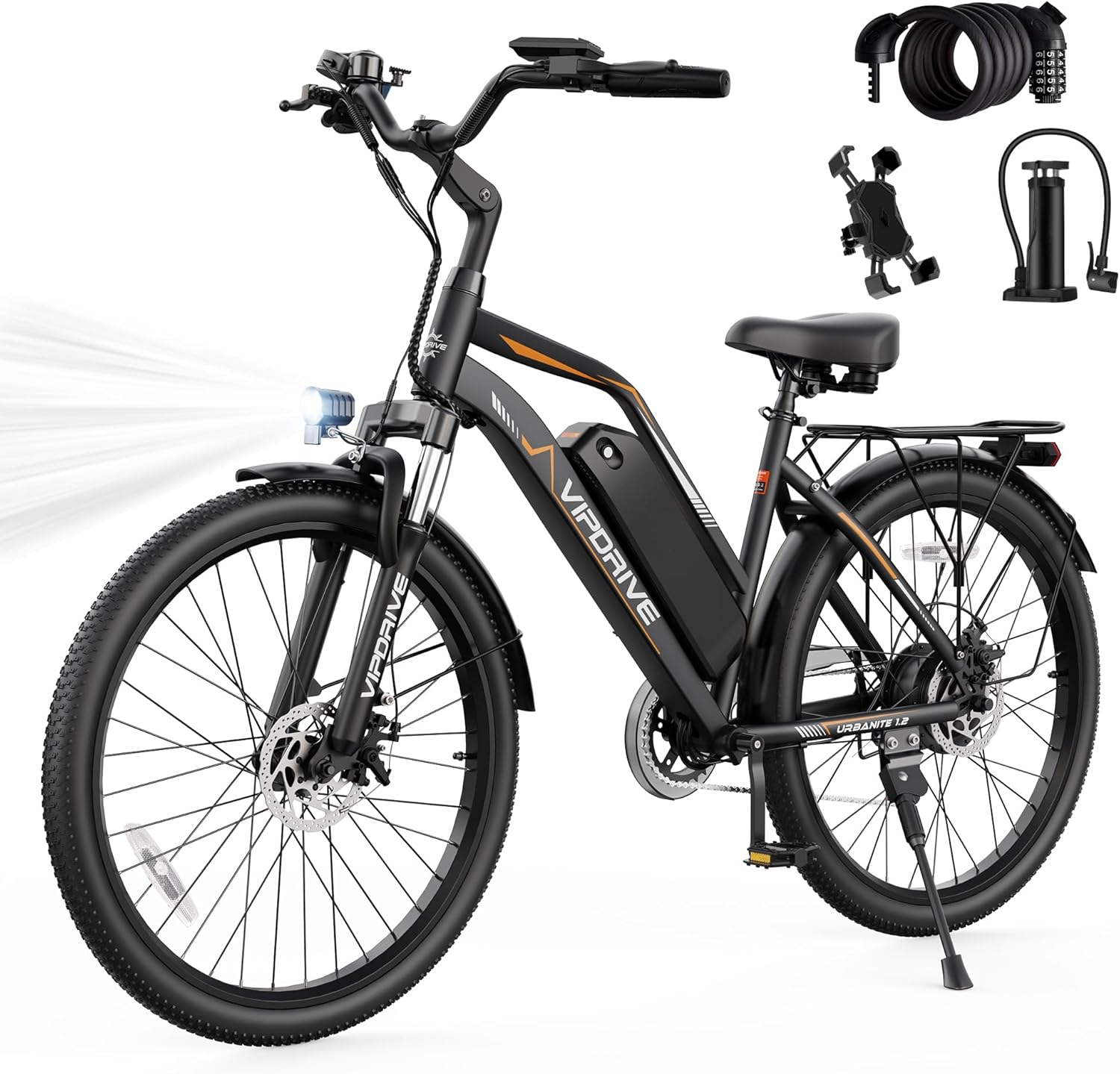

Figure 1: Vipdrive Urbanite 1.2 Electric Bike with included accessories including a pump, phone mount, and bike lock.

Setup and Assembly

The Vipdrive Urbanite 1.2 Electric Bike arrives 90% pre-assembled. The following steps detail the final assembly process. For a visual guide, please refer to the installation video below.

Included Components:

• 1 x Electric Bike
• 1 x Charger
• 1 x User Manual
• 1 x Tool Kit
• 1 x Air Pump
• 1 x Phone Holder
• 1 x Bike Lock

Assembly Steps:

1. Carefully remove all components from the packaging.
2. Attach the handlebar to the bike's stem, ensuring it is securely fastened and aligned.
3. Install the front wheel, making sure the disc brake aligns correctly with the caliper.
4. Mount the front and rear fenders.
5. Attach the front headlight and rear light.
6. Assemble and install the seat post and saddle.
7. Install the pedals, noting the 'L' and 'R' markings for left and right.
8. Attach the rear cargo rack.
9. Ensure all connections are secure and all bolts are tightened.

Figure 2: Size information for the Vipdrive Urbanite 1.2 Electric Bike, including full length, handlebar height, minimum seat height, maximum seat height, load capacity, and E-Bike weight.

Operating the Electric Bike

The Vipdrive Urbanite 1.2 Electric Bike offers versatile riding experiences with its powerful motor and multiple riding modes.

Motor and Battery:

• Motor: 500W brushless motor with a peak output of 750W, capable of reaching speeds up to 22mph.
• Battery: Removable 48V 7.8Ah (375Wh) battery, providing up to 50 miles of range on pedal-assist mode. Charging time is approximately 4-5 hours. The battery features an integrated lock and IPX4 water resistance.

Figure 3: Detailed view of the 750W Peak Brushless Motor, highlighting its power, max speed, 7-speed gearing, and 55NM max torque.

Figure 4: The 375Wh Removable Lithium Battery, emphasizing its 48V 7.8Ah capacity, 50 miles max range, waterproof design, and UL2849 certification.

Riding Modes:

• Throttle Mode: Provides effortless cruising without pedaling.
• Pedal Assist Mode: Offers assistance while pedaling, extending range up to 50 miles.
• Manual Mode: For a traditional cycling experience without electric assistance.
• Walk-Assist Function: Aids in maneuvering the bike in tight spaces or uphill.

Figure 5: Illustration of the three riding modes: Pure Electric Mode (20-25 miles), Pedal Assistant Mode (30-50 miles), and Normal Bike Mode (Endless).

LCD Display:

The intuitive LCD display provides real-time riding data, including riding speed, battery remaining, speed levels (1-3), and mileage reading.

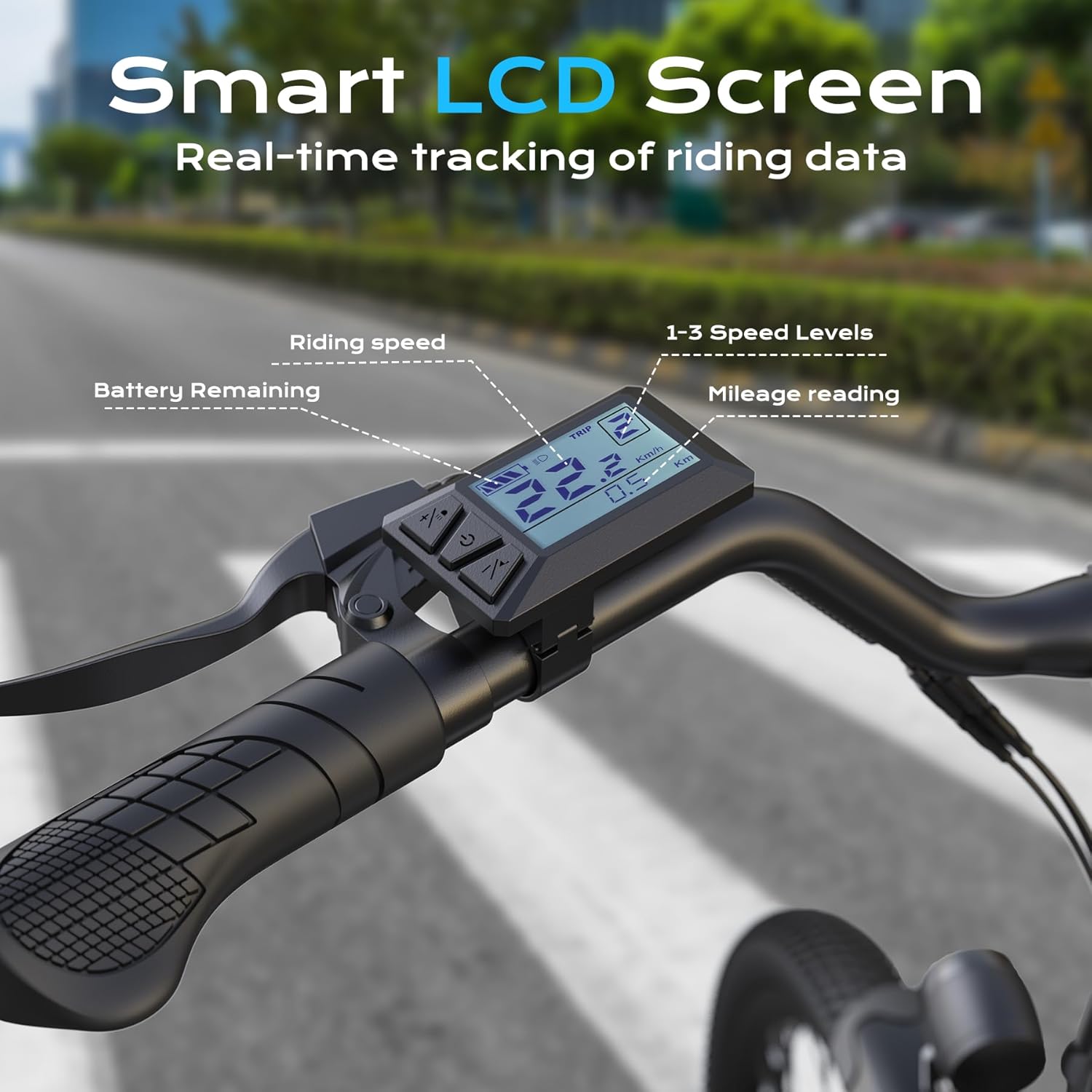

Figure 6: The Smart LCD Screen displaying real-time riding data such as battery remaining, riding speed, 1-3 speed levels, and mileage reading.

Maintenance

Regular maintenance is crucial for the safety, performance, and longevity of your electric bike. Perform routine checks and maintenance as follows:

• Tire Pressure: Check tire pressure before each ride and inflate to the recommended PSI.
• Brakes: Inspect brake levers and pads regularly for wear. Ensure dual disc brakes provide reliable stopping power.
• Chain: Keep the chain clean and lubricated to ensure smooth operation and prevent rust.
• Battery: Charge the battery regularly, even when not in use, to maintain its health. Store the battery in a cool, dry place.
• Fasteners: Periodically check all bolts, nuts, and quick releases for tightness.
• Cleaning: Clean the bike with a damp cloth. Avoid high-pressure washing directly on electrical components.
• Storage: Store the bike in a dry, secure location away from direct sunlight and extreme temperatures.

Troubleshooting

This section provides general guidance for common issues. For complex problems, please contact customer support.

• Bike not turning on: Ensure the battery is fully charged and properly seated. Check that the battery key is in the 'on' position and the power button on the battery is pressed.
• Motor not assisting: Verify that the pedal-assist level is set above zero on the LCD display. Check for any loose connections to the motor or controller.
• Brakes feel weak: Inspect brake pads for wear and replace if necessary. Check brake cables for proper tension and adjust if loose.
• Unusual noises: Inspect the chain, gears, and wheels for any obstructions or loose components. Lubricate the chain if it sounds dry.

Specifications

Warranty and Support

The Vipdrive Urbanite 1.2 Electric Bike comes with a full 1-year warranty on the motor, battery, and controller. Lifetime 24/7 technical support is also provided, including instructional video services.

For any inquiries or support, please contact Vipdrive customer service.
