GoHawk RD8-X45 Chrome Motorcycle Stereo System User Manual

1. Introduction

Thank you for choosing the GoHawk RD8-X45 Chrome Motorcycle Stereo System. This system is designed to provide high-quality audio for your motorcycle, ATV, 4-wheeler, or scooter. Featuring a robust waterproof design, Bluetooth 5.0 connectivity, FM radio, USB playback, and AUX input, it ensures an enjoyable audio experience on the road.

This manual provides detailed instructions for installation, operation, and maintenance to help you get the most out of your new audio system. Please read it thoroughly before use and keep it for future reference.

2. Safety Information

Always prioritize safety when installing and operating this device. Improper installation or use can lead to serious injury or damage to the product and vehicle.

• Ensure the vehicle's power is disconnected before installation to prevent electrical shock or short circuits.
• Connect the power cable correctly: Red wire to positive (+12V), Black wire to negative (ground). Incorrect wiring can damage the unit.
• Do not operate the system at excessively high volumes, as this can impair your ability to hear traffic sounds and emergency vehicles, leading to dangerous situations.
• Securely mount all components to prevent them from becoming loose during vehicle operation, which could cause distraction or injury.
• This product is IP56 water-resistant, meaning it is protected against dust and strong jets of water. It is not designed for submersion.
• Keep the USB port cover closed when not in use to maintain water resistance.

3. What's in the Box

Carefully unpack the box and ensure all items are present and in good condition. If any items are missing or damaged, please contact GoHawk customer support.

Image Description: This image displays all the components included with the GoHawk RD8-X45 system. You can see the main soundbar unit, two external 4.5-inch slave speakers, various mounting clamps and brackets, a power cord, an external FM antenna, an AUX cable, and the user manual. A wiring diagram is also visible, illustrating how the components connect.

• 1 x Speaker Soundbar (Main Unit)
• 2 x Slave Speakers (4.5" External Speakers)
• 1 x SAE Power Cable (78" long)
• 1 x External FM Antenna
• 1 x AUX Cable (3.5mm Audio Jack)
• 2 x Mounting Clamps with Stem for Soundbar (Supports 7/8" to 1.25" Handlebar)
• 2 x Mounting Clamps for External Slave Speakers
• Mounting Hardware (screws, Allen wrenches)
• 1 x User Manual

4. Product Overview

4.1 Main Unit (Soundbar)

Image Description: This close-up image highlights the backlit 4-button control panel on the GoHawk RD8-X45 soundbar. From left to right, the buttons are: Long Press for Volume Down, Single Click for Previous Track; Long Press for Volume Up, Single Click for Next Track; Single Click for Play/Pause; and Long Press for Power On/Off, Single Click for Mode selection.

The main soundbar unit houses two 2.5-inch full-range speakers and a built-in amplifier. It features a hidden LED display for FM radio frequency and mode functions. The unit is constructed with a full aluminum housing in a chrome finish, providing durability and an IP56 water-resistant rating.

• Control Buttons:
  • - Button: Long Press for Volume Down, Single Click for Previous Track.
  • + Button: Long Press for Volume Up, Single Click for Next Track.
  • Play/Pause Button: Single Click for Play/Pause.
  • Power/Mode Button: Long Press for Power On/Off, Single Click for Mode selection (Bluetooth, FM, USB, AUX).
• Connectivity Ports: USB port (for music playback, not charging), 3.5mm AUX-IN jack, RCA outputs for slave speakers, SMA connection for FM antenna.

4.2 External Slave Speakers

The system includes two external 4.5-inch full-range slave speakers, also in a chrome finish, designed to enhance the overall audio output and provide a richer sound experience. These connect to the main soundbar via RCA outputs.

4.3 Key Features

Image Description: This diagram visually represents the core features of the GoHawk RD8-X45 system. Icons and text indicate Bluetooth wireless connectivity, FM radio capability, a USB port for media, an AUX-in port, IP56 waterproof rating, SAE connector for power, RCA output for external speakers, and the durable aluminum housing.

• Bluetooth 5.0: For wireless music streaming from smartphones and other Bluetooth-enabled devices, with a range of up to 15 meters.
• FM Radio: Built-in FM tuner with external antenna for improved reception.
• USB Playback: Supports music playback from USB drives.
• AUX-IN: 3.5mm audio jack for connecting external audio devices.
• IP56 Water-Resistant: Designed to withstand dust and strong water jets.
• Full Aluminum Housing: Durable and robust construction.

5. Setup and Installation

Installation is straightforward with the included hardware. Ensure your vehicle's power is off before beginning.

5.1 Mounting the Soundbar and Slave Speakers

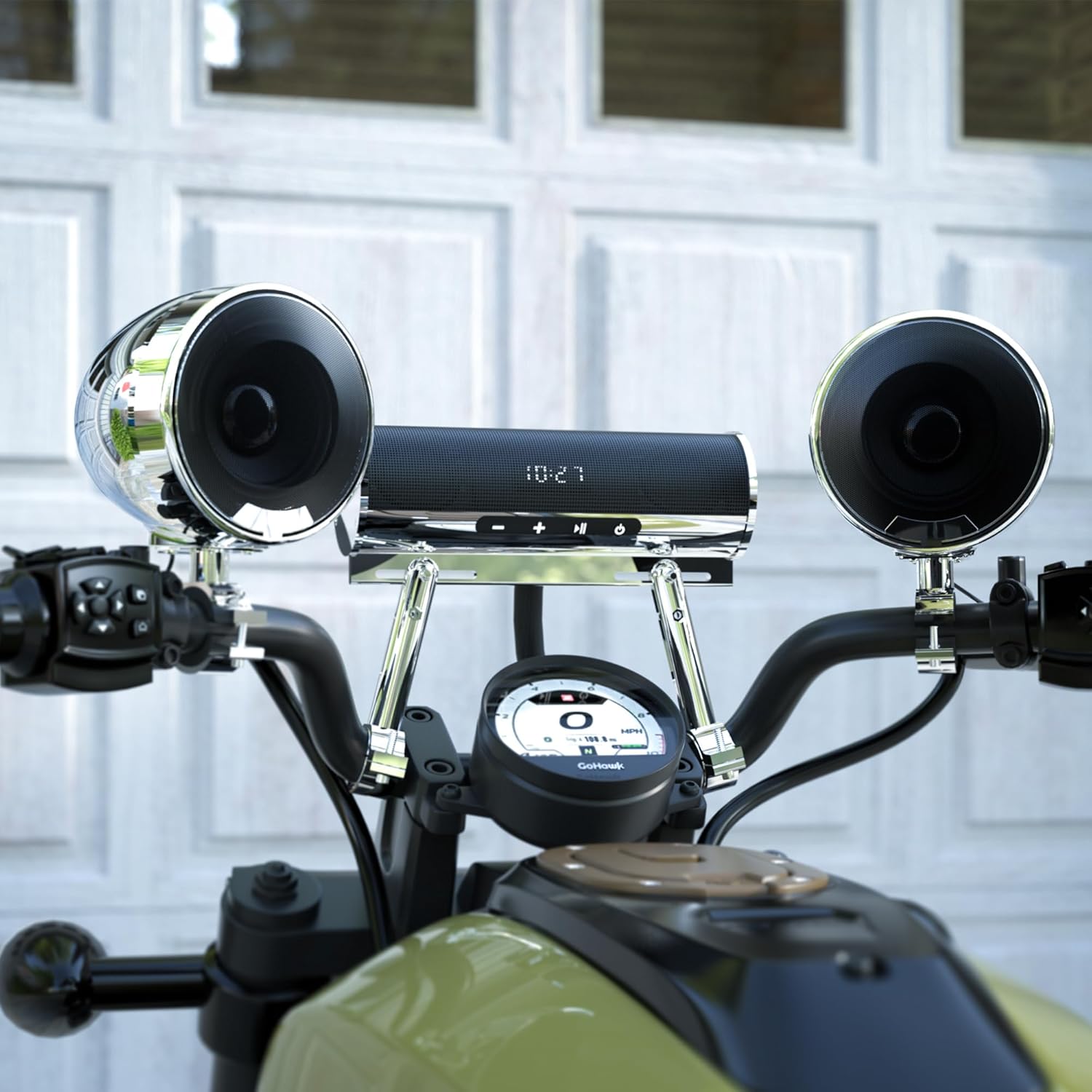

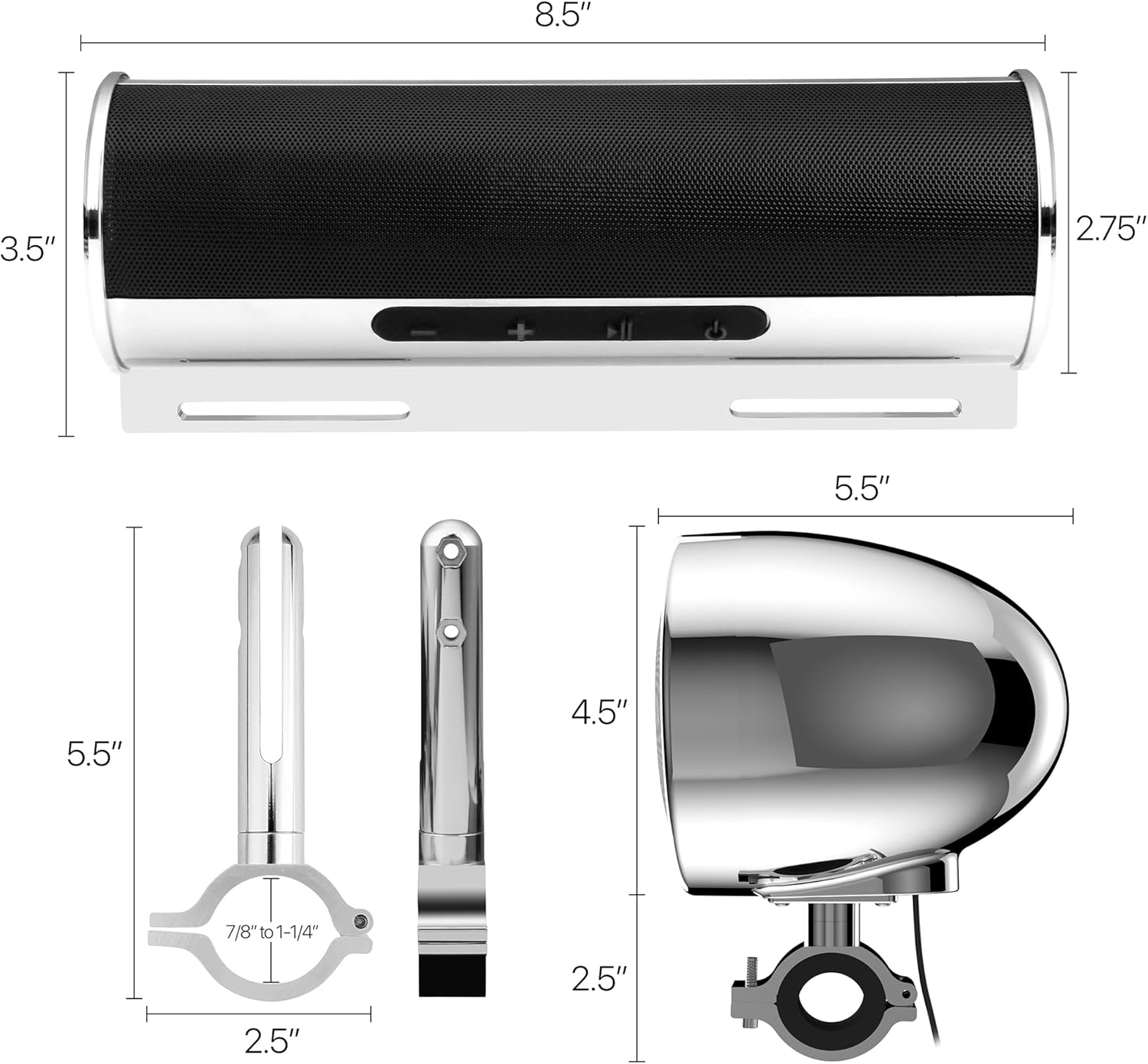

Image Description: This image provides detailed dimensions for the GoHawk RD8-X45 soundbar and its external slave speakers. The soundbar measures 8.5 inches in length, 2.75 inches in diameter, and 3.5 inches in height including its mounting bracket. The slave speakers are 4.5 inches wide and 5.5 inches long, including their brackets. The mounting clamps are shown to support handlebars from 7/8 inches to 1.25 inches in diameter.

1. Choose Mounting Location: Select a suitable location on your motorcycle's handlebars for the soundbar and slave speakers. The soundbar mounting clamps support handlebars from 7/8" to 1.25" diameter.
2. Attach Mounting Clamps: Secure the soundbar mounting clamps to the handlebars. The hardware allows for horizontal and vertical adjustment to fit various handlebar shapes.
3. Mount Soundbar: Attach the soundbar to its mounting clamps using the provided screws. Ensure it is firmly secured and does not obstruct your view or controls.
4. Mount Slave Speakers: Attach the slave speaker mounting clamps to your desired locations, typically on the handlebars or crash bars. Secure the slave speakers to these clamps.

5.2 Wiring Connections

Image Description: This image includes a clear wiring diagram for the GoHawk RD8-X45. It illustrates how to connect the 78-inch SAE power cable (red to positive, black to negative), the 65-inch audio cables from the soundbar's RCA outputs to the external slave speakers, and the connections for the USB port, AUX-in, and SMA FM antenna.

1. Power Connection:
   • Connect the Red wire of the SAE power cable to the vehicle's positive (+12V) power source.
   • Connect the Black wire of the SAE power cable to the vehicle's negative (ground) terminal.
   • The SAE connector provides a plug-and-play connection to the soundbar.
2. Slave Speaker Connection:
   • Connect the RCA output cables from the main soundbar to the corresponding RCA inputs on the external slave speakers. Ensure left and right channels are correctly matched.
3. FM Antenna Connection:
   • Connect the external FM antenna to the SMA port on the soundbar. Position the antenna for optimal reception.
4. Cable Management: Route all cables neatly and securely, away from moving parts or heat sources. Use zip ties or cable clips if necessary. The soundbar features a braided cable for durability.

Image Description: This image provides a detailed view of the braided cable extending from the GoHawk RD8-X45 soundbar. The braided design indicates enhanced durability and protection for the internal wiring, crucial for outdoor motorcycle use.

6. Operating Instructions

6.1 Power On/Off

• To Power On: Long press the Power/Mode button. The LED display will illuminate.
• To Power Off: Long press the Power/Mode button again.

6.2 Mode Selection

• To Change Mode: Single click the Power/Mode button to cycle through available modes: Bluetooth, FM Radio, USB, and AUX.

6.3 Volume Control

• Volume Up: Long press the + button.
• Volume Down: Long press the - button.

6.4 Bluetooth Operation

Image Description: This image features a group of motorcyclists enjoying their ride, with a prominent graphic highlighting "Bluetooth 5.0" and "RANGE UP TO 15M (49FT)". This illustrates the wireless connectivity and range capability of the GoHawk system, allowing users to stream music from their devices.

1. Pairing:
   • Switch the system to Bluetooth mode. The LED display will show "BT" and flash, indicating it's in pairing mode.
   • On your smartphone or Bluetooth device, search for "GoHawk" in the Bluetooth settings.
   • Select "GoHawk" to connect. Once paired, the system will confirm the connection.
2. Music Playback:
   • Use the Play/Pause button for playback control.
   • Single click - for Previous Track, single click + for Next Track.

6.5 FM Radio Operation

1. Switch to FM Mode: Single click the Power/Mode button until "FM" appears on the display.
2. Auto Scan: Long press the Play/Pause button to automatically scan and save available FM stations.
3. Manual Tuning: Single click the - or + buttons to manually tune to the previous or next station.

6.6 USB Playback

1. Insert USB Drive: Open the waterproof cover and insert a USB drive containing MP3 music files into the USB port.
2. Automatic Playback: The system will automatically switch to USB mode and begin playing music.
3. Controls: Use the Play/Pause, - (Previous), and + (Next) buttons to control playback.
4. Note: The USB port is for music playback only and does not support device charging.

6.7 AUX Input

1. Connect Device: Use the provided 3.5mm AUX cable to connect your external audio device (e.g., MP3 player) to the AUX-IN jack on the soundbar.
2. Switch to AUX Mode: Single click the Power/Mode button until "AUX" appears on the display.
3. Playback: Control music playback directly from your connected audio device.

7. Maintenance

Proper maintenance will ensure the longevity and optimal performance of your GoHawk RD8-X45 system.

• Cleaning: Use a soft, damp cloth to clean the exterior of the soundbar and speakers. Avoid abrasive cleaners or solvents that could damage the chrome finish or electronic components.
• Water Resistance: Always ensure the USB port cover is securely closed when not in use to maintain the IP56 water-resistant rating.
• Cable Inspection: Periodically check all cables and connections for signs of wear, fraying, or corrosion. Replace any damaged cables immediately.
• Mounting Security: Regularly inspect all mounting hardware to ensure it remains tight and secure. Vibrations from riding can loosen fasteners over time.
• Storage: If storing the vehicle for an extended period, consider disconnecting the stereo system from the power source to prevent battery drain.

8. Troubleshooting

If you encounter issues with your GoHawk RD8-X45 system, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact GoHawk customer support for further assistance.

9. Specifications

10. Warranty and Support

The GoHawk RD8-X45 Chrome Motorcycle Stereo System comes with a Limited Warranty. Please refer to the warranty card included in your package for specific terms and conditions.

For technical support, troubleshooting assistance, or warranty claims, please contact GoHawk customer service:

• Website: Visit the official GoHawk website for FAQs and support resources.
• Email: Refer to your product packaging or the GoHawk website for customer support email address.
• Phone: Refer to your product packaging or the GoHawk website for customer support phone number.

Please have your model number (RD8-X45 Chrome) and purchase date ready when contacting support.
