VILTROX AF 16mm f/1.8 Z Full Frame Lens Instruction Manual

1. Introduction

This manual provides detailed instructions for the proper use and care of your VILTROX AF 16mm f/1.8 Z Full Frame Lens. Designed for Nikon Z-mount cameras, this ultra-wide-angle prime lens offers a large F1.8 aperture, advanced autofocus capabilities, and a built-in LCD screen for enhanced control and information display. Please read this manual thoroughly before using the lens to ensure optimal performance and longevity.

2. Product Overview

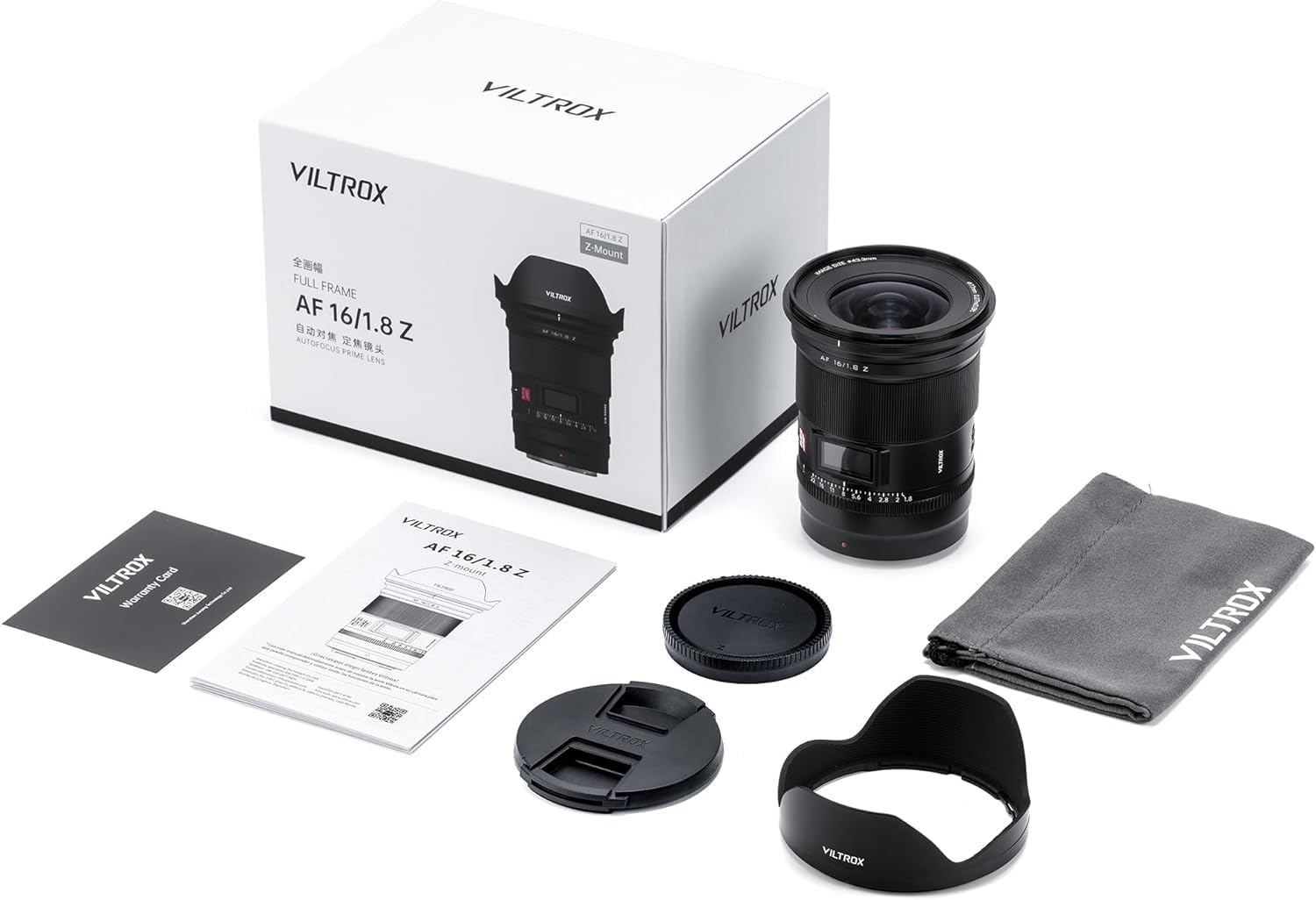

2.1 Package Contents

Verify that all items are present in your package:

• Viltrox AF 16mm f/1.8 Lens
• 1 x Lens Cap
• 1 x Rear Lens Cap
• 1 x Lens Hood
• 1 x Product Manual

2.2 Lens Components and Features

The VILTROX AF 16mm f/1.8 Z lens incorporates several key features for optimal photographic performance:

• Large F1.8 Aperture: Enables excellent low-light performance and shallow depth of field for creative bokeh.
• Built-in LCD Display: Shows critical shooting parameters such as aperture value and focus distance in real-time.
• SMT Stepping Motor: Provides fast, accurate, and quiet autofocus, suitable for both still photography and video recording.
• AF/MF Switch: Allows seamless transition between autofocus and manual focus modes.
• Click Aperture Ring Switch: Toggle between a clicked aperture ring for tactile feedback or a clickless aperture for smooth video adjustments.
• Customizable Function Buttons: Two rubber-covered buttons offer programmable functionality for quick access to preferred settings.
• Advanced Optical Design: Composed of 15 elements in 12 groups, including 4 ED glass and 3 aspherical lenses, to minimize distortion and ensure high image quality, sharpness, and contrast.
• Multi-layer Coating: Reduces flare and ghosting while enhancing light transmission.
• Dust Prevention: Designed with features to resist dust ingress.
• Firmware Upgrade Support: Allows for future performance enhancements and compatibility updates.

3. Setup

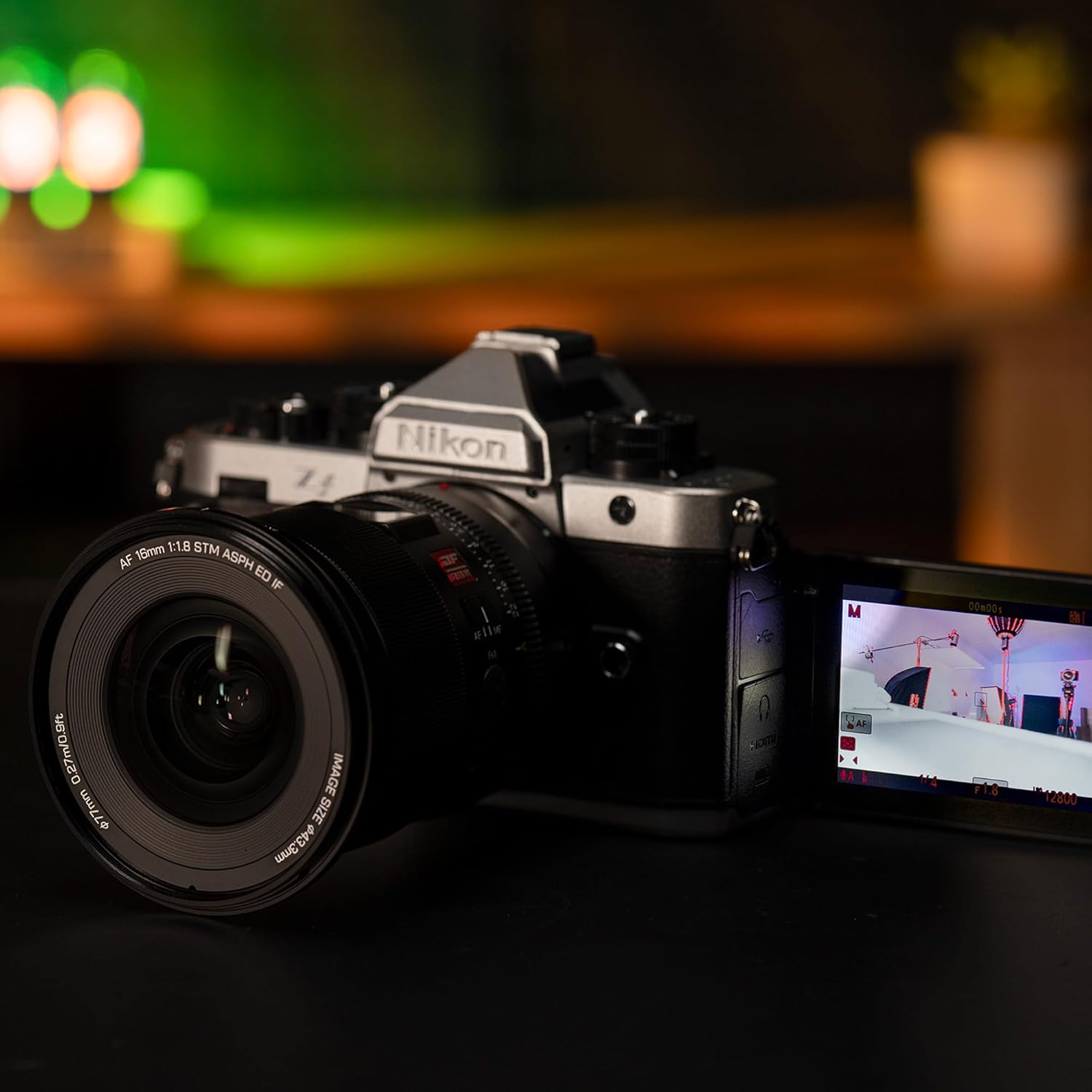

3.1 Attaching the Lens

1. Ensure your camera is powered off.
2. Remove the rear lens cap from the VILTROX 16mm f/1.8 Z lens and the body cap from your Nikon Z-mount camera.
3. Align the red dot on the lens barrel with the corresponding red dot on your camera's lens mount.
4. Gently insert the lens into the camera mount and rotate it clockwise until it clicks into place. Do not force the lens.
5. Attach the lens hood by aligning its mark with the mark on the front of the lens, then twist until it locks.

3.2 Initial Settings

After attaching the lens, power on your camera. The lens's LCD screen will activate, displaying current aperture and focus distance. You may need to adjust camera settings to recognize the lens and enable autofocus.

4. Operating Instructions

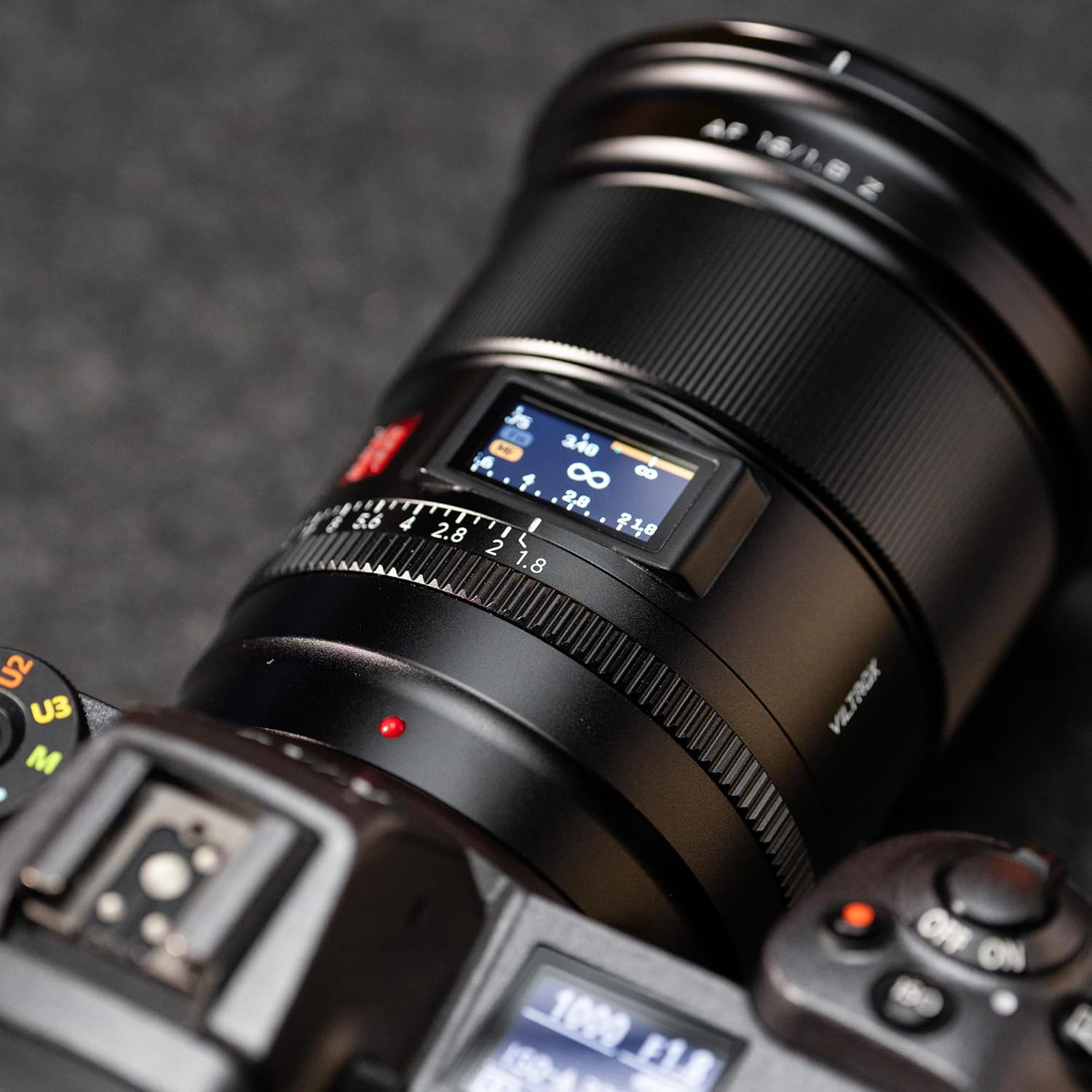

4.1 Using the LCD Display

The integrated LCD display provides real-time information:

• Aperture Value: Displays the current f-stop.
• Focus Distance: Shows the distance to the focused subject in meters (m) and feet (ft).

4.2 Autofocus (AF) and Manual Focus (MF) Switching

Locate the AF/MF switch on the side of the lens barrel. Slide the switch to your desired mode:

• AF (Autofocus): The lens will automatically focus on your subject. The SMT stepping motor ensures fast and quiet operation.
• MF (Manual Focus): Allows you to manually adjust focus using the focus ring on the lens.

4.3 Aperture Ring Operation

The lens features an aperture ring with a click switch:

• "ON" Position: The aperture ring will provide tactile clicks at each f-stop, ideal for still photography where precise, stepped adjustments are preferred.
• "OFF" Position: The aperture ring will operate smoothly without clicks, which is beneficial for video recording to achieve seamless aperture transitions.

4.4 Customizable Function Buttons

The lens is equipped with two customizable function buttons. Refer to your camera's manual for instructions on how to assign specific functions to these buttons, such as AF-ON, depth-of-field preview, or other preferred settings.

5. Maintenance

5.1 Cleaning the Lens

• Use a soft, lint-free cloth or a lens brush to remove dust from the lens surfaces.
• For stubborn smudges or fingerprints, apply a small amount of lens cleaning solution to a clean microfiber cloth and gently wipe the lens in a circular motion from the center outwards.
• Never use abrasive materials or harsh chemicals, as these can damage the lens coatings.
• Avoid touching the glass elements directly with your fingers.

5.2 Storage

• When not in use, always attach the front and rear lens caps to protect the glass elements.
• Store the lens in a cool, dry place, away from direct sunlight and extreme temperatures.
• If storing for extended periods, consider using a dehumidifying agent to prevent mold growth.

6. Troubleshooting

6.1 Lens Not Detected by Camera

• Ensure the lens is securely mounted to the camera body and has clicked into place.
• Power off the camera, remove the lens, clean the electronic contacts on both the lens and camera with a clean, dry cloth, then reattach the lens and power on.
• Check your camera's firmware version. Some users have reported compatibility issues with specific Nikon Z8 firmware versions (e.g., Firmware 5.10). Refer to the compatibility list below or VILTROX's official website for the latest firmware updates for your lens.

6.2 Autofocus Issues

• Verify the AF/MF switch on the lens is set to AF.
• Ensure there is sufficient light for the autofocus system to operate effectively.
• Check your camera's autofocus settings (e.g., AF area mode, AF-C/AF-S).

6.3 Image Quality Concerns

• Vignetting: Noticeable vignetting (darkening at corners) may occur at the maximum aperture (f/1.8). Stopping down the aperture (e.g., to f/2.8 or smaller) can reduce this effect.
• Flare: When shooting directly into bright light sources, some lens flare may occur. Using the included lens hood can help mitigate this.
• Softness: While the lens is designed for sharpness, ensure proper focus. Slight softness at the extreme edges may be present at very wide apertures.

6.4 Firmware Compatibility Table

The following table outlines known compatibility with various Nikon Z camera models and firmware versions. It is recommended to keep both your camera and lens firmware updated for optimal performance.

7. Specifications

8. Warranty and Support

For warranty information, please refer to the warranty card included in your product package or visit the official VILTROX website. For technical support, troubleshooting assistance beyond this manual, or service inquiries, please contact VILTROX customer support directly through their official channels.

Keep your purchase receipt and product serial number handy when contacting support.
