1. Introduction
This manual provides comprehensive instructions for the assembly, operation, and maintenance of your DORTALA Tilt-Out Laundry Hamper Cabinet. Please read this manual thoroughly before assembly and use to ensure safe and efficient operation. Keep this manual for future reference.

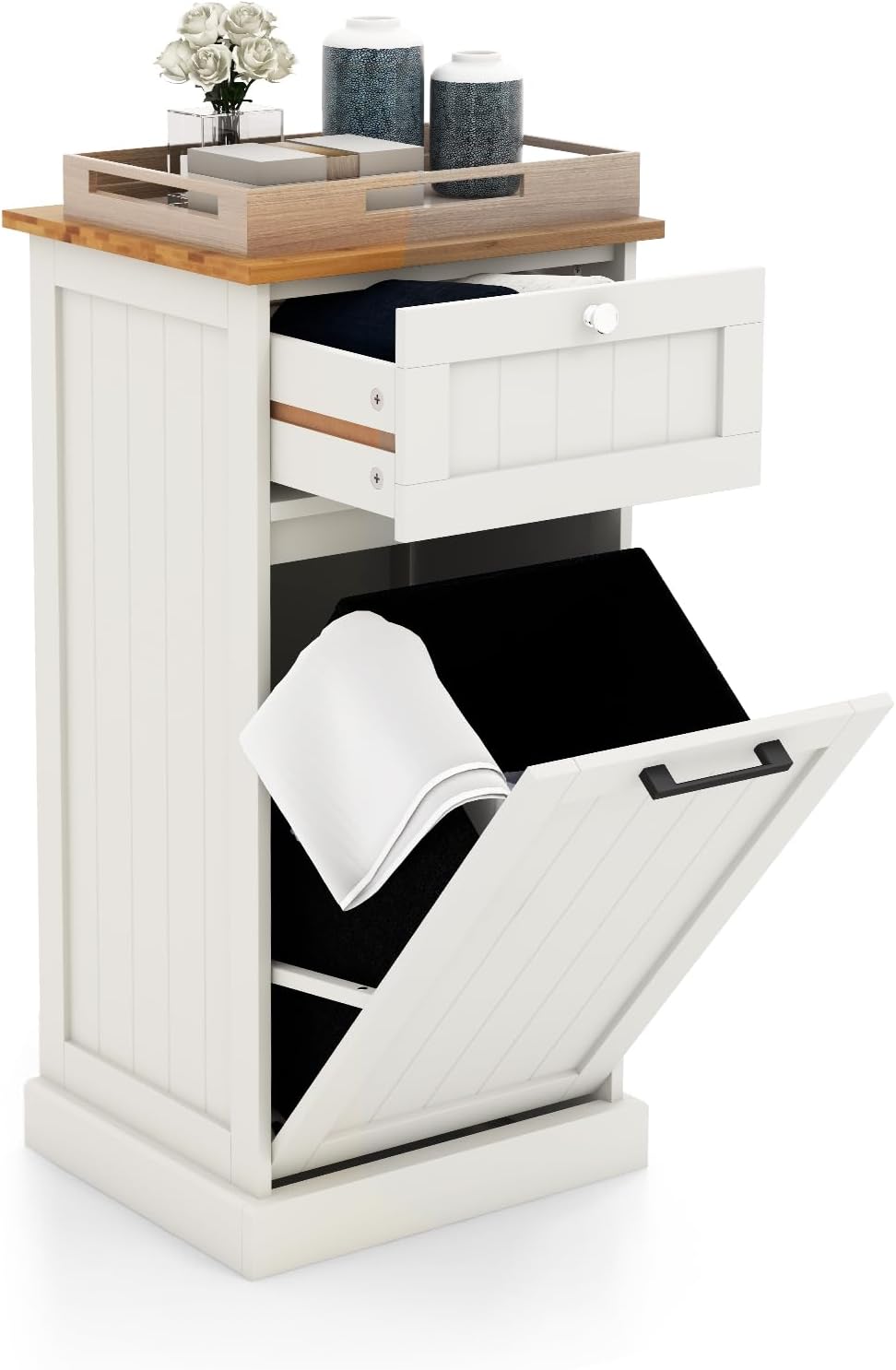

Figure 1: DORTALA Tilt-Out Laundry Hamper Cabinet, showcasing its drawer, bamboo countertop, and tilt-out hamper design.
2. Safety Information
Important: Always secure the cabinet to the wall using the anti-tipping mechanism to prevent tipping over. Ensure proper installation and leveling when mounting the cabinet to the floor to maintain stability and safety.
- Do not overload the drawer or the hamper basket.
- Keep small parts away from children during assembly.
- Ensure all screws and fasteners are tightened securely before use.
- Avoid placing hot items directly on the bamboo countertop without protection.
3. Product Components
Before assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.
Figure 2: Overview of the cabinet's dimensions and key components, including the drawer, tilt-out hamper, and removable basket.
3.1 Specifications
| Feature | Detail |
|---|---|
| Overall Dimensions | 15.5" L x 14.5" W x 32.5" H (39.37 cm L x 36.83 cm W x 82.55 cm H) |
| Laundry Hamper Capacity | 10 Gallons |
| Weight Capacity | 110 lbs (50 kg) |
| Material | Bamboo, Engineered Wood (MDF) |
| Color | White + Natural Bamboo |
| Special Features | Bamboo Countertop, Storage Drawer, Removable Laundry Basket, Anti-Tipping Device |
4. Setup and Assembly
Assembly is required. Please follow the steps carefully. It is recommended to have two people for assembly.
4.1 Tools Required (Not Included)
- Phillips Head Screwdriver
- Hammer (optional, for dowels)
4.2 Assembly Steps
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches. Verify all components against the parts list.
- Assemble the Main Frame: Follow the diagram in your included paper manual to connect the side panels to the base and top frame using the provided screws and dowels.
- Install Drawer Slides: Attach the drawer slides to the cabinet frame and the drawer sides as indicated in the instructions.
- Assemble the Drawer: Construct the drawer box and attach the front panel with the handle. Insert the assembled drawer into the slides.
- Attach Tilt-Out Door: Secure the tilt-out door to the cabinet using the durable metal hinges. Ensure smooth operation.
- Insert Laundry Basket: Place the removable fabric laundry basket into the tilt-out compartment.
- Install Anti-Tipping Device: For safety, attach the anti-tipping device to the back of the cabinet and secure it to a wall stud. This is crucial to prevent accidental tipping.
Figure 3: Illustration of the anti-tipping mechanism, demonstrating how to secure the cabinet to the wall for enhanced stability and safety.
5. Operating Instructions
5.1 Using the Tilt-Out Hamper
- To open, gently pull the handle on the front panel of the lower compartment. The door will tilt forward, revealing the removable laundry basket.
- Place dirty laundry directly into the fabric basket.
- To close, push the door back into the cabinet until it is flush with the cabinet front.
- The fabric basket can be easily removed by lifting it out of the compartment for transport to your washing machine.
Figure 4: The DORTALA cabinet in a bathroom, demonstrating the tilt-out hamper function with a laundry basket inside.
5.2 Utilizing the Storage Drawer
- The top drawer provides additional storage for smaller items. Pull the knob to open the drawer.
- Store toiletries, cleaning supplies, or other small household items in the drawer to keep them organized and out of sight.
5.3 Using the Bamboo Countertop
- The bamboo countertop offers a stable surface for placing decorative items, folded towels, or frequently used essentials.
- Avoid placing excessively heavy objects on the countertop to prevent damage.
Figure 5: The cabinet highlighting its spacious bamboo countertop, large drawer, and tilt-out cabinet for various storage needs.
6. Care and Maintenance
- Cleaning: Wipe the cabinet surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, which can damage the finish.
- Bamboo Top: The bamboo countertop is naturally durable and easy to maintain. Wipe spills immediately to prevent staining. For deeper cleaning, use a mild wood cleaner.
- Fabric Basket: The removable fabric basket can be spot cleaned with a mild detergent and air-dried. Do not machine wash or tumble dry.
- Hardware: Periodically check all screws and fasteners to ensure they remain tight. Tighten if necessary to maintain stability.
- Placement: Avoid prolonged exposure to direct sunlight or extreme humidity, which can affect the wood and finish.

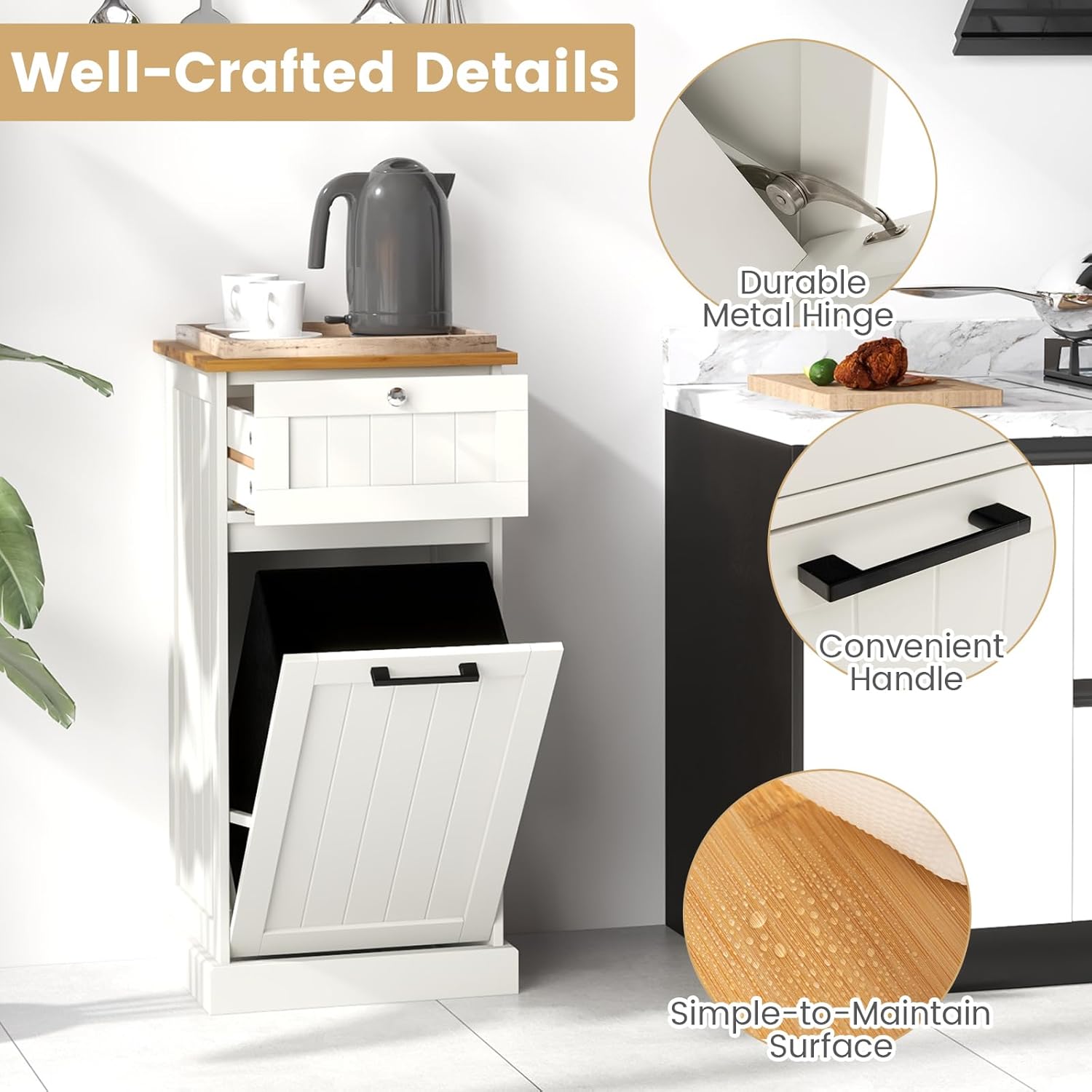

Figure 6: Detailed view of the cabinet's features, including the durable metal hinge for the tilt-out door, the convenient handle, and the smooth, easy-to-clean surface.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Drawer sticks or doesn't slide smoothly. | Misaligned drawer slides or loose screws. | Check alignment of drawer slides. Tighten all screws on the slides and drawer. Apply a silicone-based lubricant if needed. |
| Tilt-out door does not close properly. | Hinges are loose or misaligned. Obstruction in the compartment. | Ensure hinges are securely tightened. Check for any items blocking the door's path. |
| Cabinet feels wobbly. | Not properly secured to the wall or uneven floor. | Ensure the anti-tipping device is correctly installed and secured to a wall stud. Adjust leveling feet if present, or place shims under the base on uneven floors. |
8. Product Videos
Watch these official videos for additional visual guidance on product features and usage.
8.1 HOMCOM Bathroom Floor Cabinet
Video 1: This video demonstrates the features of a similar bathroom floor cabinet, including its tilt-out hamper and drawer storage. Note that the specific model shown may vary slightly from your DORTALA cabinet.
8.2 Haotian Bathroom Laundry Cabinet with Basket
Video 2: This video illustrates the space-saving design and storage capabilities of a bathroom laundry cabinet with a removable basket, similar to your DORTALA product.
8.3 HOMCOM Laundry Cabinet
Video 3: This video provides a general overview of a laundry cabinet, demonstrating its functionality and how it can help organize a bathroom space.
8.4 Keep your Bathroom Tidy and Privacy
Video 4: This video showcases how a laundry cabinet can contribute to a tidy bathroom and offer discreet storage for personal items.
9. Warranty and Support
For warranty information or customer support, please refer to the contact details provided with your purchase documentation or visit the official DORTALA website. Please have your model number (B0D22B5RBB) ready when contacting support.
