Toputure 2-in-1 Walking Pad Treadmill User Manual

1. Important Safety Instructions

Before using this treadmill, please read all instructions carefully to ensure safe operation and prevent injury. Keep this manual for future reference.

• Always place the treadmill on a flat, stable surface.
• Ensure adequate clear space (at least 2 meters behind and 0.6 meters on each side) around the treadmill during use.
• Keep children and pets away from the treadmill during operation.
• Wear appropriate athletic footwear and clothing.
• Use the safety key at all times. Attach the clip to your clothing. If you fall or move too far back, the safety key will detach, stopping the treadmill.
• Do not operate the treadmill if it has a damaged cord or plug, or if it is not working properly.
• Consult a physician before starting any exercise program, especially if you have pre-existing health conditions.
• Do not use the treadmill outdoors or in damp environments.
• Maximum user weight capacity: 130 kg.

2. Product Overview

The Toputure 2-in-1 Walking Pad Treadmill offers versatile exercise options, functioning as both a walking pad and a traditional treadmill. Its compact, foldable design makes it ideal for home use, allowing for easy storage.

Key Features:

• 2-in-1 Functionality: Easily switch between walking pad mode (1-6 km/h) and treadmill mode (1-12 km/h).
• Powerful & Quiet Motor: Equipped with a 2.5 HP motor for smooth and quiet operation.
• Adjustable Incline: Features a manual incline adjustment up to 7% for varied workout intensity.
• Wide Running Belt: An extra-wide 40cm running surface (1000x400mm) for comfort and safety.
• LED Display & APP Control: Monitor speed, distance, time, and calories on the integrated LED screen. Connect to apps like Fitshow for smart control and training programs.
• Space-Saving Design: Foldable with transport wheels for easy storage under furniture.
• Shock Absorption System: 7-layer anti-slip running belt with internal silicone columns to reduce impact on joints.

Package Contents:

• Toputure 2-in-1 Walking Pad Treadmill
• Remote Control
• Safety Key
• User Manual (this document)
• Power Cable

3. Setup

The Toputure 2-in-1 Walking Pad Treadmill comes pre-assembled, requiring minimal setup before first use.

3.1 Unpacking

1. Carefully remove the treadmill from its packaging.
2. Place the treadmill on a flat, level surface in your desired exercise area. Ensure sufficient clearance around the unit as described in the safety instructions.
3. Remove all packing materials.

3.2 Unfolding for Treadmill Mode

1. Locate the quick-release handle or buckle mechanism on the side of the treadmill.
2. Release the mechanism to allow the handlebar to be raised.
3. Gently lift the handlebar until it locks securely into the upright position. Ensure it is fully locked before use.
4. Connect the power cable to the treadmill and then to a grounded electrical outlet.

3.3 Adjusting Incline

The treadmill features a manual incline adjustment. The original incline is approximately 2.7°, which can be adjusted to 3.6° or up to a maximum of 7% by manipulating the front support feet. Refer to the specific mechanism on your unit for detailed instructions on how to engage and disengage the incline.

4. Operating Instructions

4.1 Powering On/Off

1. Plug the power cord into a grounded outlet.
2. Locate the main power switch, usually at the front base of the treadmill, and switch it to the 'ON' position.
3. The LED display will illuminate.
4. To power off, switch the main power switch to 'OFF' and unplug the unit.

4.2 Using the Safety Key

The safety key is a crucial safety feature. Attach the magnetic end of the safety key to the designated area on the console. Clip the other end to your clothing. The treadmill will not operate without the safety key in place. If the key detaches during your workout, the treadmill will stop immediately.

4.3 Modes of Operation (2-in-1 Functionality)

The treadmill automatically detects its configuration:

• Walking Pad Mode (Handlebar Folded): When the handlebar is folded down, the treadmill operates as a walking pad with a speed range of 1 to 6 km/h. This mode is suitable for walking or light jogging, often used under a standing desk.
• Treadmill Mode (Handlebar Upright): When the handlebar is in the upright position, the treadmill functions as a traditional treadmill with a speed range of 1 to 12 km/h, suitable for running and more intense workouts.

4.4 Console and Remote Control

The treadmill can be controlled via the integrated LED touch screen or the remote control.

• LED Display: Shows real-time data including speed, distance, time, and calories burned.
• Speed Adjustment: Use the '+' and '-' buttons on the console or remote to adjust speed in increments.
• Start/Stop: Press the 'Start' button to begin your workout and 'Stop' or 'Pause' to end or temporarily halt it. The pause function retains your workout data.
• Programs: Select from 12 preset programs for varied workout routines.

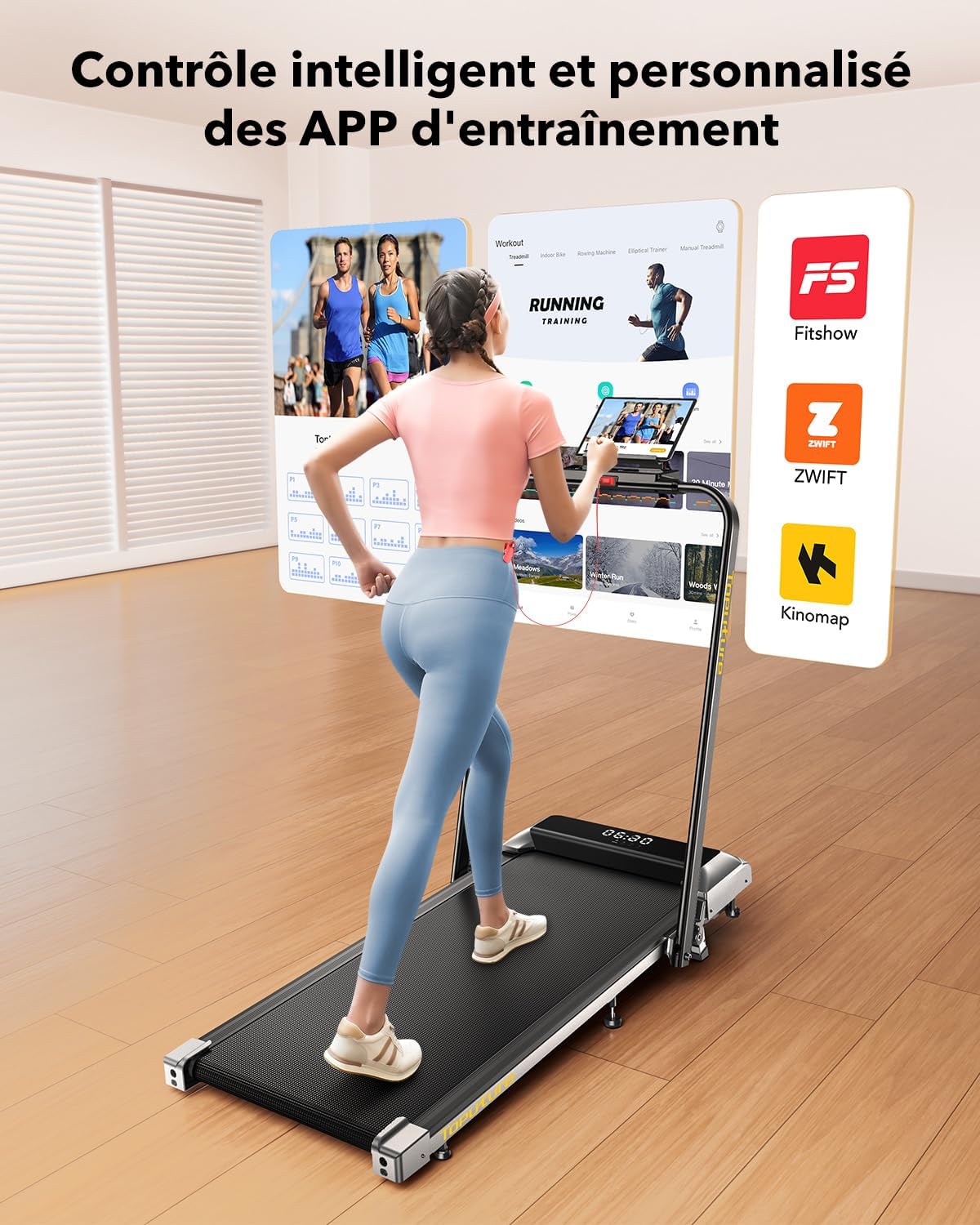

4.5 APP Connectivity (Fitshow)

Enhance your workout experience by connecting your treadmill to compatible fitness applications like 'FITSHOW'.

1. Download the 'FITSHOW' app from your device's app store.
2. Enable Bluetooth on your smartphone or tablet.
3. Open the 'FITSHOW' app and follow the on-screen instructions to pair with your treadmill.
4. Once connected, you can control the treadmill, track your progress, and access various training courses through the app.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your treadmill.

5.1 Lubrication

The running belt requires regular lubrication with silicone oil to reduce friction and wear. A small hole is provided for easy application.

• Apply approximately 10 ml of silicone oil every 30-50 hours of use, or every 1-2 months depending on usage frequency.
• Turn off and unplug the treadmill before lubrication.
• Lift the edge of the running belt and apply the oil directly onto the center of the deck, beneath the belt.
• Run the treadmill at a low speed (e.g., 3 km/h) for 5 minutes to distribute the lubricant evenly.

5.2 Cleaning

• Wipe down the treadmill surfaces with a damp cloth after each use to remove sweat and dust.
• Do not use abrasive cleaners or solvents.
• Periodically vacuum around and under the treadmill to prevent dust buildup from affecting motor performance.

5.3 Belt Adjustment

If the running belt feels loose, slips, or drifts to one side, it may need adjustment. Refer to the detailed instructions in the included user manual for specific belt tensioning and centering procedures using the provided Allen wrench.

6. Troubleshooting

This section addresses common issues you might encounter with your treadmill. For problems not listed here, please contact customer support.

7. Specifications

8. Warranty and Support

For warranty information and customer support, please refer to the documentation provided with your purchase or contact the seller directly. Keep your proof of purchase for any warranty claims.
