1. Introduction
This manual provides essential information for the safe and effective operation, setup, maintenance, and troubleshooting of your Eibenstock EFU 1200 Precision Joint Router. Please read these instructions carefully before using the tool to ensure proper function and to prevent injury or damage.
The Eibenstock EFU 1200 is designed for precise joint renovation on clinker facades with minimal dust, and for milling cable slots. Its electronic features ensure consistent performance and user safety.
2. Safety Instructions
Always observe general power tool safety guidelines to prevent electric shock, fire, and serious injury. Keep this manual accessible for future reference.
- Work Area Safety: Keep the work area clean and well-lit. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
- Electrical Safety: Power tool plugs must match the outlet. Never modify the plug. Avoid body contact with earthed or grounded surfaces. Do not expose power tools to rain or wet conditions.
- Personal Safety: Always wear eye protection, hearing protection, and a dust mask when operating the tool. Dress properly; avoid loose clothing or jewelry. Secure long hair.
- Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.
- Specific Router Safety: Ensure the cutter is securely installed before operation. Always use the dust extraction system to minimize dust exposure. Maintain a firm grip on the tool with both hands during operation.
3. Product Overview
The Eibenstock EFU 1200 is a robust tool designed for precision work. Familiarize yourself with its components before use.
Figure 1: Side view of the Eibenstock EFU 1200, showing the Eibenstock branding and the transparent dust shroud.
Key Features:
- Low-dust joint renovation for clinker facades.
- Cable slot milling capability.
- Spring-loaded dust extraction hood with milling depth adjustment.
- Electronic control with soft start, continuous speed adjustment, and constant speed maintenance.
- Temperature and overload cut-off for enhanced safety and tool longevity.
- Auxiliary handle mountable on both sides for ergonomic use.
Included Components:
- 1 x 6 mm cutter
- 1 x 8 mm cutter
- 1 x 10 mm cutter
- Assembly tools
- Storage case
4. Setup
Proper setup is crucial for safe and efficient operation.
4.1 Attaching the Auxiliary Handle
The auxiliary handle can be mounted on either side of the tool for optimal comfort and control. Securely fasten the handle using the provided hardware.
4.2 Installing the Cutter
- Ensure the tool is disconnected from the power supply.
- Loosen the collet nut using the appropriate assembly tool.
- Insert the desired cutter (6, 8, or 10 mm) into the collet. Ensure it is fully seated.
- Tighten the collet nut firmly with the assembly tool. Do not overtighten.
Figure 2: Top-down view of the cutter area, showing where the cutter is inserted and secured.
4.3 Adjusting Milling Depth
The milling depth can be precisely adjusted using the mechanism on the dust extraction hood.
Figure 3: Close-up of the depth adjustment mechanism and transparent dust shroud on the EFU 1200.
- Loosen the depth adjustment knob.
- Move the dust extraction hood up or down to achieve the desired milling depth.
- Tighten the depth adjustment knob to secure the setting.
5. Operating Instructions
Follow these steps for safe and effective operation of your joint router.
5.1 Power Connection and Speed Control
Connect the tool to a suitable power outlet. The EFU 1200 features continuous speed adjustment. Use the speed control dial to set the appropriate RPM for your material and cutter size. The soft start feature will ensure a smooth power-up.
Figure 4: Close-up of the power cord switch, typically used for on/off or mode selection.
5.2 Joint Renovation
- Ensure the correct cutter and depth are set for the joint material.
- Connect a suitable dust extraction system to the tool's port.
- Hold the tool firmly with both hands, utilizing the auxiliary handle.
- Start the tool and allow it to reach full speed before engaging the workpiece.
- Guide the tool smoothly along the joint line, applying even pressure. Avoid forcing the tool.
- The spring-loaded dust extraction hood will help maintain contact with the surface and minimize dust.

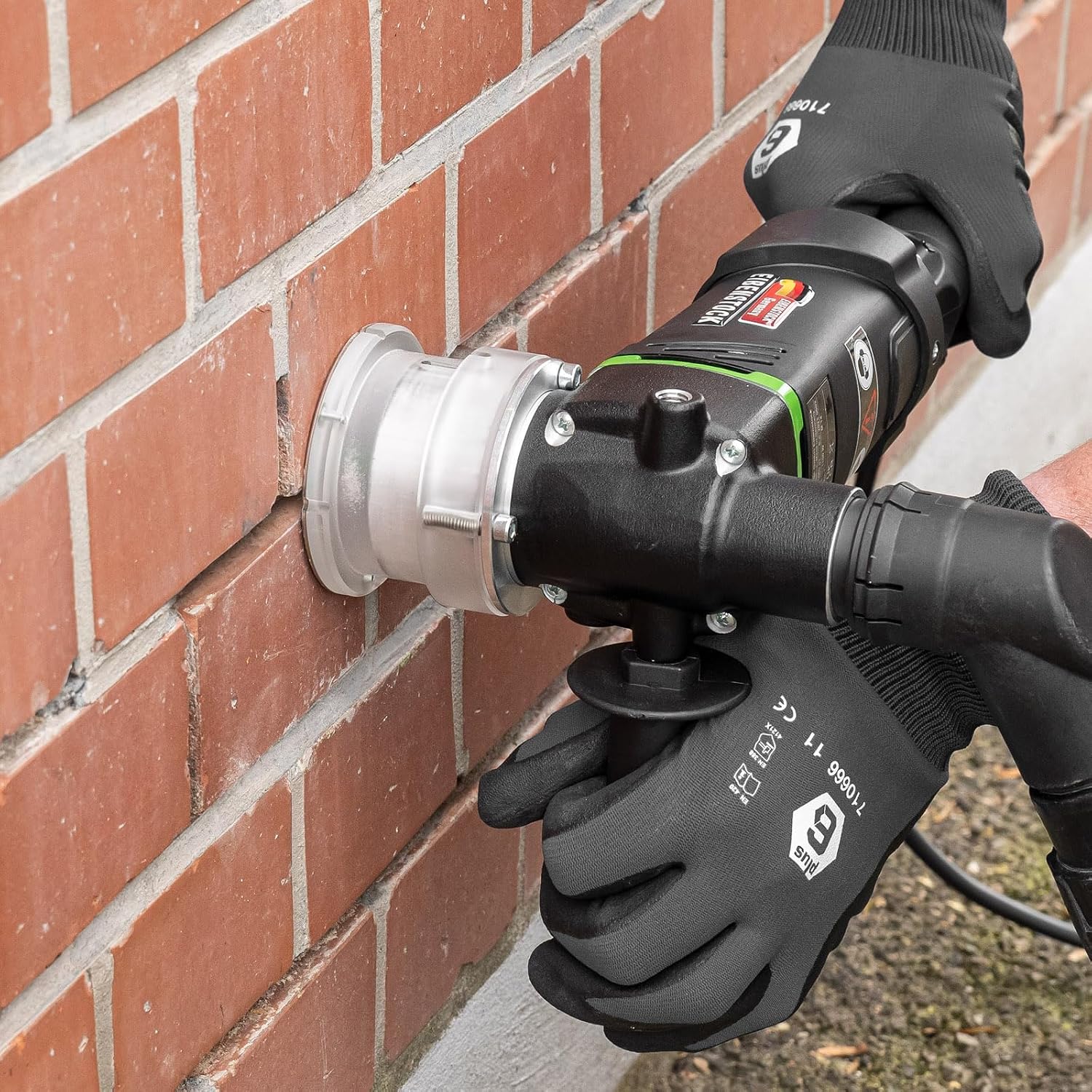

Figure 5: The Eibenstock EFU 1200 being used to mill a joint on a brick wall, demonstrating proper handling with both hands and dust extraction.
5.3 Cable Slot Milling
For milling cable slots, ensure the appropriate cutter size is installed and the depth is set correctly for the cable diameter and wall material.
- Mark the desired path for the cable slot on the surface.
- Follow the same operating procedures as for joint renovation, guiding the tool along the marked line.
- Ensure the dust extraction system is fully functional.
6. Maintenance
Regular maintenance ensures the longevity and performance of your EFU 1200.
- Cleaning: After each use, disconnect the tool from power and clean it thoroughly. Remove dust and debris from ventilation openings and the dust extraction hood.
- Cutter Replacement: Replace dull or damaged cutters promptly. Refer to Section 4.2 for installation instructions.
- Inspection: Regularly inspect the power cord for damage. Check all screws and fasteners for tightness.
- Storage: Store the tool in its case in a dry, secure location, out of reach of children.
7. Troubleshooting
If you encounter issues, refer to this section before contacting service.
| Problem | Possible Cause | Solution |
|---|---|---|
| Tool does not start | No power supply; damaged cord; internal fault | Check power connection; inspect cord; contact service if problem persists. |
| Cutter not rotating smoothly | Dull or damaged cutter; debris in collet; collet not tightened correctly | Replace cutter; clean collet; re-tighten collet nut. |
| Excessive vibration | Damaged cutter; loose components | Replace cutter; check all fasteners for tightness. |
| Tool stops during operation | Overload protection activated; temperature cut-off | Reduce load; allow tool to cool down. |
8. Specifications
| Feature | Detail |
|---|---|
| Model | EFU 1200 |
| Manufacturer Part Number | 06541000-eibenstock |
| Material | High-speed steel (cutters) |
| Cutting Type | Straight cut |
| Number of Flutes | 2 |
| Included Components | 6, 8, 10 mm cutters, assembly tools, storage case |
| Special Features | Soft start, continuous speed adjustment, constant speed, temperature/overload cut-off, spring-loaded dust hood |
9. Warranty Information
Specific warranty details for the Eibenstock EFU 1200 Precision Joint Router are not provided in this document. For information regarding warranty coverage, terms, and conditions, please refer to the documentation included with your purchase or contact the manufacturer directly.
Information regarding the availability of spare parts is currently unavailable. Please contact the manufacturer or your retailer for spare parts inquiries.
10. Support
For technical assistance, service, or further inquiries regarding your Eibenstock EFU 1200, please contact the manufacturer or your authorized dealer. Always provide the model number (EFU 1200) and part number (06541000-eibenstock) when seeking support.
