1. Introduction
This manual provides detailed instructions for the safe and effective use of your AWEI T25 Wireless Earbuds. Please read this manual thoroughly before using the product and retain it for future reference.
2. Package Contents
Ensure all items are present in the package:
- AWEI T25 Wireless Bluetooth Headset (Left and Right Earbuds)
- AWEI T25 Wireless Bluetooth Headset Charging Case
- USB-C Charging Cable
- User Instructions (This Manual)
3. Product Overview
Familiarize yourself with the components of your AWEI T25 Wireless Earbuds.

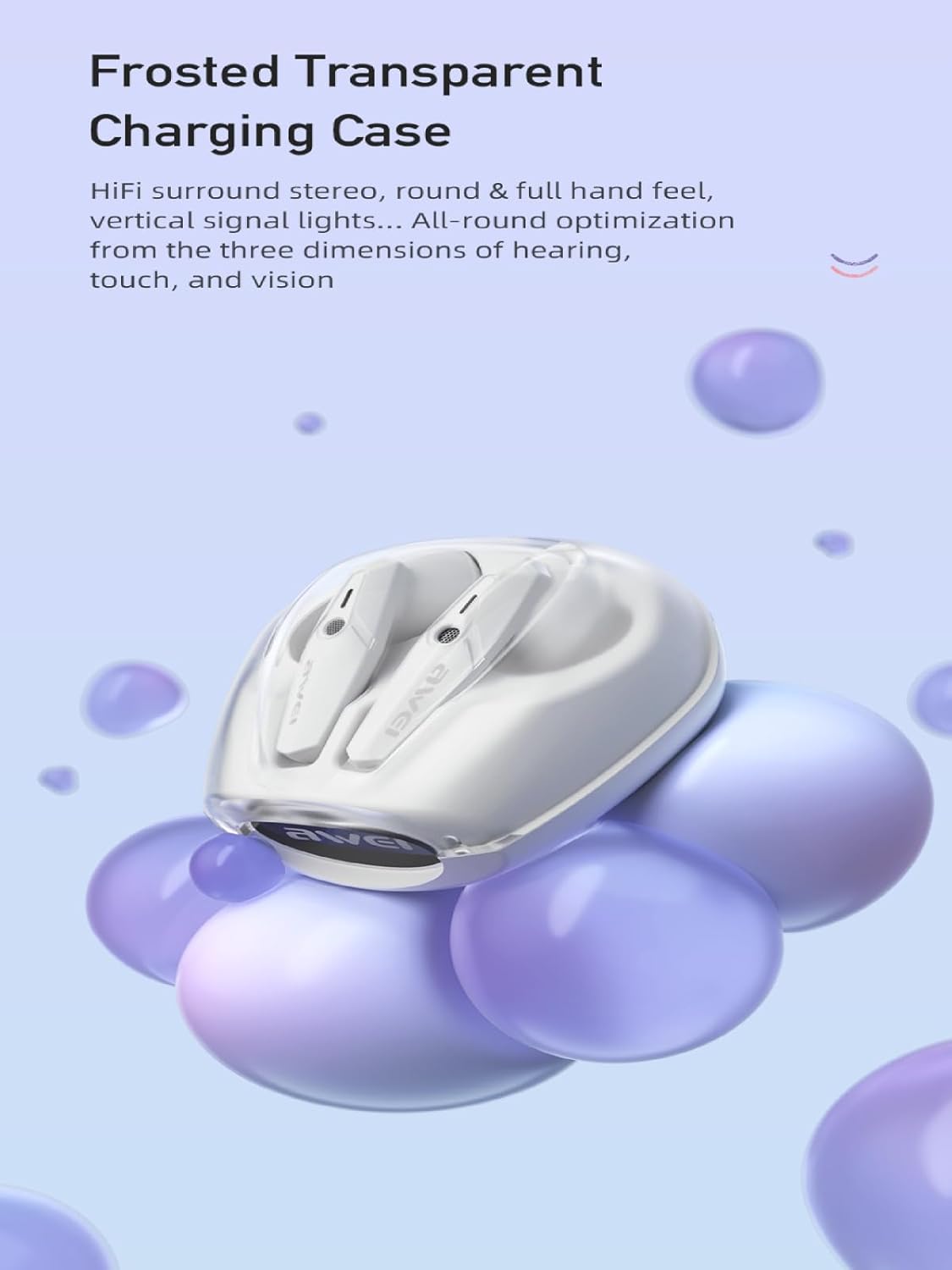

Image: AWEI T25 Wireless Earbuds housed within their frosted transparent charging case, showcasing the design and charging contacts.
The earbuds feature an in-ear design for a comfortable and secure fit. The charging case protects the earbuds and provides additional battery life.
4. Setup
4.1 Charging the Earbuds and Charging Case
Before first use, fully charge both the earbuds and the charging case.
- Place the earbuds into the charging case, ensuring they are correctly seated.
- Connect the USB-C charging cable to the charging port on the case and the other end to a USB power adapter (not included) or a computer's USB port.
- The indicator lights on the case will show the charging status. A full charge for the case takes approximately 1.5 hours.
- The earbuds will charge automatically when placed in the powered case.

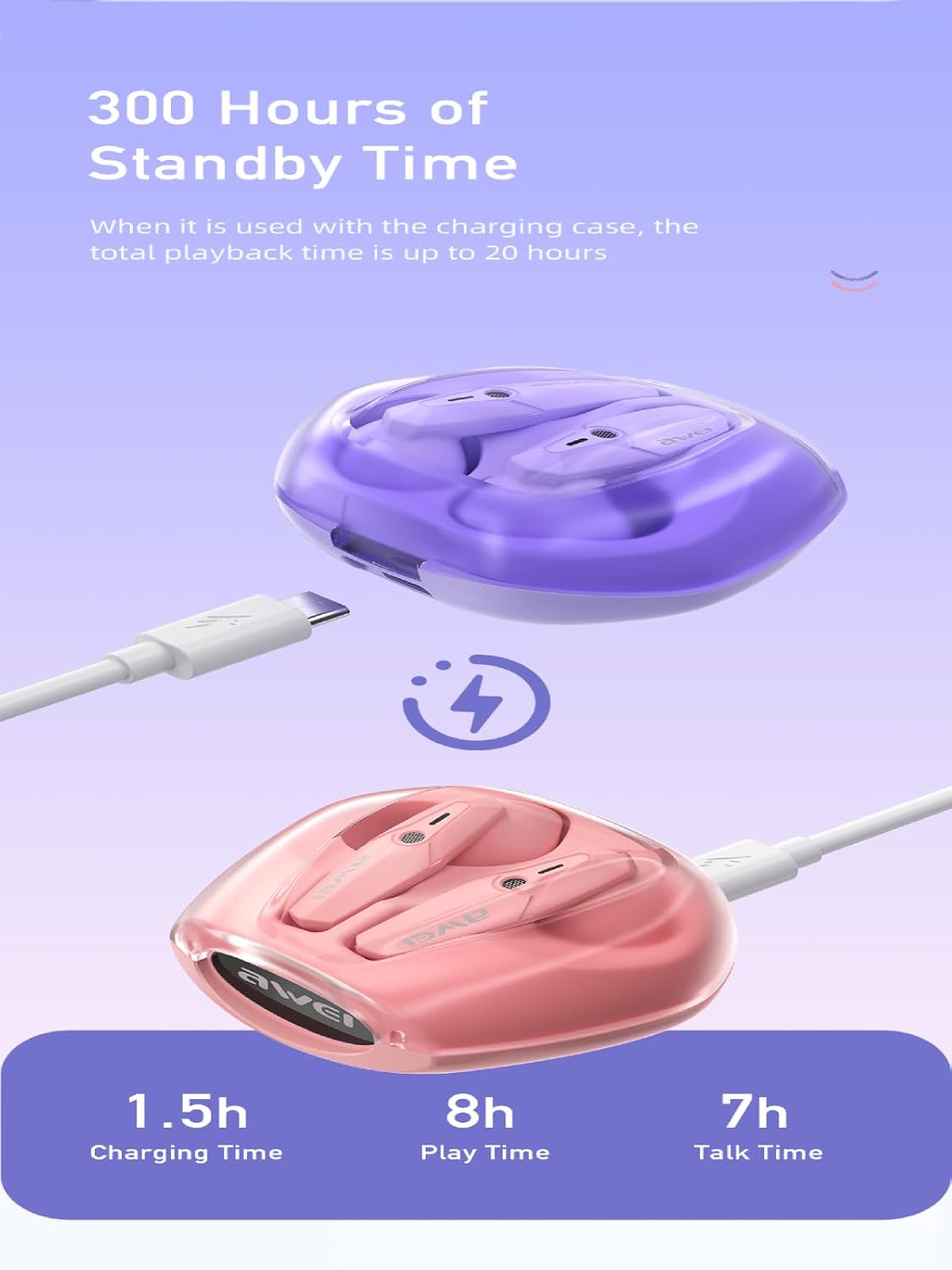

Image: The AWEI T25 charging case connected via a USB-C cable, illustrating the charging process and indicating charging time (1.5h), play time (8h), and talk time (7h).
A fully charged case provides multiple charges for the earbuds, extending total playback time up to 38 hours in dual-ear mode, or 76 hours in single-ear mode by alternating earbuds.
4.2 Pairing with a Bluetooth Device
The AWEI T25 earbuds utilize Bluetooth 5.3 technology for a stable connection.
- Open the charging case. The earbuds will automatically power on and enter pairing mode.
- On your device (smartphone, tablet, laptop), enable Bluetooth.
- Search for "AWEI T25" in the list of available Bluetooth devices.
- Select "AWEI T25" to connect. Once connected, you will hear a confirmation tone.
- The earbuds will automatically reconnect to the last paired device when taken out of the case, if Bluetooth is enabled on the device.
Image: A visual representation of the Bluetooth 5.3 chipset, highlighting its role in stable and smooth wireless transmission with low power consumption.
5. Operating Instructions
5.1 Power On/Off
- Power On: Open the charging case, or long-press the touch area on both earbuds for 3 seconds.
- Power Off: Place the earbuds back into the charging case and close the lid, or long-press the touch area on both earbuds for 5 seconds.
5.2 Touch Controls
The AWEI T25 earbuds feature smart touch controls on each earbud. The functions are as follows:
| Action | Left Earbud (L) | Right Earbud (R) |
|---|---|---|
| Play/Pause Music | Single tap | Single tap |
| Next Song | Triple tap | Double tap |
| Previous Song | Double tap | Triple tap |
| Volume Up | Long press | - |
| Volume Down | - | Long press |
| Answer/End Call | Single tap | Single tap |
| Reject Call | Long press | Long press |
| Activate Voice Assistant | Quadruple tap | Quadruple tap |
The earbuds offer a low-latency mode, beneficial for gaming, providing synchronized sound and picture. This feature is automatically managed by the Bluetooth 5.3 chipset.
Image: A user engaged in mobile gaming while wearing AWEI T25 earbuds, illustrating the low-latency feature for an enhanced audio-visual experience.
5.3 Single Earbud Mode
You can use either the left or right earbud independently. Simply take one earbud out of the case, and it will automatically connect to your device if previously paired. The other earbud can remain in the case or be used later.
6. Maintenance
6.1 Cleaning
- Regularly clean the earbuds and charging case with a soft, dry, lint-free cloth.
- Do not use abrasive cleaners, alcohol, or chemical solvents.
- Ensure charging contacts on both earbuds and case are clean and free of debris for optimal charging.
6.2 Storage
- When not in use, store the earbuds in their charging case to protect them and keep them charged.
- Store in a cool, dry place, away from extreme temperatures and direct sunlight.
6.3 Water Resistance (IPX5)
The AWEI T25 earbuds are rated IPX5 waterproof, meaning they are protected against low-pressure water jets from any direction. This makes them suitable for sports and protection against sweat and light rain.
- Do not submerge the earbuds in water.
- Do not expose them to strong water jets or wear them while swimming or showering.
- The charging case is not waterproof.
- Ensure earbuds are dry before placing them back into the charging case to prevent damage.
7. Troubleshooting
If you encounter issues with your AWEI T25 earbuds, refer to the following common problems and solutions:
- Earbuds not pairing:
- Ensure both earbuds are charged.
- Turn off Bluetooth on your device and turn it back on.
- Forget "AWEI T25" from your device's Bluetooth list and try pairing again.
- Place earbuds back in the case, close the lid, wait a few seconds, then open to re-initiate pairing mode.
- Only one earbud working:
- Ensure both earbuds are charged.
- Place both earbuds back into the charging case, close the lid, and then take them out together.
- Try resetting the earbuds (refer to specific reset instructions if available, or try forgetting the device and re-pairing).
- No sound:
- Check the volume level on your device and on the earbuds.
- Ensure the earbuds are properly connected to your device.
- Try playing audio from a different application or device.
- Charging issues:
- Ensure the USB-C cable is securely connected to both the case and the power source.
- Try a different USB-C cable or power adapter.
- Clean the charging contacts on the earbuds and inside the case.
8. Specifications
Key technical specifications for the AWEI T25 Wireless Earbuds:
| Feature | Detail |
|---|---|
| Model | T25 |
| Brand | Awei |
| Connectivity Technology | Wireless (Bluetooth 5.3) |
| Bluetooth Version | 5.3 |
| Ear Placement | In Ear |
| Control Type | Touch Control |
| Speaker Size | 13mm (Moving-Coil Horns) |
| Earbud Battery Life | Up to 8 hours (continuous use per charge) |
| Charging Case Battery Capacity | 300mAh |
| Total Playback Time (with case) | Up to 38 hours (dual-ear mode), 76 hours (single-ear mode) |
| Charging Time (Case) | Approx. 1.5 hours (via Type-C) |
| Water Resistance Level | IPX5 (Earbuds only) |
| Material | Silicone |
| Item Weight | 90 g |
| Compatible Devices | Smartphones, PCs, Tablets, Laptops, TVs |
Image: An exploded view diagram illustrating the 13mm moving-coil horns within the AWEI T25 earbuds, responsible for dynamic treble, full mid-range, and deep bass sound.
9. Warranty and Support
For warranty information or technical support, please refer to the warranty card included with your product or contact AWEI customer service through their official website or the retailer from whom you purchased the product. Please have your model number (T25) and purchase details ready.
