Moimhear Loft Bed with Desk and Storage (Model WX000310)

1. Safety Information

Important Safety Warning: During assembly, exercise caution with wooden parts to prevent injuries. The maximum recommended weight capacity for this bed is 120 kg (264 lbs). Ensure all fasteners are securely tightened before use. Regularly check all connections to ensure they remain tight. This product is designed for children aged 6 years and older.

• Always follow assembly instructions carefully.
• Do not allow children under 6 years of age on the top bunk.
• Ensure the mattress thickness is between 10-15 cm for proper guardrail height.
• Do not attach or hang items on any part of the bunk bed that are not designed for use with the bed; for example, but not limited to, hooks, belts, and jump ropes.
• Periodically check and ensure that the guardrail, ladder, and other components are in their proper position and free from damage.
• Use a night light for children using the top bunk.
• Prohibit more than one person on the top bunk.
• Always use the ladder for entering and leaving the top bunk.

2. Product Overview

The Moimhear Loft Bed (Model WX000310) is a versatile and space-saving furniture solution designed for children's rooms. It features a high bed, an integrated spacious desk, and ample storage options, making it ideal for studying, working, and organizing personal belongings. Constructed from high-quality solid pine wood and MDF, this bed offers durability and stability.

Key Features:

• Robust Construction: Made from solid pine wood and MDF for long-term strength and durability.
• Elegant and Minimalist Design: A simple, elegant white color that complements various interior styles, including modern, minimalist, and Scandinavian.
• Spacious Workspace: The lower level includes a large, flat desk surface suitable for computers, books, stationery, and other items for study or leisure.
• Ample Storage Space: Features four drawers under the desk and four large storage compartments above the desk, providing extensive storage for clothes, toys, and other items to keep the room tidy.
• High Guardrail: Equipped with a high guardrail for enhanced safety on the top bunk.
• Stable Ladder: Includes a sturdy ladder for safe access to the upper bed.

Figure 2.1: Overall view of the Moimhear Loft Bed in white, showcasing the upper bed, integrated desk, and storage shelves.

Figure 2.2: Front view of the Moimhear Loft Bed, highlighting the desk area and storage drawers.

3. Setup & Assembly Instructions

This loft bed requires assembly. It is shipped in three separate packages, which may arrive on different dates. Please ensure all packages have arrived before beginning assembly. It is recommended to assemble the bed with at least two adults.

3.1 Unpacking and Component Check

1. Carefully unpack all components from the boxes.
2. Lay out all parts on a clean, soft surface (e.g., a carpet) to prevent scratches.
3. Verify that all parts listed in the assembly manual (not provided here, refer to the physical manual included with the product) are present and undamaged.
4. Keep all small parts, screws, and tools organized and within reach.

3.2 Assembly Steps (General Guidance)

Follow the detailed step-by-step instructions provided in the physical assembly manual that accompanies your product. The general sequence typically involves:

1. Assemble the main bed frame structure.
2. Attach the ladder and guardrails.
3. Construct and integrate the desk unit.
4. Assemble and install the storage drawers and shelves.
5. Install the bed slats for mattress support.
6. Ensure all connections are tightened securely.

Note: Do not overtighten screws during initial assembly; tighten them fully once the entire structure is aligned.

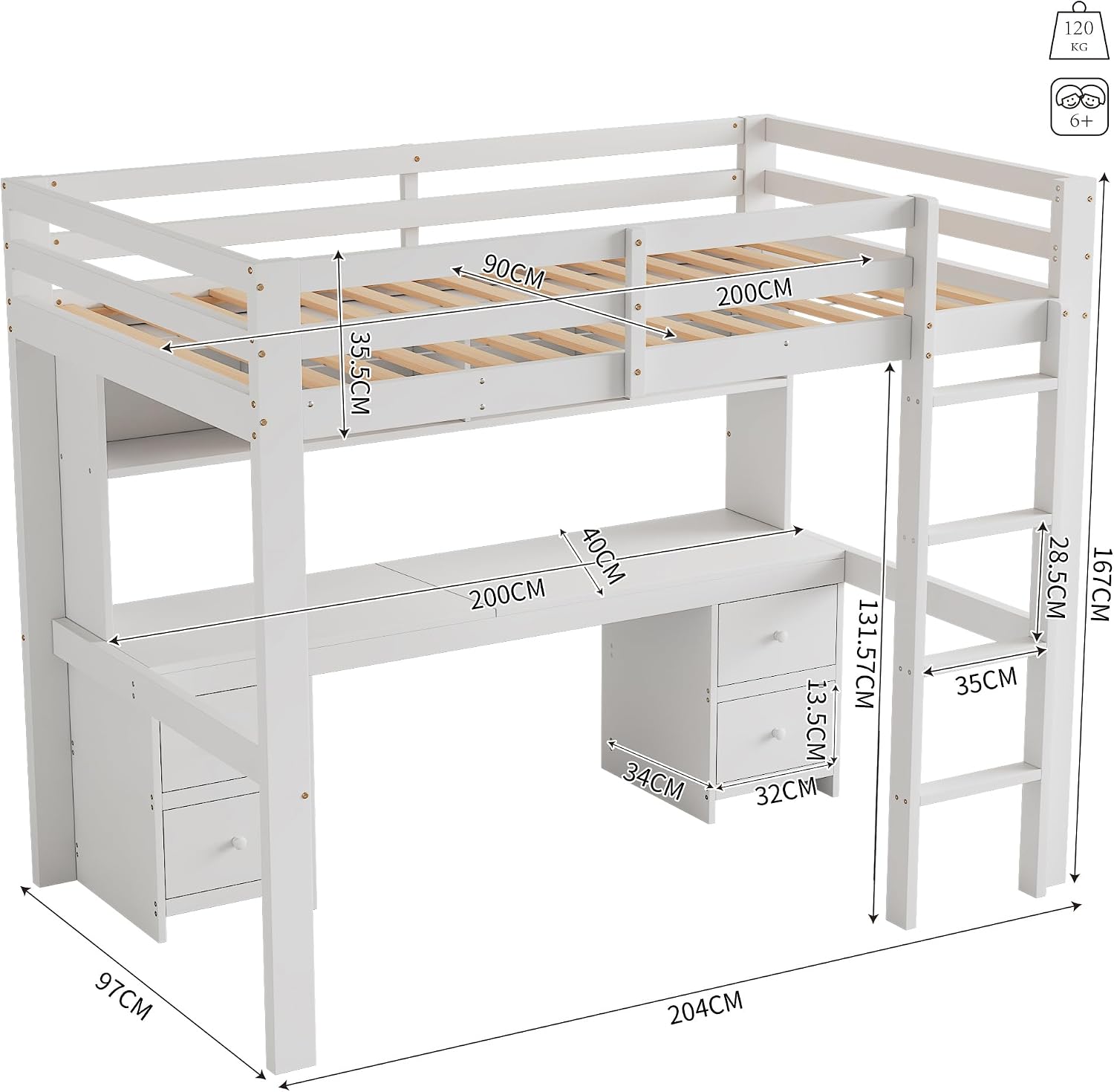

Figure 3.1: Diagram showing the dimensions of the Moimhear Loft Bed, including bed, desk, and storage measurements. This image can be used as a reference during assembly.

4. Operation

The Moimhear Loft Bed is designed for multi-functional use, providing a sleeping area, a workspace, and storage.

4.1 Using the Upper Bed

• Access the upper bed using the integrated ladder. Always face the ladder when climbing up or down.
• Ensure the mattress used is within the recommended thickness of 10-15 cm to maintain the effectiveness of the guardrails.
• The upper bed is intended for one occupant only.

4.2 Utilizing the Desk Area

• The spacious desk provides an area for studying, working, or creative activities.
• Place computers, books, and stationery on the desk surface.
• The integrated shelves above the desk offer convenient access to frequently used items.

4.3 Using Storage Drawers and Compartments

• The four drawers located under the desk are suitable for storing clothes, school supplies, or personal items.
• The four large compartments above the desk can hold books, decorative items, or other essentials.
• Ensure drawers are closed completely when not in use to maintain a tidy appearance and prevent accidental bumps.

Figure 4.1: Close-up view of the integrated drawers under the desk, demonstrating the storage capability.

Figure 4.2: Front view of the Moimhear Loft Bed, showing the desk area with integrated shelves and drawers.

5. Maintenance

Proper maintenance will extend the life and appearance of your Moimhear Loft Bed.

5.1 Cleaning Instructions

• For general cleaning, wipe surfaces with a soft, damp cloth.
• Avoid using harsh chemicals, abrasive cleaners, or polishes that may damage the finish.
• For stubborn marks, use a mild soap solution and immediately wipe dry.
• Do not use hand washing for the bed structure itself.

5.2 Regular Checks

• Periodically inspect all bolts, screws, and connections to ensure they are tight. Retighten if necessary.
• Check the ladder and guardrails for any signs of wear or damage. Replace any damaged parts immediately.
• Ensure bed slats are securely in place and undamaged.

6. Troubleshooting

This section addresses common issues you might encounter with your loft bed.

6.1 Loose Connections

• Symptom: The bed feels wobbly or unstable.
• Solution: Carefully inspect all bolts and screws. Use the appropriate tool to tighten any loose connections. Do not overtighten.

6.2 Squeaking Noises

• Symptom: The bed makes squeaking sounds when in use.
• Solution: Squeaking often indicates loose connections. Retighten all bolts and screws. If the issue persists, check if any wooden parts are rubbing against each other and apply a small amount of furniture wax or silicone spray to the contact points.

6.3 Drawers Not Sliding Smoothly

• Symptom: Drawers are difficult to open or close.
• Solution: Check for any obstructions in the drawer slides. Ensure the drawer runners are clean and free of debris. A small amount of silicone lubricant can be applied to the slides if needed.

7. Specifications

8. Warranty & Support

Moimhear products are manufactured to high-quality standards. For specific warranty details, please refer to the documentation included with your purchase or contact your retailer. If you encounter any issues or require assistance with assembly or parts, please contact Moimhear customer service or the seller directly.

For customer support, please refer to the contact information provided by your point of purchase or visit the official Moimhear website.
