1. Introduction
This manual provides essential instructions for the assembly, operation, and maintenance of your Outsunny 10' x 10' Hardtop Gazebo (Model: 84C-204V05DR). Please read this manual thoroughly before beginning assembly and retain it for future reference. Proper assembly and care will ensure the longevity and safe use of your gazebo.

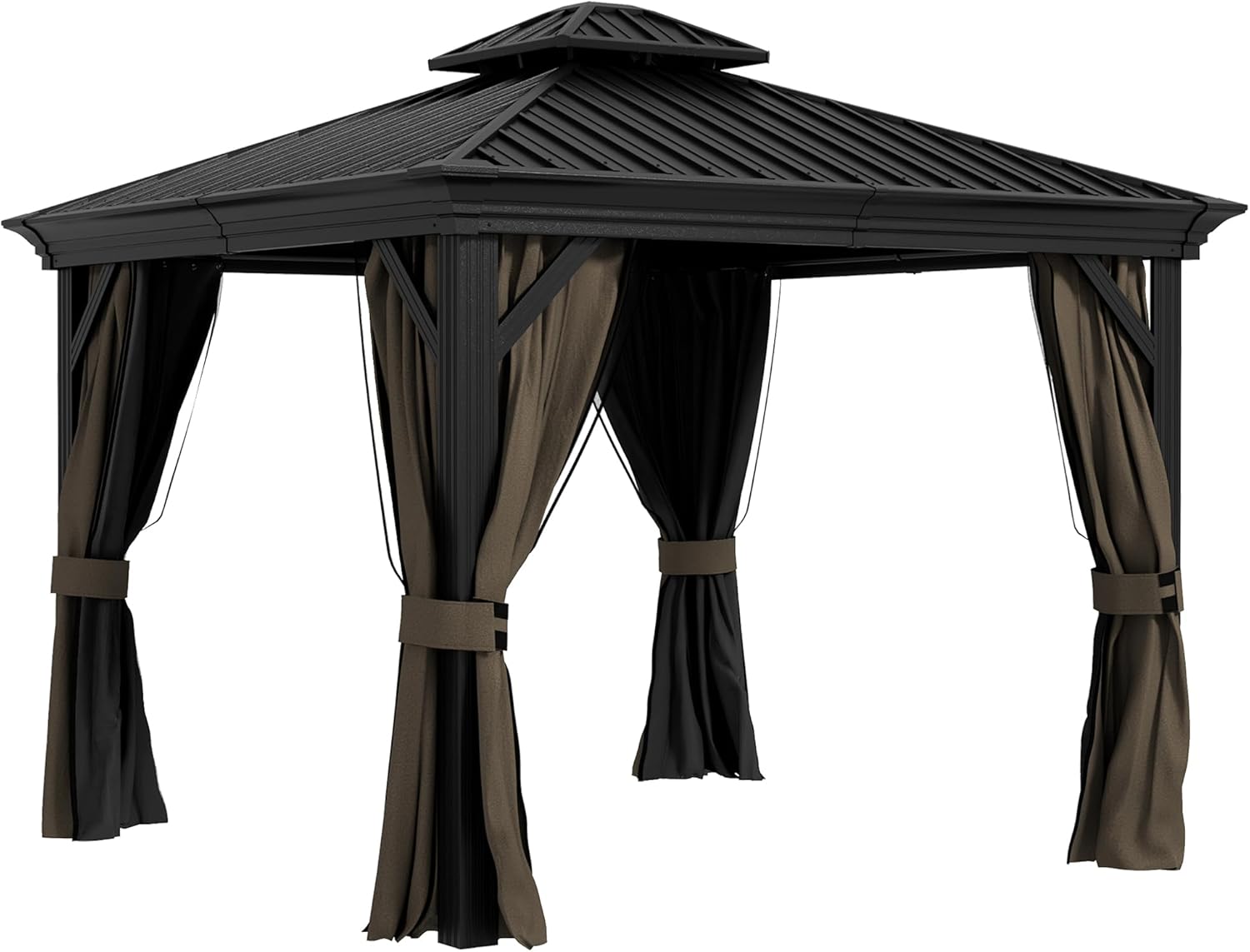

Image 1: Fully assembled Outsunny 10' x 10' Hardtop Gazebo with dark brown frame and curtains.
2. Safety Warnings
- Proper Assembly: Ensure all components are assembled correctly and securely according to the provided step-by-step instructions. Incorrect assembly can lead to instability and potential hazards.
- Secure Foundation: The gazebo must be securely anchored to a stable foundation. Use the provided stakes and expansion screws to mount it to an appropriate outdoor surface, whether soft or hard. Failure to do so can result in the gazebo being dislodged by wind.
- Wind Conditions: During strong winds or severe weather conditions, it is crucial to secure the gazebo and, if possible, remove any fabric components (curtains, netting) to prevent damage or collapse.
- Snow Load: While the galvanized steel hardtop roof is designed to withstand some snow, excessive snow accumulation should be cleared promptly to prevent structural strain.
- Heat Warning: Metal components can become very hot under direct sunlight. Exercise caution when handling metal parts during assembly or use on hot days to avoid burns.
- Fire Safety: If using a fire pit or other heat sources inside or near the gazebo, ensure adequate ventilation and maintain safe distances from all fabric and structural components to prevent fire hazards.
- Children and Pets: Keep children and pets away from the assembly area. Ensure all small parts and tools are out of reach.
3. Product Features
- Durable Construction: Features a galvanized steel hardtop roof and a powder-coated aluminum frame for enhanced durability and resistance to weather elements.
- Integrated Drainage: Designed with a gutter system to manage rainwater runoff, minimizing leaks.
- Dual Sidewalls: Includes both mosquito netting and polyester privacy curtains. The netting provides protection from insects while allowing airflow, and the curtains offer privacy and additional weather protection.
- Versatile Use: Suitable for various outdoor activities, providing shade and shelter for gatherings, dining, or relaxation.
- Secure Mounting: Comes with stakes and expansion screws for stable installation on diverse outdoor surfaces.
- Central Hook: A hook is located at the top center of the gazebo for hanging lights or a fan (accessories not included).

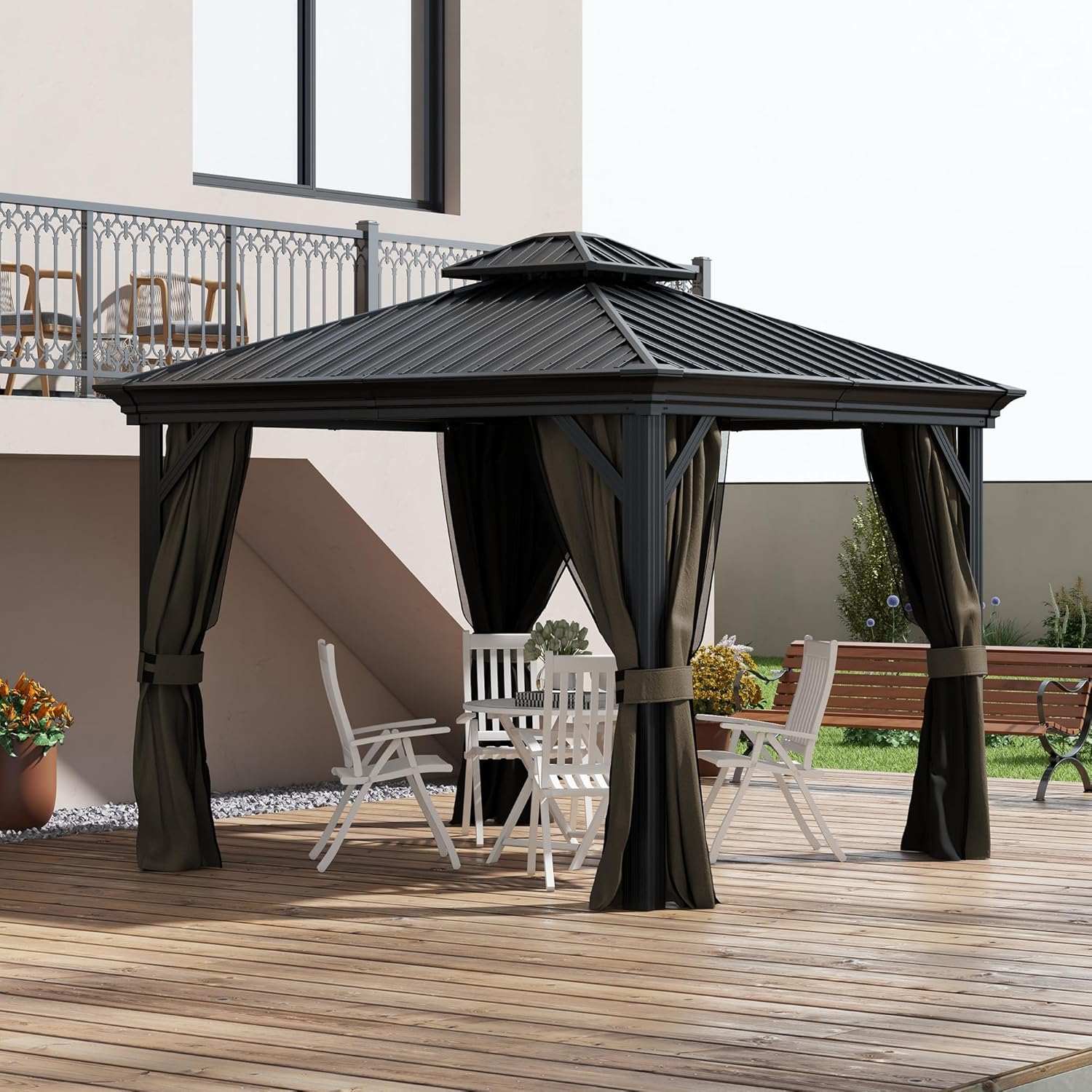

Image 2: Outsunny gazebo providing a shaded area on a wooden deck, furnished with outdoor seating.
Image 3: Detail of the galvanized metal double-tier roof, highlighting its robust construction for water protection, stability, and effective weather protection.
Image 4: Overview of materials: solid aluminum frame, 180G/M² polyester cloth, and 250G/M² breathable mesh for stability, anti-fading, and breathability.
Image 5: The top center hook, useful for hanging lights or a heater, enhancing the gazebo's functionality.
Image 6: Close-up details of the gazebo's features, including hook & loop straps for curtains, double-sided zippers, hanging loops, and feet with holes for reinforcement.
4. Setup & Assembly
The Outsunny Hardtop Gazebo requires assembly. It is recommended that at least two people participate in the assembly process to ensure safety and efficiency. Please follow the detailed step-by-step instructions provided in the separate assembly manual included with your product. Ensure all parts are present before beginning assembly.
Key Assembly Considerations:
- Tool Usage: While an Allen wrench is typically provided, an electric drill can significantly expedite the process, especially for securing numerous screws.
- Roof Panels: The roof panels may require careful alignment and patience during installation. Ensure they are properly seated to prevent potential leaks.
- Securing the Structure: Once assembled, firmly anchor the gazebo to your chosen outdoor surface using the provided stakes and expansion screws. This is critical for stability, particularly in windy conditions.
Video 1: An overview of the Outsunny 84C-204V05DR Gazebo, showcasing its features and potential setup in a backyard environment. This video is provided by the seller, Aosom Direct.
5. Operation
Using the Sidewalls:
- Mosquito Netting: The breathable mesh netting can be zipped closed to protect against insects while maintaining airflow.
- Privacy Curtains: The polyester curtains can be drawn and zipped closed for privacy or to block excessive sun, wind, or light rain.
- Securing Curtains/Netting: Use the integrated hook & loop straps to tie back the curtains or netting when not in use, keeping the space open and tidy.

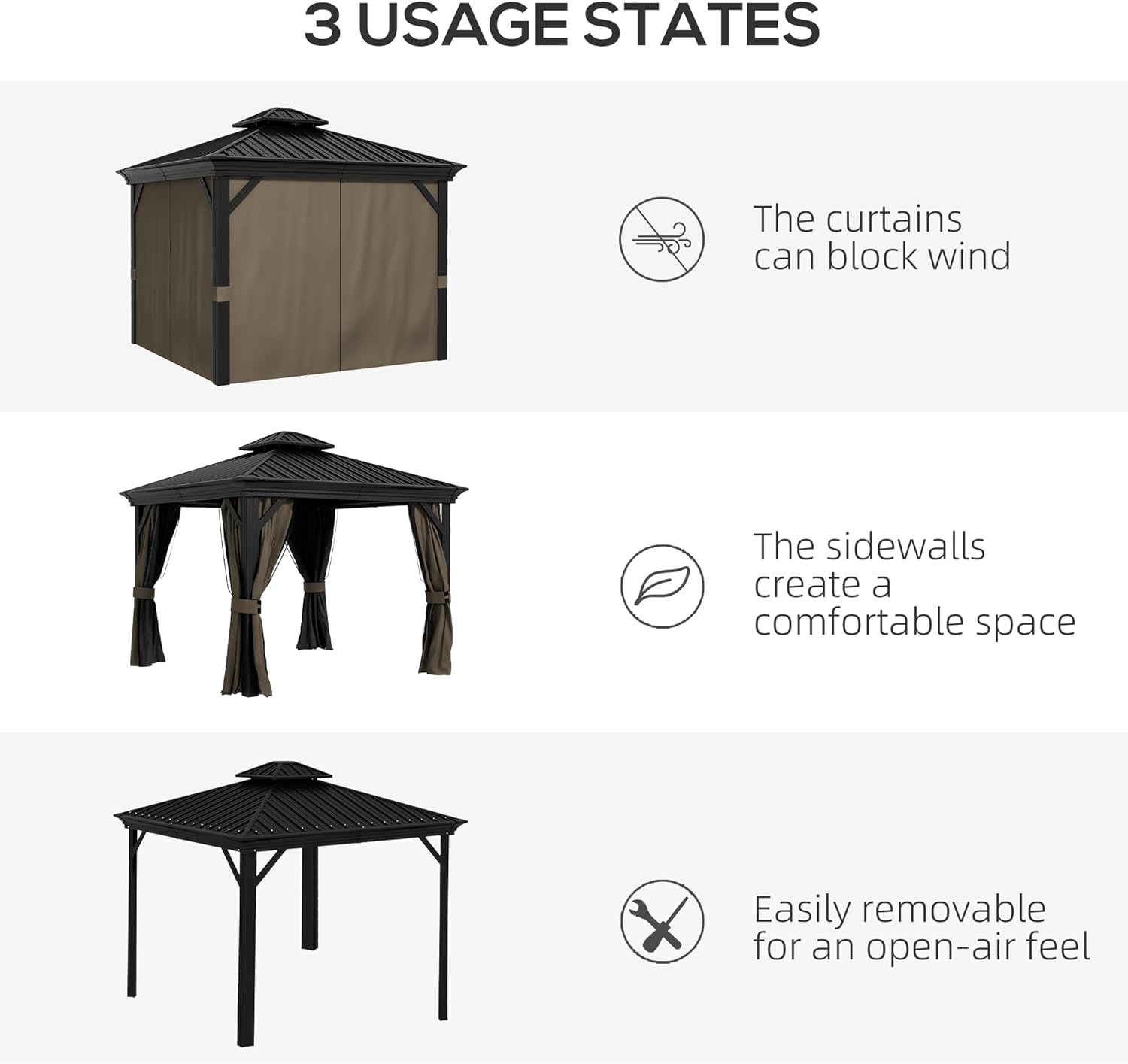

Image 7: Demonstrates three usage states: curtains closed for wind block, sidewalls creating a comfortable space, and easily removable for an open-air feel.
Image 8: A detailed view of the gazebo corner, showing the integration of netting and curtains, highlighting their functionality.
6. Maintenance
- Cleaning Frame: The powder-coated aluminum frame can be cleaned with a mild soap and water solution. Rinse thoroughly and dry to prevent water spots.
- Cleaning Fabric: Polyester curtains and netting can be spot cleaned with mild detergent and water. For deeper cleaning, they may be removed and hand-washed or machine-washed on a gentle cycle, then air-dried. Ensure they are completely dry before reattaching or storing to prevent mildew.
- Roof Care: Regularly inspect the galvanized steel roof for debris, leaves, or snow accumulation. Clear these promptly to maintain structural integrity and prevent staining.
- Fastener Check: Periodically check all screws, bolts, and anchors to ensure they remain tight and secure. Tighten any loose fasteners.
- Winter Storage (Optional): While the gazebo is designed for year-round use, consider removing and storing fabric components during harsh winter months to extend their lifespan. Ensure the frame remains securely anchored.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Gazebo feels unstable or sways in wind. | Insufficient anchoring; loose fasteners. | Ensure all legs are securely anchored to the ground using the provided stakes and expansion screws. Check and tighten all frame fasteners. Consider additional weight bags or permanent mounting if in a high-wind area. |
| Water leaks from the roof during rain. | Improperly installed roof panels; debris in gutter system. | Inspect roof panels for proper alignment and secure fastening. Clear any leaves or debris from the integrated gutter system. Apply a waterproof sealant to seams if necessary. |
| Zippers on curtains/netting are stuck or difficult to operate. | Dirt/debris in zipper teeth; fabric caught. | Clean zipper teeth with a small brush and mild soap. Apply a silicone-based lubricant or zipper wax. Ensure fabric is not caught in the zipper path. |
| Fabric (curtains/netting) appears faded or damaged. | Prolonged exposure to harsh UV rays or extreme weather. | Regular cleaning and proper storage during off-seasons can extend fabric life. Consider replacement fabric if damage is significant. |
8. Specifications
| Attribute | Detail |
|---|---|
| Brand | Outsunny |
| Model Number | 84C-204V05DR |
| Product Dimensions | 118"L x 118"W x 112.25"H (9.8' L x 9.8' W) |
| Item Weight | 194 Pounds |
| Frame Material | Aluminum |
| Roof Material | Galvanized Steel |
| Curtain/Netting Material | Polyester, Breathable Mesh |
| Color | Dark Brown |
| Water Resistance Level | Water Resistant |
| UV Protection | Yes |
| Assembly Required | Yes |
| UPC | 196393339206 |
Image 9: Dimensional diagram of the Outsunny 10' x 10' Hardtop Gazebo, showing key measurements.
9. Warranty & Support
For warranty information, replacement parts, or further assistance, please contact Outsunny customer support. Refer to your purchase documentation for specific warranty terms and contact details. You can also visit the official Outsunny store on Amazon for additional product information and support resources.
Online Store: Outsunny Amazon Store
