FZF Countertop Ice Maker Machine User Manual

1. Introduction

Thank you for choosing the FZF Countertop Ice Maker Machine. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new ice maker. Please read this manual thoroughly before first use and keep it for future reference.

This portable ice maker is designed to produce bullet-shaped ice cubes quickly and conveniently, making it ideal for home use, camping, parties, and more. It features a high-efficiency compressor, self-cleaning function, and intelligent indicators for ease of use.

2. Safety Instructions

• Read all instructions before operating the appliance.
• Ensure the power supply voltage matches the rating label on the appliance.
• Do not immerse the power cord, plug, or any part of the appliance in water or other liquids.
• Unplug the appliance from the outlet when not in use, before cleaning, or during maintenance.
• Keep the appliance away from heat sources and direct sunlight.
• Do not operate the appliance with a damaged cord or plug.
• This appliance is for indoor household use only.
• Ensure proper ventilation around the appliance. Maintain at least 6 inches of clearance from walls and other objects.
• Use only potable water in the ice maker.
• Do not use mechanical devices to defrost the ice maker. Do not puncture refrigerant tubing.

3. Product Overview

The FZF Countertop Ice Maker Machine is designed for convenience and efficiency. Key features include:

• Quick Ice Production: Produces 9 bullet-shaped ice cubes in approximately 6 minutes.
• High Capacity: Up to 26 pounds of ice per 24 hours, with a 1.5-pound ice storage basket.
• Two Ice Cube Sizes: Select between small and large bullet ice cubes.
• Intelligent Indicators: LED lights indicate when to add water or when the ice basket is full.
• Self-Cleaning Function: Simplifies maintenance and ensures hygiene.
• Quiet Operation: Operates at less than 45dB.
• Compact Design: Fits easily on countertops.

Figure 3.1: The FZF Countertop Ice Maker Machine, showcasing its sleek black design, included ice basket, and ice scoop.

Figure 3.2: The compact design of the FZF ice maker, measuring 12.3 inches in depth, 8.7 inches in width, and 12.6 inches in height, making it suitable for various countertop spaces. The removable ice basket and ice scoop are also visible.

Figure 3.3: A close-up of the ice maker's control panel and interior, highlighting the advanced infrared sensor that detects ice levels and water levels. LED indicators for 'Add Water' and 'Ice Full' provide clear operational status.

Figure 3.4: The FZF ice maker operates quietly at approximately 45dB, comparable to a quiet conversation or a refrigerator, ensuring minimal disturbance in your environment.

4. Setup

Before first use, it is recommended to keep the ice maker upright for at least 24 hours to allow the refrigerant to settle. Then, follow these steps:

1. Unpack: Carefully remove the ice maker from its packaging and place it on a stable, level surface away from direct sunlight and heat sources. Ensure there is adequate ventilation around the unit.
2. Clean: Before making ice for consumption, clean the interior of the ice maker. Refer to the 'Maintenance and Cleaning' section for detailed instructions.
3. Add Water: Open the lid and remove the ice basket. Fill the water reservoir with potable water up to the MAX fill line. Do not overfill.
4. Plug In: Connect the power cord to a grounded electrical outlet.

Figure 4.1: Step-by-step guide for initial use. Step 1: Add water to the reservoir, ensuring it is below the MAX mark. Step 2: Press the ON/OFF button and then the SELECT button to begin ice production. Step 3: Remove the ice cubes with the provided scoop once they are ready.

5. Operating Instructions

Once the ice maker is set up and filled with water, you can begin making ice:

1. Power On: Press the 'ON/OFF' button on the control panel. The 'POWER' indicator will light up.
2. Select Ice Size: Press the 'SELECT' button to choose your desired ice cube size: 'S' for small or 'L' for large. The corresponding indicator light will illuminate.
3. Ice Production: The ice maker will automatically begin the ice-making cycle. The first batch of ice typically takes about 6-10 minutes. Subsequent batches may be faster.
4. Ice Full Indicator: When the ice basket is full, the 'ICE FULL' indicator will light up, and the ice production will pause. Remove ice from the basket to resume production.
5. Add Water Indicator: If the water level in the reservoir is too low, the 'ADD WATER' indicator will light up. Add more water to the reservoir to continue ice production.
6. Power Off: To stop ice production, press the 'ON/OFF' button again.

Figure 5.1: The FZF ice maker offers two bullet-shaped ice cube sizes: Small (0.78 inches diameter, 0.95 inches length) and Large (0.90 inches diameter, 1.10 inches length), allowing you to customize your ice for various beverages.

6. Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your ice maker.

6.1 Self-Cleaning Function

The FZF ice maker features an automatic self-cleaning function:

1. Ensure there is water in the reservoir.
2. Press and hold the 'ON/OFF' button for 5 seconds. The unit will enter self-cleaning mode.
3. The cleaning cycle will run for a few minutes, circulating water through the system.
4. Once the cycle is complete, drain the water from the reservoir using the drain plug located at the bottom of the unit.

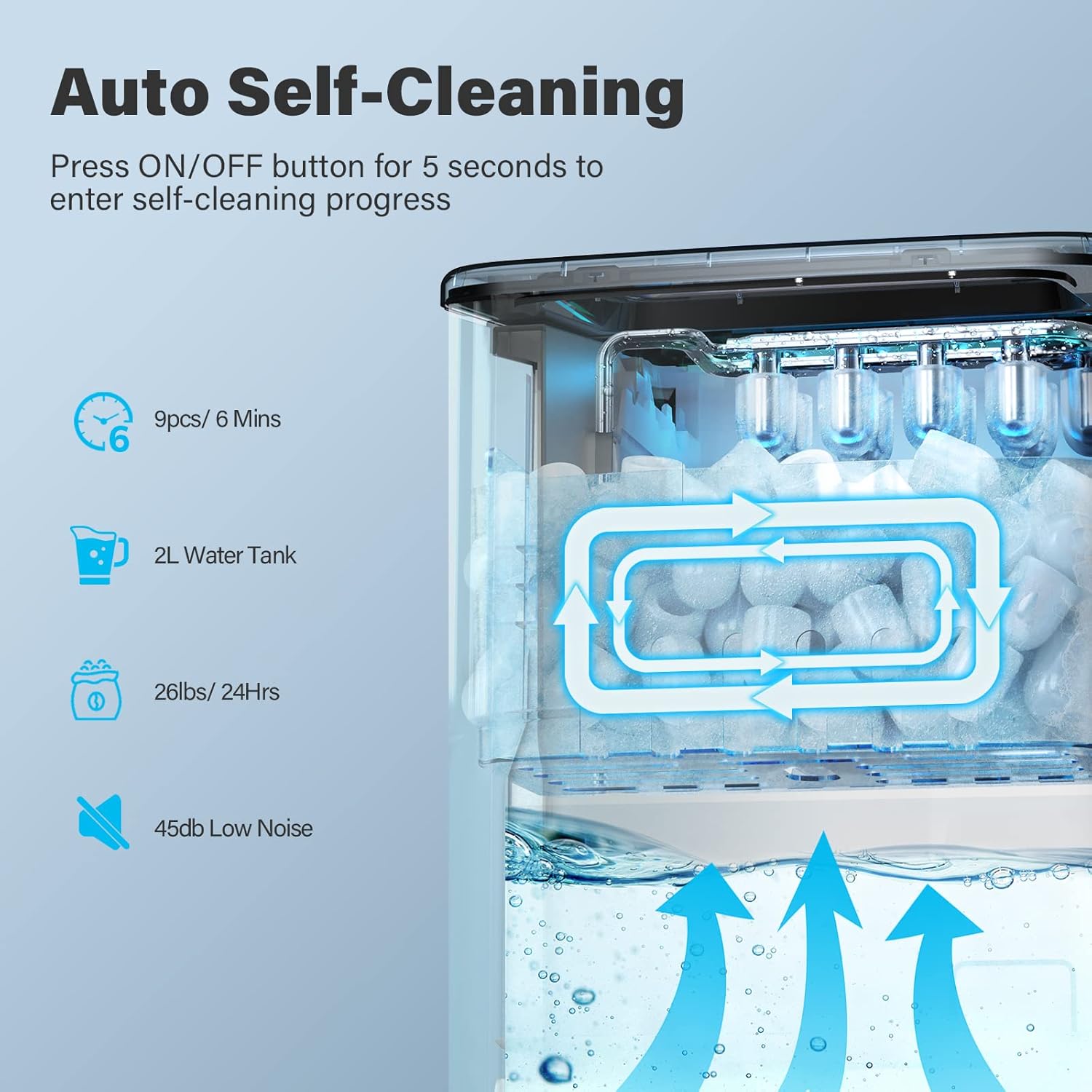

Figure 6.1: The auto self-cleaning function is activated by pressing the ON/OFF button for 5 seconds. This process circulates water to clean the internal components, ensuring hygienic ice production.

6.2 Regular Cleaning

For thorough cleaning:

• Unplug the ice maker before cleaning.
• Remove the ice basket and clean it with mild detergent and warm water. Rinse thoroughly.
• Drain any remaining water from the reservoir using the drain plug.
• Wipe the interior and exterior surfaces of the ice maker with a soft cloth dampened with a mild cleaning solution.
• For stubborn mineral deposits, use a solution of water and vinegar or a commercial ice maker cleaner. Follow the cleaner's instructions.
• Rinse the interior thoroughly with clean water after cleaning to remove any residue.
• Dry all parts completely before reassembling and storing the unit.

7. Troubleshooting

If you encounter issues with your ice maker, refer to the following common problems and solutions:
