1. Introduction
This manual provides detailed instructions for the Rapoo V500Pro Full-Size Mechanical Gaming Keyboard. Please read this manual thoroughly before using the product to ensure proper operation and to maximize its features. The V500Pro is designed for both gaming and office use, featuring durable mechanical switches, customizable RGB backlighting, and programmable keys.
Image 1: Rapoo V500Pro Full-Size Mechanical Gaming Keyboard (White version).
2. Setup Guide
2.1 Package Contents
- Rapoo V500Pro Mechanical Gaming Keyboard
- USB-C Cable
- User Manual (this document)
2.2 Connecting the Keyboard
- Locate the USB-C port on the back of the keyboard.
- Connect one end of the provided USB-C cable to the keyboard's USB-C port.
- Connect the other end of the USB-C cable (USB-A connector) to an available USB port on your computer or compatible device.
- The keyboard will be automatically recognized by your operating system. No additional drivers are typically required for basic functionality.
Image 2: Connecting the USB-C cable to the keyboard. The keyboard features an optimized cable management system allowing the cable to be routed to the left, center, or right.
2.3 Cable Management
The V500Pro features an optimized cable management system on its underside. You can route the USB-C cable to the left, center, or right to suit your desk setup and minimize cable clutter.
Image 3: Underside of the keyboard showing the three-way cable routing channels.
3. Operating Instructions
3.1 Mechanical Switches
The Rapoo V500Pro utilizes brown mechanical switches, offering a tactile feel with a lower audible click compared to blue switches, making them suitable for both gaming and typing in various environments.
Image 4: Detail of the brown mechanical switch, highlighting its design for balanced performance.
3.2 RGB Backlighting Customization
The keyboard features customizable Rainbow RGB backlighting with 20 lighting modes. You can adjust brightness and speed directly from the keyboard.
- FN + PGUP/PGDN: Switch between different backlight modes.
- FN + INS: Switch side lights modes (RGB/solid color/solid breathing/off).
- FN + DEL: Switch side lights color (red/orange/yellow/green/cyan/blue/purple/white).
- FN + D: Brightness adjustment (press repeatedly to cycle through levels).
- FN + D: Breathing frequency adjustment (press repeatedly to cycle through speeds).
- FN + ESC (short press): Turn backlight on/off.
- FN + ESC (long press): Restore default lighting settings.
- FN + V: Switch logo lighting (on/breathing/off).

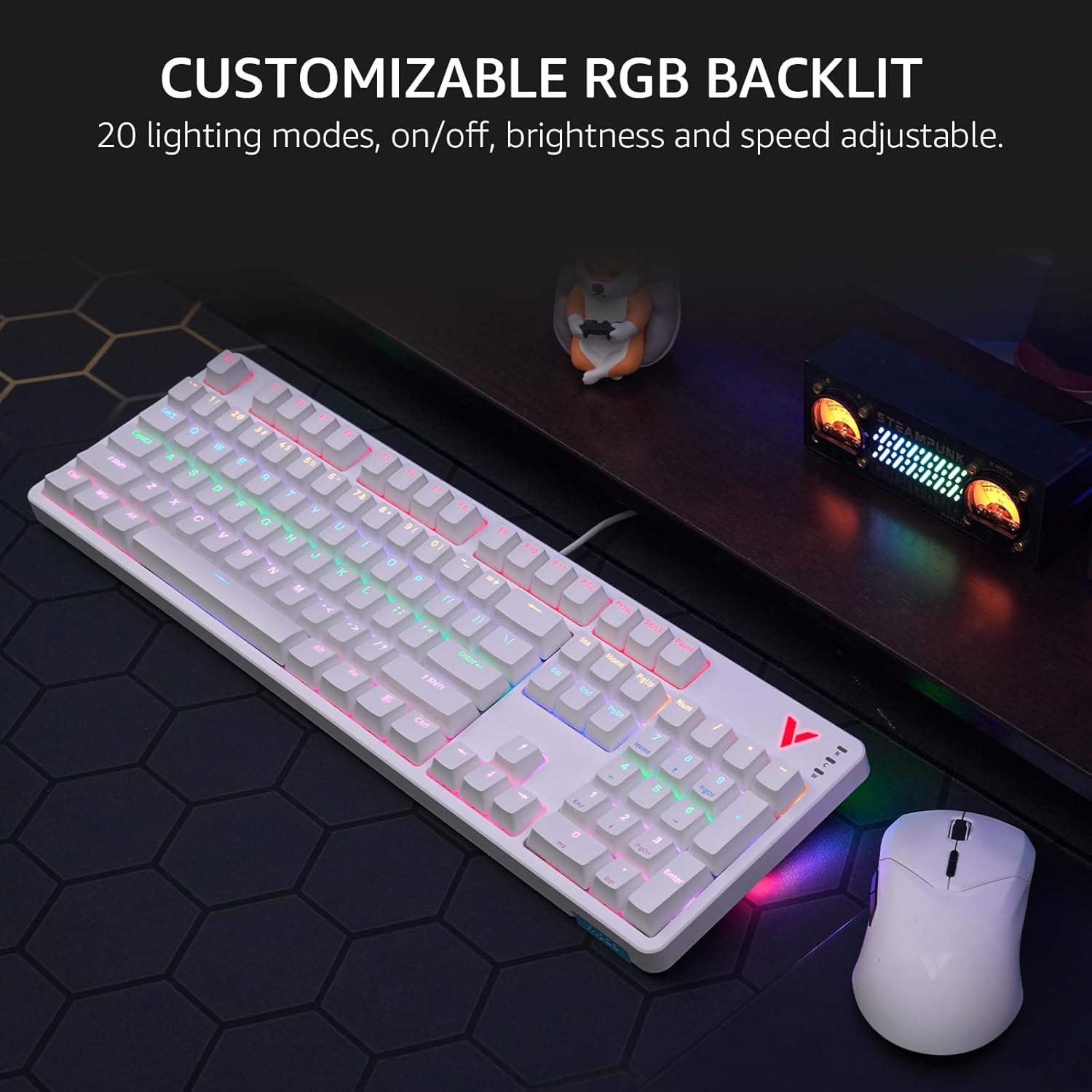

Image 5: The keyboard displaying its customizable RGB backlighting in a typical desktop setup.
Video 1: An overview of the Rapoo V500Pro keyboard, demonstrating its features including RGB lighting and mechanical switches.
3.3 Multimedia Hotkeys
The keyboard includes 12 multimedia hotkeys, accessible by pressing the FN key in combination with the F1-F12 keys. These provide quick access to common functions.
| Key Combination | Function |
|---|---|
| FN + F1 | Computer |
| FN + F2 | Calculator |
| FN + F3 | Mailbox |
| FN + F4 | Homepage |
| FN + F5 | Search |
| FN + F6 | Media Player |
| FN + F7 | Previous Track |
| FN + F8 | Next Track |
| FN + F9 | Play/Pause |
| FN + F10 | Volume Down |
| FN + F11 | Volume Up |
| FN + F12 | Mute |
| FN + Win | Windows Key Lock |
Image 6: Visual representation of the FN key combinations for multimedia and system controls.
3.4 Programmable Keys and On-board Memory
The V500Pro allows for programming 103 keys (excluding the FN key) to assign commands and macros. This functionality is managed through dedicated software (available for Windows operating systems) and stored in the keyboard's on-board memory. This enables users to save profiles and apply them across different devices without re-configuration.
Image 7: The software interface for customizing key functions and creating macros. Note: Keyboard driver available for Windows system only.
3.5 Anti-Ghosting
The keyboard supports full 104-key anti-ghosting, ensuring that all simultaneous key presses are registered accurately. This is particularly beneficial for complex skill combinations in gaming.

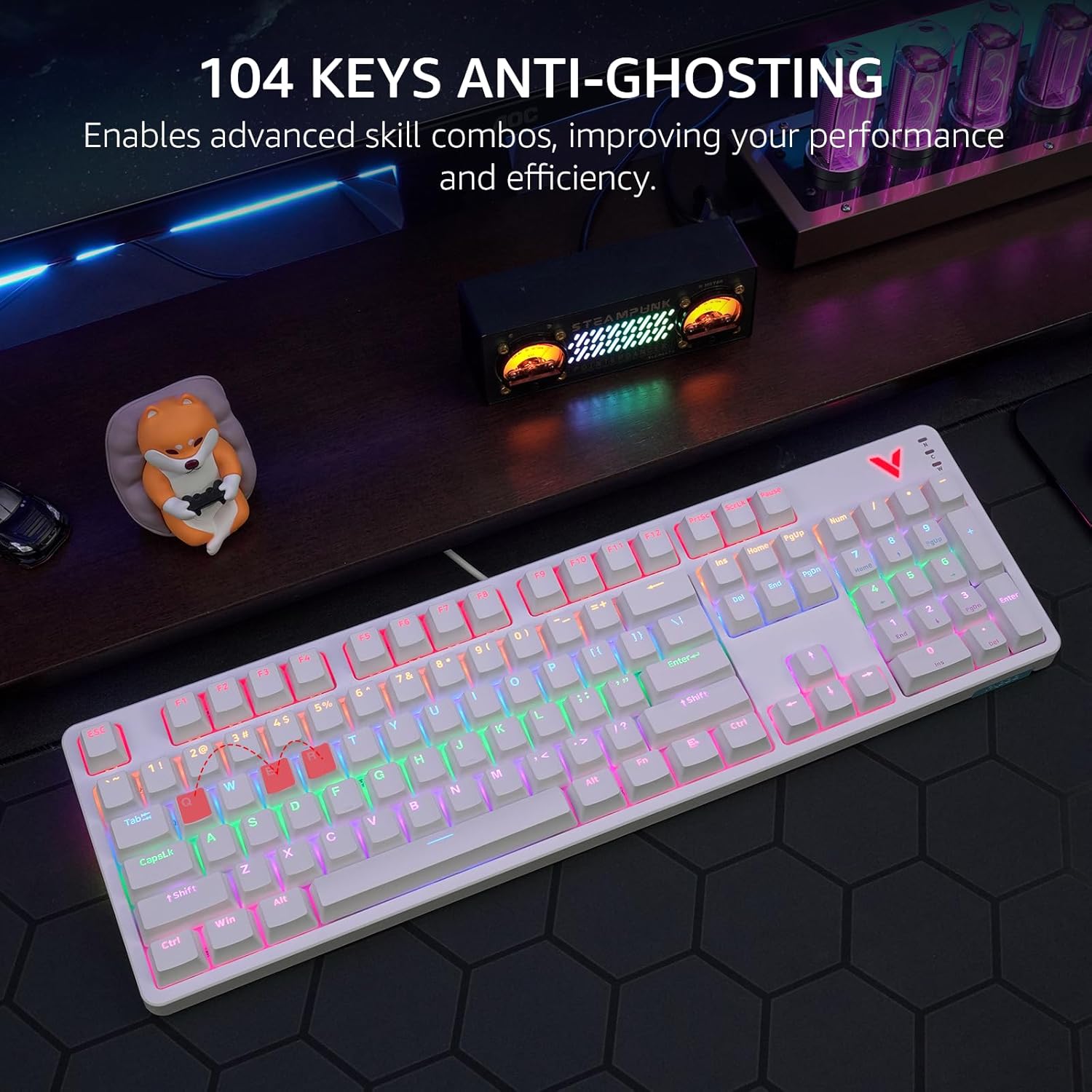

Image 8: Visual explanation of anti-ghosting technology, showing multiple key presses being registered simultaneously.
4. Maintenance
4.1 Cleaning the Keyboard
To clean your Rapoo V500Pro keyboard, follow these steps:
- Disconnect the keyboard from your computer before cleaning.
- Use a soft, lint-free cloth slightly dampened with water or a mild cleaning solution to wipe the keycaps and chassis.
- For deeper cleaning, the top case of the keyboard is removable, allowing easier access to the switches and plate. Gently detach the top case as shown in the product images.
- Avoid spraying liquids directly onto the keyboard.
- Use compressed air to remove dust and debris from between the keycaps.
Image 9: The removable top case feature, which facilitates cleaning and allows for switching between high and low profile keycap setups.
4.2 Storage
Store the keyboard in a dry, cool environment away from direct sunlight and extreme temperatures to prevent damage.
5. Troubleshooting
| Problem | Possible Solution |
|---|---|
| Keyboard not responding |
|
| Backlighting not working or incorrect |
|
| Keys are not registering or double-typing |
|
6. Specifications
| Feature | Detail |
|---|---|
| Model | V500Pro |
| Keyboard Type | Full-Size Mechanical Gaming Keyboard |
| Number of Keys | 104 |
| Switch Type | Brown Mechanical Switches |
| Backlighting | Customizable Rainbow RGB (20 modes) |
| Anti-Ghosting | All 104 Keys |
| Programmable Keys | 103 (excluding FN) with On-board Memory |
| Multimedia Hotkeys | 12 (FN + F1-F12) |
| Connectivity | USB-C (Wired) |
| Material | Aircraft-grade aluminum alloy frame |
| Product Dimensions | 17.4 x 5.29 x 1.58 inches (44.2 x 13.4 x 4 cm) |
| Item Weight | 2.42 pounds (1.1 kg) |
| Compatible Devices | PC, Laptop, Gaming Console, Smart TV |
Image 10: Dimensions and weight of the Rapoo V500Pro keyboard.
7. Warranty and Support
Rapoo products are designed for durability and performance. For warranty information, technical support, or service inquiries, please refer to the official Rapoo website or contact your local distributor. Keep your purchase receipt for warranty claims.
Online resources and software downloads (e.g., for programmable keys) can typically be found on the official Rapoo support page.
