Daewoo WM714TTWA1DE Front-Load Washing Machine User Manual

Introduction

Thank you for choosing the Daewoo WM714TTWA1DE Front-Load Washing Machine. This user manual provides essential information for the safe and efficient operation, installation, maintenance, and troubleshooting of your appliance. Please read this manual thoroughly before using the washing machine and keep it for future reference.

Safety Information

Always adhere to the following safety precautions to prevent injury or damage to the appliance:

• Read all instructions before use and retain them for future reference.
• Ensure the washing machine is connected to a grounded power outlet with the correct voltage (220 Volts).
• Do not operate the machine if the power cord or plug is damaged.
• Keep children and pets away from the appliance during operation.
• Do not wash items that have been cleaned, washed, soaked, or spotted with combustible or explosive substances.
• Always close the water tap after use to prevent leaks.
• Before cleaning or maintenance, always unplug the appliance from the power supply.

Product Overview

Familiarize yourself with the main components of your Daewoo WM714TTWA1DE washing machine.

Figure 1: Front view of the Daewoo WM714TTWA1DE washing machine, showcasing its white body, black door, and control panel.

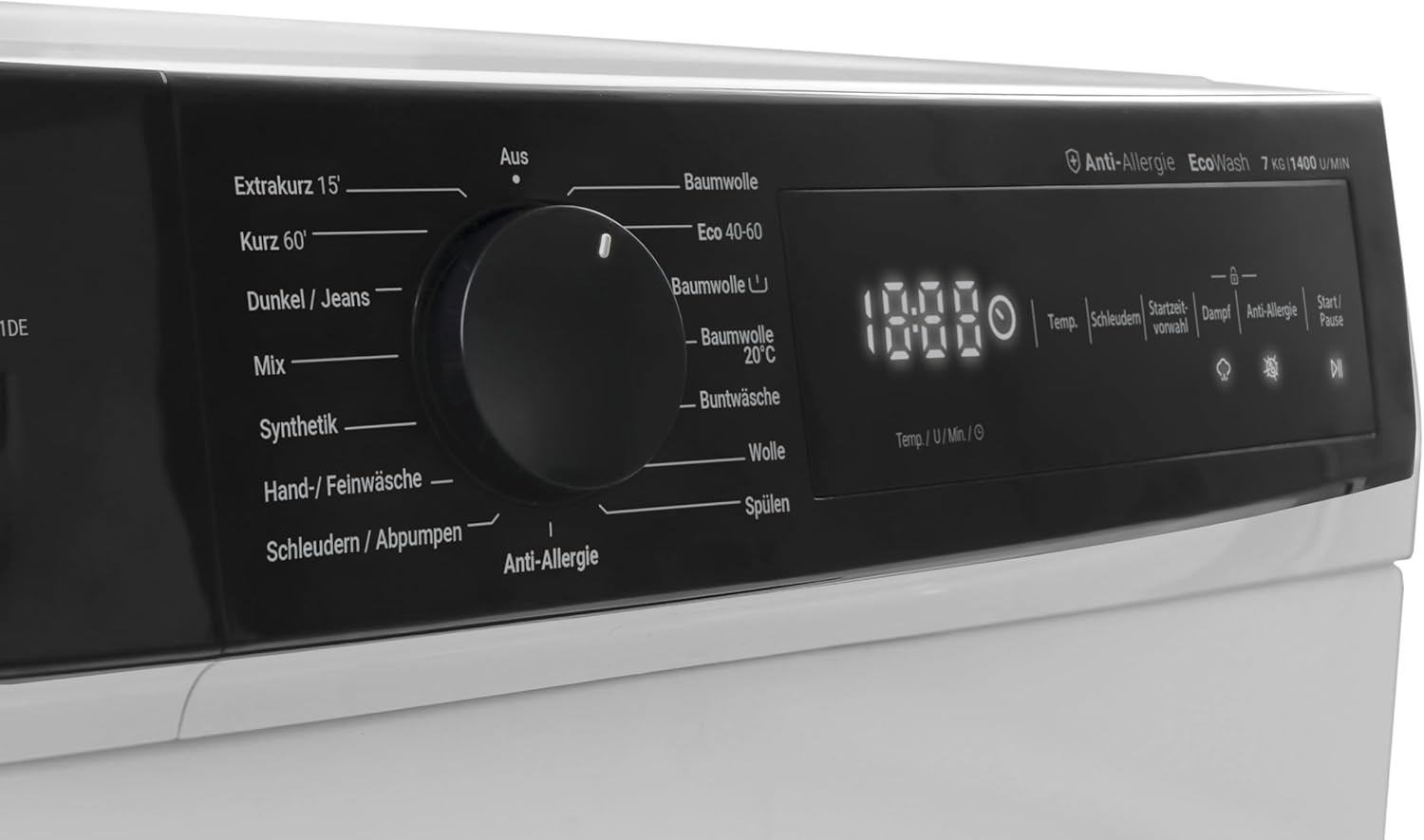

Figure 2: Detailed view of the control panel, featuring the program selection dial, LED display, and touch-sensitive buttons for various functions.

Figure 3: Inside the washing machine drum, showing the stainless steel interior with perforations for water circulation and the agitator paddles.

Setup

Unpacking

• Carefully remove all packaging materials, including the polystyrene base and any protective film.
• Locate and remove the transport bolts from the rear of the machine. These bolts secure the drum during transit and must be removed before operation to prevent damage. Keep them for future transport.

Installation

• Location: Place the washing machine on a firm, level surface. Ensure there is adequate space around the machine for ventilation and maintenance.
• Leveling: Adjust the leveling feet at the bottom of the machine until it is perfectly stable and level. This prevents excessive vibration and noise during operation.
• Water Connection: Connect the inlet hose to a cold water tap and securely attach the other end to the water inlet valve on the back of the machine. Ensure all connections are tight to prevent leaks. Position the drain hose into a suitable drain pipe or sink, ensuring it is not kinked.
• Electrical Connection: Plug the power cord into a dedicated, grounded 220V electrical outlet. Do not use extension cords or adapters.

Figure 4: Angled view illustrating the compact design, useful for planning installation space. Dimensions are approximately 52.8 cm (depth) x 59.7 cm (width) x 84.5 cm (height).

Operating Instructions

Control Panel Overview

Figure 5: Detailed view of the LED display and function buttons, including Temperature, Spin, Delay Start, Steam, Anti-Allergy, and Start/Pause.

• Program Dial: Used to select the desired washing program.
• LED Display: Shows remaining time, selected temperature, spin speed, and error codes.
• Temp. Button: Adjusts the washing temperature.
• Schleudern (Spin) Button: Modifies the spin speed.
• Startzeitvorwahl (Delay Start) Button: Sets a delayed start time for the wash cycle.
• Dampf (Steam) Button: Activates the steam function for certain programs.
• Anti-Allergie (Anti-Allergy) Button: Enhances rinsing for allergy sufferers.
• Start / Pause Button: Starts, pauses, or resumes the selected program.

Washing Programs

The Daewoo WM714TTWA1DE offers 15 standard programs. Below are some common programs and their typical uses:

Starting a Wash Cycle

1. Load Laundry: Open the door and place your sorted laundry into the drum. Do not overload the machine (max 7 kg).
2. Add Detergent: Pull out the detergent dispenser drawer and add the appropriate amount of detergent and fabric softener to the designated compartments.
3. Close Door: Close the washing machine door firmly until it clicks shut.
4. Select Program: Turn the program dial to select the desired washing program. The LED display will show the default settings for that program.
5. Adjust Settings (Optional): Use the Temp., Spin, Delay Start, Steam, or Anti-Allergy buttons to customize the program settings if needed.
6. Start Cycle: Press the Start / Pause button to begin the wash cycle. The machine will lock the door and start filling with water.
7. End of Cycle: Once the program is complete, the machine will signal with an audible alert, and the door will unlock. Remove your laundry promptly.

Maintenance and Cleaning

Regular maintenance ensures optimal performance and extends the lifespan of your washing machine.

Cleaning the Detergent Dispenser

Periodically remove the detergent dispenser drawer and rinse it under running water to remove any detergent residue. Use a brush if necessary to clean stubborn buildup.

Cleaning the Drum

Run a maintenance wash (e.g., a hot cotton cycle with no laundry and a descaling agent or washing machine cleaner) monthly to prevent odor and mold buildup.

Cleaning the Pump Filter

The pump filter, usually located at the bottom front of the machine, should be cleaned regularly (e.g., every few months) to remove lint, coins, or other small objects that may block the drain. Refer to the diagram near the filter for specific instructions on opening and cleaning.

Care After Each Wash

• Wipe the door seal and glass after each wash to remove any moisture or residue.
• Leave the door slightly ajar to allow the drum to air dry and prevent odors.
• Wipe the exterior of the machine with a soft, damp cloth. Do not use abrasive cleaners.

Troubleshooting

If you encounter issues with your washing machine, consult the table below for common problems and their solutions.

If the problem persists after trying these solutions, please contact customer support.

Specifications

Key technical specifications for the Daewoo WM714TTWA1DE washing machine:

For detailed energy information, please refer to the official EU EPREL database: https://eprel.ec.europa.eu/qr/1510872

Figure 6: EU Energy Label for the Daewoo WM714TTWA1DE, showing its A-class energy efficiency, 7 kg capacity, 45 kWh/100 cycles, 45 liters water consumption, and 77 dB noise level.

Warranty and Support

Warranty Information

This Daewoo WM714TTWA1DE washing machine comes with a standard manufacturer's warranty of 24 months from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

Customer Support

For technical assistance, service requests, or questions not covered in this manual, please contact your retailer or the Daewoo customer support in your region. When contacting support, please have your model number (WM714TTWA1DE) and purchase details ready.
