Daewoo WM814TTWA1DE Front-Load Washing Machine

1. Important Safety Information

Read all instructions carefully before using the appliance. Keep this manual for future reference.

• Electrical Safety: Ensure the washing machine is connected to a properly grounded 220V power outlet. Do not use extension cords or adapters. Disconnect from power before cleaning or maintenance.
• Water Connection: Connect the water inlet hose securely to a cold water tap. Ensure drain hose is properly installed to prevent leaks.
• Children and Pets: Keep children and pets away from the appliance during operation. Do not allow them to play with the controls or inside the drum.
• Flammable Materials: Do not wash items that have been cleaned, washed, soaked, or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.).
• Ventilation: Ensure adequate ventilation around the appliance. Do not block ventilation openings.
• Transit Bolts: Before first use, remove all transit bolts from the rear of the machine. Failure to do so can cause severe damage and void the warranty.

2. Product Overview

The Daewoo WM814TTWA1DE is an 8 kg front-load washing machine designed for efficient and convenient laundry care. It features an inverter motor for quiet operation and a user-friendly SoftTouch control panel with an LED display.

2.1 Key Features

• Capacity: 8 kg, suitable for medium-sized households.
• Spin Speed: Up to 1400 revolutions per minute (rpm) for effective water extraction.
• Energy Efficiency: Class A rating (new energy label scale) for reduced energy consumption.
• Inverter Motor: Provides powerful yet quiet operation and enhanced durability.
• Control Panel: Intuitive program dial combined with SoftTouch buttons and an LED display for easy program selection and setting adjustments.
• Programs: 15 standard washing programs to cater to various fabric types and soil levels.

2.2 Components

Familiarize yourself with the main parts of your washing machine:

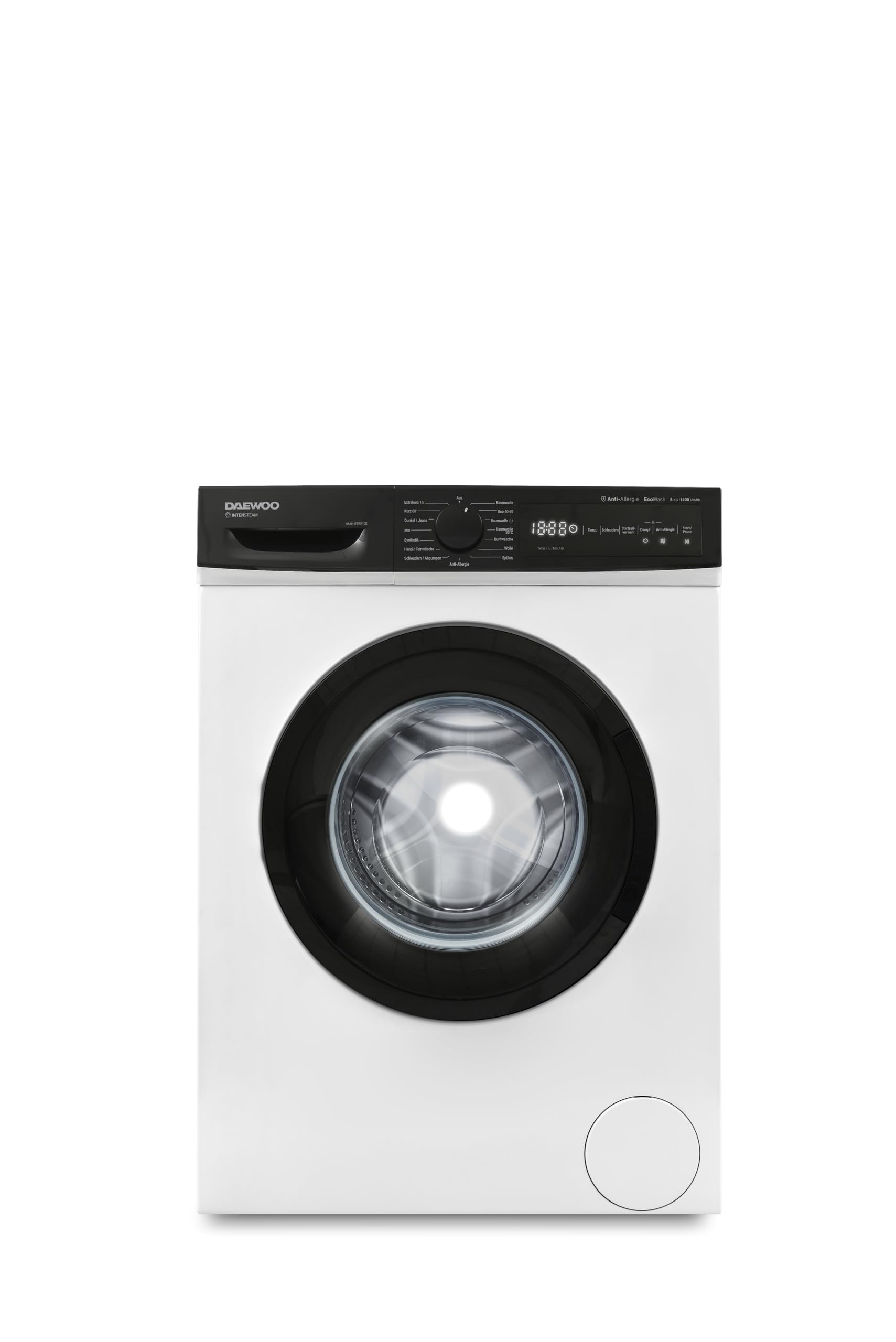

Figure 2.1: Front view of the Daewoo WM814TTWA1DE washing machine, showing the control panel, detergent drawer, and drum door.

• Control Panel: Located at the top front, featuring the program dial, LED display, and touch buttons.
• Detergent Drawer: Pull-out compartment for adding detergent and fabric softener.
• Drum Door: Front-loading door for accessing the washing drum.
• Washing Drum: Stainless steel drum where laundry is washed.
• Adjustable Feet: Located at the bottom, used for leveling the machine.

Figure 2.2: The washing machine with its front door open, revealing the stainless steel drum.

Figure 2.3: Close-up view of the interior of the washing machine drum, showing the textured surface for effective cleaning.

3. Installation and Setup

Proper installation is crucial for the safe and efficient operation of your washing machine. If you are unsure, consult a qualified technician.

3.1 Unpacking and Removing Transit Bolts

1. Carefully remove all packaging materials.
2. Locate and remove the four transit bolts from the rear of the washing machine. These bolts secure the drum during transport and must be removed before use. Keep the bolts for future transport if needed.
3. Insert the plastic caps (supplied) into the holes left by the transit bolts.

3.2 Leveling the Machine

The washing machine must be perfectly level to prevent excessive vibration and noise during operation.

1. Place the machine on a firm, flat surface.
2. Use a spirit level to check if the machine is level from front to back and side to side.
3. Adjust the four adjustable feet at the bottom of the machine by turning them clockwise or counter-clockwise until the machine is perfectly level and stable.
4. Tighten the lock nuts on the feet to secure them in position.

3.3 Water Connection

1. Connect the supplied water inlet hose to the cold water tap and to the inlet valve on the back of the washing machine. Ensure connections are tight to prevent leaks.
2. Position the drain hose into a standpipe or over the edge of a sink, ensuring it is securely fixed to prevent it from dislodging during draining. The end of the drain hose should be between 60 cm and 100 cm from the floor.

3.4 Electrical Connection

• Plug the power cord into a grounded 220V, 50Hz electrical outlet.
• Ensure the power cord is not trapped or crushed by the machine.

4. Operating Instructions

This section guides you through the basic operation of your Daewoo washing machine.

4.1 Control Panel Overview

Figure 4.1: Detailed view of the control panel, showing the program dial, LED display, and touch buttons.

• Program Dial: Used to select the desired washing program. Turn the dial to align the indicator with the program name.
• LED Display: Shows program duration, selected options, error codes, and remaining time.
• Temp. (Temperature) Button: Adjusts the wash water temperature.
• Schleudern (Spin) Button: Modifies the spin speed or selects no spin.
• Startzeitvorwahl (Delay Start) Button: Sets a delayed start time for the wash cycle.
• Dampf (Steam) Button: Activates the steam function for certain programs.
• Anti-Allergie (Anti-Allergy) Button: Selects the anti-allergy option for enhanced rinsing.
• Start/Pause Button: Starts, pauses, or cancels a wash cycle.

4.2 Washing Cycle Steps

1. Prepare Laundry: Sort laundry by fabric type, color, and soil level. Check pockets and close zippers/buttons.
2. Load Laundry: Open the drum door and load the laundry, ensuring not to overload the machine. Close the door firmly.
3. Add Detergent: Pull out the detergent drawer and add the appropriate amount of detergent and fabric softener to their respective compartments.
4. Select Program: Turn the program dial to choose the desired washing program (e.g., Cotton, Eco 40-60, Mix, Synthetics, Wool, Quick Wash).
5. Adjust Settings (Optional): Use the touch buttons to adjust temperature, spin speed, or select additional functions like Delay Start, Steam, or Anti-Allergy, if available for the selected program.
6. Start Cycle: Press the Start/Pause button to begin the wash cycle. The LED display will show the remaining time.
7. End of Cycle: The machine will automatically stop and signal the end of the cycle. The door will unlock after a short delay. Remove laundry promptly.

4.3 Available Programs

The washing machine offers a variety of programs for different needs:

• Baumwolle (Cotton): For cotton items.
• Eco 40-60: Energy-efficient program for normally soiled cotton garments washable at 40°C or 60°C.
• Dunkel / Jeans (Dark / Jeans): Specific program for dark colored clothes and denim.
• Mix: For mixed loads of different fabric types.
• Synthetik (Synthetics): For synthetic fabrics.
• Hand-/Feinwäsche (Hand/Delicates): For delicate items requiring gentle care.
• Schleudern / Abpumpen (Spin / Drain): For draining water and spinning laundry without a wash cycle.
• Anti-Allergie (Anti-Allergy): Enhanced rinse cycle for allergy sufferers.
• Wolle (Wool): Gentle program for wool items.
• Spülen (Rinse): An extra rinse cycle.
• Extrakurz 15' (Extra Short 15'): Quick wash for lightly soiled items.
• Kurz 60' (Short 60'): A 60-minute quick wash program.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your washing machine.

5.1 Cleaning the Detergent Drawer

Residue can build up in the detergent drawer. Clean it regularly to prevent blockages.

1. Pull the detergent drawer out completely.
2. Remove any removable inserts and rinse all compartments under running water.
3. Use a brush to remove stubborn residue.
4. Wipe the drawer housing clean.
5. Reinsert the components and push the drawer back into place.

5.2 Cleaning the Drum and Door Seal

• After each wash, wipe the inside of the drum door and the rubber door seal with a damp cloth to remove any lint or residue.
• Leave the door slightly ajar after use to allow the drum to air dry and prevent odors.
• Periodically run a maintenance wash (e.g., a hot cycle with no laundry and a descaling agent or washing machine cleaner) to clean the drum.

5.3 Cleaning the Drain Filter

The drain filter collects lint and small objects. Clean it periodically to ensure proper drainage.

1. Place a shallow container under the filter cover (usually at the bottom front of the machine) to catch any residual water.
2. Open the filter cover.
3. Slowly unscrew the filter counter-clockwise until water starts to drain.
4. Once all water has drained, fully remove the filter and clean it under running water.
5. Check the filter housing for any foreign objects.
6. Screw the filter back in clockwise and close the cover.

5.4 Exterior Cleaning

Wipe the exterior surfaces of the machine with a soft, damp cloth. Do not use abrasive cleaners or solvents.

6. Troubleshooting

Before contacting customer service, try the following solutions for common issues:

7. Specifications

Technical specifications for the Daewoo WM814TTWA1DE washing machine:

For detailed energy information, refer to the official EPREL database: https://eprel.ec.europa.eu/qr/1510873

Figure 7.1: Energy label for the Daewoo WM814TTWA1DE, showing energy efficiency, capacity, and consumption data.

8. Warranty and Support

8.1 Product Warranty

This Daewoo washing machine comes with a 24-month warranty from the date of purchase, covering manufacturing defects. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by improper installation, misuse, or normal wear and tear.

8.2 Customer Support

For technical assistance, spare parts, or warranty claims, please contact Daewoo customer service. Refer to the contact information provided with your purchase documentation or visit the official Daewoo website for support details.

Manufacturer: Daewoo

Model: WM814TTWA1DE
